Q9GVP-122.4GHz 40 Channel Analog Modulation Cordless Phone

1.877.4VPULSE or www.virginpulse.com 1.877.4VPULSE or www.virginpulse.com IMPORTANT SAFETY INSTRUCTIONS Some of the following information may not apply to your particular product; however, when using telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1.Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3 . Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Telephones should not be used while you are in a bathtub, shower or pool. Immersion of the telephone or handset in water could cause an electrical shock. 5. Slots and openings in the cabinet back or bottom are provided for ventilation, to protect it sfrom overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation unless proper ventilation is provided. 6. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 7.Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 8. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 9. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 10. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified serviceman when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re- assembly can cause electric shock when the telephone equipment is subsequently used. 11.Do not expose the product to extreme temperatures such as areas near a hot radiator or stove or in a hot car. 12. Do not place lighted candles, cigarettes, cigars, etc., on the telephone. 13. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 14. Never install or modify telephone wiring during a lightning storm. 15. Never install telephone jacks in wet locations unless the jack is specifically designed forwet locations. 1.877.4VPULSE or www.virginpulse.com 16. Use caution when installing or modifying telephone lines to prevent electrical shock and/or fire. 17. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If the product has been exposed to rain or water. C. If the product does not operate normally byfollowing the operating instructions. D. If the product’s cabinet has been damaged. E. If the product exhibits a distinct change in performance. 18. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 19. Do not use the telephone to report a gas leak in the vicinity of the leak. 20. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product. IF YOUR PRODUCT UTILIZES BATTERIES, THE FOLLOWING ADDITIONAL PRECAUTIONS SHOULD BE OBSERVED: Risk of explosion if battery is replaced by an incorrect type, 1.Risk of explosion if battery is replaced by an incorrect type, use only the type and size battery(ies) specified in the user manual: GPI Internation Ltd. 3.6V 600mA NI-MH GP60AAAH3BMJ. 2. Do not dispose of the battery(ies) in fire. They may explode.Check with local codes for possible special disposal instructions. 3. Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 4. Exercise care in handling battery(ies) in order not to short out the battery(ies) with conducting materials such as rings, bracelets, and keys. The battery(ies) or conductor may overheat and cause burns. 5. Do not attempt to recharge the battery(ies) provided with or identified for use with this product that are not intended to be charged. The battery(ies) may leak corrosive electrolyte or explode. 6. Do not attempt to rejuvenate the battery(ies) provided with or identified for use with this product by heating them. Sudden release of the battery(ies) electrolyte may occur causing burns or irritation to eyes or skin. 1.877.4VPULSE or www.virginpulse.com 7.When replacing battery(ies), all batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and rupture the dischargedbattery(ies). (Applies to products employing more than one separately replaceable primary battery.) 8. When inserting battery(ies) into this product, the proper polarity or direction must be observed. Reverse insertion of battery(ies) can cause charging, and that may result in leakage or explosion. 9. Remove battery(ies) from this product if storing over 30 days because the battery(ies) could leak and damage the product. 10. Discard dead battery(ies) as soon as possible since “dead” batteries are more likely to leak in a product. 11.Do not store this product, or the battery(ies) provided with or identified for use with this product, in high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be protected from condensation during storage and defrosting. Batteries should be stabilized at room temperature prior to use after cold storage. 12. If your product uses r…

Text truncated - open the document above for the full version.

1.877.4VPULSE or www.virginpulse.com Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1.Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes This equipment may not be used on coin service provided by the telephone company. •Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. •Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. •If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. 2. Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. EQUIPMENT APPROVAL INFORMATION 1.877.4VPULSE or www.virginpulse.com The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. This product meets the applicable Industry Canada technical specifications. HEARING AID COMPATIBILITY This telephone system meets FCC standards for Hearing Aid Compatibility. US Number is located on the bottom of the base unit REN NUMBER IS LOCATED ON THE BOTTOM OFTHE BASE UNIT. CAUTION: When using telephone equipment, there are basic safety instructions that should always be followed. Refer to the IMPORTANT SAFETY INSTRUCTIONS provided with this product and save them for future reference. 1.877.4VPULSE or www.virginpulse.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). •Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. •Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. INTERFERENCE INFORMATION

vg7938BBDV0D.sch-1 - Wed May 28 20:27:15 2003 VG7938HBDV0F.sch-1 - Wed May 28 20:29:47 2003 rf-module BLOCK-1.sch-1 - Thu Jul 03 09:53:00 2003

External photos FCC ID: Q9GVP-12 External photos FCC ID: Q9GVP-12

Internal photos FCC ID: Q9GVP-12 Base assembly (View 1) Base assembly (View 2) Internal photos FCC ID: Q9GVP-12 Base Main PCB comp side (View 1) Base Main PCB comp side (View 2) Internal photos FCC ID: Q9GVP-12 Base Main PCB solder side Base Oscillator PCB comp side (View 1) Internal photos FCC ID: Q9GVP-12 Base Oscillator PCB comp side (View 2) Base Oscillator PCB comp side (View 3) Internal photos FCC ID: Q9GVP-12 Base Oscillator PCB solder side Handset assembly Internal photos FCC ID: Q9GVP-12 Handset Main PCB comp side (View 1) Handset Main PCB comp side (View 2) Internal photos FCC ID: Q9GVP-12 Handset Main PCB display side Handset MCU PCB comp side Internal photos FCC ID: Q9GVP-12 Handset MCU PCB solder side Handset Oscillator PCB comp side (View 1) Internal photos FCC ID: Q9GVP-12 Handset Oscillator PCB comp side (View 2) Handset Oscillator PCB comp side (View 3) Internal photos FCC ID: Q9GVP-12 Handset Oscillator PCB solder side

Circuit Description for VG7938 This is a 2400MHz ISM Band cordless telephone for domestic use. Radio transmitter with FM technology provides greater mobility to the user within approximately 150 meters radius around the base. Following paragraphs describe the detail of major building blocks. 1. Ringer Detection a. Base Incoming ringer signal is first attenuated by C60, Z2, Z3 and R60. The signal is then feed to micro-controller (MCU) U1 for generating response signal according to the setting of inputs. When the ringer switch is set to on position MCU sends digitally coded information to handset via RF link. b. Handset When digitally coded information is received from the base it will be decoded at MCU U2. Then necessary ringer is generated and applied to Q10, which drive the Buzzer BP2. 2. Surge protection The surge absorber V1 is mounted in the Base unit. It designed to operate when voltage over 330V. In general it is common to have induced surges in the telephone line due to lightening. If it allow entering the unit damage to the unit is imminent. The line interface, fuse and ringer detected circuit is most venerable to high voltage surges and V1 surge absorber can prevent it. 3. Line control When the unit is operated by remote handset, line control is done by MCU. It turns on transistor Q11. Then telephone line power feeds to line interface circuit (Q8, Q9), turn on the telephone line and internal voice path, and around component. 4. Power Control a. Base unit The main power is come from AC/DC adaptor, which provide 12V DC to the unit. Inside the unit there are two different voltages available for different modules. 12V non-back up voltage is supplied to the audio amplifier. Radio part, MCU and line interface related circuit is supplied with non-backup regulated 5V voltage. b. Handset Three cells of Ni-MH battery(3.6V) provided necessary power to the handset. In order to keep power consumption to minimum, the radio receiver is turn on and off periodically by MCU with Q1 and Q2. The MCU is supplied with regulated 3.6V by U3. 5 Radio Module Both handset and base use 2400MHz ISM band analogue radio that transmits and receive signal in full duplex mode. Audio and data signal is FM modulated before transmitting from the module. The radio module is fully cover with shield plate in order to minimize interference to other equipment. The two metal antennas are permanently attached to the RF module. For detail please refer to the block diagram. F1 :Band Pass Filter X1 :2.4G Linear Amplifier M1 :2.4GHz Mixer F2 :Band Pass Filter 10.7MHz X2 :IF Amplifier F3 :Band Pass Filter 10.7MHz IC1 :FM IF Receiver IC2 :PLL VC1 :RX VCO X3 :2.4GHz Buffer Amplifier VC2 :TX VCO X4 :2.4GHz Drive Amplifier X5 :2.4GHz Power Amplifier F4 :Band Pass Filter rf-module BLOCK-1.sch-1 - Thu Jul 03 09:53:00 2003 2.4G FREQUENCY TABLE CHB/U TXB/U RXH/S TXH/S RX 12402.7990392474.2490062474.249012402.799043 22402.8490392474.2990062474.299012402.849043 32402.8990392474.3490062474.349012402.899043 42402.9490392474.3990062474.399012402.949043 52402.9990392474.4490062474.449012402.999043 62403.0490392474.4990062474.499012403.049043 72403.0990392474.5490062474.549012403.099043 82403.1490392474.5990062474.599012403.149043 92403.1990392474.6490062474.649012403.199043 102403.2490392474.6990062474.699012403.249043 112403.2990392474.7490062474.749012403.299043 122403.3490392474.7990062474.799012403.349043 132403.3990392474.8490062474.849012403.399043 142403.4490392474.8990062474.899012403.449043 152403.4990392474.9490062474.949012403.499043 162403.5490392474.9990062474.999012403.549043 172403.5990392475.0490062475.049012403.599043 182403.6490392475.0990062475.099012403.649043 192403.6990392475.1490062475.149012403.699043 202403.7490392475.1990062475.199012403.749043 212403.7990392475.2490062475.249012403.799043 222403.8490392475.2990062475.299012403.849043 232403.8990392475.3490062475.349012403.899043 242403.9490392475.3990062475.399012403.949043 252403.9990392475.4490062475.449012403.999043 262404.0490392475.4990062475.499012404.049043 272404.0990392475.5490062475.549012404.099043 282404.1490392475.5990062475.599012404.149043 292404.1990392475.6490062475.649012404.199043 302404.2490392475.6990062475.699012404.249043 312404.2990392475.7490062475.749012404.299043 322404.3490392475.7990062475.799012404.349043 332404.3990392475.8490062475.849012404.399043 342404.4490392475.8990062475.899012404.449043 352404.4990392475.9490062475.949012404.499043 362404.5490392475.9990062475.999012404.549043 372404.5990392476.0490062476.049012404.599043 382404.6490392476.0990062476.099012404.649043 392404.6990392476.1490062476.149012404.699043 402404.7490392476.1990062476.199012404.749043

baserf3-7.sch-1 - Tue Jan 14 17:46:57 2003 handf3-7.sch-1 - Tue Jan 14 17:49:07 2003

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: Q9GVP-12 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Virgin Pulse LLC Application For Certification 2.4GHz 40 Channel Analog Modulation Cordless Phone with Caller ID (FCC ID: Q9GVP-12) WO# 03084031 TL/Ann Choy June 30, 2003 INTERTEK TESTING SERVICES FCC ID: Q9GVP-12 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Security Code Information INTERTEK TESTING SERVICES FCC ID: Q9GVP-12 ii MEASUREMENT/TECHNICAL REPORT Virgin Pulse LLC - MODEL: VP-12 FCC ID: Q9GVP-12 This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [ 08-20-02 Edition ] Provision. Report prepared by: Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: Q9GVP-12 iii Table of Contents 1.0 General Description .........................................................................................................2 1.1 Product Description .........................................................................................................2 1.2 Related Submittal(s) Grants ............................................................................................3 1.3 Test Methodology............................................................................................................3 1.4 Test Facility .....................................................................................................................3 2.0 System Test Configuration .................................................................................................5 2.1 Justification ......................................................................................................................5 2.2 EUT Exercising Software................................................................................................5 2.3 Support Equipment List and Description........................................................................6 2.4 Measurement Uncertainty ...............................................................................................7 2.5 Equipment Modification..................................................................................................7 3.0 Emission Results ..................................................................................................................9 3.1 Field Strength Calculation .............................................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit ..........................................11 3.3 Radiated Emission Data - Base Unit .............................................................................12 3.4 Radiated Emission Configuration Photograph - Handset.............................................15 3.5 Radiated Emission Data - Handset................................................................................16 3.6 Radiated Emission on the bandedge .............................................................................19 3.7 Line Conducted Configuration Photograph - Base Unit ..............................................21 3.8 Line Conducted Emission Data - Base Unit .................................................................22 4.0 Equipment Photographs ...................................................................................................25 5.0 Product Labelling ..............................................................................................................27 6.0 Technical Specifications ....................................................................................................29 7.0 Instruction Manual ............................................................................................................31 8.0 Security Code Information ...............................................................................................33 INTERTEK TESTING SERVICES FCC ID: Q9GVP-12 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission for Base config photos.doc Test Setup Photo Radiated Emission for Handset config photos.doc Test Report Emission Plot emission.pdf Test Setup Photo Conducted Emission config photos.doc Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf User Manual FCC Information fcc information.pdf INTERTEK TESTING SERVICES FCC ID: Q9GVP-12 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: Q9GVP-12 2 1.0 General Description 1.1 Product Description The VP-12 is a 2.4GHz 40 Channel Analog…

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO Report No.:03084031 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:03084031 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Intertek Testing Services ETL SEMKO Report No.:03084031 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:03084031 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

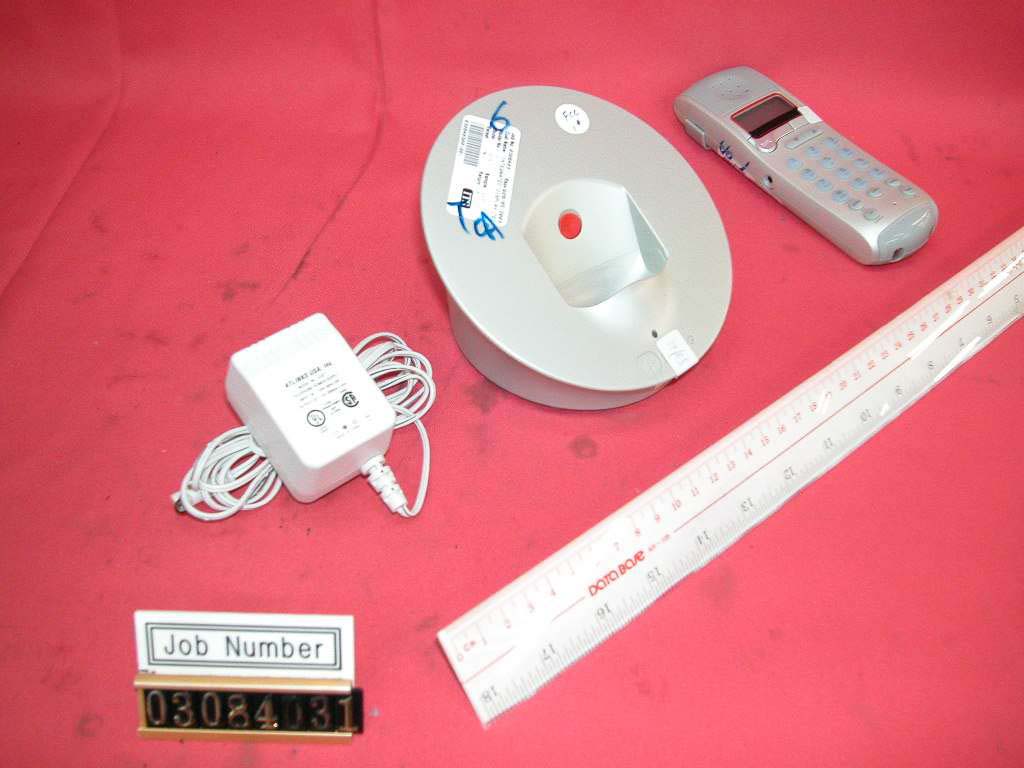

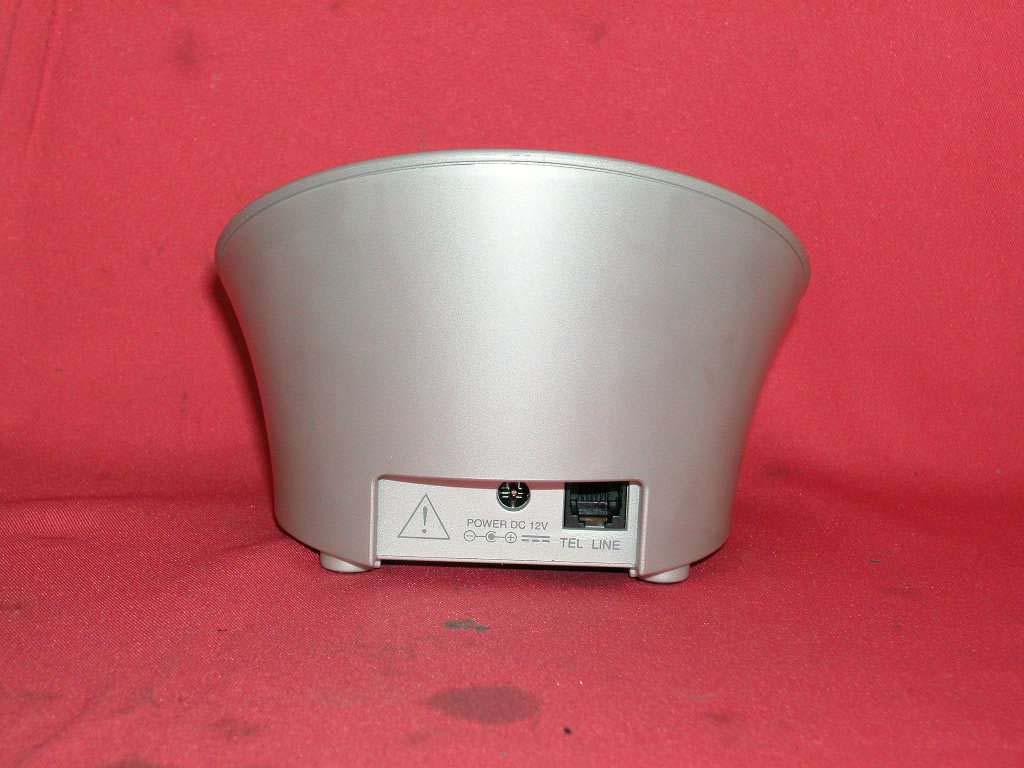

The Worst Case Configuration Photographs FCC ID: Q9GVP-12 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: Q9GVP-12 Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: Q9GVP-12 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: Q9GVP-12 Conducted Emission Side View

The Worst Case Configuration Photographs FCC ID: Q9GVP-12 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: Q9GVP-12 Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: Q9GVP-12 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: Q9GVP-12 Conducted Emission Side View
