QAAMI-2410RXRemote Control

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 10, 2002 RE: FCC ID: QAAMI2410RX I have a few comments on this Application. 1 Please note that your operational description is not clear. It appears that the description is saying that an ASK modulated signal is being radiated at 433 MHz through this device. This is not allowed under 15.231 at the levels measured in your report. 15.231(a) is for periodic operation only. 15.231(a) states, ‘Except as shown in paragraph (e) of this section, the intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc.... Continuous transmissions, such as voice or video, and data transmissions are not permitted.” This means that absolutely no data except that which initiates a response in the receiver may be transmitted under this section. Data may only be transmitted under 15.231(e). However, under this section the limit is significantly lower than that of 15.231(a/b). Please clarify if this device transmits ASK modulated data or only a control code to initiate a response in a receiver. 2 If the device transmits only control codes, the report does not indicate that a sampling of these codes was performed to determine the worse case code arrangement. Please provide evidence that an attempt was made to determine the worse case code. 3 Please provide the calibration dates for the measurement equipment used in the test report for this device. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

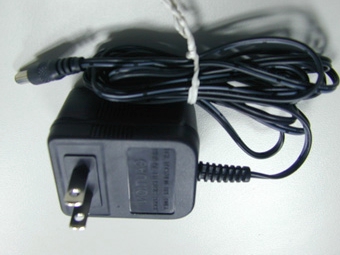

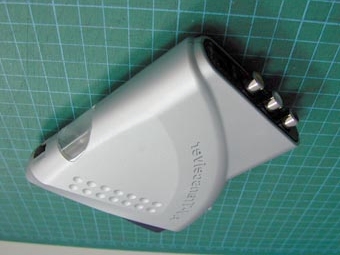

IR Senser TV DC Jack 433.92MHz Tx 2.4GHz A/V Rx DVD Remote Control Receiving Unit Audio LR Video Description: (1) The receiving unit is to receive the 2.4 GHz A/V ( RF) signal and output to TV by cable cables. (2) This unit also receive IR signal, for example; IR is from DVD remote controller, and transmit a 433MHz RF signal to another 433MHz receiver ( that is build in 2.4 GHz Transmitting unit). (3) This 433MHz RF signal is for Channel selection controlling, the transmitting is designed with auto disable function within one second.

Correspondence Subject: Re: FCC ID:QAAMI-2410RX Date: Tue, 16 Apr 2002 09:27:16 -0700 From: Dennis Ward <[email protected]> To: [email protected] CC: JT Chen ITS/EMC-TPE <[email protected]> BCC: Bill Graff <[email protected]> References: 1 Hello Mr Chen I got the information you sent, however, in the email I commented that, "the schematic diagram show both audio and video inputs of what appears to be the final transmit section of the RX." This would indicate that, inspite of the Report comment that the device only transmits control codes, there is a possible capability of this 433 MHz transmitter to transmit audio and video signals. The RX transmitter module is even called the "AVMODULE_RX". Thus further indicating Audio/Video capability. This is not allowed. Please address this concern by showing how these audio and video inputs are deactivated and only control codes are transmitted, or please show on the schematic how they are not applicable to the 433MHz control code only transmission. These concerns must be addressed before the device can be granted. Thank you for your patience and quick response to these matters. Elton Chan wrote: Dear Sir, Base on your comment, the manufacturer has corrected the Block diagram and Circuit description as attache files.I hope the files are clear for your review.<?XML:NAMESPACE PREFIX = O />If you have any question, please contact with me.Best Regards Elton ChenETL Semko TWN EMC Lab Tel +886-3-519-1411 Ext 309 Fax +886-3-519-1410 E-mail: [email protected] Subject: Re: FW: FCC ID: QAAMI-2410RX Date: Fri, 12 Apr 2002 12:05:02 -0700 From: Dennis Ward <[email protected]> To: [email protected] CC: [email protected], "Elton Chan (EMC) ITS/EMC-TPE" <[email protected]> References: 1 Thank you for your response. However, there is still a point of confusion on this device. The operational description states that the RX transmitter sends a 433 MHz control code, however, the block diagram only shows the receive antenna for this 433 MHz signal. To further cloud the issue, While this block diagram shows only the receive portion of the 433 MHz, the schematic diagram show both audio and video inputs of what appears to be the final transmit section of the RX. It is not clear from the schematic nor the block diagram what the frequencies are. CFR47 2.1033 states the following must be provided, "A block diagram showing the frequency of all oscillators in the device. The signal path and frequency shall be indicated at each block." Neither the block diagram nor the schematic shows this information. Please provide this information so processing of the application can proceed. Sincerely Dennis Ward "J.T Chen" wrote: Dear Dennis Elton (he is EMC Supervisor) has reply this mail to you,but it was rejected by unknown reason, therefore I re-send again.I hope you can receive it and review.Thanks and Regards,JT ChenManager EMC Lab.ITS ETL-SEMKO Taiwan. -----Original Message----- From: Elton Chan [mailto:[email protected]] Sent: Thursday, April 11, 2002 7:39 PM To: [email protected] Cc: JT Chen ITS/EMC-TPE Subject: Re: FCC ID: QAAMI-2410RX Dear Sir, I'm a supervisor of ITS ETL SEMKO Taiwan, EMC Lab.The FCC report hase been revised base on your comments. We modify the 433.92MHz operational description in the page 4 section 1.2and operation mode page5 section 2.2. The calibration dates have added on the report. I hope this modification is clear for your review.If you have any question, please contact with me.Best Regards Elton ChenETL Semko TWN EMC Lab Tel +886-3-519-1411 Ext 309 Fax +886-3-519-1410
































































































Intertek Testing Services ETL SEMKO FCC ID. : QAAMI-2410RX Report No.: EME-020269 Page 1 of 13 EMC TEST REPORT Report No.: EME-020269 Model No.: MI-2410IRN(RX) Issued Date: Mar. 26, 2002 Applicant: Million Increase Telecom International Co., Ltd. 11-2FL, No. 147, Yang-Ho RD, Sec.2, Yang-Ho City, Taipei, Taiwan R.O.C. Test By: Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan, R.O.C. This test report consists of 13 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Kaysi Chen Tested ByApproved By Reviewed By Elton Chen Intertek Testing Services ETL SEMKO FCC ID. : QAAMI-2410RX Report No.: EME-020269 Page 2 of 13 Table of Contents Summary of Tests.............................................................................................................3 1. General information......................................................................................................4 1.1 Identification of the EUT........................................................................................4 1.2 Additional information about the EUT...................................................................4 1.3 Antenna description................................................................................................4 2. Test specifications.........................................................................................................5 2.1 Test standard...........................................................................................................5 2.2 Operation mode......................................................................................................5 2.3 Test equipment........................................................................................................6 3. Conducted emission test FCC 15.207..........................................................................7 3.1 Operating environment...........................................................................................7 3.2 Test setup & procedure...........................................................................................7 3.3 Emission limit.........................................................................................................7 3.4 Conducted emission data FCC 15.207...................................................................8 4. Radiated emission test FCC 15.231 (b)........................................................................9 4.1 Operating environment...........................................................................................9 4.2 Test setup & procedure...........................................................................................9 4.3 Radiated emission limit........................................................................................10 4.3.1 Fundamental and harmonics emission limits....................................................10 4.3.2 General radiated emission limit.........................................................................10 4.4 Radiated emission test data FCC 15.231..............................................................11 4.4.1 Fundamental & Harmonics Radiated Emission Data........................................11 4.7 Measured bandwidth FCC 15.231(C)...................................................................13 Intertek Testing Services ETL SEMKO FCC ID. : QAAMI-2410RX Report No.: EME-020269 Page 3 of 13 Summary of Tests Model: MI-2410IRN(RX) FCC ID: QAAMI-2410RX TestReferenceResults Conducted Emission of AC Power15.207Complies Radiated Emission test15.231(b), 15.209Complies Measured bandwidth15.231(c)Complies Intertek Testing Services ETL SEMKO FCC ID. : QAAMI-2410RX Report No.: EME-020269 Page 4 of 13 1. General information 1.1 Identification of the EUT Manufacturer: Million Increase Telecom International Co., Ltd. Product: Frogfish Model No.: MI-2410IRN(RX) FCC ID.: QAAMI-2410RX Frequency Range: 433.92MHz Channel Number: 1 channels Frequency of each channel: 433.92MHz Type of Modulation: ASK Power Supply: 120Vac, 60Hz with adapter (AD-0930M) Power Cord: N/A Sample Received: Mar. 18, 2002 Test Date(s): Mar. 19, 2002 to Mar. 22, 2002 A DoC report has been generated for the client. 1.2 Additional information about the EUT The main function of MI-2410IRN Video Sender is to receive the video and audio signals from transmitter unit by 2.4GHz RF signal and the RF remote control function is to cover the infrared signal to be a 433.92MHz RF signal, which can extend the effective transmitter range of infrared remote controller. The 433.92MHz RF signal is only for sending the control code to initiate the link function between the transmitter and receiver. For more detail features, please refer to user's Manual. 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: -10dBi max Antenna Type: Wire 1.4 Peripherals equipment PeripheralsManufacturerProduct No.Serial No.FCC ID MonitorAculaDCT-10CP00101713 FCC DoC Approved Intertek Testing Services ETL SEMKO FCC ID. : QAAMI-2410RX Report No.: EME-020269 Page 5 of 13 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section 15.231. The AC power conducted emissions was invested over the frequency range from 0.45MHz to 30MHz using a receiver bandwidth of 9kHz. (15.207 paragraph) Radiated testing was performed at an antenna to EUT distance of 3 meters. The EUT setup configurations please refer to the photo of test configuration in item. 2.2 Operation mode Get the EUT connected to a monitor with a 1.2 meter length RCA cable. Then power on the EUT and monitor. The EUT is designed with automatic disable the transmitting function within 1 second when normal use. For …
