QAEIL-1513A15" LCD Monitor

ADview Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Apr 08, 2002
Application Purpose: Original Equipment
Date of Application: Apr 08, 2002
Equipment Note: 15" LCD Monitor
Company: ADview Technology Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Users Manual

Test Report

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

Test Report No.: GETEC-E3-02-010 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM EUT Type: 15” LCD Monitor FCC ID : QAEIL-1513A SCALER (MTL005F) P A N E L INVERTER Micro Controller Unit MTV230M64 IL-1513A Block Diagram AC INPUT 100~240V ac, 50/60Hz PDE PVS PHS (R,G,B) X 6bit DA T A CLK R,G,B V i deo Input (R,G,B,H,V , DDC(SCL,SDA)) (R,G,B)X8bit ADC (AD9883A) SMPS TTL (74HCT04) H/V SYNC. H Sy nc OUT H SYNC 1 V SYNC 1 H SYNC 2 V SYNC 2 PCLK EEPROM (24C08) IIC(SCL/SDA) X-T A L (14.318MHz) OSD R,G,B, EN OSD Sy nc(H/V), CLK +12Vdc DC-DC CONVERTER + 5 V STBY +3. 3 V P ANEL ON/OFF RESET LCD VDD (+3.3V) LED POWER S/W OSD S/W BL_ON/OFF BRIGHTNESS X-T A L (12MHz) DDC(SCL,SDA)

External Photos

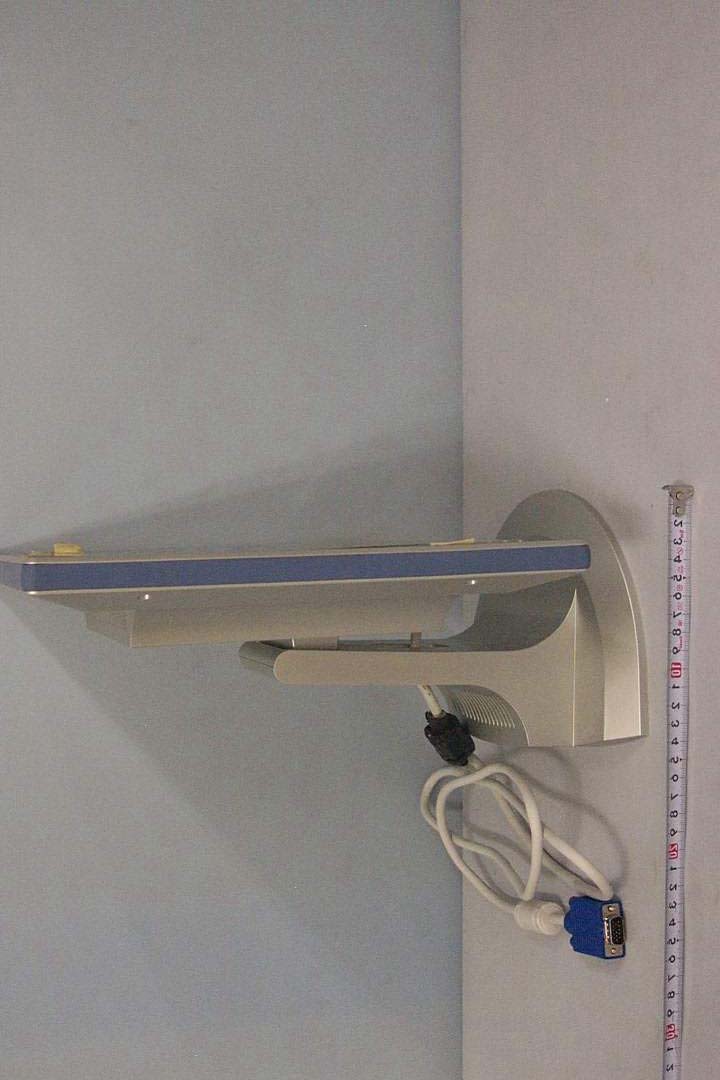

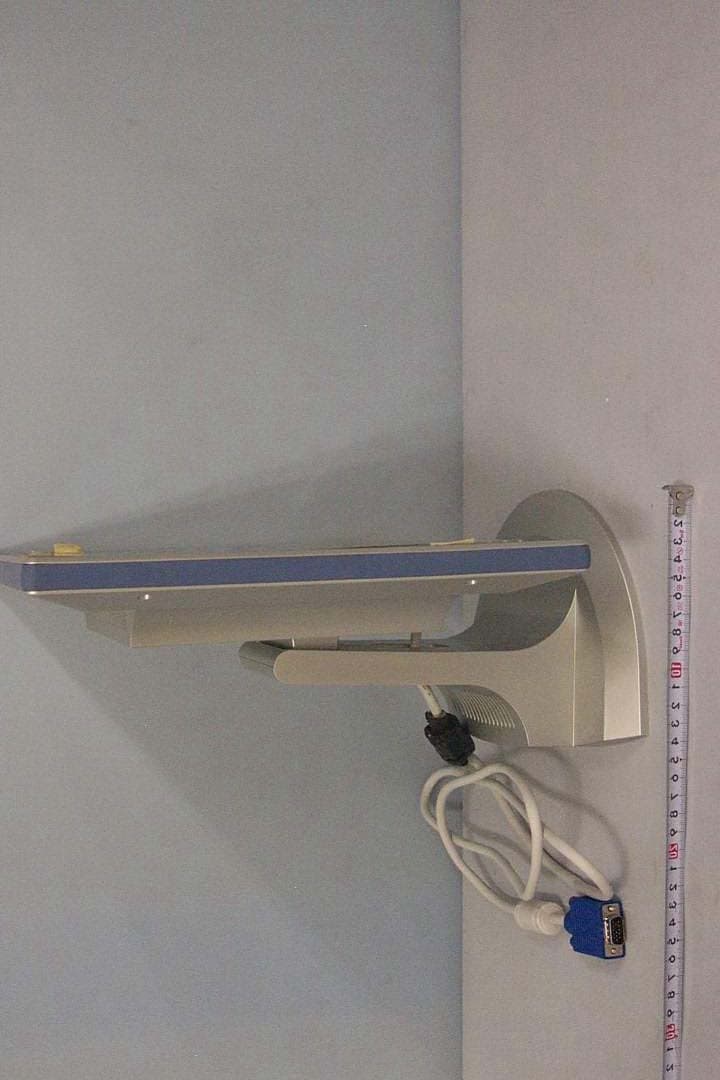

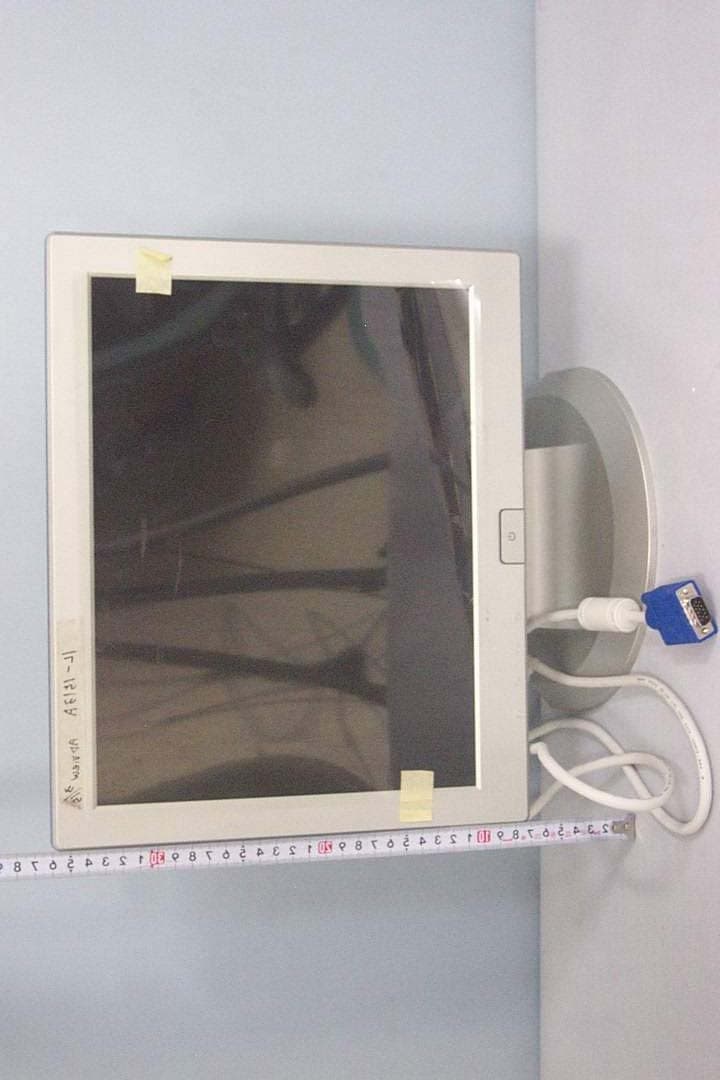

Test Report No.: GETEC-E3-02-010 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 15” LCD Monitor FCC ID : QAEIL-1513A Test Report No.: GETEC-E3-02-010 FCC Class B Certification EUT Type: 15” LCD Monitor FCC ID : QAEIL-1513A Test Report No.: GETEC-E3-02-010 FCC Class B Certification EUT Type: 15” LCD Monitor FCC ID : QAEIL-1513A Test Report No.: GETEC-E3-02-010 FCC Class B Certification EUT Type: 15” LCD Monitor FCC ID : QAEIL-1513A
