QAJYPZ120-1Self-Ballasted Lamps for General Lighting

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1. Use only on 120 volt, 60 hertz. 2. Never disassemble or modify-any changes could void the user’s authority to operation this device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock-do not use where directly exposed to water. 5. This device is not intended for use with emergency exit fixtures or emergency exit lights. 6. This product could produce interference when used near 1 TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. If interference should occur, move the lamp away from the appliance of three feet or more. Or, plug the lamp or the appliance into a different outlet. 7. To prevent burns, do not touch the bulb during operation or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

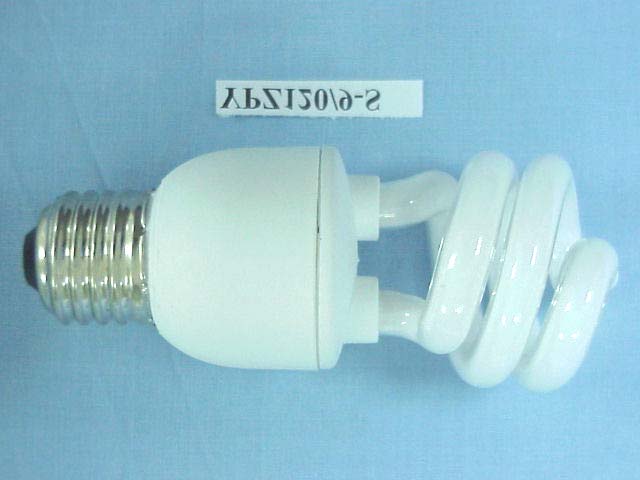

F IGURE 1 S ELF -B ALLASTED L AMPS FOR G ENERAL L IGHTING (M/N: YPZ120/9-S • RR (RN ﹑ RD) • D • U) G ENERAL A PPEARANCE F IGURE 2 S ELF -B ALLASTED L AMPS FOR G ENERAL L IGHTING (M/N: YPZ120/11-S • RR (RN ﹑ RD) • D • U) G ENERAL A PPEARANCE YPZ120/9-S•RR (RN﹑RD)•D•U YPZ120/11-S • RR (RN ﹑ RD) • D • U

Label Drawing FCC ID: QAJYPZ120-1

Label Location Information Refer to the below red arrow: (for example) YPZ120/9-S•RR (RN﹑RD)•D•U

F IGURE 1 S ELF -B ALLASTED L AMPS FOR G ENERAL L IGHTING (M/N: YPZ120/9-S • RR (RN ﹑ RD) • D • U) C OVER R EMOVED YPZ120/9-S•RR (RN﹑RD)•D•U F IGURE 2 S ELF -B ALLASTED L AMPS FOR G ENERAL L IGHTING (M/N: YPZ120/9-S • RR (RN ﹑ RD) • D • U) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 S ELF -B ALLASTED L AMPS FOR G ENERAL L IGHTING (M/N: YPZ120/9-S • RR (RN ﹑ RD) • D • U) M AIN B OARD (S OLDERED S IDE ) YPZ120/9-S • RR (RN ﹑ RD) • D • U YPZ120/9-S • RR (RN ﹑ RD) • D • U F IGURE 4 S ELF -B ALLASTED L AMPS FOR G ENERAL L IGHTING (M/N: YPZ120/11-S • RR (RN ﹑ RD) • D • U) C OVER R EMOVED YPZ120/11-S • RR (RN ﹑ RD) • D • U F IGURE 5 S ELF -B ALLASTED L AMPS FOR G ENERAL L IGHTING (M/N: YPZ120/11-S • RR (RN ﹑ RD) • D • U) M AIN B OARD (C OMPONENT S IDE ) F IGURE 6 S ELF -B ALLASTED L AMPS FOR G ENERAL L IGHTING (M/N: YPZ120/11-S • RR (RN ﹑ RD) • D • U) M AIN B OARD (S OLDERED S IDE ) YPZ120/11-S • RR (RN ﹑ RD) • D • U YPZ120/11-S • RR (RN ﹑ RD) • D • U

Schematics M/N: YPZ120/9-S • RR (RN ﹑ RD) • D • U , YPZ120/11-S • RR (RN ﹑ RD) • D • U

Shanghai Yaming Lighting Co., Ltd. FCC ID: QAJYPZ120-1 Page 1 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02032 Application for FCC Certificate On Behalf of Shanghai Yaming Lighting Co., Ltd. Self-Ballasted Lamps for General Lighting Model No.: YPZ120/9-S•RR (RN﹑RD)•D•U YPZ120/11-S•RR (RN﹑RD)•D•U FCC ID: QAJYPZ120-1 Prepared For : Shanghai Yaming Lighting Co., Ltd. 1001 Jia Xin Road, Malu Town, Jia Ding District, Shanghai, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F02032 Date of Test : Mar 05-06, 2002 Date of Report : Mar 28, 2002 Shanghai Yaming Lighting Co., Ltd. FCC ID: QAJYPZ120-1 Page 2 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02032 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELDSTRENGTH TEST ..............................................................................................................9 3.1 Test Equipment........................................................................................................................... 9 3.2 Block Diagram of Test Setup ..................................................................................................... 9 3.3 Test Configuration...................................................................................................................... 9 3.4 Operating Condition of EUT ...................................................................................................... 9 3.5 Test Procedure .......................................................................................................................... 10 3.6 Test Result ................................................................................................................................ 10 Shanghai Yaming Lighting Co., Ltd. FCC ID: QAJYPZ120-1 Page 3 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02032 TEST REPORT FOR FCC CERTIFICATE Applicant : Shanghai Yaming Lighting Co., Ltd. Manufacturer : Shanghai Yaming Lighting Co., Ltd. EUT Description : Self-Ballasted Lamps for General Lighting (A) Model No.: (B) Serial No.: YPZ120/9-S•RR (RN﹑RD)•D•U E030103 YPZ120/11-S•RR (RN﹑RD)•D•U E030104 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Mar 05-06, 2002 Prepared by : Test Engineer : STELLA TANG (Assistant) LORENZO CHEN (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) Shanghai Yaming Lighting Co., Ltd. FCC ID: QAJYPZ120-1 Page 4 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02032 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Self-Ballasted Lamps for General Lighting Type of EUT : ; Production … Pre-product … Pro-type Model Number : YPZ120/9-S•RR (RN﹑RD)•D•U YPZ120/11-S•RR (RN﹑RD)•D•U Serial Number : E030103 E030104 Applicant : Shanghai Yaming Lighting Co., Ltd. 1001 Jia Xin Road, Malu Town, Jia Ding District, Shanghai, China Manufacturer : Shanghai Yaming Lighting Co., Ltd. 1001 Jia Xin Road, Malu Town, Jia Ding District, Shanghai, China Test Model Apparent Power (V ̇ A) Real Power (W) YPZ120/9-S 19.0 9.8 YPZ120/11-S 24.4 13.8 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Federal Communications Commission FCC Engineering Laboratory 7435 Oakland Mills Road Columbia, MD 21046, USA Name of Firm : Audix Technology (Shangha…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test 2. Field strength Test
