Raze Technologies, Inc. SkyFire™ Remote Modem (RM) Installation RAZE 12-10-EN-0304-01, Draft B 7 November 2001 Page 1 SkyFire Remote Modem (RM) Installation 1.0 General 1.1 Purpose This method will step through the power verification and power-up procedures of the Raze Technologies SkyFire™ Remote Modem (RM). In addition this method will outline the power verification of the Argus Technologies RSM 48/10 Modular Switched Mode Rectifier. 1.2 Scope The scope of this document is to outline the procedures for the proper installation of the Remote Modem (RM) and associated equipment ensuring a level of consistency thereby minimizing any discrepancies upon power-up and operation. 1.3 Applications This method applies to initial installations and extensions for the following models: 1. RZ-BASECH 2.0 Reference Documentation 12-10-EN-0301-01, “SkyFire™, Power, Ground and System Cabling” 12-10-EN-0101-01, “SkyFire™ System General Description” 010-528-B2, “Argus Technologies, Universal Instruction Manual, RSM 48/10 Modular Switched Mode Rectifier” 2.1 Sequence The following method(s) must be completed before this method is utilized.
12-10-EN-0301-01, “SkyFire™, Power, Ground and System Cabling” 2001
Raze Technologies, Inc. SkyFire™ Remote Modem (RM) Installation RAZE 12-10-EN-0304-01, Draft B 7 November 2001 Page 2 3.0 Preparations 3.1 Safety Conventions and Precautions The following symbols appear within this document: When this symbol appears on the equipment, it means that you should read the manual for additional safety information before taking further action. When it appears in the documentation, it highlights important safety-related information. Performing the indicated procedure can expose you to hazardous voltages or hazardous electrical currents. To avoid personal injury, disconnect power as indicated in the text. To avoid damaging this equipment with electrostatic discharge (ESD), place a static-control strap on your wrist and attach the ground clip as indicated in the text before handling the equipment. Interruption of the safety earth ground system could create an electrical- shock hazard. To avoid personal injury, all electrical connections marked with this symbol must be properly connected. Observe all the general safety precautions against personal and equipment damage outlined in the ISM at all times. ISM located at URL..... Prior to starting the operations presented in this method, arrange all materials, tools, and test equipment at the work location to minimize fatigue and inconvenience. Inspect equipment for damage upon receipt. If damage is detected, call the Return Materials Authorization (RMA) office for replacement. (972) xxx-xxxx Equipment will be placed per…

Text truncated - open the document above for the full version.

RFM Transmi t and Receive RF Receive only From CO TI Digital control for RF RX ANT TX / RX ANT Block Diagram for Basestation with one RF Section Data flow control for T1 to RFM and RFM to T1

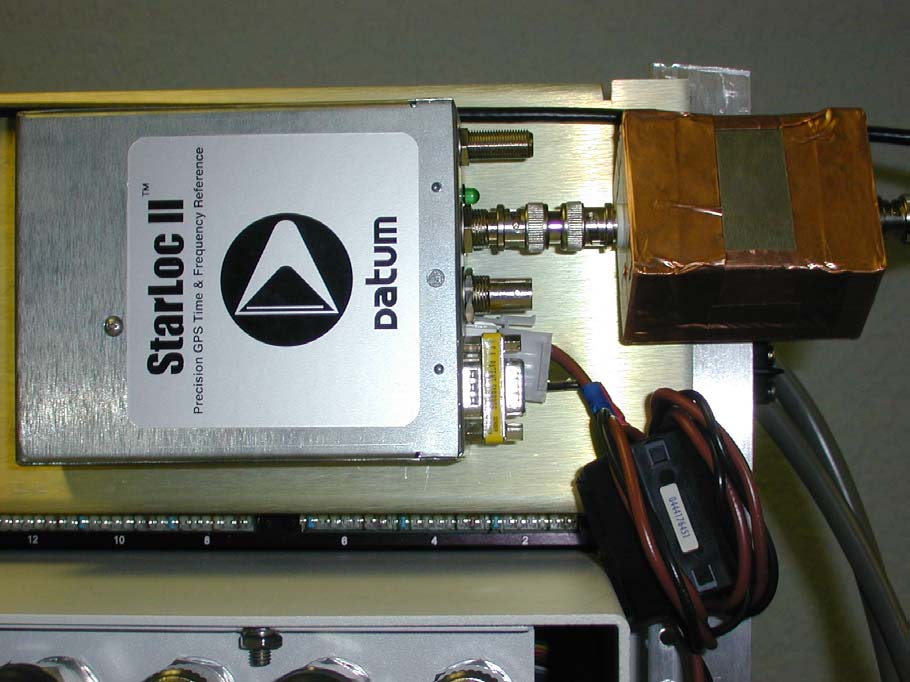

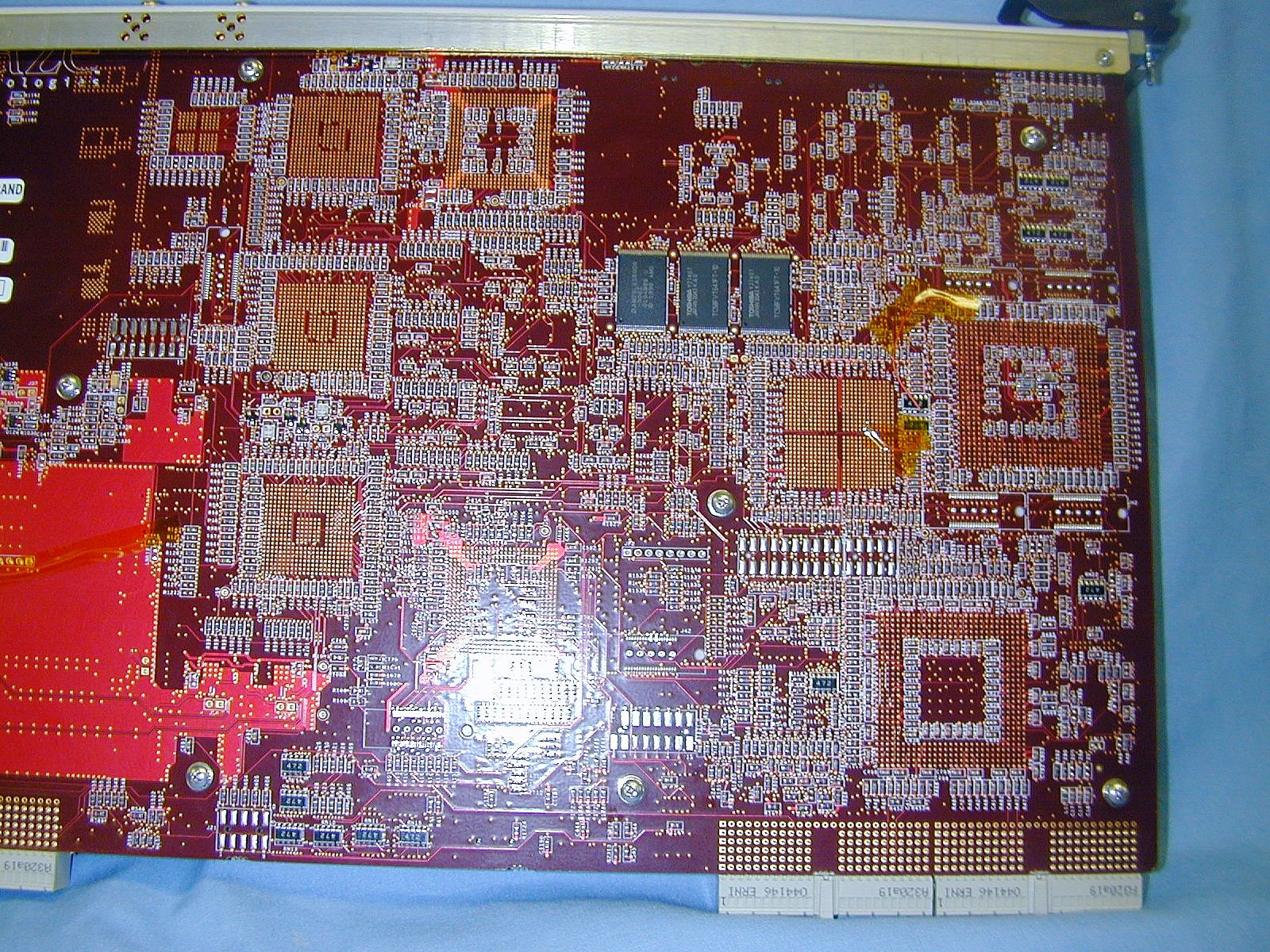

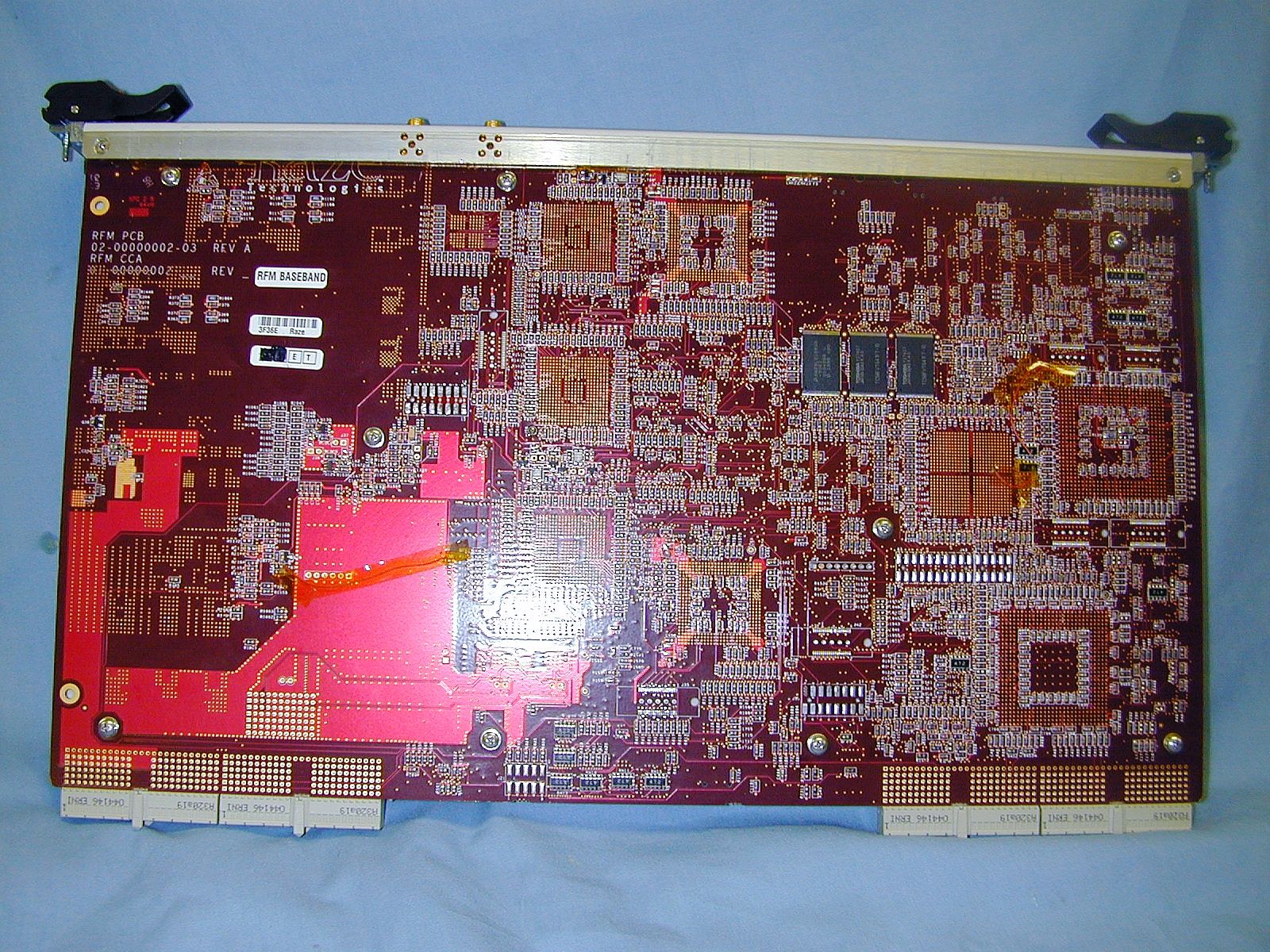

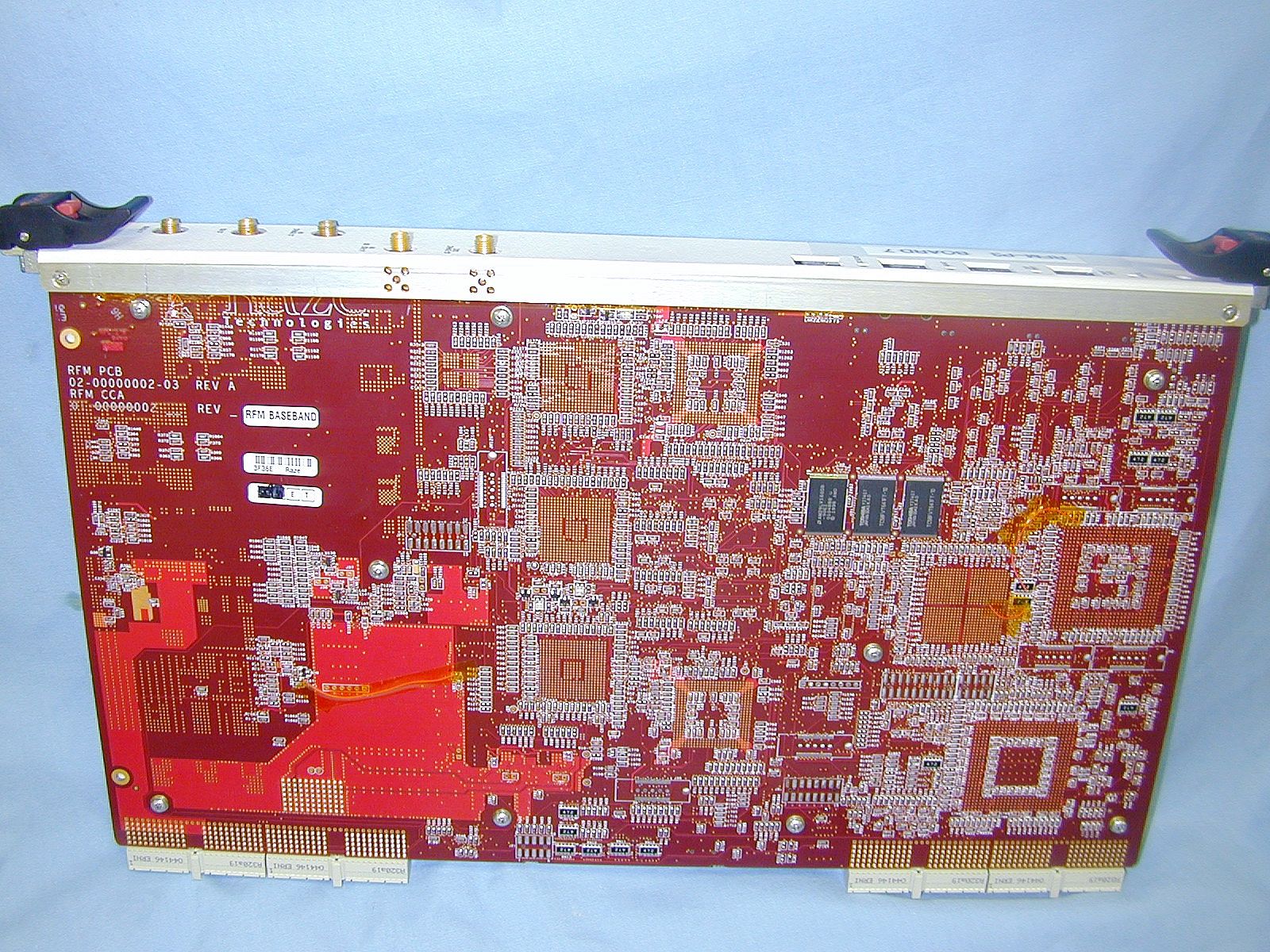

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 8, 2002 RE: FCC ID: QBWRZBASESCH Attention: Denise Godfrey I have a few comments on this Application. 1 The internal photos are of poor quality and are not in focus. Specifically the Raze Technology board on pages 5 and 6 and the board on page 1. Please provide photos that are clear and discernible. xxx 2 The label location has been provided, but a sample label has not. Please provide a sample label showing the FCC ID number and the statement of 15.19. xxx 3 The letter of confidentiality mentions only two files – the ‘basechm.pdf’ (schematic) and the ‘basedesc.doc’ (IF and RF circuit descr). However, the only file in the application is the baseschm.pdf. I assume that it is the ‘Technical description pdf’ file that is the other confidential file. This said, please be aware that you have labeled a different file as condfidential - confidential_Theory of Operation Base.pdf. This file appears only to be a generic description of how the system works and has no obvious confidential information attached to it. Unless this file is included in the request for confidentiality, it will not be uploaded as confidential. Please make sure that the letter of confidentiality lists all items needing confidentiality. It may be better in this case to request confidentiality of all schematics and of the technical description. xxx 4 The test report does not specify that the Peak Power Spectral Density plots are antenna conducted measurements. The annex does not indicate this method either other than to give a diagram of antenna conducted measurement setups. While the use of the Model 1471 attenuator may suggest an antenna conducted measurement, I cannot make assumptions. The report must stand on it own merit. Please specify this measurement method. xxx 5 The LISN shown in the equipment list and evidently used I nthe conducted emissions was out of calibration when the test was performed. Please retest with calibrated LISNs or verify that the list is incorrect and/or not updated to reflect current calibration dates as of the date of test. If the later, please provide a corrected report showing all appropriate equipment used being calibrated at the time of the test. xxx 6 The receiver used in EIRP measurements o page 28 is not listed. Please specify what device was used. xxx Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

LABEL LOCATION

Theory of Operation This device is a data transceiver operating in the UNII band. The RF Portion of the unit is designed to transmit (TX) and receive (RX) wireless data from baseband to RF and RF to baseband using Time Division Duplexing (TDD). The duty cycle is 70% transmit and 30% receive. The basestation is always going to be transmitting data out. The 26dB BW of the signal is 5.63MHz (channel BW). The RF frequency range that is used is 5726MHz – 5824MHz, the RF LO frequency is 5249MHz – 5341MHz. The 1 st IF is at 480MHz, the 2 nd IF is at 24 MHz and the IF LO is 456MHz. System Diagram RZ-BASECH Remote Unit

Radio Waves, Inc. http://www.radiowavesinc.com5 ModelFrequency,PolarizationGainBeamwidth -3dBX-Pol.F/B RatioVSWR, Max NumberGHzdBi (nominal) Az° El.°Rejection, dBdB(R.L., dB) 60°5.725 - 5.850 GHZ SECTORANTENNAS ELECTRICALSPECIFICATIONS(typical performance)* SEC-5V-60-185.725 - 5.850Vertical1860625>351.5:1 (14.0) * All specifications subject to change without notice. FEATURES nAntenna dimensions: • 25.5 x 8.5 x 7.5′′ (65 x 21.6 x 19 cm) nFlat panel design offers low windloads nLightweight and rugged design nEasily installed nRF Connector Interface: Type “N” female nPolarization: Vertical nStandard antenna mount accommodates a 2.5′′to 4.5′′diameter pipe nOptional 15° mechanical downtilt

PRELIMINARY DATA SHEET 1/6 ANTENNA ARRAY 5.725-5.825GHZ GAIN =18DBI EPA 01-036 DIRECTIONNAL ANTENNA Series :ANTENNE Issue : 0145 C In the effort to improve our products, we reserve the right to make changes judged to be necessary. All dimensions are in mm .. poao PRELIMINARY DATA SHEET 2/6 ANTENNA ARRAY 5.725-5.825GHZ GAIN =18DBI EPA 01-036 DIRECTIONNAL ANTENNA Series :ANTENNE Issue : 0145 C In the effort to improve our products, we reserve the right to make changes judged to be necessary. ELECTRICAL CHARACTERISTICS Frequency : ......................................... 5.725-5.825 GHz Nominal Impedance :.......................... 50 Ω VSWR :............................................... 2 Max Gain :................................................... 18 dBi Radiation Pattern -3 dB beamwidth Azimuth Plane : 20 °Max Elevation Plane : 20 °Max Cross Polarization level Azimuth Plane : -25 dB Elevation Plane : -30 dB Isolation : ............................................ 20 dB mini Polarization : ....................................... VERTICAL & HORIZONTAL Power withstanding : .......................... 2 W Connector type :.................................. SMA (R124.076.323) Cable type : ......................................... SHF 142 Length :....................................... 610 mm PRELIMINARY DATA SHEET 3/6 ANTENNA ARRAY 5.725-5.825GHZ GAIN =18DBI EPA 01-036 DIRECTIONNAL ANTENNA Series :ANTENNE Issue : 0145 C In the effort to improve our products, we reserve the right to make changes judged to be necessary. MECHANICAL CHARACTERISTICS Plastic radome : ................................. UV resistant ABS Color : ................................................ WHITE RAL 9001 Ingress Protection : ............................ IP 55 Weight : ............................................. 1275 g Overall length : ................................. 330 x 180 x 26 mm Cable retention : Pull off : ................. 237 Nmini Fixing system : .................................. See figure ENVIRONMENTAL CHARACTERISTICS Operating temperature :..................... -40/+70 °C Temperature : Stationary ............................... -45/+60 ° C (1),(2) Cyclic ..................................... -45°C - +60°C Rate 0.5°C/min (3) Humidity : Stationary ............................... 93% @ 30° C (4) Cyclic ..................................... 90% @ 30° C (5) Vibration Sinusoidal ............................... ± ±± ±5 mm / 2 m/s 2 (6) Random .................................. 0.03 g 2 /Hz (7) Drop test : .......................................... 0.8 m(8) PRELIMINARY DATA SHEET 4/6 ANTENNA ARRAY 5.725-5.825GHZ GAIN =18DBI EPA 01-036 DIRECTIONNAL ANTENNA Series :ANTENNE Issue : 0145 C In the effort to improve our products, we reserve the right to make changes judged to be necessary. TESTS ENVIRONMENTAL Test report n° 98-13-7874 (1) Tests following IEC 68-2-1 Ad duration: 16 hours @ -45° C (2) Tests following IEC 68-2-2 Bd duration: 16 hours @ +60° C (3) Tests following IEC 68-2-14 Nb temperature changing rate: 0.5°C/min time at each temperature: 3 hours 2cycles (4) Tests following IEC 68-2-56 Cb stationary: 93% @ +30° C during 21 days (5) Tests following IEC 68-2-30 Db cyclic: 6 cycles of 12+12 hours 90% - 100% @ +25°C - +30°C (6) Tests following IEC 68-2-6 Fc Frequency range: 5 – 200 –5 Hz 3 directions duration : 12 mn/cycle 5cyclesin3axes (7) Tests following IEC 68-2-36 Fb Level(ASD):6grms/F:10–200Hz Frequency range: 200 Hz – 2 kHz 3 directions / 10 min per direction (8) Tests following IEC 68-2-32 Ed Height: 0.8 m 1 fall for each face PRELIMINARY DATA SHEET 5/6 ANTENNA ARRAY 5.725-5.825GHZ GAIN =18DBI EPA 01-036 DIRECTIONNAL ANTENNA Series :ANTENNE Issue : 0145 C In the effort to improve our products, we reserve the right to make changes judged to be necessary. CURVES VERTICAL POLARIZATION Azimuth plane Elevation plane PRELIMINARY DATA SHEET 6/6 ANTENNA ARRAY 5.725-5.825GHZ GAIN =18DBI EPA 01-036 DIRECTIONNAL ANTENNA Series :ANTENNE Issue : 0145 C In the effort to improve our products, we reserve the right to make changes judged to be necessary. CURVES HORIZONTAL POLARIZATION Azimuth plane Elevation plane

S= power density P= power input to the antenna G= power gain of the antenna in the direction of 2 interest relative to an isotropic radiator R= distance to the center of radiation of the antenna Pi Choose ENTER Occupational/Controlled -(BTS) General Population/Uncontrolled -(CPE) Tx Frequency: 5800.00 (MHz) Maximum Peak Power at Antenna Input Terminal: 11.50 (dBm) Antenna gain (typical)+9dB for 8-element array: 18.00 (dBi) S=1.00 (mW/cm^2) P=14.13 (mW) G=63.10 (numeric) R =8.42(cm) NOTE: The following warning must appear in the installation manual. CAUTION: OET Bulletin 65, Edition 97-01 Prediction of MPE Limit Equation from page 18 The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 2 meters from all persons during normal operation. Users and installers must be provided with antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of §1.1307(b) 4 R PG S ==

Nemko Test Report:2L0223RUS1 Applicant:Raze Technologies 2450 East Plano Parkway Suite 188 Plano, Texas 75074 Equipment Under Test:RZ-BASECH (E.U.T.) In Accordance With:FCC Part 15, Subpart E Unlicensed National Information Infrastructure Devices Tested By:Nemko Dallas Inc. 802 North Kealy Lewisville, Texas 75057 Authorized By: Tom Tidwell, Wireless Group Manager Date:5/29/02 Total Number of Pages:39 Nemko DallasFCC PART 15, SUBPART E UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES EQUIPMENT: RZ-BASECH PROJECT NO.2L0223RUS1 Page 2 of 39 Table of Contents Section 1. Summary Of Test Results..........................................................................................................3 Section 2. General Equipment Specification.............................................................................................5 Section 3 Emission Bandwidth..................................................................................................................7 Section 4. Peak Transmit Power..................................................................................................................10 Section 5. Peak Spectral Density................................................................................................................11 Section 6. Peak to Average Ratio...............................................................................................................14 Section 7Spurious Emissions Below 1 GHz.............................................................................................21 Section 8Spurious Emissions Above 1 GHz............................................................................................27 Section 9Powerline Conducted Emissions...............................................................................................31 Section 10Test Equipment List....................................................................................................................36 ANNEX A TEST DIAGRAMS.................................................................................................................................37 Nemko DallasFCC PART 15, SUBPART E UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES EQUIPMENT: RZ-BASECH PROJECT NO.2L0223RUS1 Page 3 of 39 Section 1.Summary Of Test Results Manufacturer:Raze Technologies Model No.:RZ-BASECH Serial No.:1 General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit NII Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko DallasFCC PART 15, SUBPART E UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES EQUIPMENT: RZ-BASECH PROJECT NO.2L0223RUS1 Page 4 of 39 Summary Of Test Data NAME OF TESTPARA. NO. SPEC.RESULT Emission Bandwidth15.403(c)-26 dBcComplies Peak Transmit Power15.407(a)(3) Lesser of 1 Watt or 17 dBm + 10logB Complies Peak Power Spectral Density15.407(a)(3)17 dBmComplies Ratio of the peak excursion of the modulation to the peak transmit power 15.407(a)(6)13 dBComplies Spurious Emissions below 1 GHz15.407(b)(5)15.209Complies Spurious Emissions above 1 GHz15.407(b)(3) -17 dBm/MHZ > 10 MHz from bandedge -27 dBm/MHz < 10 MHz from bandedge Complies Footnotes: Nemko DallasFCC PART 15, SUBPART E UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES EQUIPMENT: RZ-BASECH PROJECT NO.2L0223RUS1 Page 5 of 39 Section 2.General Equipment Specification Frequency Range: 5.725-5.825 GHz Operating Frequency(ies) of Sample: 5.729 to 5.821 GHz Modulation: Digital Integral Antenna YesNo Note:This device is professionally installed. Nemko DallasFCC PART 15, SUBPART E UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES EQUIPMENT: RZ-BASECH PROJECT NO.2L0223RUS1 Page 6 of 39 Description of Operation This device is a data tranciever operating in the UNII band. System Diagram Nemko DallasFCC PART 15, SUBPART E UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES EQUIPMENT: RZ-BASECH PROJECT NO.2L0223RUS1 Page 7 of 39 Section 3Emission Bandwidth NAME OF TEST: Emission BandwidthPARA. NO.: 15.403(c) TESTED BY: David LightDATE: 5/2/2002 Minimum Standard:15.403(c) Emission bandwidth. For purposes of this subpart the emission bandwidth shall be determined by measuring the width of the signal between two points, one below the carrier center frequency and one above the carrier center frequency, that are 26 dB down relative to the maximum level of the modulated carrier.. Test Results:Complies Measurement Data:See attached plots Nemko DallasFCC PART 15, SUBPART E UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES EQUIPMENT: RZ-BASECH PROJECT NO.2L0223RUS1 Page 8 of 39 Test Data – Emission Bandwidth Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of2Complete X Job No.:2L0223 Date:5/2/2002Preliminary: Specification:PART 15Temperature(°C):24 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW:Refer to plotsMea…
