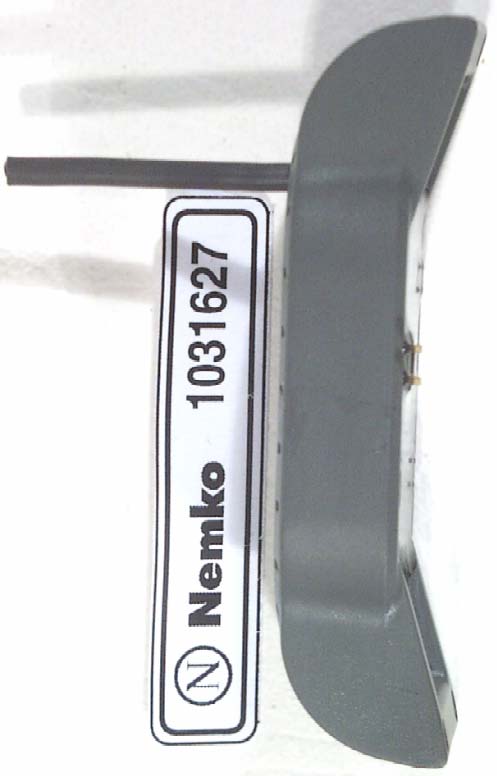

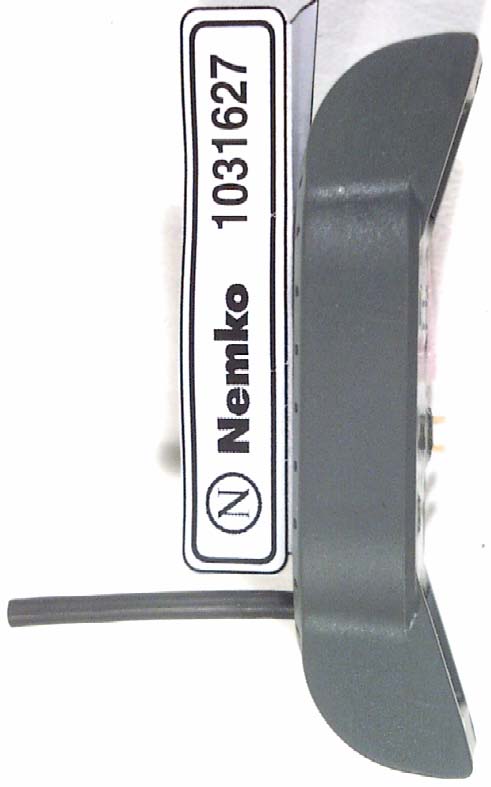

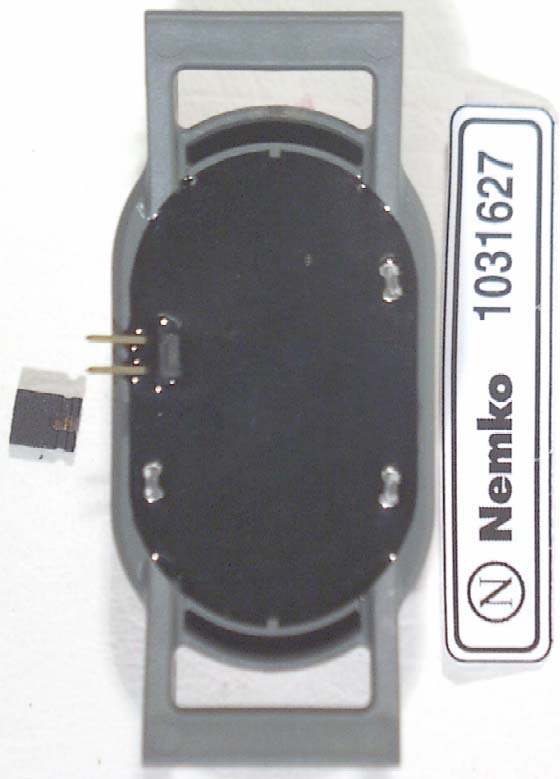

QCERSPW-01TTyre Pressure Monitoring Device

A1_04_2003_usa 3.4.2003 10:54 Page 1 English ----------------------------------------------- 1 Français --------------------------------------------- 16 Español --------------------------------------------- 31 Deutsch --------------------------------------------- 47 Italiano --------------------------------------------- 62 Nederlands ----------------------------------------- 76 Dansk ----------------------------------------------- 91 A1_04_2003_usa 3.4.2003 10:54 Page 2 1 1 GENERAL ---------------------------------------------------------------------------------------------------------------- 2 2 WARNINGS -------------------------------------------------------------------------------------------------------------- 2 3 HOW TO USE THE PRESSURE WATCH ---------------------------------------------------------------------------------- 3 3.1 SYSTEM COMPONENTS ------------------------------------------------------------------------------------ 3 3.1.1 Receiver ------------------------------------------------------------------------------------ 3 3.1.2 Tire sensors -------------------------------------------------------------------------------- 3 3.2 START-UP ------------------------------------------------------------------------------------------------- 3 3.2.1 Positioning the receiver ------------------------------------------------------------------- 3 3.2.2 Setting the recommended tire pressure following system installation ------------------ 4 3.3 USE -------------------------------------------------------------------------------------------------------- 4 3.4 ALARMS --------------------------------------------------------------------------------------------------- 4 3.4.1 Slow repetitive warning bleep and flashing indicator light ------------------------------ 4 3.4.2 Rapid repetitive warning bleep and flashing indicator light ----------------------------- 5 3.4.3 What to do when alarm is activated ------------------------------------------------------ 5 3.5 CONFIGURATION MODE ----------------------------------------------------------------------------------- 5 3.5.1 Changing the recommended tire pressure ----------------------------------------------- 5 3.5.2 Configuring the receiver to recognize new tire sensors ---------------------------------- 6 3.6 CHANGING RECEIVER BATTERY --------------------------------------------------------------------------- 6 4 HOW THE SYSTEM OPERATES ------------------------------------------------------------------------------------------ 7 4.1 CONCEPT -------------------------------------------------------------------------------------------------- 7 4.2 RECEIVER STANDBY MODE -------------------------------------------------------------------------------- 7 4.3 ACTIVATION WHEN STARTING JOURNEY ------------------------------------------------------------------ 7 4.4 MONITORING ---------------------------------------------------------------------------------------------- 7 4.5 ALARMS --------------------------------------------------------------------------------------------------- 8 4.6 AFTER STOPPING DRIVING -------------------------------------------------------------------------------- 8 5 PROCEDURE DURING POTENTIAL MALFUNCTION -------------------------------------------------------------------- 8 5.1 IF CONTACT CANNOT BE ESTABLISHED WITH ONE OR MORE TIRE SENSORS ------------------------------ 8 5.2 IF RECEIVER ALARM IS NOT ACTIVATED EVEN THOUGH TIRE PRESSURE HAS FALLEN -------------------- 8 5.3 IF RECEIVER ALARM IS ACTIVATED EVEN THOUGH TIRE PRESSURES ARE AT RECOMMENDED LEVEL ---------------------------------------------------------------------------- 9 5.4 IF RECEIVER ALARM SIGNALS PRESSURE DROP, BUT IN THE WRONG TIRE -------------------------------- 9 5.5 REPLACING A DAMAGED TIRE SENSOR -------------------------------------------------------------------- 9 6 TECHNICAL SPECIFICATIONS ----------------------------------------------------------------------------------------- 10 7 TERMS OF WARRANTY ------------------------------------------------------------------------------------------------ 11 8 LIMITATION OF LIABILITY -------------------------------------------------------------------------------------------- 11 ANNEX A: CHECK LIST --------------------------------------------------------------------------------------------------- 12 ANNEX B: TIRE SENSOR AND RECEIVER INSTALLATION INSTRUCTIONS FOR TIRE FITTERS ------------------------- 13 General installation information ---------------------------------------------------------------------------- 13 Parts and tools necessary for installation ------------------------------------------------------------------- 13 Stages of installation ---------------------------------------------------------------------------------------- 13 Removing a tire sensor -------------------------------------------------------------------------------------- 13 A1_04_2003_usa 3.4.2003 10:54 Page 3 1 General The RoadSnoop Pressure Watch is a system that monitors the pressure and temperature of a car’s tires. If the pressure or temperature of one or more tires changes from the reference pressure, the system alerts the driver with a flashing indicator light and warning bleeps. T h e system allows for normal changes in tire pressure caused by fluctuating temperatures. Pressure Watch helps the driver to ensure that the correct tire pressure is maintained, thus enabling prolonged tire life and reduced fuel consumption. Data from the tire sensors located in the tires is transmitted to the receiver via radio waves. NOTE! PLEASE READ ALL THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL CAREFULLY 2 Warnings 1. READ AND UNDERSTAND THIS USER’S MANUAL AND ALL WARNINGS AND INSTRUCTIONS IN IT BEFORE USING THE PRESSURE WATCH SYSTEM. OPERATION OF THE VEHICLE IN A MANNER INCONSISTENT WITH THE REQUIREMENTS OF THIS MANUAL CAN CAUSE TIRE DAMAGE, ACCIDENTS AND SERIOUS BODILY INJURY. 2. THE PRESSURE WATCH SYSTEM ACTIVATES ONLY AFTER THE VEHICLE IS PUT IN M…

Text truncated - open the document above for the full version.

ManuaaliA_7_usa_u.fh10 4.4.2003 10:20ap Page 1 Nokia Tyres plc P. O . B ox 20 FI - 37101 Finland ManuaaliA_7_usa_u.fh10 4.4.2003 10:20ap Page 2

Nemko Oy•P.O.Box 19, FIN-02601 Espoo, Finland Street address: Perkkaantie 11, FIN-02600 Espoo Telephone +358 424 5454 1 •Telefax +358 9 5489 6371 TESTREPORT Date: ESPOO 25.04.2003 Page: 1 (10) Appendices − Date of handing in:07.04.2003 Number: 1031681 No.1/1Testedby: Timo Leismala, Product Manager Reviewed by: Janne Nyman, Product Manager, EMC SORT OF EQUIPMENT: Tyre Pressure Monitoring Device MARKETING NAME:RoadSnoop Pressure Watch TYPE:RSPW-01 MANUFACTURER:Flextronics International Finland. SERIAL NUMBER: --- CLIENT: Nokian Tyres Plc. ADDRESS: P.O.BOX 20, FIN-37101 NOKIA, Finland TELEPHONE: + 358 3 340 7268 TEST SPECIFICATION: CISPR 22 (1997) and ANSI C63.4-1992 FCC 47 CFR Part 15, Subpart C, Class B (1994) SUMMARY: The radiated interference field strength in the frequency range 30 - 1000 MHz fulfils the class B requirements defined in the test specification CISPR 22 (1997). The margin with respect to the limits is 16.0 dB or more (Margin with respect to FCC 47 CFR Part 15, Subpart C, Class B (1994) limit is 15.5 dB or more). The radiated interference field strength in the frequency range 1000 - 5000 MHz fulfils the requirements defined in the test specification FCC 47 CFR Part 15, Subpart C, Class B (1994). The margin with respect to the limits is 4.0 dB or more. According to the standards the emission measurement results have been compared directly with the limit lines without considering measurement uncertainties. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Version e2.05 Type: RSPW-01 CISPR 22 (1997) and ANSI C63.4 1992S/N: - - - FCC 47 FCR Part 15, Subpart C, Class B (1994)Test report 1031681 Page2 (10) Date25.04.2003 Summary of performed tests and test results Emission tests according to the test specification FCC 47 CFR Part 15, Subpart C, Class B (1994) Emission testTest methodConclusion Radiated disturbance 30-1000 MHzANSI C63.4-1992 CISPR 22(1997) Pass Emission tests according to the test specification FCC 47 CFR Part 15, Subpart C, Class B (1994) Emission testTest methodConclusion Radiated disturbance 1000-5000 MHzANSI C63.4-1992 CISPR 22(1997) Pass Type: RSPW-01 CISPR 22 (1997) and ANSI C63.4 1992S/N: - - - FCC 47 FCR Part 15, Subpart C, Class B (1994)Test report 1031681 Page3 (10) Date25.04.2003 Contents 1. General ............................................................................................................................................... 4 2. System Configuration ......................................................................................................................... 4 2.1Test set-up................................................................................................................................ 4 2.2Operating conditions and monitoring of the EUT ..................................................................... 4 3. Test procedures .................................................................................................................................. 5 3.1Emission tests .......................................................................................................................... 5 3.1.1 Radiated disturbance emission test ......................................................................................... 5 4. Test results ......................................................................................................................................... 6 4.1Emission tests .......................................................................................................................... 6 4.1.1 Radiated disturbance emission test ......................................................................................... 6 5. List of test equipment.......................................................................................................................... 9 6. Photographs...................................................................................................................................... 10 Type: RSPW-01 CISPR 22 (1997) and ANSI C63.4 1992S/N: - - - FCC 47 FCR Part 15, Subpart C, Class B (1994)Test report 1031681 Page4 (10) Date25.04.2003 1.General The equipment under test (EUT) was a Tyre Pressure Monitoring Device. The purpose of the performed tests was to see if in regard to these tests the EUT fulfils the EMC requirements defined in the FCC 47 CFR Part 15, Subpart C, Class B (1994). The tests were performed according to the test specifications CISPR 22 (1997) and ANSI C63.4-1992 by using accredited test methods. 2.System Configuration 2.1Test set-up Equipment under test (EUT): • RoadSnoop Tyre Pressure Monitoring Device, type: RSPW-01, S/N: - - - The RSPW-01 consists of four tyre pressure / temperature sensors, RSPW-01T and one receiver unit, RSPW-01R. Operating voltage of the EUT: •RSPW-01T: 3V DC battery •RSPW-01R: 3.6V DC battery 2.2Operating conditions and monitoring of the EUT One transmitter was installed inside a test tyre. The air pressure of the test tyre was within the normal pressure range. The remaining three transmitters were installed on the surface of the test tyre. Hence, three sensors indicated low air pressure. The test tyre was installed to a motor axle and the motor was turned on. The speed of rotation of the tyre was approximately 600rpm. RSPW-01T transmits temperature and pressure information using radio frequency of 433.92MHz. RSPW-01R decodes the transmitted radio frequency signal and indicates the pressure level of each tyre in its user interface. Type: RSPW-01 CISPR 22 (1997) and ANSI C63.4 1992S/N: - - - FCC 47 FCR Part 15, Subpart C, Class B (1994)Test report 1031681 Page5 (10) Date25.04.2003 3.Test procedures 3.1Emission tests 3.1.1 Radiated disturbance emission test The test was performed as a compliance test. The test parameters concerned were as follows: ParameterSpecification Test methodCISPR 22 (1997) and ANSI…

Text truncated - open the document above for the full version.

Appendix 3 of Test report: 1031681 Page 1 (3) Date 04.07.2003 1. Measurement of the fundamental frequency, 15.231 (e) Frequency Level (PK) Polarization Antenna height Table angle Limit (AV) [MHz] [μV/m] [HOR / VER] [m] [degrees] [μV/m] 433.92 23713.7 HOR 2.11 311 4399 In accordance with Section 15.35(c) when the radiated emissions limits are expressed in terms of the average value of the emission [as in Section 15.231(b)(2)], and pulsed operation is employed, the field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. ANSI C63.4-1992 Appendix I4 (10) also describes a method, which is used here to correct for duty cycle when average detector function limits are specified for a pulse-modulated transmitter, the average level of emissions may be found by measuring the peak level of emissions and correcting them with duty cycle. The duty cycle is the value of the sum of the pulse widths in one period (or 100 ms) divided by the length of the period (or 100 ms). Calculation of the final result: In this application, the peak detector field strength in μV/m of the emission from the transmitter is multiplied by the duty cycle calculated to determine the average detector field strength of the emission for comparison to the average detector limit in Part 15.231. The RSPW-01T tire sensor transmits 2 packets of data with each packet length 8.5 ms within 100 ms every 13.6 seconds. So, typically 2 packets in 100 ms period with a total packet length of 17 ms in 100 ms. The transmission itself is OOK (On Off Keying) and the data is Manchester coded with 50% duty cycle. So, the transmitter total on time in 100ms is 8.5ms (8.5 ms + 8.5 ms = 17 ms total packet length at a 50% duty cycle = 8.5% / 100 ms). Now, the peak detector field strength in μV/m of the emission from the transmitter is multiplied by the duty cycle calculated above to determine the average detector field strength of the emission for comparison to the average detector limit in Part 15.231. Ö 23713.7 μV/m x (8.5% duty cycle) = 2015.7 μV/m calculated average detector field strength. The level of all harmonic components up to 10 th harmonic was at least 20 dB below the maximum permitted fundamental level. 2. Transmission duration time limits, 15.231 (e) The RSPW-01T tire sensor transmits 2 packets of data with each packet length 8.5 ms within 100 ms every 13.6 seconds. So, typically 2 packets in 100 ms period with a total packet length of 17 ms in 100 ms. Appendix 3 of Test report: 1031681 Page 2 (3) Date 04.07.2003 3. 20 dB occupied bandwidth limit, 15.231 (e) 20 dB occupied bandwidth limit of 15.231 (c) -80 -75 -70 -65 -60 -55 -50 -45 -40 -35 -30 433,7 433,75 433,8 433,85 433,9 433,95434434,05 434,1 434,15 Frequency [MHz] Level of transmitter [dBm ] Tx Level [dBm]20 dB Limits Picture 1: 20 dB occupied bandwidth at 433.92 MHz 20 dB occupied bandwidth: 433.9939 MHz - 433.8944 MHz = 99.5 kHz. Limit value: 0.25 % x 433.92 MHz = 1084.8 kHz 4. Test set up The measurements reported in the test report 1031681 have been performed with the transmitter installed inside the rubber wheel with plastic structure. This was due to the fact that the transmitter does not transmit if it is stationary. The measurements reported in this Appendix 1 have been performed with the modified transmitter, which transmits even if it is stationary. No rubber wheel has been used, see the pictures 2 and 3. Appendix 3 of Test report: 1031681 Page 3 (3) Date 04.07.2003 Picture 2: Measurement set up without rubber wheel. Picture 3: Measurement set up without rubber wheel.

Type: RSPW-01 CISPR 22 (1997) and ANSI C63.4 1992S/N: - - - FCC 47 FCR Part 15, Subpart C, Class B (1994)Test report 1031681 Page10 (10) Date25.04.2003 6.Photographs Photograph 1. Radiated disturbance emission test Photograph 2. Radiated disturbance emission test
