Blank side of Circuit box on side 7” 4” Label measures 1.25” x 3.75” Circuit Box (above Left) measures 7” High x 9” Wide x 4” Deep. Above is the proposed site of the FCC Part 15 label to read: Proposed label, actual size, is as follows: “A” FCC compliance label placement for Alert 1 Infrared Perimeter Pool & Spa Alarm device, by Millennium Electronics 2, Inc., P.O. Box 1671, Albany OR 97321. FCC Label “A” 3.75” 1.25” Outdoor Circuit Box / Alarm Model: PHIL4-13 FCC ID: QCGPHIL4-13 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference and 2) This device must accept any interference received, Including interference that may cause undesired operation .

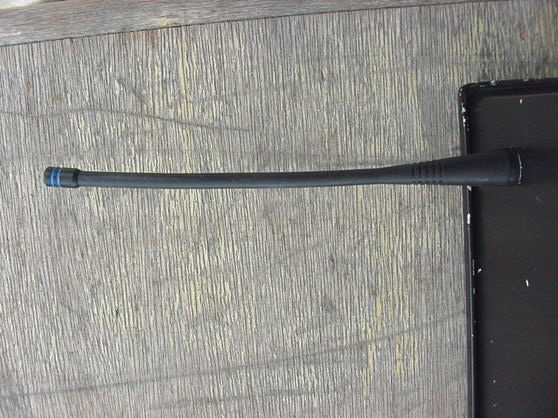

OPERATIONAL DESCRIPTION The outdoor circuit panel sends a 418 MHz RF signal to the indoor alarm panel to sound the 85dB siren on the indoor panel when the system is on and the IR perimeter beam is broken.

FCC ID: QCGPHIL4-13 Report No.: B20426D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 17 FCC PART 15, SUBPART C TEST REPORT for OUTDOOR CIRCUIT BOX / ALARM MODEL: PHIL4-13 Prepared for MILLENNIUM ELECTRONICS 2 , INC. 3265 SOUTH SHORE DRIVE, SUITE #10 ALBANY, OREGON 97321 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: APRIL 29, 2002 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 13 19 2 55 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: QCGPHIL4-13 Report No.: B20426D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Conducted Emissions Test 13 7.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.3 Bandwidth of the Fundamental 16 8. CONCLUSIONS 17 FCC ID: QCGPHIL4-13 Report No.: B20426D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets E Laboratory Recognitions LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: QCGPHIL4-13 Report No.: B20426D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Outdoor Circuit Box / Alarm Model: PHIL4-13 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Millennium Electronics 2 , Inc. 3265 South Shore Drive, Suite #10 Albany, Oregon 97321 Test Dates: April 25 and 26, 2002 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart C, Sections 15.205, 15.207, and 15.231 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, section 15.207 2 Radiated RF Emissions, 10 kHz - 4300 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249 FCC ID: QCGPHIL4-13 Report No.: B20426D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Outdoor Circuit Box / Alarm Model: PHIL4-13. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by CFR Title 47, Part 15, Subpart C, sections 15.205, 15.207, 15.209, and 15.231. FCC ID: QCGPHIL4-13 Report No.: B20426D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 17 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Millennium Electronics 2 , Inc. Michael Hargett CEO Mike Allen Chief Ops. Officer Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on April 24, 2002. 2.5 Disposition of the Test Sample The test sample has not been returned to Millennium Electronics 2 , Inc. as of April 29, 2002. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: QCGPHIL4-13 Report No.: B20426D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 7 of 17 3. APPLICABLE DOCUMENT…

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) The fundamental was maximized on the lab D test site using a normal test setup with the EUT’s AC Adapter connected directly to the AC public mains (115 VAC). Next, the EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the VAC input to be varied. The EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transfomer Model: 3PN1010. The AC input was then dropped to 85% (97.75 VAC) and raised to 115% (132.25 VAC). The actual AC input was measured using a calibrated Fluke Multi-meter Model: 87, Cal Due Date: July 12, 2002. The fundamental was then verified again to see that the amplitude did not change. Test result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
