Dolphin® 7200 Handheld Computer Features & Benefits The patented ergonomic design of Dolphin® 7200 computer enables single-handed operation with the right or left hand. This pocketsize, 12 oz. (340 gm) handheld computer is rugged and reliably built for use in the harshest industrial environment. With its DOS PC architecture, upgradable memory and data collec- tion options, the Dolphin family of handheld computers is “the new standard in portable data collection.” The DOS compatible 386 microprocessor is easy to program. Custom applications can be created in a Windows ™ environ- ment on a host PC, using Batch Simplicity ™ with Microsoft ® 16-bit Visual C++ ® or Borland ® C++. The terminal’s large, easy-to-read display is back-lighted for easy reading in dark areas. Keyboard options for the Dolphin® 7200 include a 36-key alphanumeric or a 20-key numeric that both have coated keys to prevent numbers from wearing off. The Dolphin® 7200 terminal is part of a data collection system that includes peripherals designed for vehicle, desktop and hub operations. Single-Handed Data Collection Large, Easy-to-read Display DOS Compatible 386 Architecture Two Keyboard Options Easy Programming Rugged and Reliable Design Long Battery Life Expand to 12 MB Combined Memory Four Laser Engine Options Peripherals and Accessories Two-Dimensional Decoder Available Upgradeable to Wireless* *Condtions apply. Contact our Customer Service Department Worldwide Offices Offices Serving North America Skaneateles Falls, NY Tel: (315) 685-8945 Fax: (315) 685-3172 Charlotte, NC Tel: (704) 537-1444 Fax: (704) 532-4191 Offices Serving Europe, Middle East, and Africa Europe Tel: Int +31 (0) 40 24 24 486 Fax: Int +31 (0) 40 24 25 672 United Kingdom Tel: Int +44 (0) 1 925 240055 Fax: Int +44 (0) 1 925 631280 France Tel: Int +33 (0) 1 461 04111 Fax: Int +33 (0) 1 461 04120 Germany Tel: Int +49 (0) 7 477 151377 Fax: Int +49 (0) 7 477 151378 Offices Serving Asia and the Pacific Rim Hong Kong Tel: Int +852 2511 3050/2511 3132 Fax: Int +852 2511 3557 Japan Tel: Int +813 52127392 Fax: Int +813 32617372 Offices Serving Latin America Naples, Florida Tel: (941) 263-7600 Fax: (941) 263-9689 Web Site Address www.handheld.com Welch Allyn Data Collection, Inc. and Hand Held Products, Inc. (“Hand Held Products”)  1999-2000, Hand Held Products. All rights reserved. Printed in the U.S.A. Due to Hand Held Products’ continuing product improvement programs, specifications and features herein are subject to change without notice. 7200BATCH/SS Rev. A Dolphin® 7200 Operating System and Software Operating System:GS-DOS. DOS architecture programmable with standard x86 development tools, Borland ® and Microsoft ® C/C++ libraries provided for non-PC standard functions (laser engine support, communication & power management). CPU:AMD ELAN SC310 386SX microprocessor. CMOS technology (low power). Up to 20MHz (Auto-speed). Memory:2MB of RAM for program execution. 256KB Executable FLASH EEPROM for bootstrap loader, BIOS, common routines. 2MB Data Storage FLASH EEPROM expandable to 4, 8 or 10 MB. Real Time Clock:Accurate, crystal-controlled real time clock/calendar. Application software controllable time/date stamping. Data Inputs Laser Engine Options:Standard: Scans 2 to 36 in. (5 to 91cm) Long-Range: Scans up to 15 ft. (4.6m) with reflective labels High-Density: Scans small bar codes >2 mil. High-Visibility: Scans in high ambient light No laser engine Bar Code Symbol Types:Code 3 of 9, Interleaved 2 of 5, EAN, Codabar, Code 128, Plessey, Code 11, Code 93, UPC Alphanumeric Keypad:36 keys, four (4) user-definable function keys CLR, SPC, BKSP, SHIFT, ENTER, LIGHT, NUMLOCK, ESC Special Characters: • # / @ + & = . - $ % ! \ : Numeric Keypad:20 keys with shifted alpha keys, four (4) user-definable function keys SP, BKSP, SHIFT, ENTER, LIGHT, CONTR, ESC Splash-resistant, one-piece module. Special Characters: % $ ? \ : > , + - / • = Data Outputs LCD:8 lines of 20 characters per line; 9th line software-controllable for status. 119 x 73 graphics pixels. Alpha-Numeric, scrollable. Application software controllable pixel graphics: 6 x 8 pixel matrix. Electroluminescent Backlight. Indicator Lights:Red light on during “Laser Scanning”. Green light blinks for “Successful bar code decode”. Audible Horn:Application software controllable speaker Data Upload/Download:IrDA-compliant Infrared Transceiver Power:One 3.6V 3 cell battery pack, 2.2 x 1.8 x .08 in. (5.6 x 4.6x 2cm) NiMH (1500mAh) gives Dolphin < 21 hours typical usage Internal NiMH back-up battery retains memory & clock for < 30 minutes Low-battery detection & automatic shut-off with battery voltage levels readable by application software Structural Size:6.85 x 2.63 x 2.25 in. (17.0 x 7.0 x 5.7 cm) Weight:12 oz. (340gm) Case:Polycarbonate ABS Blend Structural Integrity:Multiple 5 ft. (1.5m) drops to concrete; Independently certified to meet IP-64 standards for moisture & particle resistance. Environmental Temperature Operating:14 to 122°F (-10 to 50°C)Storage:-4 to 158°F (-20 to 70°C) Humidity:Operates in up to 95% non-condensing humidity Electrical Static Discharge: 15KV on all surfaces Fire Retardant Rating:UL 94-VO Agency:FCC Class A, CE Mark Borland is a trademark of Borland International, Inc., Microsoft, Excel and Visual Basic are registered trademarks of Microsoft Corp.

Dolphin ® 7200 VehicleBase ™ Charging/Communications Cradle Features & Benefits The VehicleBase ™ is a compact, secure battery charger and holder for the Dolphin ® 7200 computer. It holds Dolphin se- curely and releases it easily and quickly using one hand. In addition, VehicleBase recharges the Dolphin battery continu- ously without overcharging. Using standard external Wireless Wide Area Network mo- dems, VehicleBase can be used to transmit mission critical data between a Dolphin and a central computer. Data can also be transmitted via popular network types such as GSM, Mobitex ™ , DataTAC ™ , CDPD, or wireless dial-up. VehicleBase communicates with Dolphin via “Infrared Commu- nications Port”. Inputs and Outputs serial data stream via standard 9-pin RS232 port. The VehicleBase is powered by a cigarette lighter adapter for 12 Volts automotive systems and portable applications or by direct connection through a power conditioning module for 12 and 24 Volts automotive systems. VehicleBase installs easily with four screws to the dashboard, floor, cab wall or pedestal 4-way. An adjustable mounting bracket reduces vibration and expands driver viewing options. VehicleBase meets J1455 standard for vibration tolerance. Compact, Secure Holder/Battery Charger Enables 2-way Wireless Data Communication Two Power Options Communicates Via Infrared to RS232 Serial Por t Easy and Secure Mounting Made for Extreme Environments Operates from -4 to 166°F (-20 to 70°C) and is CE approved. Infrared port uploads/downloads data without breakable mechanical couplings. Expands Mobile Capabilities Migrate from “batch” to wireless. Connect to portable printers. Add third party GPS. Monitor vehicle systems. Worldwide Offices Offices Serving North America Skaneateles Falls, NY Tel: (315) 685-8945 Fax: (315) 685-3172 Charlotte, NC Tel: (704) 537-1444 Fax: (704) 532-4191 Offices Serving Europe, Middle East, and Africa Europe Tel: Int +31 (0) 40 24 24 486 Fax: Int +31 (0) 40 24 25 672 United Kingdom Tel: Int +44 (0) 1 925 240055 Fax: Int +44 (0) 1 925 631280 France Tel: Int +33 (0) 1 461 04111 Fax: Int +33 (0) 1 461 04120 Germany Tel: Int +49 (0) 7 477 151377 Fax: Int +49 (0) 7 477 151378 Offices Serving Asia and the Pacific Rim Hong Kong Tel: Int +852 2511 3050/2511 3132 Fax: Int +852 2511 3557 Japan Tel: Int +813 52127392 Fax: Int +813 32617372 Offices Serving Latin America Naples, Florida Tel: (941) 263-7600 Fax: (941) 263-9689 Web Site Address www.handheld.com Welch Allyn Data Collection, Inc. and Hand Held Products, Inc. (“Hand Held Products”)  1999-2000, Hand Held Products. All rights reserved. Printed in the U.S.A. Due to Hand Held Products’ continuing product improvement programs, specifications and features herein are subject to change without notice. 7200VB/SS Rev A Dolpin ® 7200 VehicleBase ™ Physical Characteristics Size: 3.98 x 6.4 x 2.3 in. (101 x 162 x 58 mm) Weight: 16 oz. (454 g) Environmental Temperature Operating: -4 to 166°F (-20 to 70°C) Storage: -4 to 166°F (-20 to 70°C) Data Outputs Data Upload/Download:Infrared Port Data Communications up to 115K baud RS232 Port Data Communications: up to 115K baud Power Inputs:450 milli-amps @ 12 Volts 250 milli-amps @ 24 Volts Recharging Rate:5.5 hours for 1200mAh NiMH battery Data Communication Port: RS232 serial interface female Connecting Cable Required: DB9 male Agency Approvals Vibration Tolerance:SAE Standard J1455 (Sections 4.9 &4.10) Safety-Approved:CE Mobitex is a trademark of RAM Broadcasting. DataTAC is a trademark of Motorola, Inc.

SENTRICON* SYSTEM INSTRUCTION MANUAL *Trademark of Dow AgroSciences LLC TABLE OF CONTENTS I. QUICK START INSTRUCTIONS II. SYSTEM DESCRIPTION III. SPECIFICATIONS FCC STATEMENT The interrogator generates low-level radio frequency energy. The unit has been tested and found to comply with the limits and specifications as set forth in Part 15 of the FCC rules. If this unit is suspected of interfering with radio or television reception, verify that the unit is indeed the source of the interference. First, remove power form the devices. If the interference continues, then the unit is not the source of the interference. If the interference stops upon power-down of the unit, then reapply power to the interrogator. If the interference begins again, proceed as follows: • Reorient the receiving antenna on the unit experiencing interference. • Move the interrogator farther from the unit experiencing interference. • Change the orientation of the interrogator antenna. If necessary, contact the manufacturer for additional suggestions. Any changes or modifications not expressly approved by Donnelly Electronics Inc. may void the users authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. QUICK START INSTRUCTIONS Immediately upon unpacking the interrogator, verify that you have received the following items: BATTERY CHARGER For units to be used in the US and Canada, this unit is Elpac model WP1224. The input voltage is 100 to 120 volt 47-63hz. If your electrical service differs from these specifications, do not attempt to charge the batteries and contact the supplier of this interrogator immediately for an exchange. INTERROGATOR HANDLE This unit consists of two pieces: The armrest, and bottom leg. ANTENNA This unit is a white circular disk, eleven inches in diameter. It will be connected to the bottom leg of the interrogator handle. INTERROGATOR ELECTRONICS BOX This unit is a rectangular box attached to the armrest section of the interrogator handle. Depress the POWER switch on the rear panel of the INTERROGATOR ELECTRONICS BOX. The unit should emit a single ‘beep’ and the green POWER LED should be illuminated steadily. If the LED is flashing, you should immediately charge the batteries. To charge the batteries, plug the power supply that was shipped with the interrogator into a 120 vac wall outlet. Insert the plug from the charger into the jack on the rear panel of the INTERROGATOR ELECTRONICS BOX. This jack is labeled ‘CHARGER’. The yellow LED labeled ‘CHARGE’ on the front panel will now be illuminated. If the batteries are severely discharged, the Yellow LED may blink for several hours while the charging circuitry is conditioning the batteries. Once the conditioning has terminated, the Yellow LED will emit a steady glow. When the charging cycle has been completed, the LED will extinguish. To verify interrogator operation as a stand-alone unit, it is not necessary to have the transceiver in operation. No meaningful data will be obtained from this operation, but it is instructive to test out the operation of the transensors and interrogator. The following paragraphs will explain how to operate the interrogator: Depress the ‘POWER’ switch located on the rear of the electronics box to enable interrogator operation. You will hear a single “beep” tone from the interrogator when the switch is depressed and the self –test operation has been successfully completed. The GREEN LED labeled ‘POWER’ will illuminate. The interrogator is now operating normally, and is continually scanning for a transensor. Since the interrogator is only a portion of a system, it is necessary to have all the other parts of the system operational in order to get meaningful data from the interrogator. One can test the interrogator’s operation without the other components of the system by placing a transensor near to the antenna. When the interrogator powers up the transensor, the identification code of the transensor is sent to the interrogator, and BOTH the ‘ACTIVE’ and ‘INACTIVE’ LEDs will turn on. The interrogator will emit a single “beep” to indicate that the transensor has been read. Both LED’s will remain on for about 2 seconds and then go off. This operation is the same regardless of whether a sensor is connected to the transensor or not. After approximately two 1/2 minutes of inactivity, the interrogator will automatically shut down to conserve battery power. Although the above operation does not do anything useful and is not very spectacular, it does give a feel of the operation of the interrogator. The interrogator will operate for about 8 hours on a full battery charge, but it is good practice to charge the batteries at least at the end of each day. As a minimum, the interrogator should be charged on a weekly basis since some of the internal circuitry continuously draws battery power and will ultimately completely discharge the batteries. This will result in diminished lifetime of the battery pack. The battery chemistry is NiMH and thus will not exhibit the notorious “memory effect” common to NiCd batteries. Therefore, it is not necessary or desirable to wait for the batteries to discharge before recharging them. To complete the system, the Dolphin 7200 must be inserted into the Dolphin cradle slot. To insert the Dolphin into the cradle slot, grasp the top end of the Dolphin with the IR port pointing into the cradle push the unit into the cradle. Ensure that the Dolphin is fully inserted. Turn on the Dolphin 7200 and the PROLINX software will start automatically. Operation of the PROLINX software is beyond the scope of these instructions; however, proper starting of the software will allow for the Sentricon System to begin working. Now, depress the Power switch on the rear of…

Text truncated - open the document above for the full version.

DOLPHIN COMPUTER DOLPHIN CRADLE SENTRICON SYSTEM BLOCK DIAGRAM DONNELLY ELECTRONICS 03-23-02 RFID INTERROGATOR TRANSPONDER DIRECT CONNECTION TO CRADLE 125KHZ H-FIELD LINK DIRECT CONNECTION TO HOST

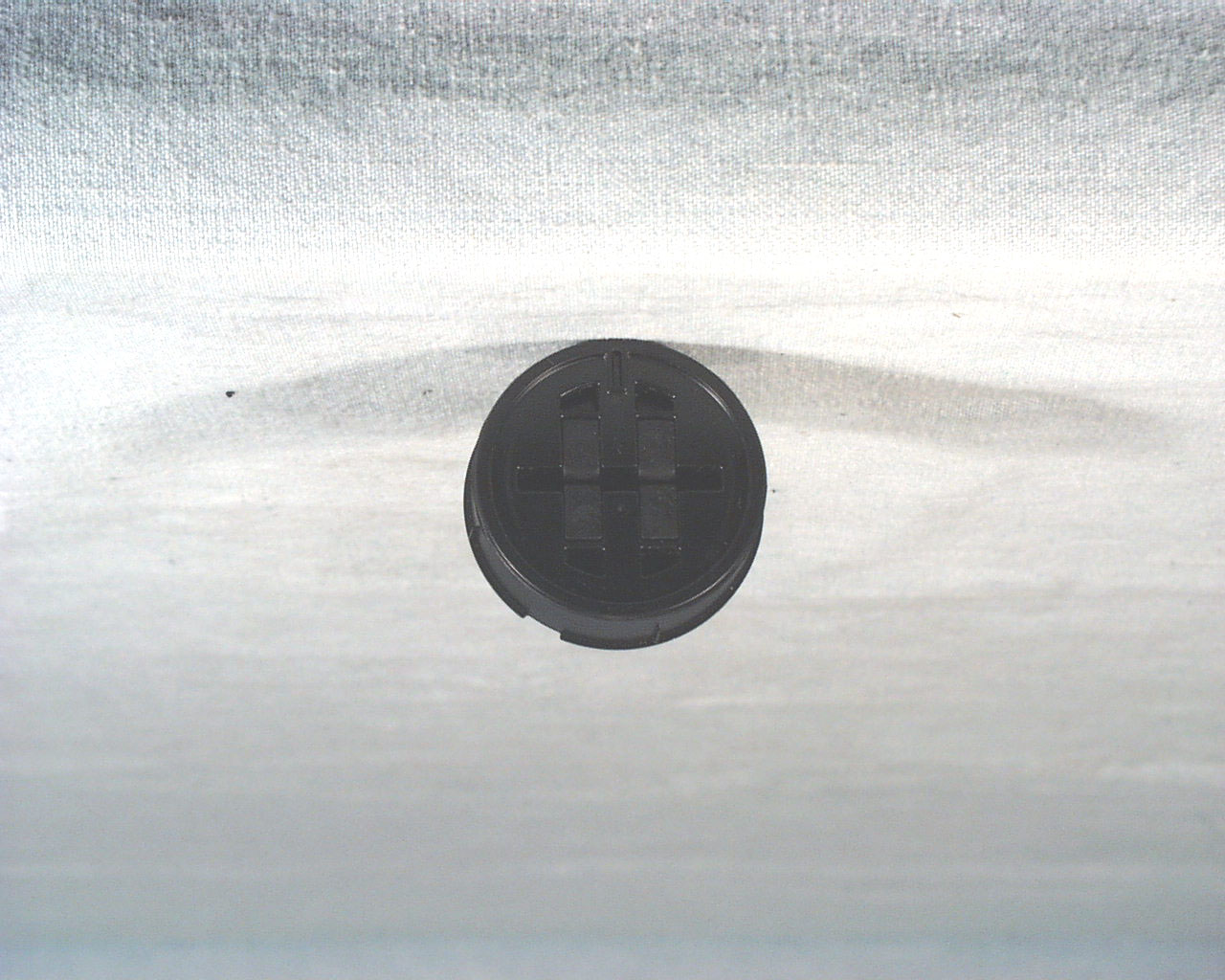

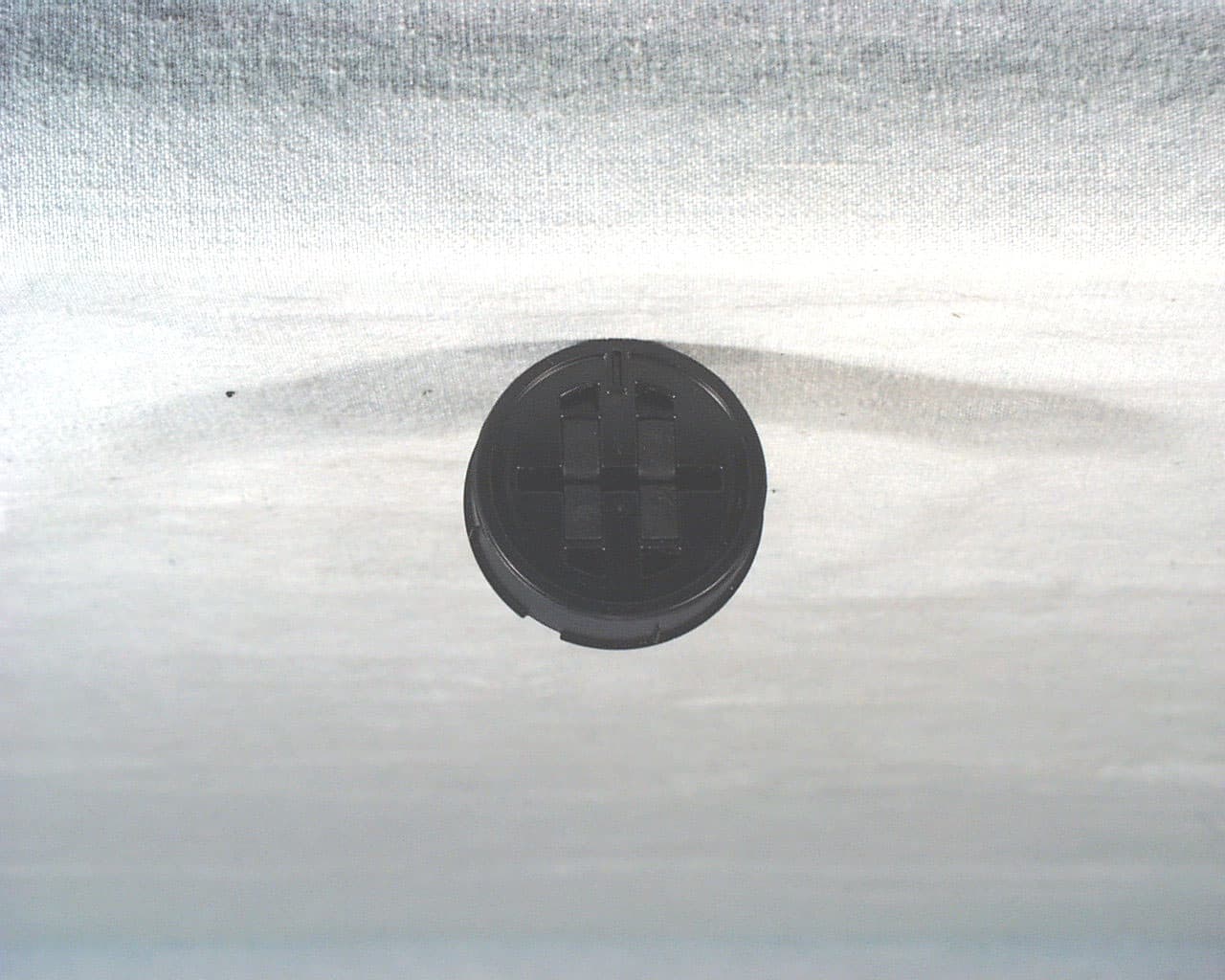

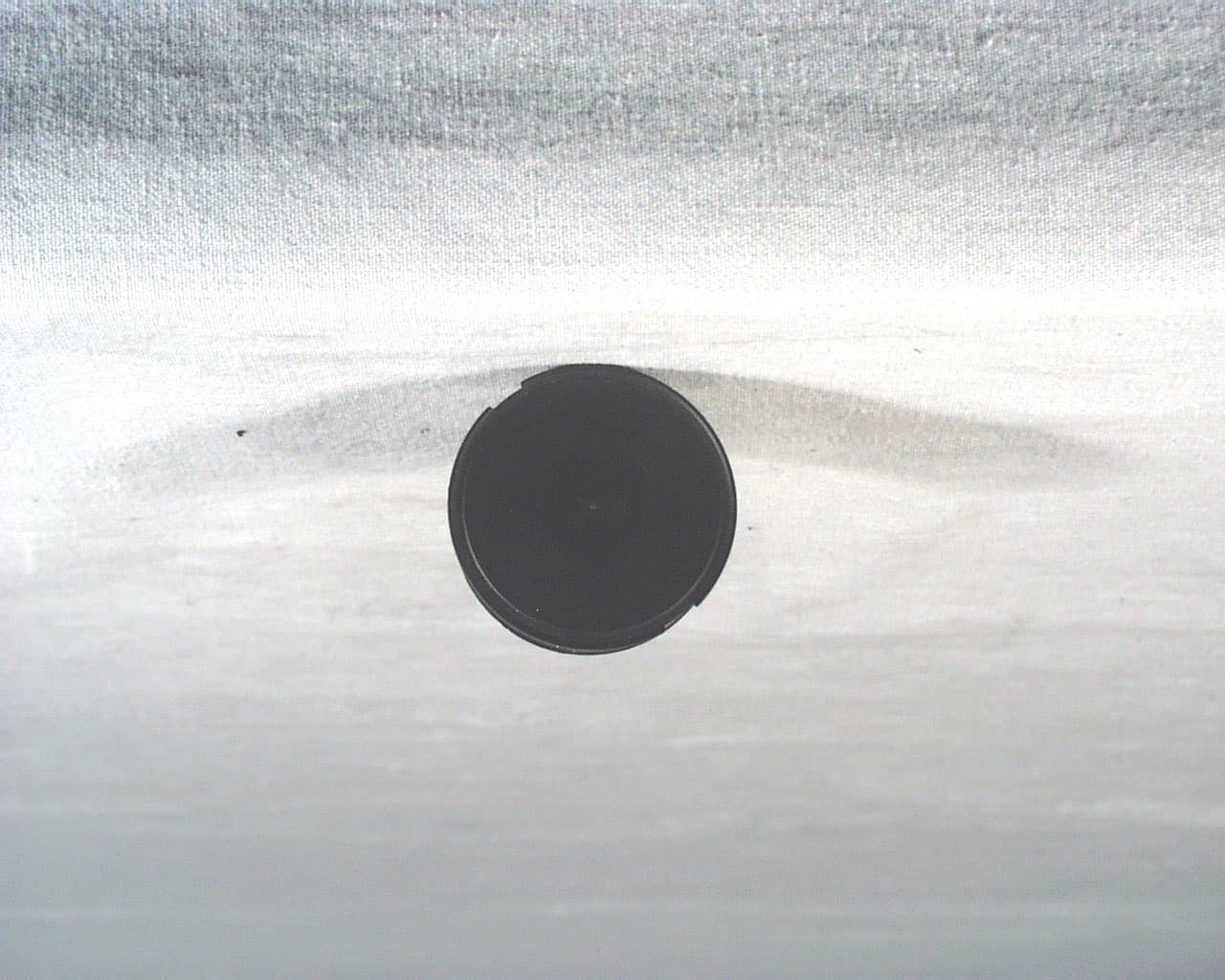

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 23 of 32 Front View of the Interrogator COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 24 of 32 Back of the Interrogator COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 25 of 32 Front View of Interrogator box COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 26 of 32 Back View of the Interrogator Box

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 30 of 32 Top view of the Transponder COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 31 of 32 Bottom view of the Transponder

MODEL NUMBER 100392 *Trademark of DowAgrosciences, LLC This device complies with Part 15 of the FCC regulations. Operation is subject to the condition that this device may not cause harmful interference. FCC ID: QCL200226 F C C F C C Sample labels and approximate placement for interrogator pole clamp pole clamp antenna INTERROGATOR PC CARD

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 27 of 32 Front View of The Interrogator PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 28 of 32 Back View of The Interrogator PCB COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 29 of 32 Inside view of the 125 kHz Antenna

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 32 of 32 Inside view of the Transponder

Dolphin Interrogator The Dolphin Sentricon System consists of a transponder, sensor, interrogator and a Hand Held Dolphin. The following sentences will give a brief description of each of these units. The system is used to detect termites The sensor is an electronic device that is sandwiched between the wooden monitoring devices of the Sentricon unit. The sensor is a passive device that can be consumed by termites. When this event occurs, the electronic state of the sensor is altered. This change of state of the sensor is the event that indicates the presence of termites within the Sentricon unit. The Transponder is a device that contains all the electronics necessary to derive its power from the interrogator, detect the state of the sensor, and provide a unique identification code to allow PROLINX software to determine specific information about the Sentricon station. The Interrogator housing contains visual displays and an audio alarm to give the user feedback regarding the status of the interrogator as well as the status of a Sentricon transponder. The 4 LED’s list as followed a green LED on the left of the display window indicates POWER ; Sensor status displays are placed in the center of the display. The two LED’s are labeled ACTIVE and INACTIVE. The ACTIVE LED is colored red when termites are present and the INACTIVE LED is colored green when no termites are present. On the right side of the display is the CHARGE LED, which is colored yellow when plugged into a wall outlet. The Dolphin cradle on top of the black box is for IR data communication between the Dolphin and the Interrogator. The Dolphin 7200 receives data from the Interrogator stores the data and confirms the data is correct and sends an ok signal back to the interrogator, to notify the operator of the status of the transponder.

AGND0 VDD2 FSK DAT C17 .1uF 12 134 11 14 + U4D LMC660A/NS CARRIER MIC4422SOIC 1 VS 2 IN 3 NC 4 GND 5 GND 6 OUT 7 OUT 8 VS U7 + C37 10uF C36 .1uF C35 .1uF C34 .01uF C33 470pF C32 100pF C31 220pf C30 560pf HEXSW 1 1 2 C1 3 4 4 2 5 C2 6 8 SW1 L4 27uH C29 100pF ANT SIG C11 100pF C10 1000pF C9 1000pf J4 D10 MURS160T3 + C7 10uF FLLD261 3 1 2 U1 + C18 10uF 10 9 4 11 8 + U4C LMC660A/NS 5 64 11 7 + U4B LMC660A/NS 3 2 4 11 1 + U4A LMC660A/NS C38 1000pF C39 2700pF C40 1000pF C41 1000pF C42 1000pF C43 1000pF C44 1000pF C45 1000pF C46 100pF C47 .22uF C48 .1uF ANT SIG FLLD261 3 1 2 U13 VDD0 VDD0 VDD0 VDD0 VDD0 VDD0 AGND0AGND0 AGND0 AGND0 AGND0 AGND0 AGND0 AGND0 AGND0 VDD1 MAX931CSA 8 OUT 7 V+ 6 REF 5 HYST 1 GND 2 V- 3 IN+ 4 IN- U9 R34 1 R10 26.7K R11 82.5K R35 2.2Meg R36 16K R37 10k R38 10K R39 10K R40 82.5K R41 2.67K R42 47.5k R43 1.82k R44 100K R45 4.75K R46 390K R49 2.2M R50 24.3K DOW AGROSCIENCES INTERROGATOR AND DOLPHIN INTERFACE CSENSOR SOLUTIONS, LLC Date: 11/22/01Page: 1 of 4 RevID 1 1 2 2 3 3 4 4 5 5 6 6 AA BB CC DD EE COLLECTOR IS PIN 4 (TAB) CONNECT TO PAD FOR HEAT SINK ADD HEAT SINK 185 MA FOR .27 OHM (50MV/RSENS) POWER TO DOLPHIN CRADLE FLAT CABLE 10 &11 FLAT CABLE 12, 13 & 14 + - B3 + - B2 F1 31 J1 S1 D11 MA10705 2 1 3 Q3 FZT1151ACT-ND 1 3 2 Q2 FMMT3904CT-ND BZX84C5V1 3 1 D9 MIC29151-12BU 2 IN 3 GND 4 OUT 1 EN 5 FLAG U10 C28 .01uF C27 .047uF C26 4700pF C25 4.7pF C24 .1uF C23 .1uF BQ2000 1 SNS 2 VSS 3 -LD 4 BAT 5 TS 6 RC 7 VCC 8 MOD U6 PWR ON BATT PWR C16 .1uF MIC5201-5.0BS 1 IN 2 COM 3 OUT U3 MIC5200-3.3BS 1 IN 2 COM 3 OUT U2 D2 ZCX2800 + C6 10uF + C5 10uF + C4 10uF + C3 10uF BATT PWR CHGLEDA CHGLEDK + C22 47uF VDD1VDD2VDD0 AGND1AGND1 AGND1AGND1 AGND0AGND0 AGND1 T THERM R1 + - B1 PWR_PLUG V+ GND U16 R33 10k R32 .68 R31 82.5K R30 12.7K R29 750K R28 470 R27 1k R26 9.31K R25 100k R24 270K R23 680 R22 2K R21 1k R9 100k DOW AGROSCIENCES INTERROGATOR AND DOLPHIN INTERFACE CSENSOR SOLUTIONS, LLC Date: 11/22/01Page: 2 of 4 RevID 7 7 8 8 9 9 10 10 11 11 12 12 AA BB CC DD EE AGND2AGND2 VDD1 + C8 10uF MIC5200-3.3BS IN COM OUT U14 PWR ON 1 3 2 Q4 BSST138ZXCT-ND 1 3 2 Q5 BSS84ZXCT-ND 1 3 2 Q1 FMMT3904CT-ND MIC4428 1 NC 2 INA 3 GND 4 INB 5 OB 6 V+ 7 -OA 8 NC U12 RCV DATA PTT XMIT DAT C21 27pF C20 100pF C19 .015uF ANT1 L3 1uH L2 10nH L1 100nH TR1000 1 GNDT 2 VCCT 3 AGCC 4 PDET 5 BOUT 6 CMPI 7 RDAT 8 TMOD 9 LADJ 10 GNDR 11 RREF 12 TDS2 13 TDS1 14 PRTE 15 PWTH 16 VCCR 17 CT1 18 CT0 19 GND 20 ANT U5 BATT PWRLOWBATT C15 .1uF BUZZER D5 D4D3 ILED ALED GLED RCVLED XMTLED C12 .1uF + C1 10uF CHGLEDA CHGLEDK D1 C13 .1uF C54 .1uF VDD2 VDD0 AGND2 AGND2 AGND2 AGND2AGND2 AGND2 AGND2AGND2 AGND2AGND2AGND2 + - BZ1 D6 R2 150 R3 150 R4 150 R5 150 R6 150 R59 2.2M R20 4.7K R19 30K R18 100K R17 100K R16 270K R15 270K R14 100 R13 27K R12 47K R8 750K R7 150k DOW AGROSCIENCES INTERROGATOR AND DOLPHIN INTERFACE CSENSOR SOLUTIONS, LLC Date: 11/22/01Page: 3 of 4 RevID 1 1 2 2 3 3 4 4 5 5 6 6 EE FF GG HH II Flat Cable 5 Flat Cable3 Flat Cable 9 J11 1 2 3 4 5 6 7 8 9 J10 C53 .1uF C52 .1uF C51 .1uF C50 .1uF C49 .1uF J6 TP4 TP3 TP1 TP2 X1 4MHZ PIC16F876 1 -RES/VPP/THV 2 RA0/AN0 3 RA1/AN1 4 RA2/AN2/VREF- 5 RA3/AN3/VREF+ 6 RA4/TOCKI 7 RA5/-SS/AN4 8 VSS 9 OSC1/CLKIN 10 OSC2/CLKOUT 11 RC0/T1OSO/T1CK1 12 RC1/T1OSI/CCP2 13 RC2/CCP1 14 RC3/SCK/SCL 28 RB7/PGD 27 RB6/PGC 26 RB5 25 RB4 24 RB3/PGM 23 RB2 22 RB1 21 RB0/INT 20 VDD 19 VSS 18 RC7/RX/DT 17 RC6/TX/CK 16 RC5/SDO 15 RC4/SDI/SDA U11 J8 LOWBATT XMIT DAT J7 RCVLED BUZZER ALED RCV DATA CARRIER ILED FSK DAT XMTLED GLED PTT PWR ON C14 .1uF + C2 10uF VDD2 VDD3 VDD3 VDD3 MAX3221 2 C1+ 3 V+ 4 C1- 5 C2+ 6 C2- 7 V- 8 RIN 9 ROUT 11 TIN 12 FON 13 TOUT 14 GND 15 VCC 1 EN 10 ERR 16 FOFF U15 R51 10k DOW AGROSCIENCES INTERROGATOR AND DOLPHIN INTERFACE CSENSOR SOLUTIONS, LLC Date: 11/22/01Page: 4 of 4 RevID 7 7 8 8 9 9 10 10 11 11 12 12 EE FF GG HH II

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 21 of 32 PPENDIX 2 Photographs A Front view of Test Setup COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7734 FCC ID: QCL200226 Page 22 of 32 Back view of Test Setup
