QD2027850000StreamLab Programmable Identification Transponder

Installation and operating instructions as furnished to user containing information required by 15.21, 15.19 & 15.105 as applicable. [2.1033 (b)(3)] The following information will appear in the StreamLAB Operators Manual: " This Device complies with Part 15 of the FCC for an intentional radiator. Changes or modifications to the Pallet Identification system that are not expressly approved by Dade Behring Corporation for compliance could void the user's authority to operate the equipment."

Tag Reader Circuit Board Block Diagram Dual USB/Power Connector Y3 5 Vdc & gnd Antenna Selection Quad Switch U1 Programmable Microcontroller U4 125 kHz Carrier Antenna Selection Driver Antenna 1 Q1 & Q2 Driver Antenna 2 Q3 & Q4 Antenna 1 Antenna 2 Demodulation U3 Power 24 to 5 vdc U6 Communications RS485 Transceiver U2

FCCID Label Artwork and Location on Device [2.1033(b)(2)] The following label will be placed on each Tag Reader circuit board mounted in the StreamLAB. The following label will be placed near the rating label on the StreamLAB. FCCID:QD202785000 AWforPNStreamLAB™-LabelFCC RevAPissuedate07.16.02PMSBlack 1.1 .25 AW for PN StreamLAB™-Label FCC Rev AP issue date 07.16.02 PMS Black This Device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QD2 02785000 1.25 5.25

General Overview of RFID Control Circuit Board Dade Behring Corporation Author: Ron Criel June 21, 2002 This document provides a high level overview of the RFID circuit board that was designed and manufactured by Impeco corporation in Italy and is used on the Dade Behring StreamLab track system. Impeco Part Number: 027820002 Tag Reader Controller Assembly Please reference electrical schematic 027820002. This circuit board is best described by dividing the components into 6 unique sections as shown in the attached block diagram. Power: The circuit board receives 24 Vdc via the dual USB connector labeled Y3. This 24 Vdc is then regulated on board via U6, which is a 24 to 5 Vdc DC to DC converter. All remaining components on the board are powered from this 5 Vdc source. Communications: Communications to all tag reader boards is accomplished using a RS485 serial bus. U2 on the circuit board is a RS485 transceiver that acts as an interface between the USB connection and the programmable microcontroller, U4. Microcontroller: U4 is a single chip microcontroller manufactured by Phillips Electronics. The microcontroller coordinates all communications to and from the circuit board and also generates the 125 k Hz, 50% duty cycle carrier frequency for the antenna driver. The microcontroller is clocked via a 12 Meg Hz crystal. Each tag reader circuit board contains a unique address that is set via 4 dipswitches (SW1) that are read by the microcontroller. Since the board is capable of driving two antenna, both the 125 k Hz drive signal and the returned signal from each antenna are connected via a quad bilateral switch (U1) that is also controlled by the microcontroller. Antenna Selection Switch: The control line for the switch changes state every 165 ms such that antenna one is connected 165 ms and then antenna 2 is connected for 165 ms. When one antenna drive circuit is connected to the 125 kHz signal, the other antenna is connected to a fixed 5 Vdc and is therefore disabled. The antenna selection switch also connects the driven antenna to a common demodulation circuit that outputs the digital pallet identification data back to the microcontroller. Antenna Driver: Each antenna is driven via a push pull driver using two transistors. This assures that the antennas are driven with adequate current. Demodulation: The transponder chip within each pallet generates it owns power from the RF energy of the 125 kHz carrier signal. Using amplitude modulation of the signal, the transponder then communicates its unique identification code that is demodulated on the tag reader board.

Electric Schematic 027820002 A3 1/1 cesare Tag Reader Controller 24 july 01 26 july 01 24 july 01 M.Falavigna M.Falavigna TITLE / Titolo CODE/Codice GLOBAL/Complessivo SIZE / Formato SHEET/ Foglio inpeco S.r.l. Via G.diVittorio,11 20090 Segrate (MI) - Italy N°0786 DRAFTSMAN: APPROVED: VERIFIED: NAME/NomeDATE/dataSIGNATURE/Firma 5 34REVISION DATE 21 DATE LAST UPDATE N°SIR N°SIR REVISION/Revisione ABCDE MODIFICATION/Modifica R23 4K7 D6 BAT86 R27 120 L1 LED R32 zero ohm Q5 BC337 GND GND C15 100n R2 470 Y2 AMPMDU3H 1 2 3 +5V Q1 BC337 GND R17 4K7 P5 U4P87LPC764BN 20 19 18 17 16 15 14 13 12 11 1 2 3 4 8 9 5 6 7 10 P0.1 P0.2 P0.3 P0.4 P0.5 VDD P0.6 P0.7 P1.0 P1.1 P0.0 P1.7 P1.6 P1.5 P1.4 P1.3 VSS P2.1 P2.0 P1.2 R29 4K7 R304K7 L3 LED 18/02/02 TP9 1 +24V GND A2 P1 R22 10K R14 470 R24680 R15 39K +5V TP1 1 C5 3.3nF NP0 2% C13 100p C6 330pF NP0 2% GND GND Place Ferrite on cable that connects to Y1 and Y2: Fair-Rite #0431173951 C19 33p 2% GND R16 470 + - U3A LM358 3 2 1 8 4 R25680 R12 220K + CE2 10/16 + - U3B LM358 5 6 7 R11 39K CF1 100n GND C9 470p VSS P3 GND R5 330 C10 470p SL1 10K 3 4 5 6 1 2 R6 330 TP10 1 D4 1N4148 R1 470 R3 100K D1 1N4148 C16 1n GND +5V JP1 2X1 GND TP6 1 SW1 DIPSW 1357 2468 P6 CF2 100n D3 1N4148 A C18 33p 2% D2 1N4148 A1 C14 10n +5V R31 2K2 Y3 DUAL-USB 12345678910 +5V R7 330 R8 330 TP3 1 D5 BAT86 TP2 1 TP5 1 C17 100p +5V R18 1M R19 100K + CE1 47/10 R26680 L2 LED GND X1 12 Mhz Q3 BC337 R10 10K GND +5V TP4 1 C1 3.3nF NP0 2% C2 330pF NP0 2% +5V U6 TMH2405S 12 46 VINGND 0V+V C11 100n R9 4K7 P2 Y1 AMPMDU3H 1 2 3 R4 100K C8 4n7 Q4 BC327 2,5V D7 1N4007 VDD TP8 1 B CF3 100n GND C4 4n7 Place Ferrite on cable that connects to Y3 from microcontroller pcb or down stream from this tag reader circuit board: Fair-Rite #0431167281 R13 220K U2 MAX485 1 2 3 45 6 7 8 RO RE DE DIGND A B VCC A0 C12 4n7 TP7 1 +5V VEE U1 4551 1514 1 24 3 65 10 1113 12 9 W0W W1 X0X X1 Y0Y Y1 Z0Z Z1 CTL GND P4 R28 4K7 C3 100n ZANCHI Q2 BC327 TP11 1

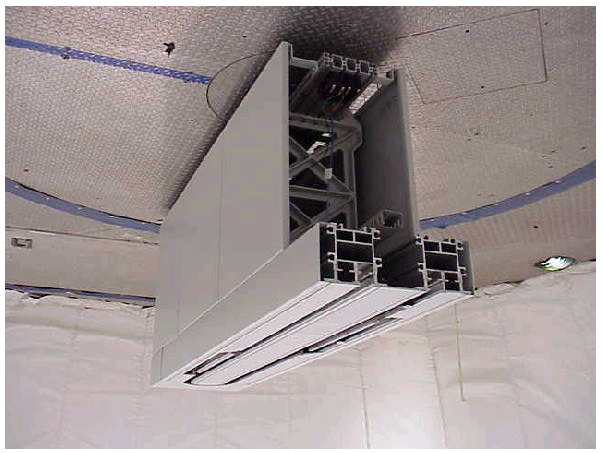

P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 1 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 Electromagnetic Compatibility EMC Report for Programmable Identification Transponder Model: StreamLab Applicant: Dade Behring, Inc. P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 2 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 Test Report Number: P2271229.01 FCC Prübericht Nr. Test Report Summary Tel: (302) 631-7410 Fax: (302) 631-9716 Contact: Thomas Kimble Applicant: Auftraggeber Dade Behring, Inc. Route 896, Bldg. 500 Newark, DE 19714 e-mail: [email protected] Type of Equipment: Gegenstand der Prüfung Programmable Identification Transponder Model Number: Bezeichnung: StreamLab Trademark: Ursprungszeichen Standards: Prufgrundlage See Below Date Of Testing: 19-21JUN02, & 17JUL02 Standard Number Description Limits Minimum Acceptable Performance Criteria Summary Result FCC Part 15 Subpart C Measurements for intentional radiator as required by §§15.31(e), 15.207, 15. 209, §§ 15.207(a), 15.209(a) NA Complies NOTE: All data in this report is covered by the NVLAP accreditation. TUV Rheinland of North America, Inc. 12 Commerce Road Newtown, CT 06470 USA Place of Test: Prüfort E-mail: [email protected] Phone: (203) 426-0888 Web: http://www.tuv.com Fax: (203) 429-4009 NVLAP LAB CODE 200111- 0 Test Result: Prüfergebnis Unit presented for testing complied with criteria shown above. Additional Information is contained in the following pages. Tested By: Der Sachverständige Mark Ryan Checked By: geprüft Bruce Fagley 30AUG2002, 30AUG2002, Date, Signature Datum, Unterschrift Date, Signature Datum, Unterschrift P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 3 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 1. Table of Contents 1. Table of Contents........................................................................................................................................3 2. General.........................................................................................................................................................4 2.1 Measuring Equipment Used......................................................................................................................4 2.2 Traceability................................................................................................................................................4 2.3 Calibration..................................................................................................................................................4 2.4 Measurement Uncertainty.........................................................................................................................4 2.5 Location of original data............................................................................................................................5 2.6 Status of facility used for testing................................................................................................................5 2.7 References and related documents..........................................................................................................5 2.8 Software and Templates............................................................................................................................6 2.9 EMC Procedure References......................................................................................................................7 3. Test Plan......................................................................................................................................................7 4. Description of Equipment Tested..............................................................................................................7 4.1 General Description of Equipment.............................................................................................................7 5. Equipment Specifications..........................................................................................................................7 5.1 Technical Data....................................................…

Text truncated - open the document above for the full version.

P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 15 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 APPENDIX B: TEST DATA P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 16 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 Measured data and extrapolated H-field Plot and Data FCC Limit for 125kHz at 300m Is 19.2 μV/m (25.7 dB μV/m) The extrapolated value at 300m is 1 μV/m Note: measurements taken at 3m, 6m, 9m, and 12m were compared to the extrapolated values. The differences are 1.8dB or less, validating the equation. See Section 8.2.5 for explanation of calculation for extrapolated data. P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 17 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 NOTES: +20dB EUT in the open (Test Configuration 1) ANTENNA/COUPLER: 9124 Bicon 3109 Bicon CBL6140 X-Wing NNB-4/63TL LISN 3146 Log Per 3115 Horn MDS–21 Clamp NNB-4/200X LISN 3106 Horn CBL6112B Bilog NSLK 8126 LISN FMZB 1516 Loop MEAS TYPE: POLARIZATION: DISTANCE: LOCATION: Radiated Prescan Vertical 3 Meter OATS Radiated Final Horizontal 10 Meter Semi-Anechoic Conducted Line Meter Shielded Room Disturbance Power Neutral NA Factory Floor Other_____________ NA Other____________ P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 18 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 NOTES: +20dB EUT mounted in enclosure track. 90° Facing antenna (Test configuration #2) ANTENNA/COUPLER: 9124 Bicon 3109 Bicon CBL6140 X-Wing NNB-4/63TL LISN 3146 Log Per 3115 Horn MDS–21 Clamp NNB-4/200X LISN 3106 Horn CBL6112B Bilog NSLK 8126 LISN FMZB 1516 Loop MEAS TYPE: POLARIZATION: DISTANCE: LOCATION: Radiated Prescan Vertical 3 Meter OATS Radiated Final Horizontal 10 Meter Semi-Anechoic Conducted Line Meter Shielded Room Disturbance Power Neutral NA Factory Floor Other_____________ NA Other____________ P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 19 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 P2271229.01 FCC Dade Behring FCCID: QD202785000 Page 20 of 42 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for odels or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 NOTES: FCC part 15.109(a) limits EUT mounted in enclosure track. 90° Facing antenna (Test configuration #2) ANTENNA/COUPLER: 9124 Bicon 3109 Bicon CBL6140 X-Wing NNB-4/63TL LISN 3146 Log Per 3115 Horn MDS–21 Clamp NNB-4/200X LISN 3106 Horn CBL6112B Bilog NSLK 8126 LISN Other__…
