Date: August 29, 2003 Subject: Request for additional information (CHI MEI COMMUNICATION SYSTEMS, INC. - FCC ID: QDJ-0303BEN01) Reference: Job Reference Number: 1214UC3 Date of Original Email: 8/28/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois The following responds to your questions: 1. RF Exposure – User’s manual: End-users must be informed of the body-worn operating requirements (e.g. new belt-clips accessories, etc.) for satisfying RF exposure compliance. The SAR values must be updated as well. Please, provide the m/n of the belt-clips tested with this product and revise the operating requirements accordingly. Response: Please refer to the body worn accessory and SAR text for the user manual, attached at the end of this document. 2. Part 2.1033(c)(8): Please, confirm that the values reported in exhibit “0303BEN01 Base Band Spec.pdf” page 37/37 are unchanged after the increase in power. Otherwise, please, provide amended test data. Response: The dc voltage remains at 3.6V. The average current is increased to 310 mA. 3. Form 731 lists a power of 600mW. Please, confirm that the power should be listed at 1.2Watt conducted, which will be listed on the Grant. Response: Conducted power is increased to 1.5 Watt. Radiated power is 0.6 Watt EIRP. We prefer to list EIRP only on the grant. 4. Part 24.238 - Block-edges: It could not be found a plot showing compliance at 1910MHz (block C) while the channel is set to 810 (1909.8M). Please, provide such data. The plots on Page 15/29 “GSM 1900 C1 Max. Block Edge” and page 17/19 “GSM 1900 C5 Max. Block Edge” show a carrier at 1909.6, which is conflicting with the band requested on Form 731. 1 Response: Please refer to the plot below. We request a change on the Form 731 to indicate the highest frequency as 1909.6 MHz instead of 1909.8 MHz. 11:09:07 Aug 19, 2003 Center Freq 1.91000000 GHz Start Freq 1.90900000 GHz Stop Freq 1.91100000 GHz CF Step 200.000000 kHz A utoMan Freq Offset 0.00000000 Hz Signal Track OnOff Freq/Channel MOT:BEETHOEEN Ref 29.59 dBm#Atten 40 dB Mkr1 1.910000 GHz -42.65 dBm Peak Log 10 dB/ Dl -13.0 dBm M1S2 S3FC AAA Center 1.91 GHz #Res BW 3 kHzVBW 3 kHz Span 2 MHz Sweep 555.6 ms (401 pts) 1 GSM 1900 C Max. Block Edge 5. FYI – Grant notes: “Power listed is conducted. SAR compliance for body-worn operations is restricted to belt-clips, holsters and accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR levels are: Body-worn: 0.44 W/kg, Head: 0.12 W/kg. This device contains 900/1800 MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations.” Response: We prefer to list only the EIRP power on the grant. 2 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, where available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antenna, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. D R A F T 64 Specific Absorption Rate Data The model wireless phone meets the government’s requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g.,…

Text truncated - open the document above for the full version.

APPLICANT: Chi Mei Communications Systems, Inc. FCC ID: QDJ-0303BEN01 August 26, 2003 Application Amendment FCC ID: QDJ-0303BEN01 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification (Amendment) Application: Acting as an agent for Chi Mei Communications Systems, Inc.; Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286; herein submits items to amend the equipment certification application for FCC ID: QDJ-0303BEN01. This equipment will not be marketed or shipped until the amendment is approved. Description of Change: A new test report (Exhibit 6) and a new SAR report (Exhibit 11) are submitted. The replacement reports address the following updates: 1. Refinements to the power output values: 2. Change in battery. 3. Addition of body worn accessories. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

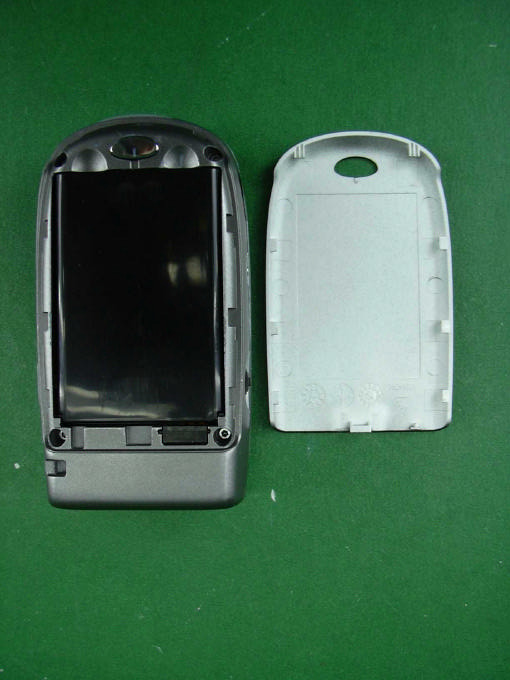

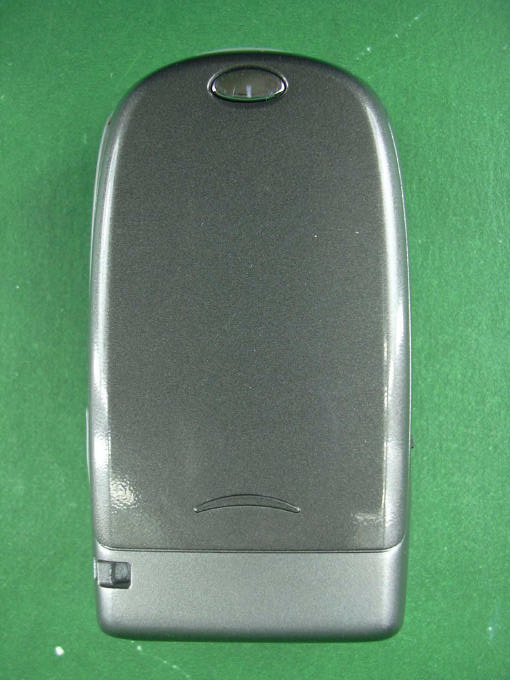

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 1 of 18 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 2 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 3 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 4 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 5 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 6 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 7 of 18

APPLICANT: Chi Mei Communication Systems, Inc. FCC ID: QDJ-0303BEN01 E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report QDJ-0303BEN01 Date of test: Date of Report: 21-22 August, 2003 22 August, 2003 Test Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares that portable cellular telephone FCC ID QDJ-0303BEN01 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: Chi Mei Communication Systems, Inc. FCC ID: QDJ-0303BEN01 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 4 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 7 References: Appendix 1: SAR distribution comparison for the system accuracy verification 9 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 10 Appendix 3: SAR distribution plots for Body Worn Configuration 12 Appendix 4. Probe Calibration Certificate 14 Appendix 5. Dipole Characterization Certificate 15 Appendix 6: Measurement Uncertainty Budget 16 Appendix 7. Photographs of the device under test 19 APPLICANT: Chi Mei Communication Systems, Inc. FCC ID: QDJ-0303BEN01 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID QDJ-0303BEN01). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Internal Location Top Rear of Phone Length 32mm Dimensions Width 7mm Configuration Patch Device description FCC ID Number QDJ-0303BEN01 Serial number 351638-00-000871-6 Mode(s) of Operation EGSM900 GSM 1800 GSM 1900 Modulation Mode(s) GSM GSM GSM Maximum Output Power Setting 33.4dBm 30.5dBm 30.8dBm Duty Cycle 1:8 1:8 1:8 Transmitting Frequency Rang(s) 880.2-914.8MHz 1710.2-1784.8MHz 1850.2-1909.8MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN365 10-Dec-03 E-Field Probe ET3DV6 SN1502 27-Sep-03 Dipole Validation Kit, D1800V2 SN272TR 24-Jun-05 S.A.M. Phantom used for 1900MHz TP-1250 APPLICANT: Chi Mei Communication Systems, Inc. FCC ID: QDJ-0303BEN01 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04845 11/5/2004 Power Meter E4419B GB39511086 2/6/2004 Power Sensor #1 - 8481A US37296471 11/5/2003 Power Sensor #2 - 8481A US37296473 11/5/2003 Network Analyzer HP8753ES US39172529 6/18/2003 Dielectric Probe Kit HP85070B US33020235 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameter…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: QDJ-0303BEN01 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 11707-1 Report Date – August 26, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : _ 2003-08-26____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. EXHIBIT 6 A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: QDJ-0303BEN01 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 9 GSM 1900 Occupied Band Plot 10 GSM 1900 Reference Plot 10 GSM 1900 Lower Band Edge 11 GSM 1900 Upper Band Edge 11 GSM 1900 A Min Block Edge 12 GSM 1900 A Max Block Edge 12 GSM 1900 B Min. Block Edge 13 GSM 1900 B Max Block Edge 13 GSM 1900 C, C2, C3 Min. Block Edge 14 GSM 1900 C, C2, C3 Max Block Edge 14 GSM 1900 C1 Min Block Edge 15 GSM 1900 C1 Max Block Edge 15 GSM 1900 C3, C4 Min Block Edge 16 GSM 1900 C4 Max/C5 Min Block Edge 16 GSM 1900 C5 Max Block Edge 17 GSM 1900 D Min. Block Edge 17 GSM 1900 D Max Block Edge 18 GSM 1900 E Min. Block Edge 18 GSM 1900 E Max Block Edge 19 GSM 1900 F Min. Block Edge 19 GSM 1900 F Max Block Edge 20 Spurious Emissions at Antenna Terminals 21 GSM 1900 Tabular and Graphical Data 22 Field Strength of Spurious Emissions 23 GSM 1900 Tabular and Graphical Data 24 Frequency Stability 25 GSM 1900 Tabular and Graphical Data 26 Test Report Number: 11707-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: QDJ-0303BEN01 Field Strength of Spurious Emissions From Unintentional Radiators 27 GSM 1900 Tabular and Graphical Data 28 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 29 Figure A.2 – Substitution Measurement 29 Test Report Number: 11707-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: QDJ-0303BEN01 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900 Model Number: SUG31044A Serial Numbers: 330005233, 328010119, 328010136 Testing Complete Date: August 25, 2003 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 11707-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: QDJ-0303BEN01 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 43.6 dB 6 Field Strength of Spurious Emissions 16.1 dB 7 Frequency Stability 73.4 Hz 8 Field Strength of Spurious Emissions 3.8 dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 11707-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: QDJ-0303BEN01 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETSDRG Horn Antenna311562229/30/2003 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712654/29/2004 ETSLog-Periodic Antenna314811894/29/2004 ETSBiconical Antenna3110B33694/29/2004 ETSBiconical Antenna3110B337010/25/2003 AttenuatorWeinschel AS-6667510/3/2003 AttenuatorWeinschel AS-6667710/3/2003 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett Packard Signal Generator 83623B 3844A01195 5/20/2004 ThermotronEnvironmental ChamberS-43158012/19/2003 Hewlett PackardPre-Amplifier8347A Hewlett PackardPre-Amplifier8447F2805A034195/19/2004 AgilentPower MeterEE4418B11/26/2003 AgilentSensorE4412B11/23/2004 All equipment is on a one-year calibration cycle. Test Report Number: 11707-1 EXHIBIT 6 6 APPLICANT: MOTOROLA INC FCC ID: QDJ-0303BEN01 Measurement Procedures and Data RF P…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 16 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 17 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G6M203010015-T-47Page 18 of 18
