QEO-96105140Wireless Snow Plow Control

OWNER’S INSTALLATION AND OPERATION MANUAL ©2002 Sno-Way® International PLOW CONTROL PACKAGE FOR PLOW SERIAL NUMBERS AFTER STD200000 STG200000 MTD200000 MTG200000 HTD200000 HTG200000 HTV200000 97100737D 1 TABLE OF CONTENTS TABLE OF CONTENTS ............................................................................................. 1 INTRODUCTION ...................................................................................................... 2 SAFETY ..................................................................................................................... 3 CONTROL INSTALLATION INSTRUCTIONS ........................................................... 4 Receiver Installation on Plow Power Pack ..................................................... 4 FCC Statement of Conditions ........................................................................... 4 Programming Receiver to Learn Transmitter Code (Wireless Control) ........ 4 Wire Harness Installation, Control Harness (Hard-Wired Control)............... 5 Theory of Operation ....................................................................................... 6 Controller Operation......................................................................................... 6 Switches and Functions - Straight Blade .................................................... 6 Switches and Functions - V Plow.................................................................. 6 Start / Stop Procedure for Hand Held Controller ......................................... 7 Power Saving Mode ........................................................................................ 7 Using the Controller to Aid in Mounting and Removing the Snow Plow ..... 7 WIRING SCHEMATIC (STRAIGHT BLADE - DOWN PRESSURE SYSTEM) .......... 8 WIRING SCHEMATIC (STRAIGHT BLADE - GRAVITY DOWN SYSTEM) ............... 9 WIRING SCHEMATIC (V PLOW).............................................................................. 10 WARRANTY ............................................................................. INSIDE BACK COVER TABLE OF CONTENTS Page 2 This manual was written for the assembly, installation and maintenance of your new Sno-Way plow. Most importantly, this manual provides an operating plan for safe use. Refer to the Table of Contents for an outline of this manual. Please keep this manual with your machine at all times as reference material and so it can be passed on to the next owner if the machine is sold. We require that you read and understand the contents of this manual COMPLETELY, especially the chapter on SAFETY, before attempting any procedure contained in this manual. The Society of Automotive Engineers has adopted this SAFETY ALERT SYMBOL to pinpoint characteris- tics that, if NOT carefully followed, can create a safety hazard. When you see this symbol in this manual or on the machine itself, BE ALERT!, your personal safety and the safety of others, is involved. • Defined in the next column, are the SAFETY ALERT messages and how they will appear in this manual. NOTE: Additional information concerning the equipment or the procedure that may or may not be contained elsewhere in this manual. BE AWARE! It is illegal to remove, deface or otherwise alter the safety decals mounted on this equipment. Record the Controller Serial Number And The Receiver Serial Number in the space provided below as a handy record for quick reference. The Controller Serial Number is located on the bottom side of the controller, the Receiver serial number is located on the upper edge of the receiver. This plate contains information that your Dealer needs to answer questions or to order replacement parts, if needed, for your unit. We reserve the right to make changes or improve the design or construction of any part(s) without incurring the obligation to install such parts or make any changes on any unit previously delivered. WARNING FAILURE TO HEED CAN RESULT IN SERIOUS INJURY OR DEATH. CAUTION Information, that if not carefully followed, can cause minor injury or damage to equipment! DEALER NAME PHONE ( ) – ADDRESS CITYSTATEZIP (FILL IN) ORIGINAL PURCHASER NAME PHONE ( ) – ADDRESS CITYSTATEZIP (FILL IN) NAME PLATE DATA (FILL IN) CONTROLLER SERIAL NUMBER RECEIVER SERIAL NUMBER INTRODUCTION SAFETY BEFORE ATTEMPTING ANY PROCEDURE IN THIS BOOK, READ AND UNDERSTAND ALL THE SAFETY INFORMATION CONTAINED IN THIS SECTION. IN ADDITION, ENSURE ALL INDIVIDUALS WORKING WITH YOU ARE ALSO FAMILIAR WITH THESE SAFETY PRECAUTIONS. For your safety Warning and Information Decals have been placed on this product to remind the operator to take safety precautions. It is important that these decals are in place and are legible before operation begins. New decals can be obtained from Sno-Way or your local dealer. REMEMBER The careful operator is the best operator. Most accidents are caused by human error. Certain precautions must be observed to prevent the possibility of injury to operator or bystanders and/or damage to equipment. NEVER operate plow when under the influence of alcohol, drugs or other medications that could hamper your judgement and reactions. An accident may result in serious injury or death to other persons or yourself. ALWAYS operate vehicle in a well-ventilated area. The carbon monoxide in exhaust gas is highly toxic and can cause serious injury or death. NEVER allow hands, hair or clothing to get near any moving parts such as fan blades, belts and pulleys. Never wear neckties or loose clothing when working on the vehicle. NEVER wear wrist watches, rings or other jewelry when working on the vehicle or individual equipment. These things can catch on moving parts or cause an electrical short circuit that could result in serious personal injury. ALWAYS wear safety goggles when working on the vehicle to protect your eyes from battery acid, gasoline, and dust or dirt from flying off of moving engine parts. ALWAYS be aware of and avoid contact with hot surfaces such as engine, rad…

Text truncated - open the document above for the full version.

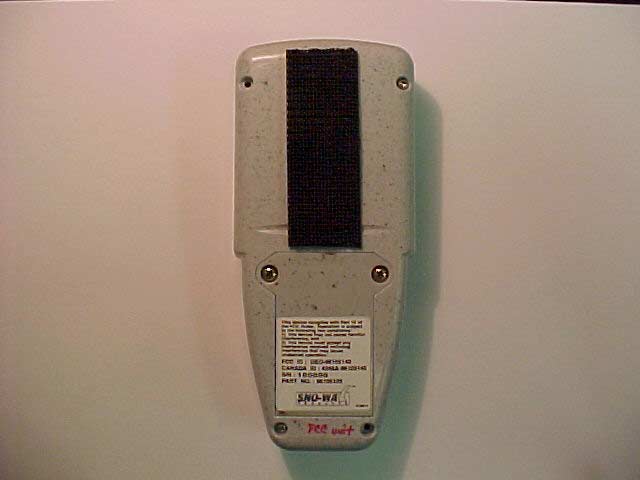

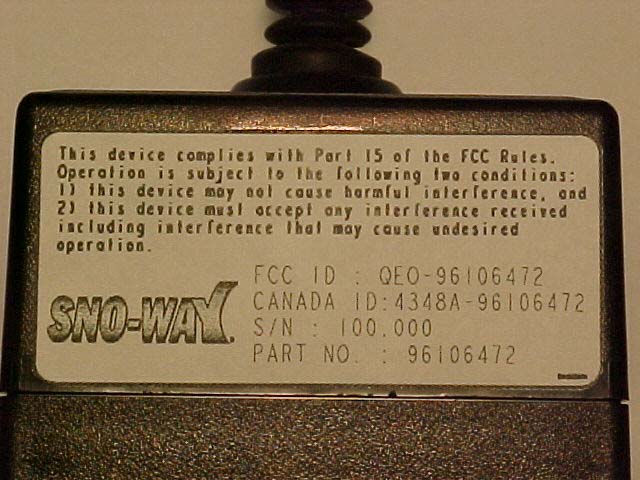

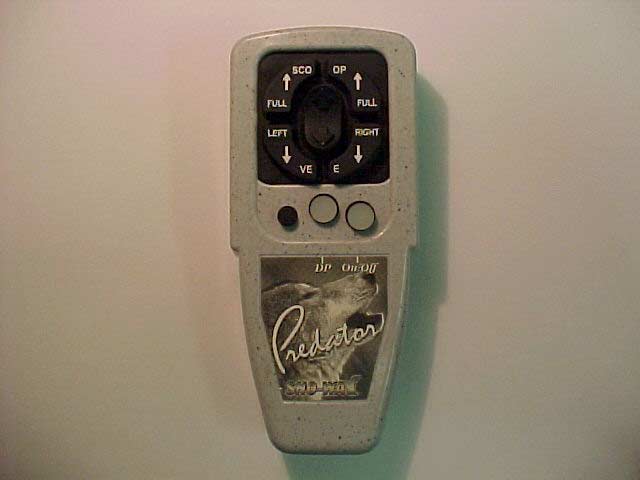

Sno-Way International, Inc. Wireless Snow Plow Control FCC ID#: QEO-96105140 Photo One Control Panel of Snow Plow Controller Sno-Way International, Inc. Wireless Snow Plow Control FCC ID#: QEO-96105140 Photo Two Flip Side of Controller showing FCC ID Label Sno-Way International, Inc. Wireless Snow Plow Control FCC ID#: QEO-96105140 Photo Four Battery Compartment Open

Requested Proof Company Name: Sno-Way International Customer Number: 7001-046-01 Your Order Number: 12985 Quantity: 1200 Product Code/Label Size: WP-564 (2.00" x 2.00") Label Material: .002" White Polyester Adhesive: MC71FL Pressure Sensitive Laminate: Printable Matte Holes: Quantity = Diameter = Center-to-Center: Date: 6/17/02 Copy/Logo Colors: Black Background Colors: White Square Corners Round Corners .0625" Bar Code Symbology: Not Applicable CPI: Ratio: Serial Number Size: To Fit Sequence Numbers (starting & ending): Starting: 100000 Ending: 101199 Starting: Ending: Starting: Ending: Starting: Ending: Starting: Ending: PLEASE NOTE This paper proof is being sent to you for copy, layout, and color format approval only. Because of the various materials and inks used, the actual colors for your order will vary from those shown and proof size may be distorted due to faxing. This proof is to be judged as final artwork. Please proofread the copy for errors. If this proof is for bar code, please check to see that it meets all standards and specifications. NOTE: If this is a faxed copy, the bar code may not be scannable due to distortion from the fax. Standard prices include artwork setup, one proof, and one revision of the artwork. A charge of $25 will be assessed for any additional proofs beyond the first revision. Your order will be entered into production upon the receipt of this signed proof. Save time by faxing your approval to 641-423-8898. List Corrections Below ! Print as Shown " Signature: Date: 1. Print with " Signature: Date: 2. Corrections Additional Proof " Signature: Date: 3. with Corrections Please sign the appropriate box above and return 4. approved proof so we may proceed with your order. Metalcraft is not responsible for errors not corrected on this proof or for any misrepresentations of logo, marks, names or lab approvals. Customer covenants with Metalcraft that customer has a license or proper authority to have said logo, marks, names or lab approval manufactured by Metalcraft and hereby agrees to indemnify and hold harmless Metalcraft from any claims, damages or liability including reasonable attorney’s fees and costs incurred as the result of the breach of this covenant.

Sno-Way International, Inc. Wireless Snow Plow Control FCC ID#: QEO-96105140 Photo Five Open for Inspection Sno-Way International, Inc. Wireless Snow Plow Control FCC ID#: QEO-96105140 Photo Six Component Side of PCB with Antenna Upper Left Corner of PCB Sno-Way International, Inc. Wireless Snow Plow Control FCC ID#: QEO-96105140 Photo Seven PCB Control side showing the Membrane Section of Control Pad Sno-Way International, Inc. Wireless Snow Plow Control FCC ID#: QEO-96105140 Photo Eight Close-up of Component Side of PCB with Antenna located Upper Right of Photo

________________________________________________________________________ FCC I.D. # QEO-96105140 Page 9 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 9. Product Description The ‘Predator’ wireless plow-controller is a transmitter that enables the user to control and set the position and orientation of the plow, remotely from inside the automobile, during plowing operations. The Predator wireless plow-controller operates at 434 MHz, with FM/FSK modulation characteristics. When activated, the plow-controller transmitter issues a series of packet commands, containing PWM encoded binary data, for a simplex link with the receiving plow mechanism. Detailed Description: The Predator wireless plow-controller is designed to eliminate the need for wire routing from inside the vehicle, through the fire-wall, to the plow mechanism, for control of the plow mechanism. Instead, the wireless system simply uses a portable, hand-held transmitter to transmit the commands to move and control the plow. The plow mechanism would only need to be connected to the power source. When a command button is pressed on the transmitter, two data packets are transmitted at minimum, and more if the button is continuously held down. When the transmitter button is released, three termination packets are sent, after which the transmitter goes into standby mode. The packet repetition rate is approximately 130 ms, and during that 130 ms cycle, the transmitter is power managed through the transmit IC, such that the power amplifier is gated on only for approximately 57 ms, to allow for the 45 ms packet to be transmitted, plus 12 ms of guard time around the packet. Other than the 57 ms of transmission per packet, the transmitter is in standby mode at all other times, with the transmit IC gated off. The transmitter uses two standard ìAAî type batteries, which are replaceable. 10. Test Requirements The Predator wireless plow-controller transmitter unit was to be tested for radiated emissions, and compliance with the limits set forth by 47 CFR, part 15.205, 15.209, 15.231a, 15.231b, and 15.231c, for manually operated periodic transmitters, as well as for compliance with Industry Canada, RSS-210, for low power license-exempt radio-communication devices. 11. Summary of Test Report The Predator wireless plow-controller transmitter was found to MEET the requirements as described within the specifications of Title 47 CFR, Part 15.231 and RSS-210, Section 6.1 for a low power transmitter.

sno_xmit_L.sch-1 - Wed Jul 10 16:37:41 2002

L.S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 Fax: 262-375-4248 Compliance Testing of the Sno-Way ëPredatorí Wireless Plow-Controller Prepared For: Mr. Terry Wendorf Sno-Way international, Inc. 1353 Wacker Drive Hartford, WI 53027 Test Report Number: 302209 Test Date: 09 July, 2002 All results of this report relate only to the items that were tested. This report may not be reproduced, except in full, without written approval of L.S. Compliance, Inc. ________________________________________________________________________ FCC I.D. # QEO-96105140 Page 2 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 Table of Contents Section Description Type of Test Page # Index 2 1 L. S. Compliance in Review 3 2 A2LA Certificate of Accreditation 4 3 A2LA Scope of Accreditation 5 4 Validation Letter- U.S. Competent Body for EMC Directive 89/336/EEC 6 5 Signature Page 7 6 Product General Information 8 7 Introduction 8 8 Purpose 8 9 Product Description 9 10 Test Requirements 9 11 Summary of Test Report 9 12 Radiated Emission Test 10-17 Appendices A Calculations 18 B Test Equipment List 20 ________________________________________________________________________ FCC I.D. # QEO-96105140 Page 3 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 1. L.S. Compliance in Review L. S. Compliance, Inc. is located in Cedarburg, Wisconsin ñ United States. We may be contacted by: Mail: L. S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, Wisconsin 53102 Phone: 262-375-4400 Fax: 262-375-4248 E-Mail: [email protected] As an EMC testing laboratory, our accreditation and assessments are recognized through the following: A2LA ñ American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2001 With electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 U.S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U.S. conformity assessment Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union EMC Directive 89/336/EEC, Article 10.2 Date of Validation: January 16, 2001 Federal Communications Commission (FCC) ñ USA Listing of 3 Meter Semi-Anechoic Chamber based on 47CFR 2.948 FCC Registration Number: 90756 Listing of 3 and 10 Meter OATS based on 47CFR 2.948 FCC Registration Number: 90757 Industry Canada On-file, 3 Meter Semi-Anechoic Chamber based on 47CFR 2.948 File Number: IC 3088 On-file 3 and 10 meter OATS based on RSS-210 File Number: IC 3088-A ________________________________________________________________________ FCC I.D. # QEO-96105140 Page 4 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 2. A2LA Certificate of Accreditation ________________________________________________________________________ FCC I.D. # QEO-96105140 Page 5 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 3. A2LA Scope of Accreditation ________________________________________________________________________ FCC I.D. # QEO-96105140 Page 6 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 4. Validation Letter ñ U.S. Competent Body for EMC Directive 89/336/EEC ________________________________________________________________________ FCC I.D. # QEO-96105140 Page 7 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 5. Signature Page Prepared By: August 12, 2002 _________________________________________________ Teresa A. White, Document Coordinator Date August 12, 2002 Tested By: ________________________________________________________ Abtin Spantman, EMC Engineer Date August 12, 2002 Approved By: ________________________________________________________ Kenneth L. Boston, EMC Lab Manager Date PE #31926 Licensed Professional Engineer Registered in the State of Wisconsin, United States ________________________________________________________________________ FCC I.D. # QEO-96105140 Page 8 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 6. Product and General Information Sno-Way International, Inc. ëPredatorí Wireless Plow-Controller 100000 434 MHz Manufacturer: Model Number: Serial Number: Frequency Range: Test Voltage: 3.0 VDC Environmental Conditions in the Test Lab : Temperature: 20-25◦ C Atmospheric Pressure: 30-60% Humidity: 86kPa-106kPa 7. Introduction On July 9 th , 2002, a series of Radiated Emissions tests were performed on one sample of the Sno-Way ëPredatorí wireless plow-controller, serial number 100000. This product operates by means of a short burst of data transmission containing a command code. These tests were preformed using the test procedure outlined in ANSI C63.4, 2001 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.231, for a manually operated transmitter. 8. Purpose The above-mentioned tests were performed in order to determine the compliance of the equipment under test (EUT), with limits contained in various provisions of Title 47CFR, FCC Part 15, including: 15.205, 15.209, 15.231a, 15.231b, and 15.231c. All radiated emission tests were performed to measure the emissions in the frequency bands described in section 12i, and to determine whether said emissions are below the limits established by the above sections. These tests were performed in accordance with the procedures described in the American National Standard for methods of measurements of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4, 2001). Also used as a reference, for the EMI Receiver specification, is the International Special Committee on Radio Interference ñ CISPR 16-1, 1999. ____…

Text truncated - open the document above for the full version.

________________________________________________________________________ FCC I.D. # QEO-96105140 Page 12 of 20 L.S. Compliance, Inc. Prepared For: Terry Wendorf, Sno-way International, Inc. Test Report Number: 302209 12f. Photo of Setup for Radiated Emissions Test EUT placed in horizontal orientation inside the 3 Meter Semi-Anechoic Chamber
