QERRFD-1000Paging Receiver

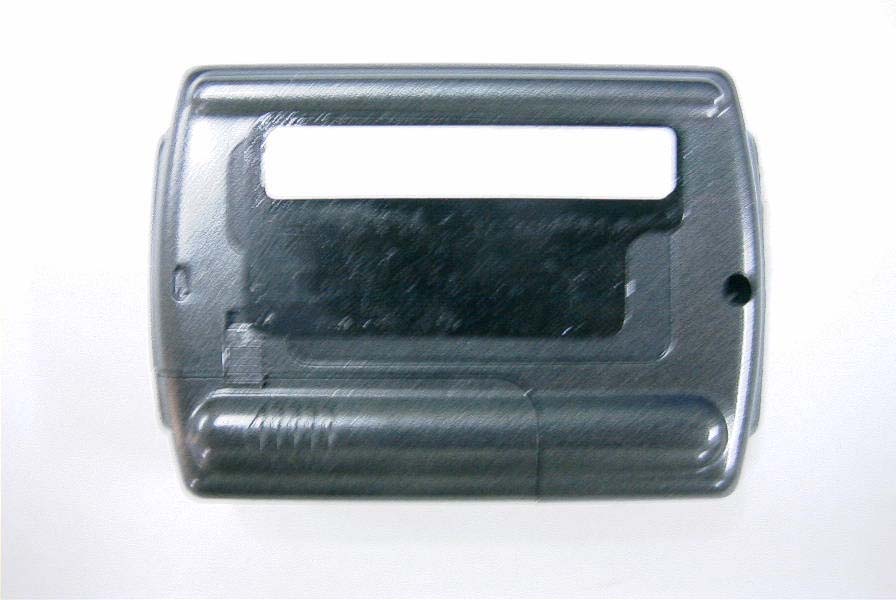

KTI02EF05002 FCC ID:QERFD-1000 Korea Technology Institute Co., Ltd. Page 1 of 2 External photo-Front KTI02EF05002 FCC ID:QERFD-1000 Korea Technology Institute Co., Ltd. Page 2 of 2 External photo-Rear

KTI02EF05002 FCC ID:QERRFD-1000 Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model: RFD-1000 FCC ID: QERRFD-1000 S/N: RF TECH CO., LTD. Made in Korea This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation . KTI02EF05002 FCC ID:QERRFD-1000 Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

KTI02EF05002 FCC ID :QERRFD-1000 Korea Technology Institute Co., Ltd. Page 1 of 4 Receive part - Front KTI02EF05002 FCC ID :QERRFD-1000 Korea Technology Institute Co., Ltd. Page 2 of 4 Receive part -Rear KTI02EF05002 FCC ID :QERRFD-1000 Korea Technology Institute Co., Ltd. Page 3 of 4 Control part -Front KTI02EF05002 FCC ID :QERRFD-1000 Korea Technology Institute Co., Ltd. Page 4 of 4 Control part –Rear

KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 1 of 12 Test Report Test Report No.: KTI02EF05002 Registration No.: 99058 Applicant: RF TECH CO., LTD. Applicant Address: 3F DuckWoo B/D, 69-4 Munjeong-Dong, Songpa-Ku, Seoul, Korea Product: Paging Receiver Frequency Range: 929 –932MHz FCC ID: QERRFD-1000 Model No. RFD-1000 Receipt No.: 02-0430 Date of receipt: April 27, 2002 Date of Issue: May 18, 2002 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: ANSI. C63.4 : 1992 Rule Parts: FCC Part 15, Subpart B Equipment Class: Paging Receiver Test Result: The above mentioned product has been tested and passed. Tested by: M. H. Jang/ Engineer Signature Date Approved by: G. C. Min/ President Signature Date Other Aspects : Abbreviations : • OK, Pass=passed • Fail=failed • N/A=not applicable  ▪ This test report is not permitted to copy partly without our permission. ▪ This test result is dependent on only equipment to be used. ▪ This test result is based on a single evaluation of one sample of the above mentioned. ▪ This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. ▪ We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 2 of 12  Contents  1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 Uncertainty 4.3 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 3 3 3 3 4 4 4 5 5 5 6 6 6 7 8 8 9 12 13 14  List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Radiated Emissions(929.2125MHz) Table 3 Test Data. Radiated Emissions (931.9625MHz)  List of Photographs Photograph 1 Setup for Radiated Emissions 4 9 11 12 KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 3 of 11 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by Korea Technology Institute Co., LTD. And were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., LTD 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/1992 for measurement of radio Interference. KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 4 of 11 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment • Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 11.2002 Field Strength Meter ESPC 832827/011 9.2002 LISN KNW407 8-1157-2 10.2002 LISN ESH2-Z5 8254601019 6.2002 Conducted Cable N/A N/A 11.2002 • Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 9.2002 Spectrum Analyzer R3261C 61720417 11.2002 Pre Amplifier HP 8447D 2944A06874 11.2002 BiconiLog Antenna EMCO 3142B 1705 12.2002 Bilog Antenna SchaffnerCBL6140A 1217 5.2002 Open Site Cable N/A N/A 11.2002 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A Horn Antenna EMCO 3115 6443 6.2002 Signal generator HP 8657A 3430U0710 5.2002 2.3 Test Date Date of Application : April 27, 2002 Date of Test : May 8, 2002 2.4 Test Environment See each test item’s description. KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 5 of 11 3. Description of the tested samples The EUT is Paging Receiver. 3.1 Rating and Physical Characteristics • Frequency range : 929932MHz • Using battery:1.5VDC(AAA size Alkaline) • Bit Rate(s): 1600/3200/6400 bps • Local Oscillator(s): 75.633MHz • Antenna: Loop • Receiving System: Double superheterodyne, Crystal • Signal System: FLEX • Dimensions: 765318 mm • Weight: 70g(including battery) 3.2 Submitted Documents • User’s Guide • Block Diagram KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 6 of 11 4. Measurement Conditions Testing Input Voltage : DC 1.5V(AAA size) 4.1 Modes of Operation The EUT was set to the normal receiving mode during the radiated emission testing in a manner similar to typical use. The two typical frequencies as bottom and top were tunned for the testing. 4.2 Uncertainty 1) Radiated disturbance UC (Combined standard Uncertainty) = ± 1.8dB Expanded uncertainty U=KUc K = 2  U = ± 3.6dB 2) Conducted disturbance UC = ± 0.88dB U = KUc=2xUc = ± 1.8dB KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 7 of 11 4.3 Test setup EUT KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 8 of 11 5. Emission Test 5.1 Conducted Emissions Not applicable. The EUT is only a battery operated device. KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 9 of 11 5.2 Radiated Emissions Result: Pass Preliminary measurements were made indoors at 1 meter using broadband antennas, broadband Amplifier, and spectrum analyzer to determine the frequency producing the maximum EME. Appropriate precaution was taken to ensure that all EME from the EUT were maximized and Investigated. The system configurations, clock speed, mode of operation or video resolution, turntable azimuth with respect to the…

Text truncated - open the document above for the full version.

KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Setup for radiated Emissions KTI02EF05002 FCC ID: QERRFD-1000 Korea Technology Institute Co., Ltd. Page 2 of 2
