FCC ID QF73101D Applicant: Geophysical Survey Systems,Inc. Correspondence Reference Number: 24072 731 Confirmation Number: EA461886 1) The unit is designed so that there is only low-frequency spurious signals into the air. Those spurious signals are what is measured by the required tests. The higher frequency signals are sufficiently attenuated by the ground, through which they must pass. A plot of the 10dB bandwidth is submitted as a Test Report Exhibit file name 3101D_10dB_plot.pdf 2) The antenna is entirely within a shielded metal box. Only the bottom is open (where the fans are). All of our antennas are shielded to avoid clutter from the surrounding area. This is a severe problem with unshielded antennas. The shielding is a five- sided box made from Aluminum. The emissions test had the receiving horn and log periodic vary from 1 meter to 4 meters above the DUT. This has demonstrated that the shielding is sufficient to keep the air emissions below the spec curve 3) A revise photograph of the labels and location have been submitted as a label exhibit with the file name QF73101D LABELS REV B.doc 4) A schematic of the transmitter has been uploaded as a Schematic Exhibit, file name QF73101E Transmitter Schematic.pdf 5) A complete set of internal photos was uploaded on 8/13/2002. The antenna is the PCB structure labeled “FAN PC BD FROM BOTTOM SIDE” 6) A revised test report is submitted with file name 3101D_report_RevD.pdf. It includes: - Settings of the spectrum analyzer during RMS measurements (RBW, VBW, Detector, sweep time)(including during Tmax + 0.5ms) p11 - test data from 960-1000MHz using a log periodic antenna p14 - table and plot of 10dB bandwidth p17-19

3101D FCC LABEL LOCATION LABEL TO READ: LABEL MATERIAL: THESE LABELS ARE PERMANENT FOR THE LIFE OF THE PRODUCT. THEY ARE REVERSE SCREEN-PRINTED ON 8 MIL POLYESTER FILM WITH PERMANENT ADHESIVE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING 2 CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA FCC ID. QF73101D 1.25 " 3.5" FCC LABEL

QF73101D LABEL LOCATION REV B LABELS TO READ: LABEL MATERIAL: THESE LABELS ARE PERMANENT FOR THE LIFE OF THE PRODUCT. THEY ARE REVERSE SCREEN-PRINTED ON 8 MIL POLYESTER FILM WITH PERMANENT ADHESIVE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING 2 CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA FCC ID. QF73101D 1.25 " 3.5" FCC LABELS Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research institutes, commercial mining companies, and construction companies. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the operator to serious legal penalties.

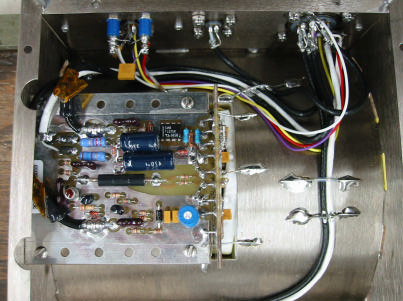

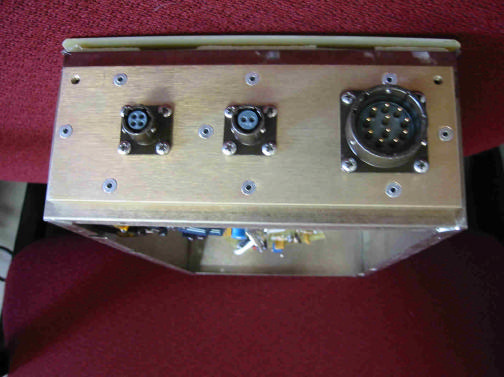

3101D ANTENNA ASSEMBLY INTERNAL PHOTOS Page 1 of 4 3101D ANTENNA ASSEMBLY Internal Photos TOP VIEW OF ASSEMBLY WITH BOARD REMOVED FROM SLOT BOARDS SHOWN: 1. DIFFERENTIAL SAMPLER (LEFT) 2. S.R. DRIVE BOARD (RIGHT, REMOVED FROM SLOT) 3101D ANTENNA ASSEMBLY INTERNAL PHOTOS Page 2 of 4 1. DIFFERENTIAL SAMPLER BOARD Installed in unit Topside shown, board is bent after Backside Inserting into shield slot. 3101D ANTENNA ASSEMBLY INTERNAL PHOTOS Page 3 of 4 2. S. R. DRIVE PC BOARD COMPONENT SIDE BACKSIDE 3101D ANTENNA ASSEMBLY INTERNAL PHOTOS Page 4 of 4 CONNECTOR END (FAN PC BD SEEN ON BOTTOM) FAN PC BD FROM BOTTOM SIDE

QF73101D pulse shape. Horizontal scale is 15 ns full scale. First pulse is direct coupling. Second pulse is reflected off a metal sheet.
