QF75103GPR with 5103 Antenna

Manual MN30-191 Rev -A Model 5103 Antenna System Settings and User Notes We Provide Complete Survey Solutions Geophysical Survey Systems, Inc. 13 Klein Drive, P.O. Box 97 North Salem, NH 03073-0097 Phone: (603) 893-1109 / FAX: (603) 889-3984 www.geophysical.com [email protected] Geophysical Survey Systems, Inc. Model 5103 Antenna System Settings and User Notes Manual MN30-191 Rev -A Geophysical Survey Systems, Inc. Model 5103 Antenna System Settings and User Notes Manual MN30-191 Rev -A Limited Warranty, Limitations Of Liability And Restrictions Geophysical Survey Systems, Inc. hereinafter referred to as GSSI, warrants that, for a period of 12 months from the delivery date to the original purchaser, GSSI's products will be free from defects in materials and workmanship. EXCEPT FOR THE FOREGOING LIMITED WARRANTY, GSSI DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. GSSI's obligation is limited to repairing or replacing parts or equipment which are returned to GSSI, transportation and insurance pre-paid, without alteration or further damage, and which in GSSI's judgment, were defective or became defective during normal use. GSSI ASSUMES NO LIABILITY FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR INJURIES CAUSED BY PROPER OR IMPROPER OPERATION OF ITS EQUIPMENT OR SOFTWARE, WHETHER OR NOT DEFECTIVE. Before returning any equipment to GSSI, a Return Material Authorization (RMA) number must be obtained. Please call the GSSI Customer Service Manager who will assign an RMA number. Be sure to have the serial number of the unit available. GSSI does not convey any license under its patent or other intellectual property rights or the rights of others. Note: Information in this manual is subject to change without notice. Please consult the manual updates supplied with your system and contact GSSI with any additional questions. Copyright© 2001, 2002 Geophysical Survey Systems, Inc. All rights reserved, including the right of reproduction in whole or in part in any form Published by Geophysical Survey Systems, Inc. 13 Klein Drive North Salem, New Hampshire 03073-0097 Printed in the United States GSSI and SIR are registered trademarks of Geophysical Survey Systems, Inc. Geophysical Survey Systems, Inc. Model 5103 Antenna System Settings and User Notes Manual MN30-191 Rev -A FCC NOTICES: This device complies with part 15 of the FCC Rules: Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, Including interference that may cause undesired operation Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research institutes, commercial mining companies, and construction companies. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the operator to serious legal penalties. Coordination Requirements. (a) UWB imaging systems require coordination through the FCC before the equipment may be used. The operator shall comply with any constraints on equipment usage resulting from this coordination. (b) The users of UWB imaging devices shall supply detailed operational areas to the FCC Office of Engineering and Technology who shall coordinate this information with the Federal Government through the National Telecommunications and Information Administration. The information provided by the UWB operator shall include the name, address and other pertinent contact information of the user, the desired geographical area of operation, and the FCC ID number and other nomenclature of the UWB device. This material shall be submitted to the following address: Frequency Coordination Branch., OET Federal Communications Commission 445 12 th Street, SW Washington, D.C. 20554 ATTN: UWB Coordination (d) Users of authorized, coordinated UWB systems may transfer them to other qualified users and to different locations upon coordination of change of ownership or location to the FCC and coordination with existing authorized operations. (e) The NTIA/FCC coordination report shall include any needed constraints that apply to day-to-day operations. Such constraints could specify prohibited areas of operations or areas located near authorized radio stations for which additional coordination is required before operation of the UWB equipment. If additional local coordination is required, a local coordination contact will be provided. (f) The coordination of routine UWB operations shall not take longer than 15 business days from the receipt of the coordination request by NTIA. Special temporary operations may be handled with an expedited turn-around time when circumstances warrant. The operation of UWB systems in emergency situations involving the safety of life or property may occur without coordination provided a notification procedure, similar to that contained in CFR47 Section 2.405(a)-(e), is followed by the UWB equipment user. NOTICE: Use of this device as a wall imaging system is prohibited by FCC regulations. Geophysical Survey Systems, Inc. Model 5106 Antenna System Settings and User Notes Manual MN30-191 Rev -A 1 Model 5103 Antenna The Model 5103 antenna has greatly improved resolution performance over previous GSSI mid-frequency antennas, such as the Model 3105 (300 MHz). The Model 5103 can be used in continuous, survey wheel or static stacking modes. The Model 5103 can only be used with a “deadman” switch with the SIR-20 or SIR-3000 control units. These systems are designed to drive the antenna at its maximum rated pulse repetition frequency of 100 KHz. These limitations are imposed by the Federal Communications Commission (FCC) System Setup - Standard Settings Preset Settings: Range/Depth …

Text truncated - open the document above for the full version.

_____________________________________________________________________________________________________________ Geophysical Survey Systems, Inc. _____________________________________________________________________________________________________________ 13 Klein Drive - P.O. Box 97, North Salem, NH 03073-0097, U.S.A. / Telephone (603) 893-1109 Fax (603) 889-3984 website www.geophysical.com e-mail [email protected] July 20, 2002 Attention: Application Examiner Reviewing Engineer Re: Attestation Statement Applicant: Geophysical Survey Systems, Inc. FRN: 0007-2729-25 FCC ID: QF7-5103 To whom it may concern, The internal photographs submitted with this application are the same as was EMI tested. Sincerely, Dennis J. Johnson President, Geophysical Survey Systems, Inc.

_____________________________________________________________________________________________________________ Geophysical Survey Systems, Inc. _____________________________________________________________________________________________________________ 13 Klein Drive - P.O. Box 97, North Salem, NH 03073-0097, U.S.A. / Telephone (603) 893-1109 Fax (603) 889-3984 website www.geophysical.com e-mail [email protected] July 20, 2002 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality Applicant: Geophysical Survey Systems, Inc. FRN: 0007-2729-25 FCC ID: QF7-5103 To whom it may concern, Request is hereby submitted by Geophysical Survey Systems, Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application are requested to be kept confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Geophysical Survey Systems, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, Dennis J. Johnson President, Geophysical Survey Systems, Inc.

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: __QF7-5103, QF7-3101D, QF7-PATHFINDER and QF7-4108 ________________________________________________________________________ ________________________________________________________________________ Dated this __23rd_day of_July, 2002___. _____________________________________ Signature Dennis J. Johnson______________________ Name President______________________________ Title Geophysical Survey Systems, Inc._________ Company 603-893-1109_________________________ Telephone

To: Joe Dichoso FCC Application Processing Branch Re: FCC ID QF75103 Applicant: Geophysical Survey Systems, Inc. Correspondence Reference Number: 23931 731 Confirmation Number: EA968303 1) The pulse has no carrier frequency. It is a single cycle of approximately 2.5ns. The pulse repetition freque nc y is fi xed at 100 kH z. 2) Measurements were made at 960MHz with a log-periodic antenna for Part 15C (18.6dBuV/m; EIRP = -76.6dBm). The measured levels using the horn antenna at 960MHz for Part 15F were approximately 10dB higher (EIRP = -66.5dBm). According to CISPR 16-1 the QP/RMS comparison is 20dB at a PRF of 100Hz. At 10kHz (10% of actual repetition rate) the pulse response curve reduces this value by ~12dB, resulting in expected difference between RMS and QP of approximately 8dB. As the log- periodic is actually 10dB lower, the horn antenna data is considered to be adequately representative. 3) The new Test Report Exhibit – file name “5103_plot.pdf “– is representative of the –10dB bandwidth. These levels have been corrected for antenna factor, cable loss and preamp. 4) The original test data was acquired with a 20mS sweep time. In each 20ms sweep there are 1000 acquired points resulting in one sample every 20s. The spectrum analyzer was in sample mode so each sweep represents ‘instantaneous’ levels, as required by paragraph 3 of Appendix F of FCC R&O Docket 98-153. The analyzer was single sweep, manually triggered to capture a worst case sweep, with the maximum measurable number of pulses. In order to reduce the time over which the RMS is calculated, the time (0-20ms) at which the maximum signal is present was recorded as Tmax. RMS calculations were then performed from Tmax- 0.5ms to Tmax+0.5ms using the number of samples recorded in that time. This results in an integration time of 1ms. There are 650 data points for this reduced integration time. The acquired data and table of final data is contained in Table 2 of Section 3.5 of the new Test Report exhibit - file name “Revised_5103_Final Report_revD.doc”. A sample calculation is submitted as the new Test Report exhibit – file name “SampleCalc_5103a.pdf” 5) “The device is used in contact with the ground. However, the R&O does indicate that a spacing of 1 meter or less is permissible. In any case, being away from the ground seriously degrades the data. The antenna is constructed as a five-sided metal box, with the antenna fans in the sixth side, on the ground side. The deadman switch, 10 second timeout, and forbidding wall imaging is all described in the Manual MN30-191 Rev-A. This Updated manual is being uploaded along with this document.” 6) A photograph of the label location is contained in the new Label exhibit - file name “5103 LABEL LOCATION.doc”

FCC ID QF75103 Applicant: Geophysical Survey Systems,Inc. Correspondence Reference Number: 23982 731 Confirmation Number: EA968303 1) – 3) A revised test report has been submitted with the file name 5103_report_revE.pdf. It includes: - Settings of the spectrum analyzer during RMS measurements (RBW, VBW, Detector, sweep time)(including during Tmax + 0.5ms) p11 - test data from 960-1000MHz using a log periodic antenna p14 - table and plot of 10dB bandwidth p17-19 4) A revised photograph of the labels has been uploaded with a file name QF75103 LABELS REV B.doc

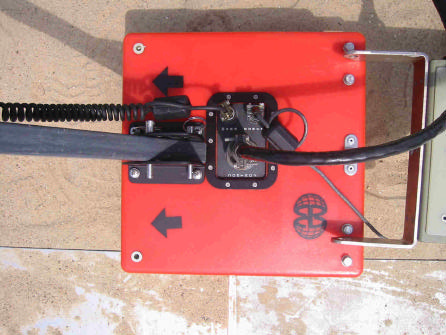

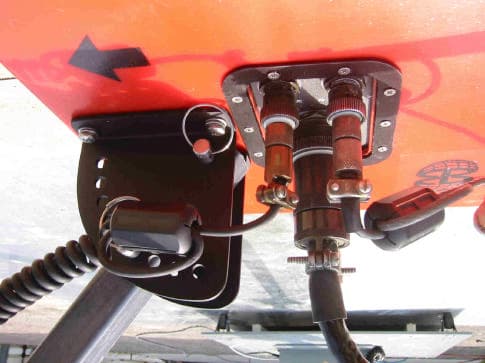

5103 ANTENNA EXTERNAL PHOTOS Page 1 of 2 FULL VIEW AT TEST TOP VIEW 5103 ANTENNA EXTERNAL PHOTOS Page 2 of 2 TOP DETAIL BOTTOM AND SIDE (SHOWN WITHOUT HOOKUPS)

5103 FCC LABEL LOCATION LABEL TO READ: LABEL MATERIAL: THESE LABELS ARE PERMANENT FOR THE LIFE OF THE PRODUCT. THEY ARE REVERSE SCREEN-PRINTED ON 8 MIL POLYESTER FILM WITH PERMANENT ADHESIVE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING 2 CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA FCC ID. QF7-5103 1.25 " 3.5" FCC LABEL

5103 FCC LABEL LOCATION LABEL TO READ: LABEL MATERIAL: THESE LABELS ARE PERMANENT FOR THE LIFE OF THE PRODUCT. THEY ARE REVERSE SCREEN-PRINTED ON 8 MIL POLYESTER FILM WITH PERMANENT ADHESIVE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING 2 CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA FCC ID. QF75103 1.25 " 3.5" FCC LABEL

QF75103 LABEL LOCATION LABELS TO READ: LABEL MATERIAL: THESE LABELS ARE PERMANENT FOR THE LIFE OF THE PRODUCT. THEY ARE REVERSE SCREEN-PRINTED ON 8 MIL POLYESTER FILM WITH PERMANENT ADHESIVE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING 2 CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA FCC ID. QF75103 1.25 " 3.5" FCC LABELS Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research institutes, commercial mining companies, and construction companies. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the operator to serious legal penalties.

5103 INTERNAL PHOTOS Page 1 of 5 BOARDS SHOWN TOP TO BOTTOM: 1. DIFFERENTIAL SAMPLER (1/2 SHOWN, 1/2 INSERTED IN SLOT) 2. CONNECTOR INTERFACE 3. 700 MHZ IMPULSE GEN BOARD INSERTED INTO SLOT 4. FAN PC BOARDS (SHOWN BELOW) 5103 INTERNAL PHOTOS Page 2 of 5 1. DIFFERENTIAL SAMPLER TOP BACK 5103 INTERNAL PHOTOS Page 3 of 5 2. CONNECTOR INTERFACE TOP BOTTOM 5103 INTERNAL PHOTOS Page 4 of 5 3. 700 MHZ IMPULSE GEN BOARD TOP BOTTOM 5103 INTERNAL PHOTOS Page 5 of 5 4. FAN PC BOARDS TOP AND BOTTOM SHOWN

MM FCC Subpart 15FPage 1 of 25 Project Number: 3032873Report number 5103_report_revF TEST REPORT Report Number: 5103_report_revA Project Number: 3032873 Date: 12 November 2002 Date(s) of Test: 13 –1 5 November 2002 Evaluation of the Model number: 5103 To CFR 47 Part 15 Subpart F For Geophysical Survey Systems, Inc Test Performed by:Test Authorized by: Intertek Testing ServicesGeophysical Survey Systems Inc. 70 Codman Hill Rd13 Klein Drive Boxborough, MA 01719P.O. Box 97 Salem, NH 03079 Prepared by: _______________________________Date: _______________________________ Kouma Sinn Engineer Reviewed by: _______________________________Date: _______________________________ Robert F. Martin Sr. Technical Manager All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. No quotations from reports or use of Intertek Testing Services NA Inc. name is permitted except as expressly authorized by Intertek Testing Services NA Inc. in writing. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. A A FCC Subpart 15FPage 2 of 25 Project Number: 3032873Report number 5103_report_revF EXECUTIVE SUMMARY........................................................................................................................................................................4 1.INTRODUCTION..............................................................................................................................................................................5 1.1.CLIENT INFORMATION...........................................................................................................................................5 1.2.TEST PLAN REFERENCE.........................................................................................................................................5 1.3.EQUIPMENT UNDER TEST (EUT)..........................................................................................................................5 1.3.1System Support Equipment..........................................................................................................................5 1.3.2Cables............................................................................................................................................................5 1.3.3System Block Diagram.................................................................................................................................5 1.3.4Justification...................................................................................................................................................6 1.3.5Mode(s) of Operation...................................................................................................................................6 1.4.MODIFICATIONS REQUIRED FOR COMPLIANCE.....................................................................................................6 2.TEST ENVIRONMENT..................................................................................................................................................................7 2.1.TEST FACILITY.......................................................................................................................................................7 2.2.TEST EQUIPMENT...................................................................................................................................................7 2.3.SAMPLE CALCULATIONS.......................................................................................................................................7 2.3.1Field Strength Calculation...........................................................................................................................7 2.3.2EIRP Calculation..........................................................................................................................................8 2.3.3RMS calculation...........................................................................................................................................8 2.4.MEASUREMENT UNCERTAINTY.............................................................................................................................9 3.ULTRA WIDEBAND OPERATION........................................................................................................................................10 3.1.OPERATIONAL LIMITATIONS (SECTION 15.521)................................................................................................10 3.2.UWB BANDWIDTH (SECTION 15.503(A))..........................................................................................................10 3.2.1Requirement (low-frequency imaging systems)......................................................................................10 3.2.2Test Procedure...........................................................................................................................................10 3.2.3Test Results................................................................................................................................................10 3.3.CENTER FREQUENCY (SECTION 15.503(B)).......................................................................................................10 3.3.1Requirement...............................................................................................................................................10 3.3.2Test Procedure...........................................................................................................................................10 3.3.3Test Results....................................................................................…

Text truncated - open the document above for the full version.

Model 5103 worst case setup for measurements <1GHz Model 5103 worst case setup for measurements >1GHz (1-2.5m antenna height) Model 5103 setup for measurements >1GHz (2.5 - 4m antenna height) Model 5103 – worst case setup for measurements <26MHz
