Pending FCC Appproval Model 5103A System Settings and User Notes The World Leader in Subsurface Imaging™ Geophysical Survey Systems, Inc. Tel 603.893.1109 • Fax 603.889.3984 [email protected] www.geophysical.com June, 2008 Copyright © 2008 Geophysical Survey Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form Published by Geophysical Survey Systems, Inc. 12 Industrial Way Salem, New Hampshire 03079 Printed in the United States GSSI, RADAN, and SIR are registered trademarks of Geophysical Survey Systems, Inc. Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes Limited Warranty, Limitations Of Liability And Restrictions Geophysical Survey Systems, Inc. hereinafter referred to as GSSI, warrants that for a period of 24 months from the delivery date to the original purchaser this product will be free from defects in materials and workmanship. EXCEPT FOR THE FOREGOING LIMITED WARRANTY, GSSI DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. GSSI's obligation is limited to repairing or replacing parts or equipment which are returned to GSSI, transportation and insurance pre-paid, without alteration or further damage, and which in GSSI's judgment, were defective or became defective during normal use. GSSI ASSUMES NO LIABILITY FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR INJURIES CAUSED BY PROPER OR IMPROPER OPERATION OF ITS EQUIPMENT, WHETHER OR NOT DEFECTIVE. Before returning any equipment to GSSI, a Return Material Authorization (RMA) number must be obtained. Please call the GSSI Customer Service Manager who will assign an RMA number. Be sure to have the serial number of the unit available MN30-265 Rev - Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes FCC Notice (for U.S. Customers): This device complies with part 15, class F of the FCC Rules: Operation is subject to the following conditions: 1. This device many not cause harmful interference, and 2. This device must accept any interference received, Including interference that may cause undesired operation Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research institutes, commercial mining companies, construction companies and private parties operating on behalf of these groups. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the operator to serious legal penalties. Coordination Requirements (a) UWB imaging systems require coordination through the FCC before the equipment may be used. The operator shall comply with any constraints on equipment usage resulting from this coordination. (b) The users of UWB imaging devices shall supply detailed operational areas to the FCC Office of Engineering and Technology who shall coordinate this information with the Federal Government through the National Telecommunications and Information Administration. The information provided by the UWB operator shall include the name, address and other pertinent contact information of the user, the desired geographical area of operation, and the FCC ID number and other nomenclature of the UWB device. This material shall be submitted to the following address: Frequency Coordination Branch, OET Federal Communications Commission 445 12 th Street, SW Washington, D.C. 20554 ATTN: UWB Coordination (d) Users of authorized, coordinated UWB systems may transfer them to other qualified users and to different locations upon coordination of change of ownership or location to the FCC and coordination with existing authorized operations. (e) The NTIA/FCC coordination report shall include any needed constraints that apply to day-to-day operations. Such constraints could specify prohibited areas of operations or areas located near authorized radio stations for which additional coordination is required before operation of the UWB equipment. If additional local coordination is required, a local coordination contact will be provided. Notice: Use of this device as a wall imaging system is prohibited by FCC regulations. MN30-265 Rev - Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes For U.S. Customers Ground Penetrating Radar Coordination Notice And Equipment Registration Note: This form is only for Domestic United States users . The Federal Communications Commission (FCC) requires that all users of GPR who purchased antennas after July 15 th , 2002 register their equipment and areas of operation. If you have purchased any of the antennas listed in question 6 after July 15 th , 2002, you must fill out this form and fax or mail to the FCC. Failure to do this is a violation of Federal law. 1. Date: 2. Company name: 3. Address: 4. Contact Information [contact name and phone number]: 5. Area Of Operation [state(s)]: ---Continued on next page. MN30-265 Rev - Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes 6. Equipment Identification: Brand Name: Geophysical Survey Systems, Inc. Antenna Model No. (center frequency): CHECK all antennas being registered. Model Frequency FCC ID 52600 2.6 GHz QF752600 4105 2.0 GHz QF74105 5100B 1.6 GHz QF75100 5101 1.0 GHz QF75101 4108F 1.0 GHz QF74108F HandyScan 1.0 GHz QF7HANDYSCAN 3101D 900 MHz QF73101D 5103 400 MHz QF75103 5103A 400 MHz QF75103A 50400 400 MHz QF750400 TerraVision 400 MHz QF7TERRAVISION 5104 270 MHz QF75104 5106 200 MHz QF75106 7. Receipt Date Of Equipment: Fax this form to the FCC at: 202-418-1944 Or Mail to: Frequency Coordination Branch, OET Federal Communications Commission 445 12 th Street, SW Washington, D.C. 20554 ATTN: UWB Coordination Do not send this information to GSSI. MN30-265 Rev - Geophysical S…

Text truncated - open the document above for the full version.

12 Industrial Way Tel 603.893.1109 • Fax 603-889-3984 Salem, NH 03079 www.geophysical.com • [email protected] Geophysical Survey Systems, Inc. July 21, 2008 Attention: Application Examiner Reviewing Engineer Re: Attestation Statement Applicant: Geophysical Survey Systems, Inc. FRN: 0007-2729-25 FCC ID: QF75103A To whom it may concern, The internal photographs submitted with this application are the same as was EMI tested. Sincerely, _____________________________________ Signature Alan E. Schutz _____________________________________ Name Vice President of Technology _____________________________________ Title Geophysical Survey Systems, Inc. _____________________________________ Company 603-893-1109 _____________________________________ Telephone

12 Industrial Way Tel 603.893.1109 • Fax 603-889-3984 Salem, NH 03079 www.geophysical.com • [email protected] Geophysical Survey Systems, Inc. Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: ________QF75103A ____________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________ Dated this __21 ___day of____July _________, 2008___. _____________________________________ Signature Alan E. Schutz _____________________________________ Name Vice President of Technology _____________________________________ Title Geophysical Survey Systems, Inc. _____________________________________ Company 603-893-1109 _____________________________________ Telephone

12 Industrial Way Tel 603.893.1109 • Fax 603-889-3984 Salem, NH 03079 www.geophysical.com • [email protected] Geophysical Survey Systems, Inc. July 21, 2008 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality Applicant: Geophysical Survey Systems, Inc. FRN: 0007-2729-25 FCC ID: QF75103A To whom it may concern, Request is hereby submitted by Geophysical Survey Systems, Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application are requested to be kept confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Internal Photographs Rationale for request for confidentiality: Geophysical Survey Systems, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. A separate letter justifying confidential treatment of the internal photographs is included. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, Alan E. Schutz Vice President of Technology Geophysical Survey Systems, Inc.

12 Industrial Way Tel 603.893.1109 • Fax 603-889-3984 Salem, NH 03079 www.geophysical.com • [email protected] Geophysical Survey Systems, Inc. Letter of Agency I appoint Mitchell Lazarus to act as council in the matter of “Grounds for Confidentiality” concerning our Equipment: Model QF75103A. His identification is: Mitchell Lazarus FLETCHER, HEALD & HILDRETH, P.L.C. 1300 North 17th Street, 11th Floor Arlington, VA 22209 703-812-0440 Counsel for Geophysical Survey Systems, Inc. Dated this __21 ___day of____July _________, 2008___. _____________________________________ Signature Alan E. Schutz _____________________________________ Name Vice President of Technology _____________________________________ Title Geophysical Survey Systems, Inc. _____________________________________ Company 603-893-1109 _____________________________________ Telephone

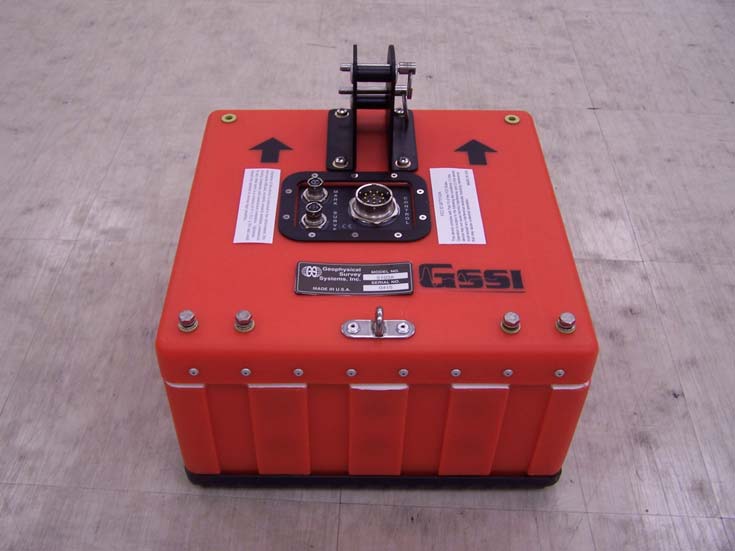

Top view of finished product Bottom view of finished product Side view of finished product

QF75103A LABEL LOCATION FCC LABELS LABELS TO READ: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING 2 CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. 1. 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA FCC ID. QF75103A 1.25 " 3.5" 2. Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research institutes, commercial mining companies, and construction companies. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the operator to serious legal penalties. LABEL MATERIAL: THESE LABELS ARE PERMANENT FOR THE LIFE OF THE PRODUCT. THEY ARE REVERSE SCREEN-PRINTED ON 8 MIL POLYESTER FILM WITH PERMANENT ADHESIVE.

Report Number: 3153005BOX-001c Page 1 of 17 EMISSION TEST REPORT Report Number: 3153005BOX-001c Project Number: 3153005 Testing performed on the Ground Penetration Radar Model: 5103A To FCC Part 15 Subpart F – Ultra-Wideband Operation For Geophysical Survey Systems, Inc. Test Performed by: Test Authorized by: Intertek – ETL SEMKO 70 Codman Hill Road Boxborough, MA 01719 Geophysical Survey Systems, Inc. 12 Industrial Way Salem, NH 03079 Prepared by: Date: 10/03/08 Kouma Sinn, Sr. Project Engineer Reviewed by: Date: 10/03/08 Jeff Goulet, Engineering Team Leader, EMC This report is for the exclusive use of Intertek’s Client and is provided pursuant to the agreement between Intertek and its Client. Intertek’s responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. Report Number: 3153005BOX-001c Page 2 of 17 1.0 Job Description 1.1 Client Information: This equipment under test (EUT) has been tested at the request of: Company: Geophysical Survey Systems, Inc. 12 Industrial Way Salem, NH 03079 Contact: Alan Schutz Telephone: (603) 893-1109 Fax: (603) 889-3984 Email: [email protected] 1.2 Equipment Under Test: Equipment Type: Ground Penetration Radar Model Number(s): 5103A Serial number(s): 415 Manufacturer: Geophysical Survey Systems, Inc. EUT receive date: May 22, 2008 EUT received condition: Production unit was received with no visible damage Test start date: May 22, 2008 Test end date: May 22, 2008 1.3 Test Plan Reference: ANSI C63.4-2003 1.4 Test Configuration: 1.4.1 EUT Voltage Range: The EUT powers from Survey Controller, Model SIR20. 1.4.2 Cables: Description Shielding Connector Length (m) Qty. AC Mains None Plastic 2 1 AC Adapter None Plastic 2 1 Control Braid Metal 5 1 Report Number: 3153005BOX-001c Page 3 of 17 1.4.3 Support Equipment: Description Manufacturer Model Serial No. Survey Controller GSSI SIR-20 MF-20/1000 001 Power Supply GSSI 08/4 350 1.4.4 Block Diagram: 1.5 Mode(s) of Operation: The EUT was continuous transmitting and collecting data during testing. 1.6 Modifications Required For Compliance: None Report Number: 3153005BOX-001c Page 4 of 17 2.0 Test Summary: TEST STANDARD RESULTS FCC Part 15 Subpart F – Ultra-Wideband Operation SUB-TEST TEST PARAMETER PASS/FAIL Radiated Emissions Per Standard Specifications Pass 10 dB Bandwidth The UWB bandwidth is the frequency band bounded by the points that are 10 dB below the highest radiated emission, as based on the complete transmission system including the antenna. The fractional bandwidth shall be equal to or greater than 0.20 or has a UWB bandwidth equal to or greater than 500 MHz, regardless of the fractional bandwidth. Pass Line Conducted Emissions Not Applicable -- REVISION SUMMARY – The following changes have been made to this Report: Date Project No. Project Handler Page(s) Item Description of Change 5/30/08 3153005 Kouma Sinn 12, 13, 16, 17, 20, 21 Radiated Emissions Data Changed data from 960MHz-10GHz from AVG to RMS 7/14/08 3153005 Kouma Sinn Whole report Model # change Changed model # from 4105A to 42000 7/14/08 3153005 28 10 dB BW for Model 4105A Changed the statement “The UWB Bandwidth >500MHz” to “The UWB Bandwidth is greater than 500MHz, therefore, fractional bandwidth calculation is not necessary” 10/02/08 3153005 Kouma Sinn Whole Report Separated report for each model # The original report has three models in it. Need to separate report for each model for FCC certification. Report Number: 3153005BOX-001c Page 5 of 17 3.0 Sample Calculations: The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CF - AG Where FS = Field Strength in dBμV/m RA = Receiver Amplitude (including preamplifier) in dBμV CF = Cable Attenuation Factor in dB AF = Antenna Factor in dB AG = Amplifier Gain in dB In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example for the calculations in the following table is as follows. Assume a receiver reading of 52.0 dBμV is obtained. The antenna factor of 7.4 dB and cable factor of 1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBμV/m. This value in dBμV/m was converted to its corresponding level in μV/m. RA = 52.0 dBμV AF = 7.4 dB/m CF = 1.6 dB AG = 29.0 dB FS = 32 dBμV/m Level in μV/m = [10( 32 dBμV/m)/20] = 39.8 μV/m The following is how net line-conducted readings were determined: NF = RF + LF + CF + AF Where NF = Net Reading in dBμV RF = Reading from receiver in dBμV LF = LISN Correction Factor in dB CF = Cable Correction Factor in dB AF = Attenuator Loss Factor in dB To convert from dBμV to μV or mV the following was used: UF = 10 (NF / 20) where UF = Net Reading in μV Example: NF = RF + LF + CF + AF = 28.5 + 0.2 + 0.4 + 20.0 = 49.1 dBμV UF = 10 (48.1 dBμV / 20) = 254 μV/m Report Number: 3153005BOX-001c Page 6 of 17 4.0 Measurement Uncertainty: Compliance of the product is based on the measured value. However, the measurement uncertainty is included for informational purposes. The expanded uncertainty (k = 2) for radiated emissions from …

Text truncated - open the document above for the full version.

Test Setup Photo
