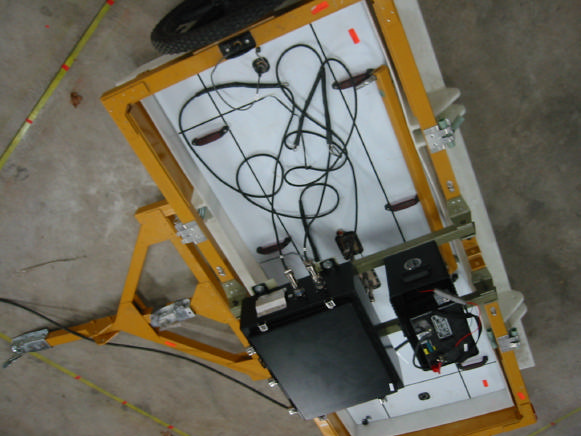

QF7TERRAVISION GENERAL DOCUMENT Page 1 of 4 FULLY ASSEMBLED UNIT This document shows the general assembly of the TERRAVISION. See the following documents for additional information: QF7TERRAVISION ANTENNA ELECTRONICS QF7TERRAVISION ANTENNA FAN ASSEMBLY QF7TERRAVISION MAIN ELECTRONICS PARTS LIST QF7TERRAVISION GENERAL DOCUMENT Page 2 of 4 ANTENNA ASSEMBLED VIEW OPENED ANTENNA. SEE DOCUMENT QF7TERRAVISION ANTENNA ELECTRONICS FOR DETAILS QF7TERRAVISION GENERAL DOCUMENT Page 3 of 4 BOTTOM VIEW OF ANTENNA SHOWING 7 ANTENNA UNITS SEE DOCUMENT QF7TERRAVISION ANTENNA FAN ASSEMBLY FOR DETAILS QF7TERRAVISION GENERAL DOCUMENT Page 4 of 4 ELECTRONICS BOX OPENED ALL PURCHASED PARTS. SEE DOCUMENT QF7TERRAVISION MAIN ELECTRONICS PARTS LIST

QF7TERRAVISION FCC LABEL LOCATION LABELS TO READ: LABEL MATERIAL: THESE LABELS ARE PERMANENT FOR THE LIFE OF THE PRODUCT. THEY ARE REVERSE SCREEN-PRINTED ON 8 MIL POLYESTER FILM WITH PERMANENT ADHESIVE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING 2 CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN USA FCC ID. QF7TERRAVISION 1.25 " 3.5" Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research institutes, commercial mining companies, and construction companies. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the operator to serious legal penalties. FCC LABELS

QF7TERRAVISION ANTENNA ELECTRONICS.DOC Page 1 of 7 TOP VIEW SHOWING SHIELDED BOARDS: Figure 1 DETAIL OF SIGNAL PROCESSING ELECTRONICS: Figure 2 See figure 1a,1b See Fig. 1c,1d,1e, 1f See fig.2a,2b See fig.2c,2d See fig.2e,2f See Fig. 2 QF7TERRAVISION ANTENNA ELECTRONICS.DOC Page 2 of 7 POWER SUPPLY BOARD IN ASSEMBLED IN UNIT Figure 1a Figure 1b QF7TERRAVISION ANTENNA ELECTRONICS.DOC Page 3 of 7 FAN INTERCONNECT BOARDS AS ASSEMBLED IN UNIT Figure 1c Figure 1d QF7TERRAVISION ANTENNA ELECTRONICS.DOC Page 4 of 7 Figure 1e Figure 1f QF7TERRAVISION ANTENNA ELECTRONICS.DOC Page 5 of 7 8 CHANNEL MULTIPLEXER PC BOARD ASSEMBLY Figure 2a Figure 2b QF7TERRAVISION ANTENNA ELECTRONICS.DOC Page 6 of 7 S100 RADAR PC BOARD ASSEMBLY Figure 2c Figure 2d QF7TERRAVISION ANTENNA ELECTRONICS.DOC Page 7 of 7 Figure 2e Figure 2f

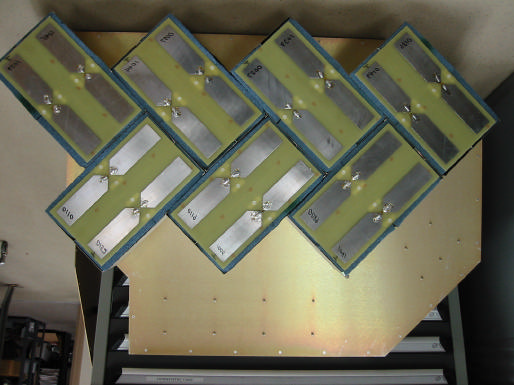

QF7TERRAVISION ANTENNA FAN.DOC Page 1 of 6 BOTTOM VIEW OF ANTENNA SHOWING 7 ANTENNA UNITS PARTIAL DISASSEMBLY OF ONE ANTENNA UNIT QF7TERRAVISION ANTENNA FAN.DOC Page 2 of 6 SHIELDING ON ANTENNA UNIT FAN PC BOARD ASSEMBLIES Differential Amplifier Sampler PC board Impulse Generator PC board QF7TERRAVISION ANTENNA FAN.DOC Page 3 of 6 IMPULSE GENERATOR BOARD (ATTACHES TO FAN) QF7TERRAVISION ANTENNA FAN.DOC Page 4 of 6 DIFFERENTIAL AMPLIFIER SAMPLER BOARD (ATTACHES TO FAN) QF7TERRAVISION ANTENNA FAN.DOC Page 5 of 6 FAN PC BOARDS QF7TERRAVISION ANTENNA FAN.DOC Page 6 of 6 ANTENNA SHIELDING
