QFT-RF2500E-SSMicrowave RF Repeater

935 Stewart Drive, Sunnyvale, CA, USA94085 Tel (408) 731 2700, Fax (408)731 3675 Feb. 26, 04 To Whom It May Concern: Proxim assumes full compliance responsibility for the products it produces. Our transmitter products all have labels affixed to them indicating the FCC ID the products are certified under. In the regulatory notice that we ship with each product, we included a warning message indicating that changes or modifications not expressly approved in writing by Proxim may void the user’s authority to operate the equipment. Caroline Yu Regulatory Compliance Manager Proxim Corporation

PROPOSED FCC ID LABEL AND LOCATION PENINSULA ENGINEERING SOLUTIONS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QFT-RF2500E-SS FCC ID LABEL

Technical Information + Antenna Dimensions + Wind Forces + Installation Manual + Patterns + Mapp Software Additional Information + Shipping Information + Pricing Customer Service If you require an antenna outside of the specifications available on this website please contact customer service. Specifications Model No. P-24A144G‡-S << Back Electrical Antenna Size 12ft (3.7m) Frequency Band 2.3-2.5 GHz Gain (dBi) Low 36.1 Mid 36.8 High 37.3 Beam Width (deg) 2.4 Front-to-Back Ratio (dB) 40.0 VSWR Max (RL) Standard 1.1 (26.4) Low 1.08 (28.3) Cross Pol (dB) 31 Polarization Single Antenna Input ‡ P=7/8 EIA Air Dielectric N=N-Female E=7/16 Female DIN F=7/8 EIA Non-Pressurized L=7/8 EIA Air Dielectric (Low VSWR) Mechanical Reflector Heavy walled Aluminum pipes Heli arc welded Back Mount Galvanized Steel Mount Pipe Diameter 4.5in. (114mm) Center Offset 7in. (178mm) Elevation Adjustment Range +5°/-5° Azimuth Adjust Supplied +5°/-5° Side Braces 1 side brace Optional Side Braces Available Vertical Tower Pipe 4.5" O.D. Environmental Wind Loading Operational70mph (112km/h) Survival125mph (200km/h) Temperature Operational-40° to 140° F (-40° to 60° C) Heated Grid Available Page 1 of 1Gabriel Terrestrial Microwave Antenna Products 1/7/2004http://www.tripointglobal.com/Gabriel/MW_Configurator/detail.asp?from=browse&id=299

Technical Information + Antenna Dimensions + Wind Forces + Installation Manual + Patterns + Mapp Software Additional Information + Shipping Information + Pricing Customer Service If you require an antenna outside of the specifications available on this website please contact customer service. Specifications Model No. P-26A144G‡-S << Back Electrical Antenna Size 12ft (3.7m) Frequency Band 2.3-2.7 GHz Gain (dBi) Low 36.3 Mid 37 High 37.7 Beam Width (deg) 2.2 Front-to-Back Ratio (dB) 44.0 VSWR Max (RL) Standard 1.1 (26.4) Low 1.06 (30.7) Cross Pol (dB) 30 Polarization Single Antenna Input ‡ P=7/8 EIA Air Dielectric N=N-Female E=7/16 Female DIN F=7/8 EIA Non-Pressurized L=7/8 EIA Air Dielectric (Low VSWR) Mechanical Reflector Heavy walled Aluminum pipes Heli arc welded Back Mount Galvanized Steel Mount Pipe Diameter 4.5in. (114mm) Center Offset 7in. (178mm) Elevation Adjustment Range +5°/-5° Azimuth Adjust Supplied +5°/-5° Side Braces 1 side brace Optional Side Braces Available Vertical Tower Pipe 4.5" O.D. Environmental Wind Loading Operational70mph (112km/h) Survival125mph (200km/h) Temperature Operational-40° to 140° F (-40° to 60° C) Heated Grid Available Page 1 of 1Gabriel Terrestrial Microwave Antenna Products 1/7/2004http://www.tripointglobal.com/Gabriel/MW_Configurator/detail.asp?from=browse&id=321

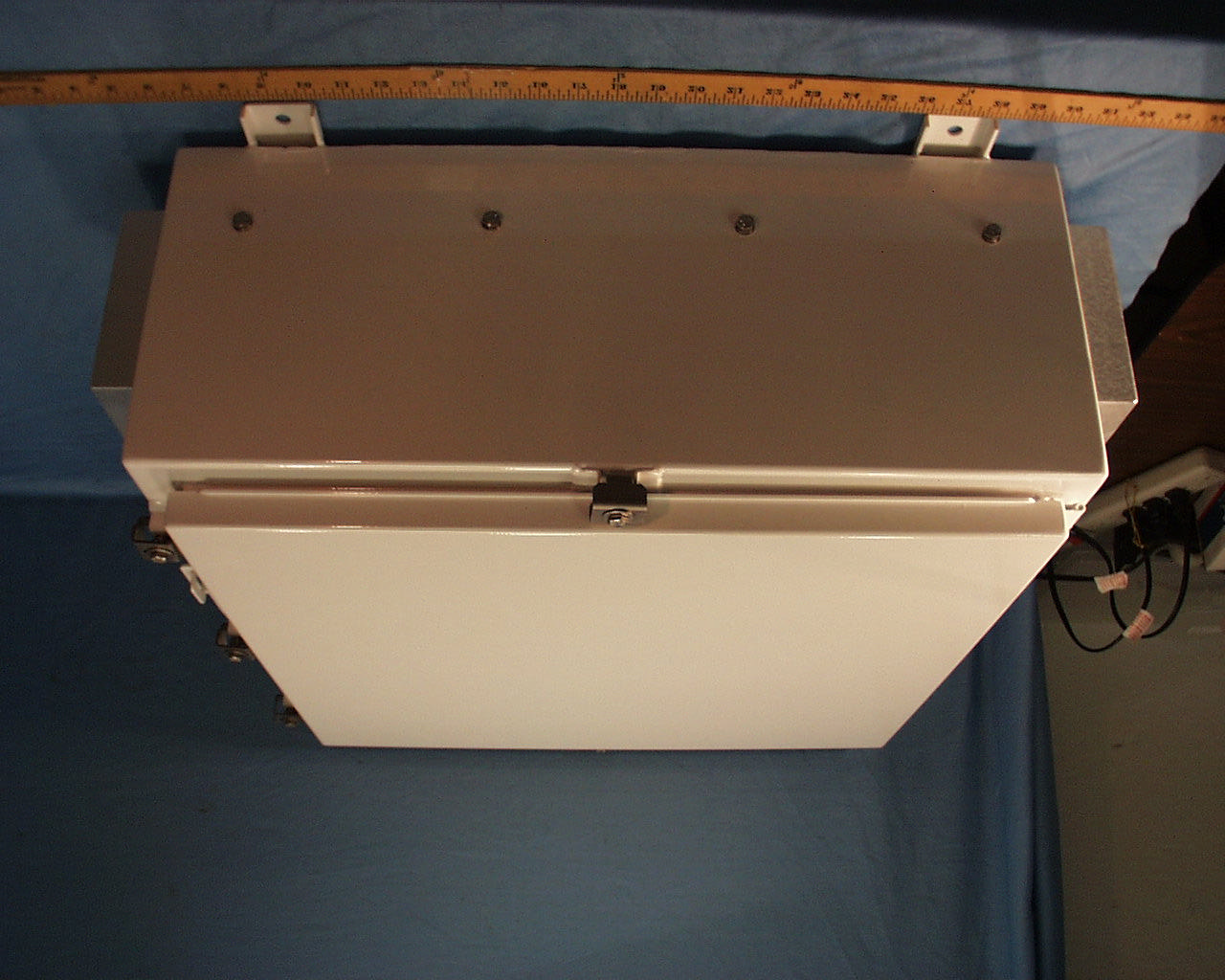

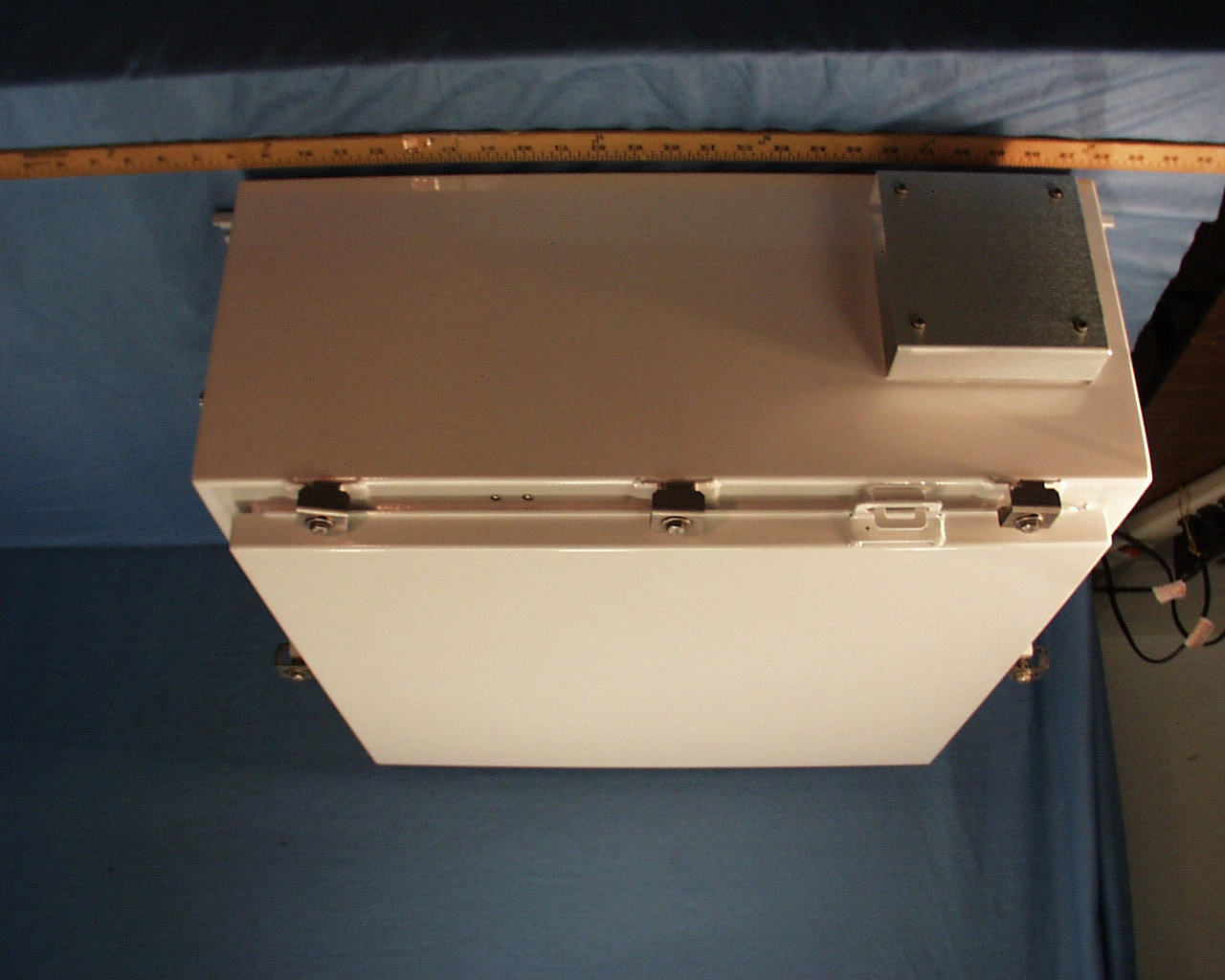

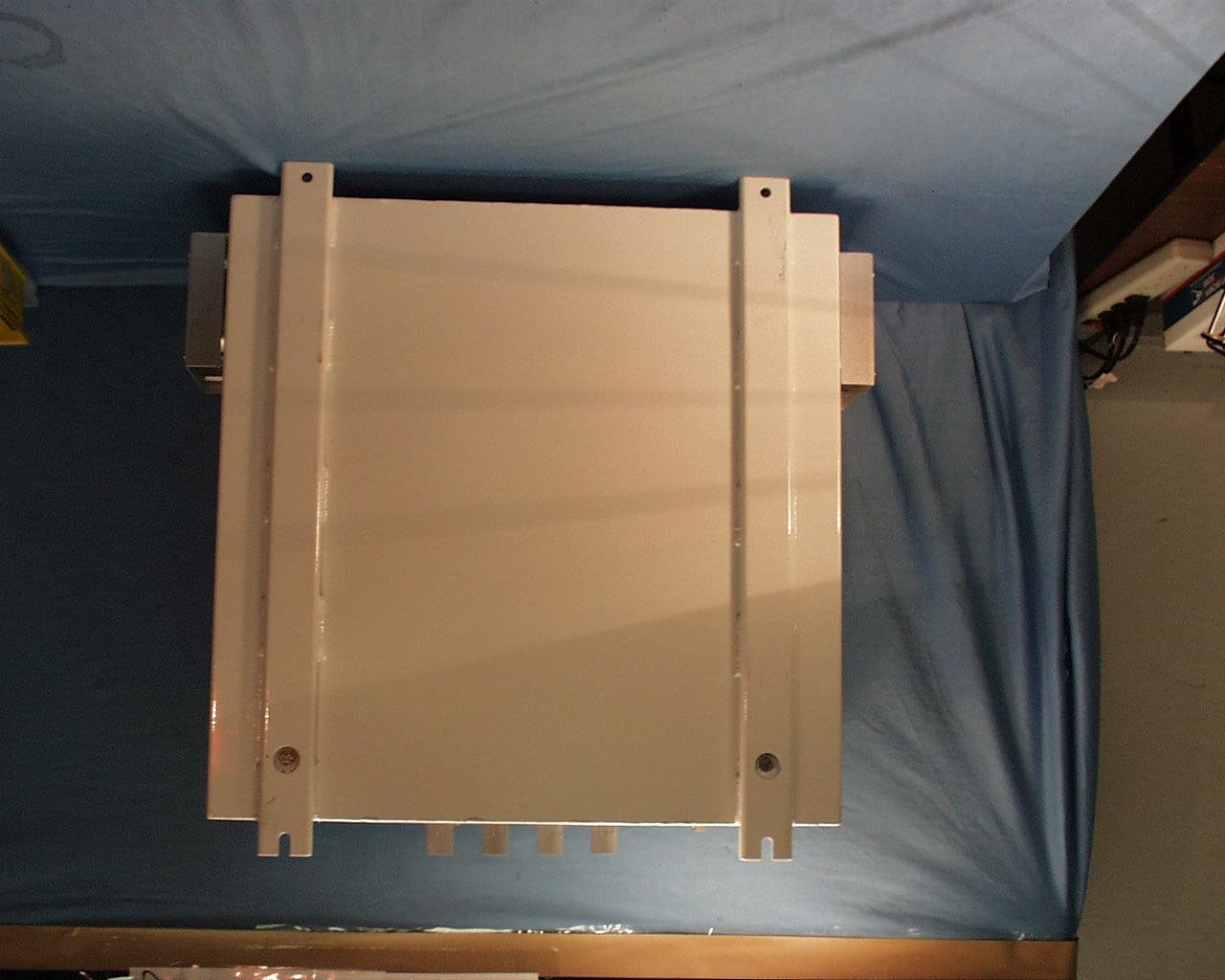

REPORT NO: 03U2442-1 DATE: FEBRUARY 20, 2004 EUT: MICROWAVE RF REPEATER FCC ID: QFT-RF2500E-SS Page 56 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 03U2442-1 DATE: FEBRUARY 20, 2004 EUT: MICROWAVE RF REPEATER FCC ID: QFT-RF2500E-SS Page 57 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO RADIATED BACK PHOTO REPORT NO: 03U2442-1 DATE: FEBRUARY 20, 2004 EUT: MICROWAVE RF REPEATER FCC ID: QFT-RF2500E-SS Page 58 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO LINE CONDUCTED FRONT PHOTO REPORT NO: 03U2442-1 DATE: FEBRUARY 20, 2004 EUT: MICROWAVE RF REPEATER FCC ID: QFT-RF2500E-SS Page 59 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
