QFU-4874-R49Wave Baby

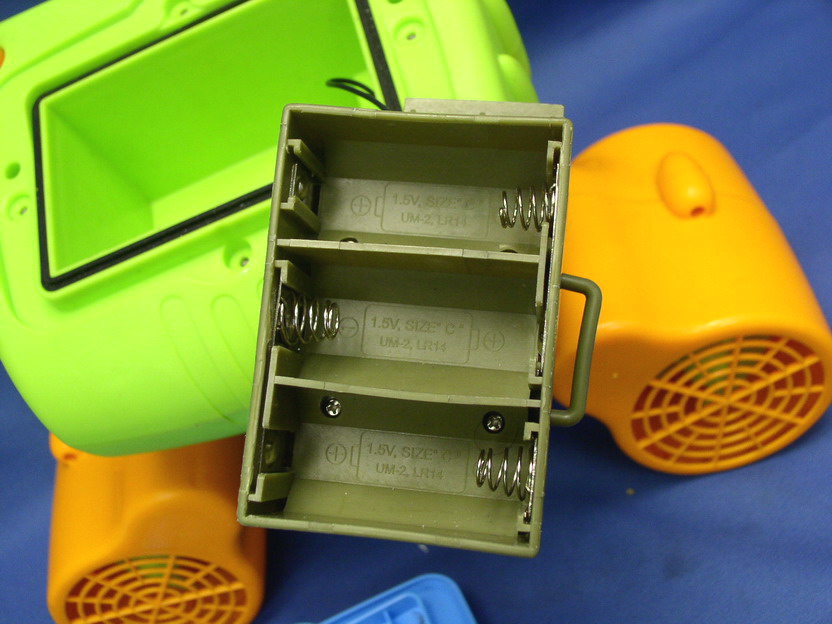

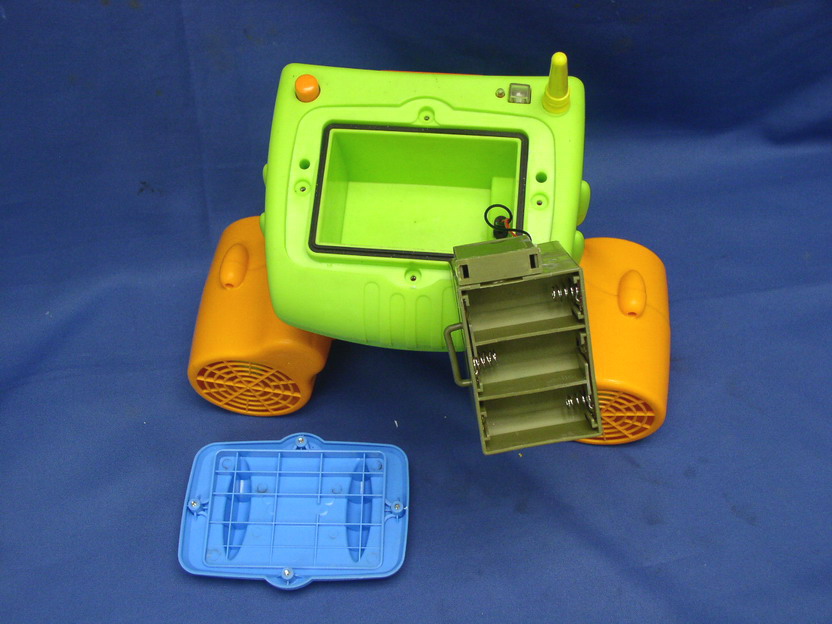

FCC ID: QFU-4874-R49 Ophoto1 Ophoto2 FCC ID: QFU-4874-R49 Ophoto3 Ophoto4 FCC ID: QFU-4874-R49 Ophoto5 Ophoto6

FCC ID: QFU-4874-R49 Iphoto1 Iphoto2 FCC ID: QFU-4874-R49 Iphoto3 Iphoto4 FCC ID: QFU-4874-R49 Iphoto5 Iphoto6 FCC ID: QFU-4874-R49 Iphoto7

FCC ID: QFU-4874-R49 Technical Description : The brief circuit description is listed as follows : - Q1 and associated circuit act as 49.860 MHz Super- regenerative Receiver. - U1 ATS302R acts as Decoder. - Q2, K1 BS-178 and associated circuit act as M1 Motor Driver. - Q3, K2 BS-178 and associated circuit act as M2 Motor Driver. Antenna Used : An integral antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : QFU-4874-R49 Kid-Riffic Toys Ltd. Application For Certification (FCC ID: QFU-4874-R49) Superregenerative Receiver Sample Description : Wave Baby Model : #4874 HK08011099-1 BH/at February 19, 2008 INTERTEK TESTING SERVICES FCC ID: QFU-4874-R49 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: QFU-4874-R49 ii MEASUREMENT/TECHNICAL REPORT Kid-Riffic Toys Ltd. - MODEL: #4874 FCC ID: QFU-4874-R49 February 19, 2008 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator Report prepared by: Ho Wai Kin, Ben Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: QFU-4874-R49 iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology ................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification ........................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................... 5 2.3 Support Equipment List and Description................................................................ 5 2.4 Equipment Modification......................................................................................... 6 2.5 Measurement Uncertainty ..................................................................................... 6 2.6 Support Equipment List and Descripition .............................................................. 6 3.0 Emission Results ..................................................................................................... 8 3.1 Field Strength Calculation ..................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................... 10 3.3 Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ........................................................................................ 14 5.0 Product Labelling ................................................................................................... 16 6.0 Technical Specifications ........................................................................................ 18 7.0 Instruction Manual ................................................................................................. 20 8.0 Miscellaneous Information .................................................................................... 22 8.1 Stabilization Waveform........................................................................................ 23 8.2 Emissions Test Procedures................................................................................. 24 INTERTEK TESTING SERVICES FCC ID: QFU-4874-R49 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: QFU-4874-R49 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: QFU-4874-R49 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC swimming ring operating at 49.860 MHz. The EUT is powered by 6 C size batteries. The EUT has an ON/OFF switch. It can be controlled to move forward, turning left and right directions by the controller. The brief circuit description is saved with filename: descri.pdf 1.2 Related Submittal(s) Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure with FCC ID: QFU-4874-T49. INTERTEK TESTING SERVICES FCC ID: QFU-4874-R49 3 1.3 Test Methodology The radiated emission measurements were performed according to the procedures in ANSI C63.4 (2003). All measurements were performed in Open …

Text truncated - open the document above for the full version.

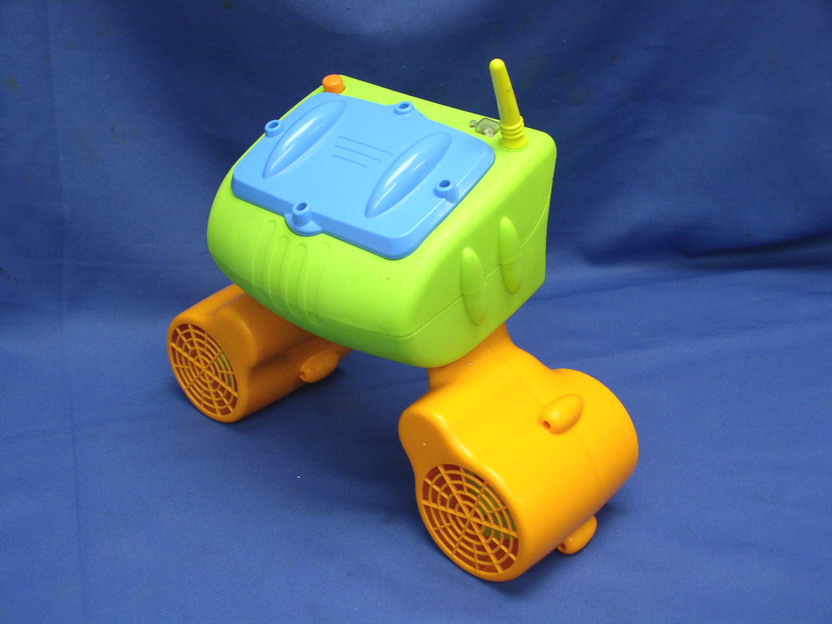

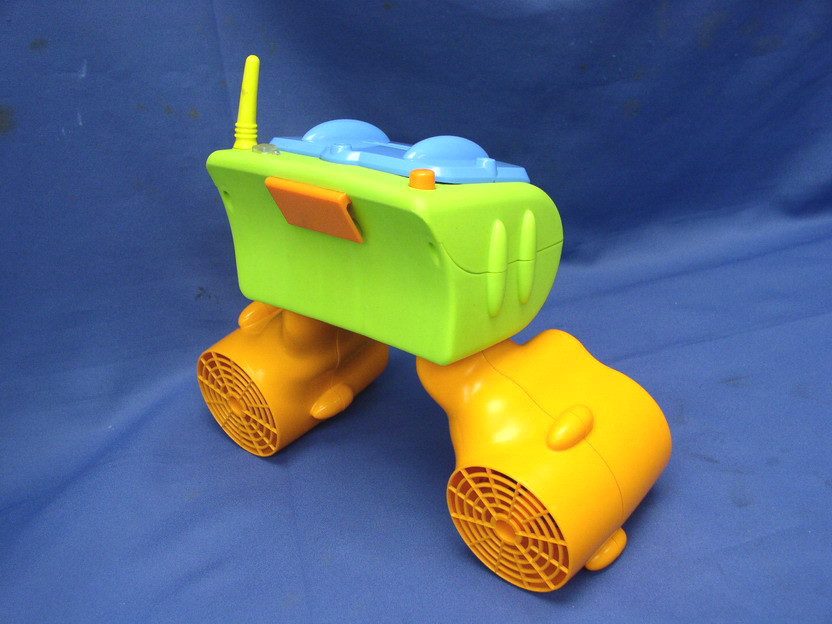

INTERTEK TESTING SERVICES Front View Back View
