QG310027 MHz Remote Control - TX

MOTOR WORKS MINI RADIO CONTROL VEHICLE START UP 1. Press the release button and REMOVE the clear DOME cover. 2. CAREFULLY LIFT OFF the PLASTIC blister SECURING THE CHARGING UNIT and ANTENNA, AND REMOVE BOTH. CAREFULLY unscrew AND REMOVE the vehicle from the PLASTIC blister. And the antenna is a "UNIQUE COUPLING" and the antenna connection a unique connection. 3.Secure / THREAD the antenna IN THE ANTENNA HOLE LOCATED ON THE CONTROLLER 4.Unscrew and REMOVE the battery COVERS on both the controller and THE charging unit. INSERT 3 “AAA” batteries (not included) into each charger unit and 3 “AA” batteries (not included) into controller of the battery compartments. Then REPLACE the battery COVERS and tighten the screws. CHARGING THE VEHICLE 1.Place the vehicle on TOP OF the charging unit HOLDER, GENTLY BUT FIRMLY PUSH THE VEHICLE INTO POSITION ON THE HOLDER. 2.Press the charging button and the charging LED indicator will turn on INDICATING THE VHICLE IS CHARGING. The LED indicator will turn off when the vehicle is fully charged (approx. 45 seconds). PLEASE NOTE: a). If the batteries inside the controller are low, the LED light will become dim or NOT LIGHT UP AT ALL, AND YOU WILL NOT BE ABLE TO CHARGE THE VEHICLE. PLEASE REPLACE THE BATTERIES. b). Make sure the BATTERIES HAVE BEEN INSERTED CORRECTLY (+ OR - ) then preparing TO CHARGE THE VEHICLE. c). Rechargeable batteries may getting hot and dangerous if being continuously recharged. OPERATING THE VEHICLE: 1).Fully extend the CONTROLLER ANTENNA. 2).Press the forward and reverse buttons to make the vehicle move FORWARDS AND BACKWARDS. FOR LEFT AND RIGHT TURNING, press the left and right buttons respectively. PLEASE NOTE, the vehicle will turn only when it is moving forwards or backwards. ALSO NOTE, the operation light will turn on when the vehicle is in use. 3).Adjust the fine tune STEERING LEVER located under the vehicle to keep it moving straight. PLEASE NOTE: a)When operating the controller, please do not touch the antenna. As control distance and the speed will both be EFFECTED (AFFECTED???). b).If YOU NOTICE A REDUCTION IN SPEED AND CONTROL, PLEASE BEGIN RE-CHARGING PER THE INSTRUCTIONS ABOVE. {Rosie, this is also recommended to add the following Warning on the manual.} WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate ratio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is needed • Consult the dealer or an experienced radio/TV technician for help NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Mini RC-Controller 27MHz TX Block Diagram Antenna R.F.Control Left AmplifierSignal Gererator Local Oscillator (27.145MHz) Mixer Left Right Backw Forw ar

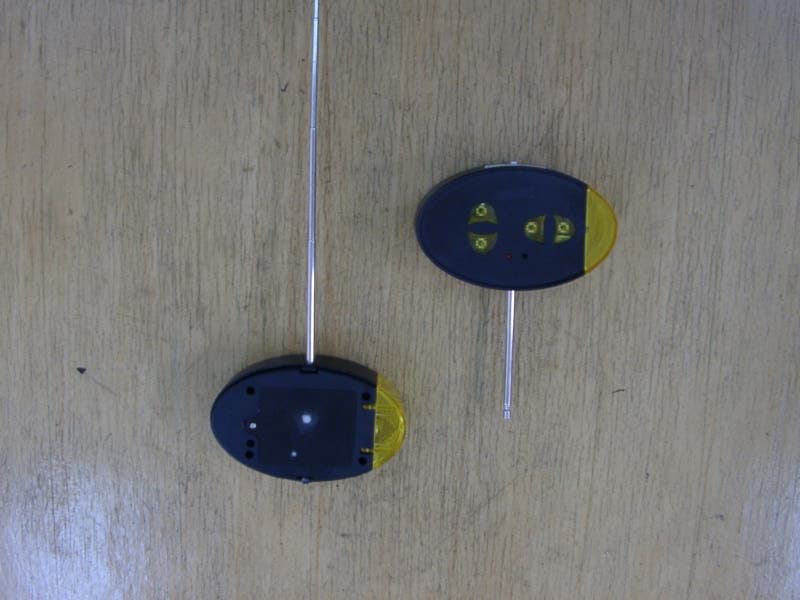

External Photos

FCC ID Label Sample for Model TX: 27 FCC ID:QG3100 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Technical Description TX Circuit - Consist of encoder circuit, R.F. OSC. Circuit Transmit circuit. - Encoder circuit includes IC-TX2, R3, R14 and C13. - On/Off switch include S1, S2, S3 and S4. - R.F. OSC. Circuit includes Q1, Crystal, X1, L1 R2, R4 and C12. - Transmit circuit include Q2, L1, C10, R16, C8, C9, L3 and L5. - R.F. OSC. Create signal and then encode through Antenna to transmit.

Report No.: 02.06.608E-2 Page: 1 of 8 Authorized Signature: Jerry Chen EMC Laboratory SGS-CSTC Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Laboratory Division 7435 Oakland Mills Road Columiba,MD 21046 May 31,2002  FCC TEST REPORT Application No. : 02.06.0608E-2 Applicant : PLANET TOYS WORLDWIDE LTD FCC ID : QG3100 Equipment under Test (EUT): Name : Mini RC – Car Asst Standards : FCC PART 15, SUBPART C : 2000 Date of Receipt : 14 June 2002 Date of Test : 25 June 2002 Date of Issue : 26 June 2002 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. This device can be expected to comply with Part 15 of the FCC Rules Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause  Report No.: 02.06.0608E-2 Page: 2 of 8 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.............................................................................................................................................................................1 2 CONTENTS...................................................................................................................................................................................2 3 GENERAL INFORMATION.......................................................................................................................................................3 3.1 C LIENT I NFORMATION ............................................................................................................................................................3 3.2 D ETAILS OF E.U.T.....................................................................................................................................................................3 3.3 D ESCRIPTION OF S UPPORT U NITS ........................................................................................................................................3 3.4 T EST L OCATION ........................................................................................................................................................................3 3.5 O THER I NFORMATION R EQUESTED BY THE C USTOMER ..................................................................................................3 4 TEST RESULTS............................................................................................................................................................................4 4.1 T EST I NSTRUMENTS .................................................................................................................................................................4 4.2 E.U.T. O PERATION ...................................................................................................................................................................4 4.3 T EST P ROCEDURE & M EASUREMENT D ATA .......................................................................................................................5 4.3.1 Radiated Emissions......................................................................................................................................................5 4.3.2 Occupied Bandwidth...................................................................................................................................................6 4.4 P HOTOGRAPHS - R ADIATED E MISSION T EST S ETUP IN C HAMBER .................................................................................7 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS...................................................................................................8  Report No.: 02.06.0608E-2 Page: 3 of 8 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: PLANET TOYS WORLDWIDE LTD Address of Applicant: 1107 Chinachem Golden Plaza, 77 Mody Road, TST East, Kowloon, HK. Name: Mini RC – Car Asst 3.2 Details of E.U.T. Power Supply: 4.5V DC (3 x ‘AA’ Batteries) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 SGS UK Certificate No.: L32 Frederal Communications Commission laboratory division Registration number: 282399 3.5 Other Information Requested by the Customer None.  Report No.: 02.06.0608…

Text truncated - open the document above for the full version.

Radiated Emission Test Set up in Chamber
