QG33270T2727MHz WIRELESS R/C TOY- TX

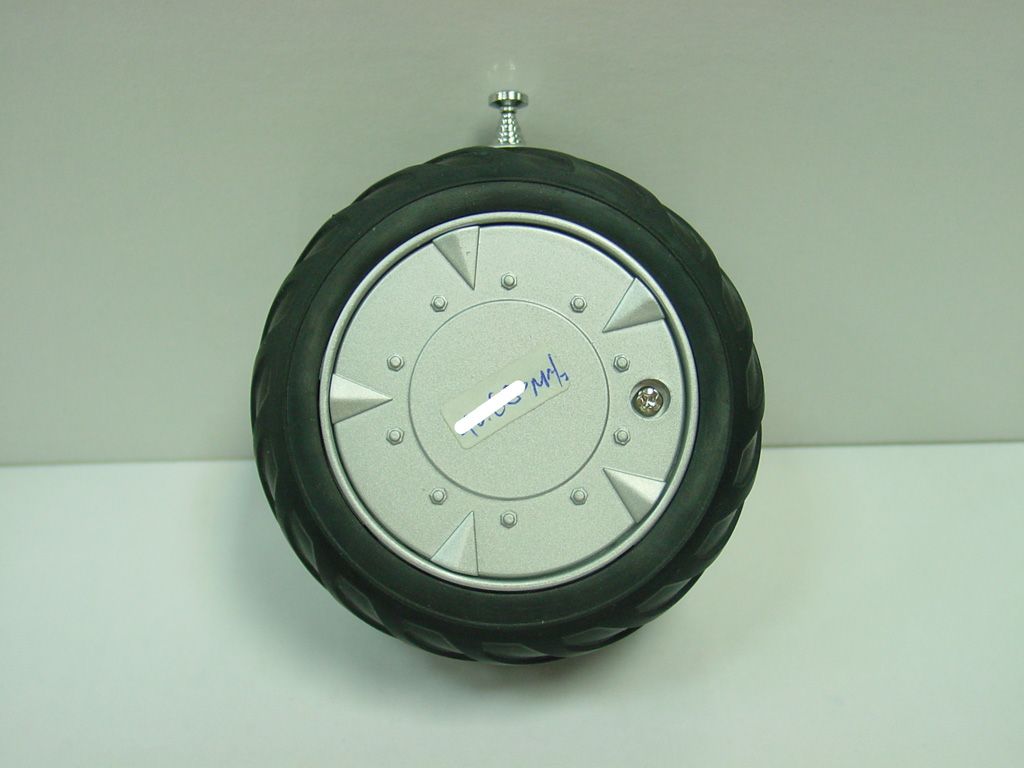

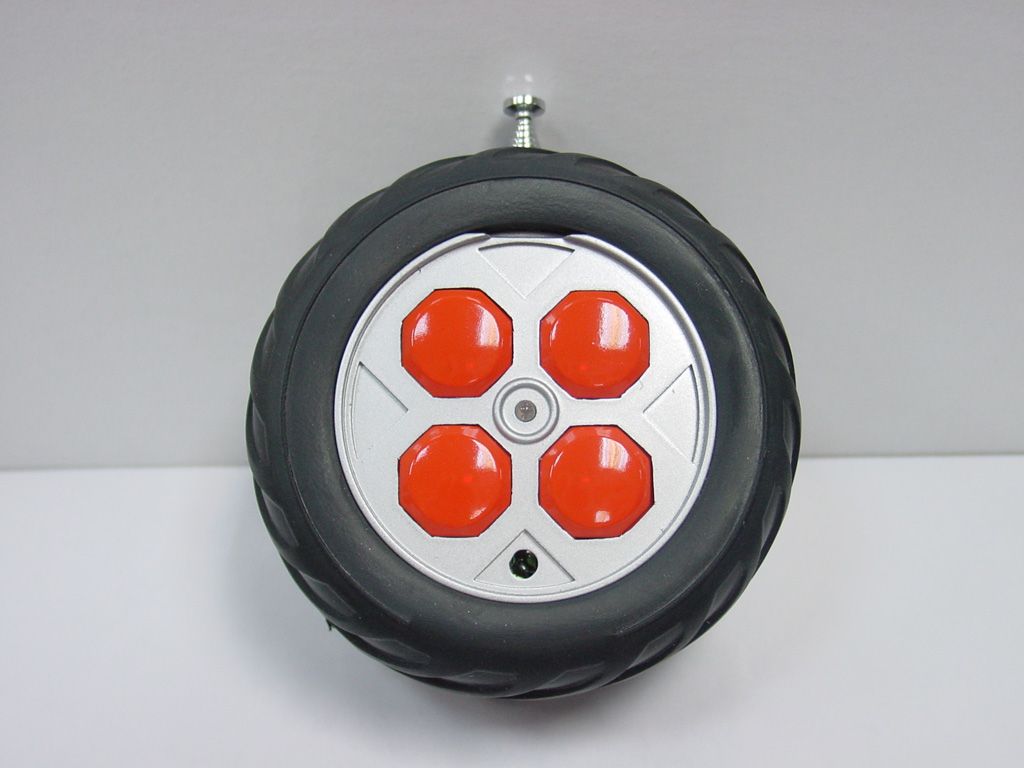

Playing manual 1 Batteries installation: (Transmitter): 1. Unscrew and remove the battery cover on controller. 2. Places 3x AAA with polarity as shown into the compartment 3. Replace the battery covers and tighten the screws 2 Operating 1. Press the left and right forward buttons together to make the car moves forward. 2. Press the left and right backward buttons together to make the car moves backward. 3. Press together left forward and right backward button will make the car forward rotates in anti-clockwise. 4. Press together right forward and left backward button will make the car rotates in clockwise. 5. Press only the single left forward or right forward will make the car turns left or right from forward. 6. Press only the single left backward or right backward will make the car turns left or right from backward. Left forward Right forward Right Backward Left Backward Diagram 1. FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. FCC Warning Statement for FCC ID Label Requirements: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

From: Lui Kin Bun [[email protected]] Sent: Monday, September 29, 2003 1:51 PM To: Sharon Hoffman Cc: Doris Hoffman Subject: Re: PLANET TOYS - LABEL LOCATION Hello Sid & Sharon, 1. Planet Toys/FCCID: QG33270T27 (Ref: 1347HT3)- a. Uploaded Digital Photos of New Outlook, Revised FCC ID Label Location, FCC ID Label, Instruction Manual with Warning Statement of FCC ID Label as QG33270T27_20030929.zip (2144365) to you today. Pls check. b. Cust said that the samples (which were rec'd by TEI) are hand-made samples for TESTING ONLY. They will produce it which like new outlook (as Digital Photos of New Outlook) so there are no enough space for label locations. It is because silver rear part are battery covers. They only can place the FCC ID Labels (as Revised FCC ID Label Location). Therefore, the instruction manual contains the two part warning statement. Do you understand? If you have any query, please feel free to contact me. Best Regards, Gilbert Lui TIMCO ENGINEERING, INC. ************************************************* Privileged/Confidential Information may be contained in this message. If you are not the addressee indicated in this message (or responsible for delivery of the message to such person), you may not copy or deliver this message to anyone. In such case, you should destroy this message and kindly notify the sender by reply email. Please advise immediately if you or your employer do not consent to Internet email for messages of this kind. Opinions, conclusions and other information in this message that do not relate to the official business of my firm shall be understood as neither given nor endorsed by it. ----- Original Message ----- From: "Sharon Hoffman" <[email protected]> To: "Gilbert Lui" <[email protected]> Cc: "Gilbert Lui/Home" <[email protected]> Sent: Friday, September 26, 2003 3:32 AM Subject: PLANET TOYS - LABEL LOCATION > > > TIMCO ENGINEERING, INC. > 849 N.W. STATE ROAD 45 > P.O. BOX 370 > NEWBERRY, FL 32669 > PHONE: 888-472-2424 OR 352-472-5500 > FAX: 352-472-2030 > EMAIL: [email protected] > > 9/25/03 > > Dear Gilbert: > > On the label location photos for the Planet Toys transmitter's, we are very > confused. They make no sense to us. I've attached the external photos of > the unit and the label location you sent. The device does not look anything > like the label location. Please explain. > > Regards, > > Sharon A. Hoffman > TIMCO ENGINEERING, INC. > ************************************************* > > Privileged/Confidential Information may be contained in this message. If > you are not the addressee indicated in this message (or responsible for > delivery of the message to such person), you may not copy or deliver this > message to anyone. In such case, you should destroy this message and kindly > notify the sender by reply email. Please advise immediately if you or your > employer do not consent to Internet email for messages of this kind. > Opinions, conclusions and other information in this message that do not > relate to the official business of my firm shall be understood as neither > given nor endorsed by it. > >

FCC ID Label Sample for Model QG33270T27 FCC ID: QG33270T27
