QG6CHQSEnergy Saving Lamp

EXHIBIT 5 Userís Manual Page 1 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS CAUTIONS AND INSTRUCTION 1. Use only on 110-120V, 60Hz. 2. Never disassemble or modify the lamp. 3. To prevent risk of fire, never install this device in the following fixtures: a. Fixture on dimming circuits. b. Emergency exit lights powered by direct current (DC). 4. To avoid risk of electronic shock----use only in dry locations. 5. This product may produce interference when using a T.V., radio or a wireless remote control. If interference should occur, move the lamp away form such equipment three feet or more, otherwise, plug the lamp or the receiver into a different outlet. 6. To prevent burns and avoid electric shock, please do not touch the bulb or cap during operation or immediately after switching off. 7. COMPLIANCE INFORMATION STATEMENT Product Name: Energy Saving Lamp Model Number: QSM-15W, QSM-20W, QSM-23W, QSM-25W QSC-15W, QSC-20W, QSC-23W, QSC-25W This device complies with part 18 of FCC Rules operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the userís authority to operate this equipment. Page2 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS

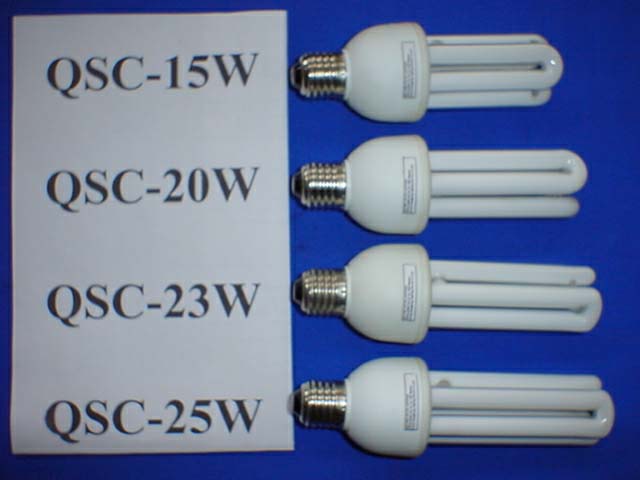

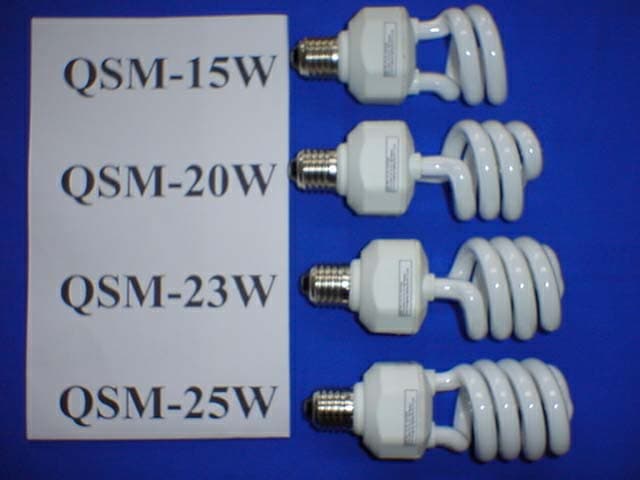

EXHIBIT 2 External Photographs Page 1 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS Figure 1 M/N: QSC Series General Appearance and Label Location Figure 2 M/N: QSM Series General Appearance and Label Location FCC ID QG6CHQS FCC ID QG6CHQS Page 2 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS

EXHIBIT 1 Label Drawing Page 1 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS Figure 1 M/N: QSC Series General Appearance and Label Location Figure 2 M/N: QSM Series General Appearance and Label Location FCC ID QG6CHQS FCC ID QG6CHQS Page 2 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS For M/N: QSC-15W Label QSC-15W FCC ID: QG6CHQS 120Vac/60Hz Not for use with dimmers Hangzhou Huoerte Electric Co.,Ltd For M/N: QSC-20W Label QSC-20W FCC ID: QG6CHQS 120Vac/60Hz Not for use with dimmers Hangzhou Huoerte Electric Co.,Ltd For M/N: QSC-23W Label QSC-23W FCC ID: QG6CHQS 120Vac/60Hz Not for use with dimmers Hangzhou Huoerte Electric Co.,Ltd For M/N: QSC-25W Label QSC-25W FCC ID: QG6CHQS 120Vac/60Hz Not for use with dimmers Hangzhou Huoerte Electric Co.,Ltd Page 2 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS For M/N: QSM-15W Label QSM-15W FCC ID: QG6CHQS 120Vac/60Hz Not for use with dimmers Hangzhou Huoerte Electric Co.,Ltd For M/N: QSM-20W Label QSM-20W FCC ID: QG6CHQS 120Vac/60Hz Not for use with dimmers Hangzhou Huoerte Electric Co.,Ltd For M/N: QSM-23W Label QSM-23W FCC ID: QG6CHQS 120Vac/60Hz Not for use with dimmers Hangzhou Huoerte Electric Co.,Ltd For M/N: QSM-25W Label QSM-25W FCC ID: QG6CHQS 120Vac/60Hz Not for use with dimmers Hangzhou Huoerte Electric Co.,Ltd Page 3 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS Figure 3 M/N: QSM, QSC Series Label Page 3 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS

EXHIBIT 2 Internal Photographs Page 1 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS Figure 1 M/N: QSM, QSC Series Main Board, Component Side Figure 2 M/N: QSM, QSC Series Main Board, Soldered Side Page 2 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS

EXHIBIT 3 Circuit Diagram Page 1 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS Page 2 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS

Page 1 Hangzhou Linían Changhong Lighting Electronic Co., Ltd. Energy Saving Lamp FCC ID: QG6CHQS EXHIBIT 4 Te s t R e p o r t APPLICATION FOR CERTIFICATION On Behalf of Hangzhou Linían Changhong Lighting Electronic Co., Ltd Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp Model Number : QSC-15W, QSC-20W, QSC-23W, QSC-25W QSM-15W, QSM-20W, QSM-23W, QSM-25W Prepared for : Hangzhou Linían Changhong Lighting Electronic Co., Ltd Economy Development Area Linían HangzhoyZhejiang China Hangzhou Huoerte Electric Co.,Ltd Economy Development Area Linían HangzhoyZhejiang China Prepared by : Shenzhen Most Technology Co., Ltd C-13B,Shennan Gardon Nanshan Zone Shenzhen Guangdong China Telephone : (0755)-26506933 Report Number : SMT-F42002 Date of Test : July 1, 2002 Date of Report : July 2-4, 2002 Page 2 Hangzhou Linían Changhong Lighting Electronic Co., Ltd. Energy Saving Lamp FCC ID: QG6CHQS TABLE OF CONTENTS Description Page FCC Test Report for Declaration of Conformity 1. GENERAL INFORMATION....................................................................................................... 5 1.1. Description of Device (EUT) ...................................................................................................................... 5 1.2. Test Facility ..........................................................................................................................Ö............... 6 1.3. Test Uncertainty ........................................................................................................................Ö.............. 6 2. POWER LINE CONDUCTED EMISSION TEST..................................................................... 7 2.1. Test Equipment........................................................................................................................................... 7 2.2. Block Diagram of Test Setup ..................................................................................................................... 7 2.3. Power Line Conducted Emission Test Limits............................................................................................. 7 2.4. Configuration of EUT on Test.................................................................................................................... 7 2.5. Operating Condition of EUT ...................................................................................................................... 8 2.6. Test Procedure ............................................................................................................................................ 8 2.7. Power Line Conducted Emission Test Results ........................................................................................... 8 3. RADIATED EMISSION TEST.................................................................................................... 9 3.1. Test Equipment........................................................................................................................................... 9 3.2. Block Diagram of Test Setup ..................................................................................................................... 9 3.3. Radiated Emission Limit .......................................................................................................................... 10 3.4. EUT Configuration on Test ...................................................................................................................... 10 3.5. Operating Condition of EUT .................................................................................................................... 10 3.6. Test Procedure .......................................................................................................................................... 11 3.7. Radiated Emission Test Results................................................................................................................ 11 4. MODIFICATION TO TEST SPECIFICATIONS ................................................................... 12 5. PHOTOGRAPH........................................................................................................................... 13 5.1. Photo of Power Line Conducted Emission Test ....................................................................................... 13 5.2. Photo of Radiated Emission Test (In Anechoic Chamber)........................................................................ 13 APPENDIX I (8 pages) APPENDIX II (8 pages) Page 3 Hangzhou Linían Changhong Lighting Electronic Co., Ltd. Energy Saving Lamp FCC ID: QG6CHQS Applicant/Manufacturer: Hangzhou Linían Changhong Lighting Electronic Co., Ltd Hangzhou Huoerte Electric Co.,Ltd Page 4 Hangzhou Linían Changhong Lighting Electronic Co., Ltd. Energy Saving Lamp FCC ID: QG6CHQS 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description : Energy Saving Lamp Model Number : QSC-15W, QSC-20W, QSC-23W, QSC-25W QSM-15W, QSM-20W, QSM-23W, QSM-25W Applicant : Linían Changhong Lighting Electric Co., Ltd. Economy Development Area Linían HangzhoyZhejiang China Hangzhou Huoerte Electric Co.,Ltd. Economy Development Area Linían HangzhoyZhejiang China Manufacturer : Linían Changhong Lighting Electric Co., Ltd. Economy Development Area Linían HangzhoyZhejiang China Hangzhou Huoerte Electric Co.,Ltd. Economy Development Area Linían HangzhoyZhejiang China Date of Test : July 1, 2002 Page 5 Hangzhou Linían Changhong Lighting Electronic Co., Ltd. Energy Saving Lamp FCC ID: QG6CHQS Test Facility Site Description 3m Anechoic Chamber : Certificated by FCC, USA Aug. 24, 2000 3m & 10m Open Site : Certificated by FCC, USA Feb. 13, 1998 EMC Lab. : Certificated by VCCI, Japan Oct. 29, 1998 Certificated by DATech, German Feb. 02, 1999 Certificated by NVLAP, USA until Mar. 03, 2001 NVLAP Code: 200372-0 Certificated by DNV, Norway May 26, 1999 Name of Firm : Audix Technology (Shenzhen) Co., Ltd. Site Location : No. 6, Ke Feng Rd.,…

Text truncated - open the document above for the full version.

Setup Page 1 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS SETUP PHOTOGRAPH 1.1. Photo of Power Line Conducted Emission Test 1.2. Photo of Radiated Emission Test (In Anechoic Chamber) Page 2 Hangzhou Huoerte Electric Co.,Ltd Energy Saving Lamp FCC ID: QG6CHQS
