QG7-SL2800-A001Cable Modem

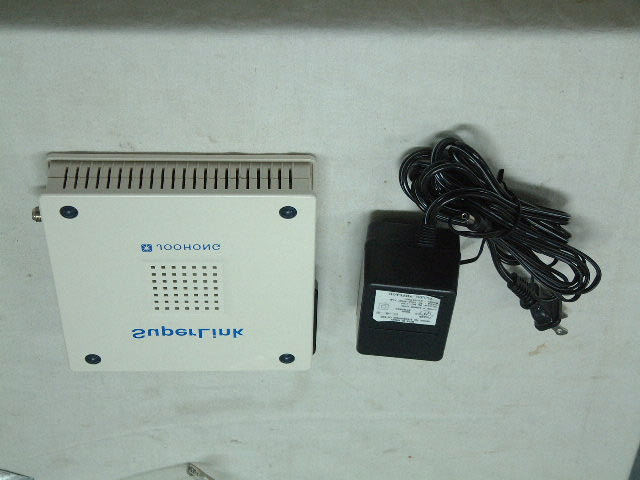

Test report Our reference : KEL02-F05069 Page : B1 of Appendix Issued date : 2002-06-29 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL02-F05069 Page : D1 of Appendix Issued date : 2002-06-29 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

Test report Our reference : KEL02-F05069 Page : C1 of Appendix Issued date : 2002-06-29 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL02-F05069 Page : C2 of Appendix Issued date : 2002-06-29 <FRONT VIEW OF ADAPTER> Test report Our reference : KEL02-F05069 Page : C3 of Appendix Issued date : 2002-06-29 <REAR VIEW OF ADAPTER > Test report Our reference : KEL02-F05069 Page : C4 of Appendix Issued date : 2002-06-29 <FRONT VIEW OF MAIN BOARD> Test report Our reference : KEL02-F05069 Page : C5 of Appendix Issued date : 2002-06-29 <REAR VIEW OF MAIN BOARD>

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : June. 28. 2002 Applicant’s Name : JOOHONG Information & Communications Ltd. Applicant’s Address : 14F, IT Venture Tower East Wing, 78 Karak-Dong, Songpa-Gu, Seoul, Korea (138-016) Manufacturer’s Name : JOOHONG Information & Communications Ltd. Manufacturer’s Address : 14F, IT Venture Tower East Wing, 78 Karak-Dong, Songpa-Gu, Seoul, Korea (138-016) Declares that the product Product Description : Cable Modem Brand Name : JOOHONG Model Number : SL-2800 FCC ID : QG7-SL2800-A001 Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date : June. 29. 2002 Report No : KEL02-F05069 Authorized Signature : M. S. CHO / President Test report Our reference : KEL02-F05069 Page : 2 of 13 Issued date : 2002-06-29 Korea EMC Laboratory TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 System Configuration Diagram 6 2.5 Preliminary testing 7 2.6 Shielded Enclosure 7 2.7 Data Reporting Format 7 2.8 Operating Condition 7 2.9 Conditioning of the EUT 7 2.10 Power Line Conducted Emissions 8 2.11 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL02-F05069 Page : 3 of 13 Issued date : 2002-06-29 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : Cable Modem Model Number : SL-2800 Serial Number : Prototype Manufacturer : JOOHONG Information & Communications Ltd. 14F, IT Venture Tower East Wing, 78 Karak-Dong, Songpa-Gu, Seoul, Korea (138-016) Type of Test : FCC CLASS B Report Number : KEL02-F05069 Date Tested : June. 28. 2002 Tested By : S. J. KIM The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Test report Our reference : KEL02-F05069 Page : 4 of 13 Issued date : 2002-06-29 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The SL-2800 is a Cable Modem made by JOOHONG Information & Communications Ltd. in Korea. Refer to the user's manual for more information. ITEM SPECIFICATION DOWNSTREAM UPSTREAM Frequency Range 88 ~ 860 MHz 5 ~ 42 MHz Data Rate Max. 30.34 Mbps/64QAM Max. 42.88 Mbps/256QAM Max. 5.12 Mbps/QPSK Max. 10.24 Mbps/16QAM Power AC 120 V , 60 Hz Dimension 150 (width) x 150 (depth) x 34 (height) mm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer Cable Modem SL-2800 QG7-SL2800-A001 Prototype JOOHONG Information & Communications Ltd. Adapter SJ-09120J DoC NONE ILJIN NOTE PC SQ10 DoC A82691ET600040 SAMSUNG Adapter AD-4212(K) DoC NONE SAMSUNG Speaker Ceron F-2050 000301218 DONGBANG MIC 141041-001 NONE COMPAQ 1.3.1 Operated System Type Model Name FCC ID Serial NO Manufacturer CMTS CISCO UBR 7114 NONE CISCO SYSTEMS 2-Way Distributor SKA-72 NONE SEOKWANG Attenuator ATT-6dB NONE TAEWHA Attenuator ATT-3dB NONE TAEWHA PC Romeo-TS NONE JOOHONG Information & Communications Ltd. Monitor S770 S7B20DM02402173 HYUNDAI Keyboard 104DYW10-100 9FA011750 SEJIN Mouse GM-9601 048008 SAMSUNG * CMTS which can operate Cable Modem was equipped out of testing room. 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark Main B/D SL2800 NONE JOOHONG Information & Communications Ltd. Korea Test report Our reference : KEL02-F05069 Page : 5 of 13 Issued date : 2002-06-29 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4, 2000. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40 cm from a vertical conducting plane. Power to the EUT was provided through the LISN(3725/2,EMCO) which has the Impedance vs Frequency Characteristic in accordance with the Fig.1 Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(NSLK8128,Schwarzbeck). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6cm on the center apart. 1.6 Test Facility Location: Korea EMC Labor…

Text truncated - open the document above for the full version.

Test report Our reference : KEL02-F05069 Page : A1 of Appendix Issued date : 2002-06-29 Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Test report Our reference : KEL02-F05069 Page : A2 of Appendix Issued date : 2002-06-29 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL02-F05069 Page : A3 of Appendix Issued date : 2002-06-29 RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
