QGFWONQUSB Memory Driver

- - - - - - FCC NOTICE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

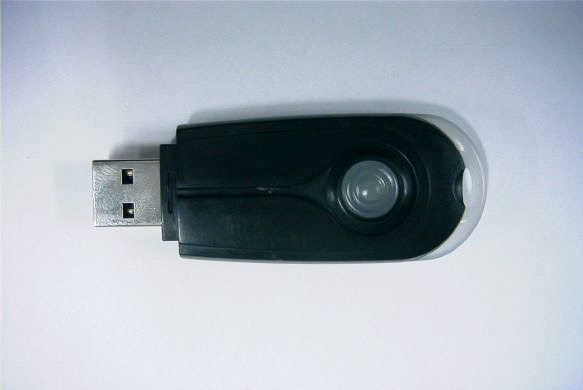

KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 1 of 2 External photo KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 2 of 2 External photo

Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: WonQ FCC ID : QGFWonQ Wonnet Co.,Ltd. Made in Korea This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Korea Technology Institute Co., Ltd. Page 1 of 1 Label location Label Location

KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 1 of 2 Internal photo-Front KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 2 of 2 Internal photo-Rear

KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 1 of 13 Test Report Test Report No.: KTI02EF09001 Registration No.: 99058 Applicant: Wonnet Co.,Ltd. Applicant Address: 4F Sangwang Bldg.8-9,Sangwangshipli-Dong,Sungdong-Gu,Seoul,Korea Product: USB Flash Memory FCC ID: QGFWonQ Model No. WonQ Receipt No.: 02-0732 Date of receipt: July 31,2002 Date of Issue: September 9, 2002 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: ANSI. C63.4 : 1992 Rule Parts: FCC Part 15, Subpart B Equipment Class: Computing Device Test Result: The above mentioned product has been tested and passed. Tested by: M. H.Chang/ Engineer Approved by: G. C. Min/ President Signature Date Signature Date Other Aspects : Abbreviations : OK, Pass=passed Fail=failed N/A=not applicable This test report is not permitted to copy partly without our permission. This test result is dependent on only equipment to be used. This test result is based on a single evaluation of one sample of the above mentioned. This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 2 of 13 Contents 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 Additional equipments 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 6 7 8 8 9 11 13 14~16 List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Radiated Emissions List of Photographs Photograph 1 Setup for Conducted Emissions Photograph 2 Setup for Radiated Emissions 4 10 11 12 KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 3 of 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by Korea Technology Institute Co., LTD. And were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., LTD 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/1992 for measurement of radio Interference. KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 4 of 13 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 12.2002 Field Strength Meter ESPC 832827/011 5.2003 LISN EM-7823 115019 3.2003 LISN ESH2-Z5 8254601019 6.2003 Conducted Cable N/A N/A 11.2002 Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 5.2003 Spectrum Analyzer R3261C 61720417 12.2002 Pre Amplifier 8447D 2944A06874 11.2002 BiconiLog Antenna 3142B 1705 12.2002 Bilog Antenna CBL6140A 1217 5.2003 Open Site Cable N/A N/A 11.2002 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application : July 31,2002 Date of Test : September 5, 2002 2.4 Test Environment See each test item’s description . KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 5 of 13 3. Description of the tested samples The EUT is Memory Driver. 3.1 Rating and Physical Characteristics Supported OS Windows 98/SE,Windows ME, Windows 2000, Windows XP,Macintosh (Mac OS 9.X over) Power Supply USB(4.5V ~5.5V) Operating Current 40mA Data Reading/Writing Speed Max .12Mbps Operating Temperature 0 ~ 45 Storage Temperature -20 ~ 80 3.2 Submitted Documents User’s Guide Block Diagram KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 6 of 13 4. Measurement Conditions Testing Input Voltage: AC 220V. 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 1. Data back up in memory 2. ‘H’ pattern display 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID PC COMPAQ COMPUTER Deskpro EXM 209065 - Monitor Samsung Electronics 750S P223HVAR502035 - Keyboard COMPAQ COMPUTER KB-9963 B26960GBUKKOVW - Mouse COMPAQ COMPUTER M-S48a None JNZ201213 Mouse SEJIN ELECTRON INC. SMB-400 0CIM004047 GJJS965M3 Printer Hewlett Packard C4569A SG78M1H0CF - 4.3 Uncertainty 1) Radiated disturbance UC (Combined standard Uncertainty) = 1.8dB Expanded uncertainty U=Kuc K = 2 U = 3.6dB 2) Conducted disturbance UC = 0.88dB U = Kuc=2xUc = 1.8dB KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 7 of 13 4.4 Test setup Computer Mouse_2 Keyboard Monitor PS/2 Mouse_1 PS/2 SERIAL Printer USB KTI02EF09001 FCC ID : QGFWonQ Korea Technology Institute Co., Ltd. Page 8 of 13 5. EMISSION Test 5.1 Conducted Emissions Result : Pass The line-conducted facility is located inside a 2.3M x 3.5M x 5.5M shielded closure. The shielding effectiveness of the shielded room is in accordance with MIL-Std-285 or NSA 605- 05. A 1m x 1.5m wooden table 80cm. High is placed 80cm away from the vertical wall and 1.5m away from the side wall of the shielded room. R&S Model ESH3-Z5(10kHz-30MHz) 50ohm/50 uH line-Impedance Stabilization Networks(LISN) are bonded to the shielded room. The EUT is powered from the…

Text truncated - open the document above for the full version.

Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
