QGOCFR-1700RF Card Door Lock

User Manual (Model : CFR-1700) Unipion Co., Ltd. Table of Contents 1. Password Registration 1-1. Registration of password 1-2. Access by password 1-3. Change of password 2. RF Card Registration 2-1. Registration of RF Card 2-2. Access by RF Card 2-3. Deletion of RF Card 3. Registration/Deletion of Remote Control 3-1. Registration of remote control 3-2. Access by remote control 3-3. Deletion of remote control 4. Door opening by Mechanical Key(Emergency) 5. Specification 1. Password Registration 1-1. Registration of password ※ Default password of this product is set ‘1234’ (Factory mode) Code : (L) Password (4~12 digits) (*) ① Open battery cover and press “L” button in the PCB for one second and you can hear “Bee” sound ② Press your own password (4 ~ 12 digits) in front keypad and press “*” button and you can hear Bee-Ri-Rik sound ※ It is recommended to register your own password number different from Telephone number, date of birth or 4 digits number etc to avoid any misuse by unauthorized person. 1-2. Access by password Code : (*) Password (4~12 digits) (*) ① Press “*” button in keypad ※ No entry of the key for 5 seconds goes to sleep mode automatically ② Press password (4 ~ 12digits) and then “*” button ③ You can hear voice sound “It’s open” and door opens ※ Blue LED goes off and Door will be automatically locked after 6 seconds ※ You hear voice message “It’s lock” when Door is automatically locked. 1-3. Change password ① Follow same procedure as password registration in 1-1. ② New password is entered, the previous one will be deleted. 2. RF Card Registration 2-1. Registration of RF Card Code : (R) (1) (*) RF Card ① Open battery cover ② Press “R” button in PCB for one second and you can hear “Bee” sound ③ Press “1” and “*” button in keypad and place target RF card to near signal receiving part of the front body of the door lock ※ When the card is registered properly, you hear sound “Bee-Ri-Rick”. ※ When you try to register card already registered, you hear “Bee-Bee-Bee” sound and no registration is made. ④ The RF card can be registered one by one (Max. 20 cards). If you want to register multiple cards at one time, please place the card near signal receiving part in turn. ※ In multiple registration of the cards, this process will stop and power off automatically unless placing next card within 5 seconds. 2-2. Access by RF Card Code : (START) RF Card ① Press “START” button in the outside body (Blue LED on) ※ If you do not place card for 5 seconds, this mode will be stopped automatically. ② Place registered card near signal receiving part ③ You can hear voice sound “It’s open” ※ Blue LED goes off and Door will be automatically locked again after 6 seconds ※ You hear voice message “It’s lock” when Door is automatically locked. ※ If the unregistered card is used, you can hear the sound “Please try again”. If the unauthorized access trial is made more than 3 times, all the operations of the doorlock will be stopped for 30 seconds. 2-3. Deletion of RF Card Code : (R) (1) (#) ① Open battery cover ② Press “R” button in PCB for one second and you can hear “Bee” sound ③ Press “1” and “#” button in keypad and you hear “Bee-Ri-Rick” sound ※ When you hear “Bee-Bee-Bee” sound, take above steps over again to delete cards 3. Registration/Deletion of Remote Control 3-1. Registration of remote control Code : (R) (2) (*) Remote control  Install the antenna on the top of the product (interior part)  Open battery cover  Press “R” button in PCB for one second and you can hear “Bee” sound  Press “2” and “*” button in keypad Press the button in the remote control toward the antenna ※ In case the remote control is registered properly, you can hear “Bee-Ri-Rick” sound ※ When you try to register remote control already registered, you can hear “Bee-Bee-Bee” sound. ※ The remote control can be registered up to 5 units at one time. If you want to register multiple remote controls at one time, please press the button of each remote control in turn. ※ If you do not push the remote control button within 5 seconds, the registration will finish and the power will turn off. 3-2. Access by remote control Press button of the remote control ※ Door will open in 3 seconds within 10m distance with voice message “It’s open” ※ Door will lock automatically back within 6 seconds with voice message “It’s lock” 3-3. Deletion of Remote control Code : (R) (2) (#)  Press “R” button in PCB and you can hear “Bee” sound  Press “2” and “#” button in the keypad ※ You can hear “Bee-Ri-Rick” sound for deletion of remote control 4. Door Opening by Mechanical Key (Emergency) ① Insert the key in keylock assembly located under the lid at center of front body ② turn key 90° clockwise ③ Turn the handle to open the door ※ Mechanical key is prepared for emergency such as “no/low battery” and malfunction of the doorlock etc. Please use this key in emergency case only. 5. Specification Specification for CFR-1700 ITEM SPECIFICATION Doorlock : 8 x 1.5(V) AA Alkaline Battery (6V) Battery Remote control : 3 x 1.5(V) AAA Alkaline Battery Battery life More than 6 months (10 uses per day) Power Emergency Battery Recharge Square FC-1 9V RF Card 125(KHz) FSK type RF CARD Active distance 5 Cm from reader No. of card Max 20 cards, 30 cards(Option) Frequency AM 433.92MHz Remote Control Reg. Capacity 5 Registration (Unlock from Inside) Voice Message Open, Lock, Retry, Low Battery Warning Display, LED Open ,Close LED Blue LED ON in case of Door Open/Close Error LED Red LED ON in case of Error Interior Aluminum Die-Casting : 80*50*300 (W*D*H)mm Dimensions Exterior Aluminum Die-Casting : 80*50*300 (W*D*H)mm Right,/Left Hinge Exchangeable at Service Depot Others Automatic Lock Automatic stop of Operation for 3 minutes by unauthorized access trials more than 3 times FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY …

Text truncated - open the document above for the full version.

<RF Door Lock> Block Diagram MICOM U1 PIC16F74 Low BATT D etect ( 4.5V ) U6 ELM9745CAA Voltage D etect ( 3.3V ) U5 ELM9733AA RF P ower D rive Q1: MMBTA42 Q2: KTA1505Y RF M odule U2270B Memory U2 AT24C02 OSC 1 20.0000MHz Voice IC U8 EM57P300A Buzzer D rive Q1: KTC3875Y Numeric Key PAD RF COIL SPEAKER (8 Ohm) M otor Drive U9 TA7291F BZM MOTORBUZZER Remocon D rive Q10: KTA1505Y R emocon RX M odule AM433.92MHz ANTENNA R R-Button L L-Button BATTERY 6V

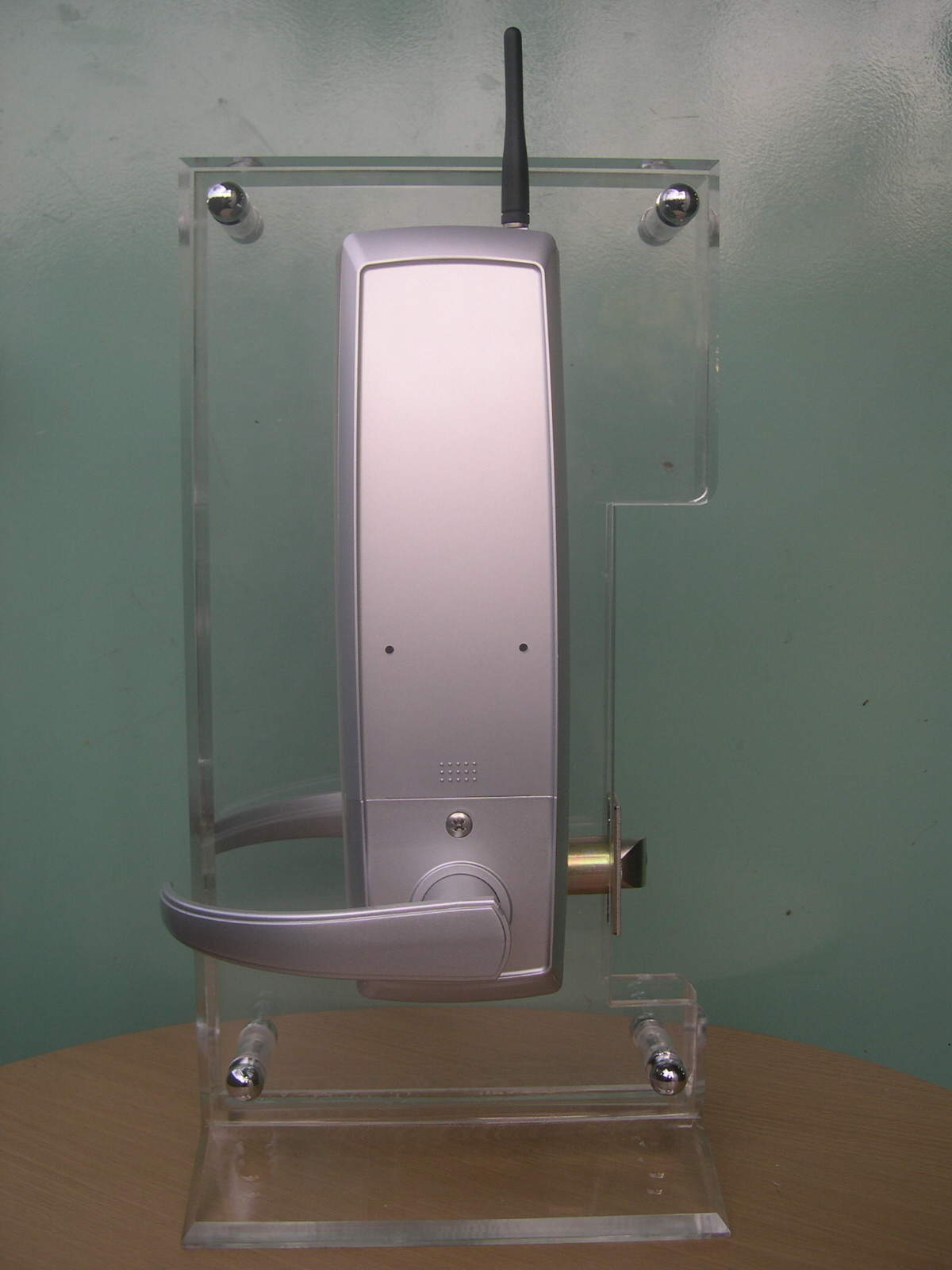

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 External Photographs of EUT <Photograph 1: Front View> SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 <Photograph 2: Rear View>

SK TECH CO., LTD. Page 1 of 1 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 FCC ID Label Location & Sample LABEL LOCATION 55 mm 25 mm UNIPION CO.,LTD. RF CARD DOOR LOCK FCC ID : QGOCFR-1700 Model No.: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Made in Korea LABEL SAMPLE

SK TECH CO., LTD. Page 1 of 5 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 Internal Photographs of EUT <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 5 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 <Photograph 2: Main Board Front View > <Photograph 3: Main Board Rear View > SK TECH CO., LTD. Page 3 of 5 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 <Photograph 4: RF Control Receiver Board Front View > <Photograph 5: RF Control Receiver Board Rear View > SK TECH CO., LTD. Page 4 of 5 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 <Photograph 6: RF Card Transceiver Board Front View > <Photograph 7: RF Card Transceiver Board Rear View > SK TECH CO., LTD. Page 5 of 5 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 <Photograph 8: Keypad Board Front View > <Photograph 8: Keypad Board Rear View >

SK TECH CO., LTD. Page 1 of 1 SKT SKTTRT-041117-005 FCC ID: QGOCFR-1700 Operational Description The EUT is a low power 125kHz transceiver used of entrance control after reading RFID Card. Press “START” button in the outside body (Blue LED on) and operate continuously in TRANSMITTING and READING mode for recognizing RF ID CARD. RF ID CARD is approached to the EUT and then EUT verifies the identification of the CARD. If you do not place card for 5 seconds, this mode will be stopped automatically. If the unregistered card is used, you can hear the sound “Please try again”. If the unauthorized access trial is made more than 3 times, all the operations of the doorlock will be stopped for 30 seconds. The EUT will only be marketed to corporations. It works in conjunction with security systems in offices and factories. ANTENNA The EUT uses an loop coil antenna (RFID Card Transceiver) and whip antenna ( Remote Control Receiver). No external ground is required. Specification ITEM SPECIFICATION Doorlock : 8 x 1.5(V) AA Alkaline Battery (6V) Battery Remote control : 3 x 1.5(V) AAA Alkaline Battery Battery life More than 6 months (10 uses per day) Power Emergency Battery Recharge Square FC-1 9V RF Card 125(KHz) FSK type RF CARD Active distance 5 Cm from reader No. of card Max 20 cards, 30 cards(Option) Frequency AM 433.92MHz Remote Control Reg. Capacity 5 Registration (Unlock from Inside) Voice Message Open, Lock, Retry, Low Battery Warning Display, LED Open ,Close LED Blue LED ON in case of Door Open/Close Error LED Red LED ON in case of Error Interior Aluminum Die-Casting : 80*50*300 (W*D*H)mm Dimensions Exterior Aluminum Die-Casting : 80*50*300 (W*D*H)mm Right,/Left Hinge Exchangeable at Service Depot Others Automatic Lock Automatic stop of Operation for 3 minutes by unauthorized access trials more than 3 times

SK TECH CO., LTD. Page 1 of 10 SKT Report No. : SKTTRT-041117-005 FCC ID: QGOCFR-1700 Certificate of Compliance Test Report No.: SKTTRT-041117-005 NVLAP CODE: 200220-0 Applicant: UNIPION Co.,Ltd. Applicant Address: 330RM JUAN SIBUM COMPLEX 17-1, JUAN-DONG, NAM-GU, INCHEON, KOREA Device Under Test: RF Card Door Lock FCC ID: QGOCFR-1700 Model No.: CFR-1700 Receipt No.: SKTEU04-0562 Date of receipt: AUG 30, 2004 Date of Issue: NOV 17, 2004 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4 / 2003 Test Specification: FCC Title 47, Part 15 Subpart C Equipment Class: Part 15 Low Power Transmitter Below 1705kHz Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Chang-Min, Moon 2004.11.17 Approved by: Jae-Kyung, Bae 2004.11.17 Signature Date Signature Date Other Aspects: Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 10 SKT Report No. : SKTTRT-041117-005 FCC ID: QGOCFR-1700 >> CONTENTS << 1. GENERAL .................................................................................................3 2. TEST SITE ................................................................................................3 2.1 Location ................................................................................................. 3 2.2 List of Test and Measurement Instruments ............................................... 4 2.3 Test Date ................................................................................................ 4 2.4 Test Environment .................................................................................... 4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST ...................................5 3.1 Rating and Physical Characteristics ........................................................... 5 3.2 Submitted Documents ............................................................................. 5 4. MEASUREMENT CONDITIONS .................................................................6 4.1 Description of test configuration .............................................................. 6 4.2 List of Peripherals .................................................................................... 6 4.3 Type of used Cables ................................................................................ 6 4.4 Uncertainty ............................................................................................. 6 5. TEST AND MEASUREMENTS ....................................................................7 5.1 ANTENNA REQUIREMENT ................................................................7 5.1.1 Regulation ........................................................................................ 7 5.1.2 Result .............................................................................................. 7 5.2 RADIATED EMISSIONS ....................................................................8 5.2.1 Regulation ........................................................................................ 8 5.2.2 Measurement Procedure .................................................................... 8 5.2.3 Calculation of the filed strength limits .................................................. 9 5.2.4 Test Results ...................................................................................... 9 Table 1: Measured values of the Field strength (below 30MHz) .........................10 Table 2: Measured values of the Field strength (above 30MHz) ......................... 10 SK TECH CO., LTD. Page 3 of 10 SKT Report No. : SKTTRT-041117-005 FCC ID: QGOCFR-1700 1. GENERAL These tests were performed using the test procedure outlined in ANSI C63.4, 2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.209. The EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. TEST SITE SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea This test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code: 200220-0 and DATech for DAR-Registration No.: TTI-P-G155/97-10 SK TECH CO., LTD. Page 4 of 10 SKT Report No. : SKTTRT-041117-005 FCC ID: QGOCFR-1700 2.2 List of Test and Measurement Instruments Equipment Type Manufacturer Model No.Serial No. Cal. Due Date EMI Test Receiver Rohde&SchwarzESVS 10 825120/013 10, 2004 EMI Test Receiver Rohde&SchwarzESVS 10 834468/008 10, 2004 EMC Spectrum Analyzer Agilent E7405A US40240203 01. 2005 Amplifier H.P 8447F 3113A05153 08, 2005 LOOP ANTENNA Rohde & Schwarz HFH2-Z2 8630481019 10, 2005 Log Periodic Antenna Schwarzbeck UHALP91071819 04, 2005 Biconical Antenna Schwarzbeck BBA9106 91031626 10, 2004 Horn Antenna Schwarzbeck SAS-200/571 304 05, 2005 Antenna Mast TOKIN 5907 N/A N/A Antenna & Turntable controller TOKIN 5906 N/A N/A 50Ω Switcher Anritsu MP59B 6100214538 N/A 2.3 Test Date Date of Application : August 30, 2004 Date of Test : August 31, 2004 ~ October 21, …

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 1 SKT SKTTRT-041117-011 FCC ID: QGOCFR-1700 Test set up photos
