QGP-RG4101-1Security Alarm Systems-Personal Transmitter Unit

R R e e a a l l G G u u a a r r d d T T M M “An Agent’s Best Friend!” W W i i r r e e l l e e s s s s , , P P e e r r s s o o n n a a l l S S e e c c u u r r i i t t y y A A l l a a r r m m S S y y s s t t e e m m s s f f o o r r R R e e a a l l E E s s t t a a t t e e P P r r o o f f e e s s s s i i o o n n a a l l s s User’s Manual 80 RG-4100 Patent pending. May 2004 Revision 3 Copyright Notice Copyright  2003, 2004 Misiu Systems LLC Customer Support: 425-487-6536 Website: http://www.realguard.com This document is copyrighted. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means, or disclosed to third parties without the express written permission of Misiu Systems. Disclaimer Misiu Systems makes no representation or warranties, expressed or implied, with respect to this publication, the products discussed in this publication, or any Misiu Systems products, including but not limited to warranties of merchantability or fitness for any particular purpose. Misiu Systems reserves the right to make changes of any kind to the products described in this manual and/or the manual without obligation to notify any person, institution or organization of such changes. Caution! Any changes or modifications made to this system not expressly approved by the manufacturer could void your authority to operate this equipment. iii RealGuard FCC Regulatory Information 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. You may find the following booklet, prepared by the Federal Communications Commissions, helpful: How to Identify and Resolve Radio and TV Interference Problems. This booklet is available from the US Government Printing Office, Washington, DC 20402. Regulatory information / Disclaimers Installation and use of this Wireless, Personal Security Alarm System must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. iv RealGuard Important Note (Co-Location) FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. v RealGuard Important Safety Instructions Read all the safety and operating instructions before you begin using the RealGuard Personal Security System. Make sure you follow the operating and maintenance instructions carefully. Then keep this manual for future reference. Make sure you heed all the warnings on the units and in this manual. Health and Safety Warnings Do not attempt to service any RealGuard unit yourself. Opening the covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Never push objects of any kind into any RealGuard unit through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against it. Pay particular attention to the cord at plugs, receptacles, and the point where it exits from the product. Do not handle the power cord or wire harness with wet hands. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool. If water gets inside any unit, turn off the power switch and detach it from any electrical source. Before you use it again, contact Misiu Systems or its authorized service representatives to replace or repair the unit. Connect the home unit only to a power supply of the type described in the operating instructions. When unplugging the home unit from the wall outlet do not pull the power cord, pull the plug adapter. Do not use any of the units in conditions where there is danger of electrically ignited explosions. Product Protection Keep the RealGuard units away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. Make sure to follow the manufac…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA ShailendraManojManoj uController Alarm IC 914.5Mhz FSK Hybrid Transmitter Piezo Buzzer Driving Circuit Alkaline Battery Resonant Frequency 3.4Khz Output Power 90dB KEELOQ Encoder 8 Bit 2Kb Flash (200Khz) V & V DESIGN PVT LTD Sakinaka, Andheri (E), 400072, Mumbai, INDIA. Model : Title: 1st Floor, H. K. Compound, Sir M.V. Road Block Diagram of Hand / Personal Unit (Remote) RG4101 Used In : Rev: D File Name: BD4101D1 Eco Level :Size: RG4100 Designed By :Checked By:Approved By : Date: 2004/05/19 Sheet: 1 OF 1 0A4 3V 3V Flash 3V Buzzer Control Transmitter VCC Transmitter Enable . Serial DataSerial Data 3V 3V 3V Cancel Switch Flash Switch TEST Switch Panic Switch White LEDR 4Mhz Crystal Battery 1.5v X 2 RED LED / Transmitter ON Connector for Buzzer 1 2 Stubby Antenna 1 DIP Switch

Mike Kuo 7/2/2004 Hi Mike, Reply to Question #1: As indicated in page 14 of test report, the highest measured fundamental frequency field strength is 94.6dBuV/m / Peak. The limits per section 15.249 (a) table for fundamental frequency in 902 - 928MHz is 50 mV/m = 94 dBuV/m/QP. The limit given in page 14 is not correct. Due to the face the fundamental field strength is above FCC limits, this is not complied with FCC technical requirement. Please address this non-compliance issue. Ans #1:The test report is re-done. Please refer to Page 14 of the attached. Best regards, Ting ----- Âà§eªÌ ting/ccsemc ©ó 2004/06/29 05:37 PM ----- Hi W.K. : Reply to Question #1: As indicated in page 14 of test report, the highest measured fundamental frequency field strength is 94.6dBuV/m / Peak. The limits per section 15.249 (a) table for fundamental frequency in 902 - 928MHz is 50 mV/m = 94 dBuV/m/QP. The limit given in page 14 is not correct. Due to the face the fundamental field strength is above FCC limits, this is not complied with FCC technical requirement. Please address this non-compliance issue. Best Regards Mike Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, June 17, 2004 10:05 PM To: Mike Kuo Cc: [email protected]; [email protected]; [email protected] Subject: FW: Misiu System LLC, FCC ID: QGP-RG4101-1, Assessment NO.: AN04 T3967 Hi Mike, Please refer to the following for our replies. Thank you for your advice. Best Rgds, WK ----- Âà§eªÌ ting/ccsemc ©ó 2004/06/18 12:33 PM ----- Mike Kuo <[email protected]> 2004/06/19 10:17 AM ¦¬¥ó¤H¡G "'[email protected]'" <[email protected]>, Mike Kuo <[email protected]> °Æ¥»§Û°e¡G [email protected], [email protected], [email protected] ¥D¦®¡G RE: Misiu System LLC, FCC ID: QGP-RG4101-1, Assessment NO.: AN04 T3967 Mike Kuo <[email protected]> 2004/06/16 03:29 PM ¦¬¥ó¤H¡G "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> °Æ¥»§Û°e¡G ¥D¦®¡G FW: Misiu System LLC, FCC ID: QGP-RG4101-1, Assessment NO.: AN04 T3967 -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Wednesday, June 16, 2004 12:12 AM To: [email protected] Subject: Misiu System LLC, FCC ID: QGP-RG4101-1, Assessment NO.: AN04T3967 Question #1: The fundamental frequency for this device is 915MHz. Page 14 of test report is below 1GHz measurement but there is no fundamental frequency field strength. Page 15 listed fundamental field strength but without the FCC limits listed. Please make necessary correction. Ans #1: Correction is made on Page 14. Please refer to the revised test report below. Question #2: Per ANSI C63.4:2001, section 13.1.4.1 of procedures, hand-held device shall be investigated with three orthogonal axes to determine which attitude and equipment arrangement produces highest emission. In the test report, there is no indication that this procedure was followed during preliminary radiated emission tests. Please explain and / or provide additional data. Ans #2: Additional data is provided on Page 6. Please refer to the revised test report attached in Ans #1 . Question #3: FCC ID label format uses FCC DoC log for this transmitter, please explain why FCC DoC logo shall be used on this transmitter. Ans #3: The FCC DoC logo is removed. Please refer to the revised label sample below . Question #4: User manual or FCC ID label format does not contain information required per section 15.19 (a)(3) of FCC rules. Please provide revised document. Ans #4: The required information is placed in the revised user manual below. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 7/2/2004

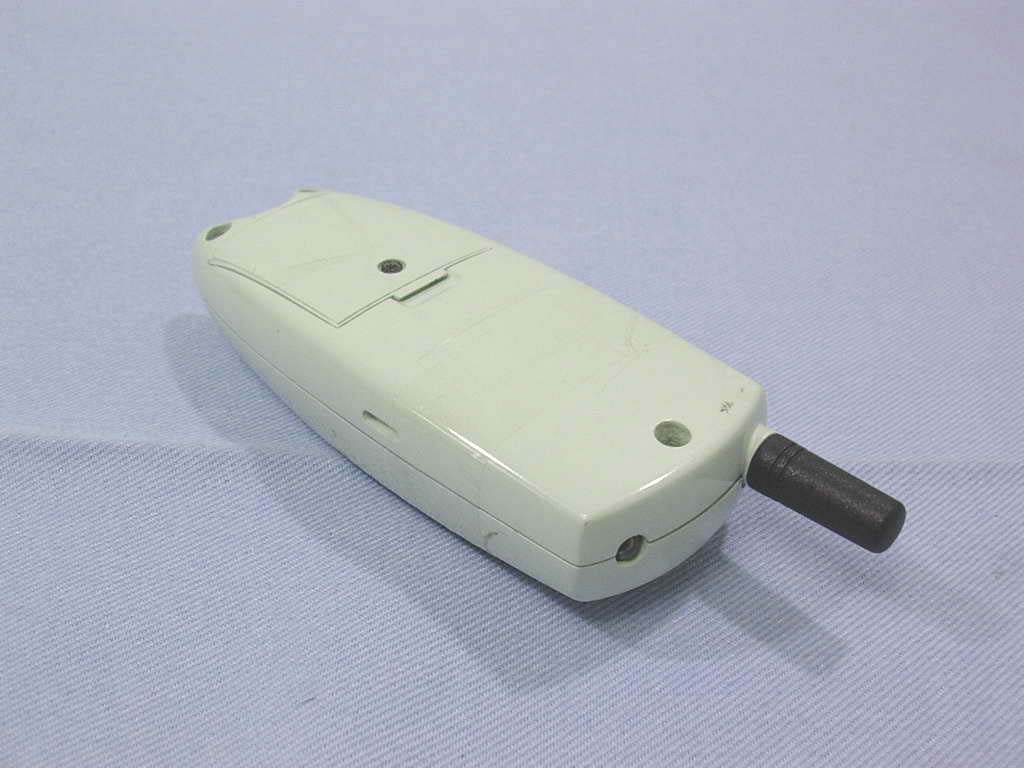

Compliance Certification Services Inc. Report No: B40401201 Date of Issue: May 11, 2004 Page 1 EXTERNAL PHOTOGRPHS OF EUT

Compliance Certification Services Inc. Report No: B40401201 Date of Issue: May 11, 2004 Page 2 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40401201 Date of Issue: May 11, 2004 Page 3 Compliance Certification Services Inc. Report No: B40401201 Date of Issue: May 11, 2004 Page 4

Compliance Certification Services Inc. Report No: B40401201 Page 1 ADDITIONAL INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40401201 Page 2

Plot0 (640x754x2 pcx)

Compliance Certification Services Inc. Report No: B40401201-RP FCC ID: QGP-RG4101-1 Date of Issue: May 10, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 18 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Misiu System LLC Wireless, Personal Security Alarm Systems--Personal Transmitter Unit Model Number: RGR-4101 Trade Name: RealGuard Prepared for Misiu System LLC 3808 209th Place SE Bothell, WA 98021 Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40401201-RP FCC ID: QGP-RG4101-1 Date of Issue: May 10, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ..... ...................................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.249 REQUIREMENTS.............................................................................................11 7.1 SPURIOUS EMISSION .................................................................................................................11 7.2 POWERLINE CONDUCTED EMISSIONS..................................................................................16 Compliance Certification Services Inc. Report No: B40401201-RP FCC ID: QGP-RG4101-1 Date of Issue: May 10, 2004 Page 4 2. EUT DESCRIPTION Product Wireless, Personal Security Alarm Systems--Personal Transmitter Unit Trade Name RealGuard Model Number RGR-4101 Model Discrepancy N/A Power Supply Powered by AAA batteries (Rating: 2 × 1.5Vdc) Frequency Range 915 MHz Modulation Technique FM Modulation Antenna Gain 0dBi (Max) Antenna Designation Monopole Antenna Note: This submittal(s) (test report) is intended for FCC ID: QGP-RG4101-1 filing to comply with Section 15.207, 15.209 and 15.249 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: B40401201-RP FCC ID: QGP-RG4101-1 Date of Issue: May 10, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.249. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.249 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4 Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the max. emission, the relative positions of this hand-held transmitter (EUT) was rotated through three or…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40401201-RP FCC ID: QGP-RG4101-1 Date of Issue: May 10, 2004 Page 17 1. APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos
