QHAWAC02ACON WLAN PCMCIA Card

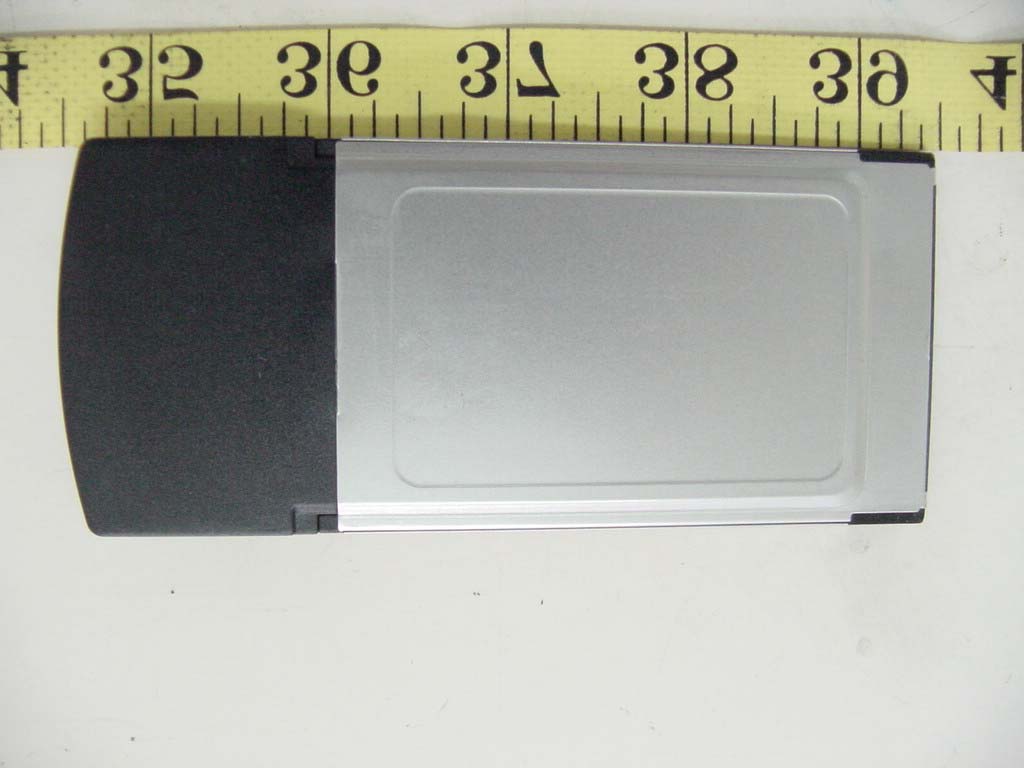

ETC Report No. : ET91R-07-085 FCC ID.: QHAWAC02 Rev. No 2.1 ONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT

ETC Report No. : ET91R-07-085 FCC ID.: QHAWAC02 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : ET91R-07-085 FCC ID.: QHAWAC02 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Component View of Main PCB ETC Report No. : ET91R-07-085 FCC ID.: QHAWAC02 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB

ACON WLAN PCMCIA Card is local area networking without wires, which uses radio frequencies to transmit and receive data between PC’s or other network devices. Wireless LAN is able to configure independent networks and infrastructure networks. The former is suitable for small or temporary peer-to-peer configurations, and the later is offering fully distributed data connectivity via micro cells and roaming. The ACON WLAN PCMCIA Card designed with a transmitting method of direct sequence spread spectrum is for local area network operation, which operates at 2.4 GHz ISM band and data rate up to 11 Mbps.

Rev. No 2.1 FCC Part 15 EMI TEST REPORT of E.U.T. : ACON WLAN PCMCIA Card FCC ID. : QHAWAC02 MODEL : WAC02 for APPLICANT : ADVANCED-CONNECTEK INC. ADDRESS : 1F, No. 2, Alley 9, Lane 45, Pao-hsin Rd., Hsin-Tien, Taipei County, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIAWN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-07-085 ETC Report No. : ET91R-07-085 FCC ID.: QHAWAC02 Rev. No 2.1 TEST REPORT CERTIFICATION Applicant : ADVANCED-CONNECTEK INC. 1F, No. 2, Alley 9, Lane 45, Pao-hsin Rd., Hsin-Tien, Taipei County, Taiwan, R.O.C. Manufacturer : ADVANCED-CONNECTEK INC. 1F, No. 2, Alley 9, Lane 45, Pao-hsin Rd., Hsin-Tien, Taipei County, Taiwan, R.O.C. Description of EUT : a) Type of EUT : ACON WLAN PCMCIA Card b) Trade Name : ACON c) Model No. : WAC02 d) Power Supply : From Notebook PC Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2001) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Aug. 21, 2002 Test Engineer : ( Falcon Shi ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-07-085 FCC ID.: QHAWAC02 Rev. No 2.1 Table of Contents Page 1 GENERAL INFORMATION....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology......................................................................................................................... 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition...................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 6 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information........................................................................................................................... 7 3. SYSTEM TEST CONFIGURATION........................................................................................... 8 3.1 Justification................................................................................................................................... 8 3.2 Devices for Tested System ........................................................................................................... 8 4 RADIATED EMISSION MEASUREMENT............................................................................... 9 4.1 Applicable Standard ..................................................................................................................... 9 4.2 Measurement Procedure............................................................................................................... 9 4.3 Measuring Instrument................................................................................................................. 11 4.4 Radiated Emission Data ............................................................................................................. 12 4.4.1 RF Portion...............................................................................................................................12 4.4.2 Other Emission........................................................................................................................15 4.5 Field Strength Calculation .......................................................................................................... 15 4.6 Photos of Radiation Measuring Setup ........................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT........................................................................ 17 5.1 Standard Applicable ................................................................................................................... 17 5.2 Measurement Procedure............................................................................................................. 17 5.3 Conducted Emission Data .......................................................................................................... 18 5.4 Result Data Calculation.............................................................................................................. 19 5.5 Conducted Measurement Equipment ......................................................................................... 20 5.6 Photos of Conduction Measuring Setup ..................................................................................... 21 6 ANTENNA REQUIREMENT.................................................................................................... 22 6.1 Standard Applicable ..................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET91R-07-085 Sheet 15 of 35 Sheets FCC ID.: QHAWAC02 Rev. No 2.1 4.4.2 Other Emission Emission frequencies from 2483.5-2500MHz Operation Mode : Receiving / Transmitting Fundamental Frequency : 2462 MHz ( Local Frequency : 2088 MHz ) Test Date : Feb. 18, 2003 Temperature : 25 Humidity : 66 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) * 2487.320 57.550.8 60.2 54.5 -2.757.5 51.8 74.0 54.0-2.2 109 1.80 * 2491.060 56.548.2 59.5 52.3 -2.756.8 49.6 74.0 54.0-4.4 173 1.10 Note : 1. Item of margin shown in above table refer to average limit. 2. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 3. Remark “---” means that the emissions level is too low to be measured. 4. Item “Margin” referred to Average limit while there is only peak result. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB.

ETC Report No. : ET91R-07-085 FCC ID.: QHAWAC02 Rev. No 2.1 Photos of Radiation Measuring Setup ETC Report No. : ET91R-07-085 FCC ID.: QHAWAC02 Rev. No 2.1 Photos of Conduction Measuring Setup
