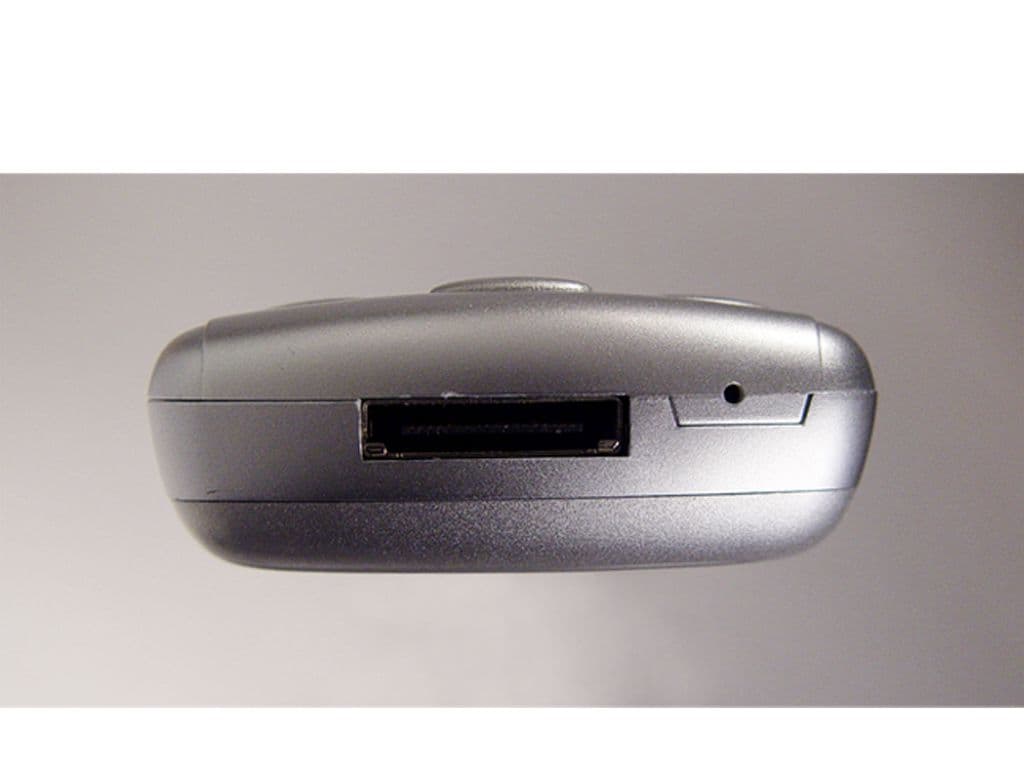

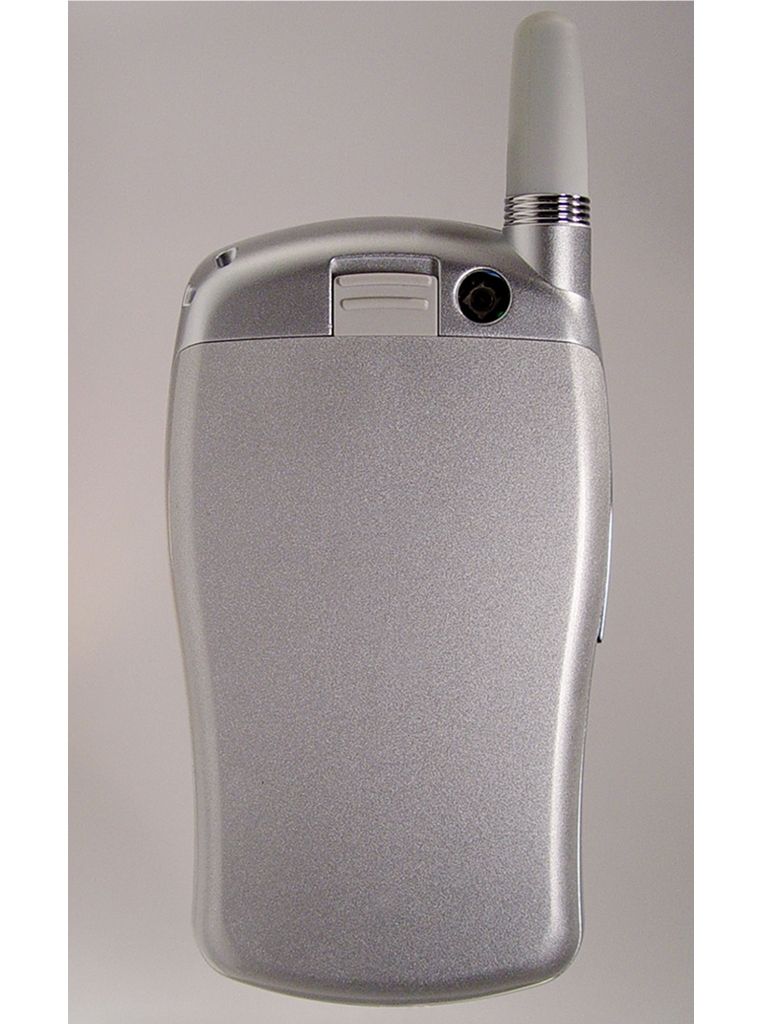

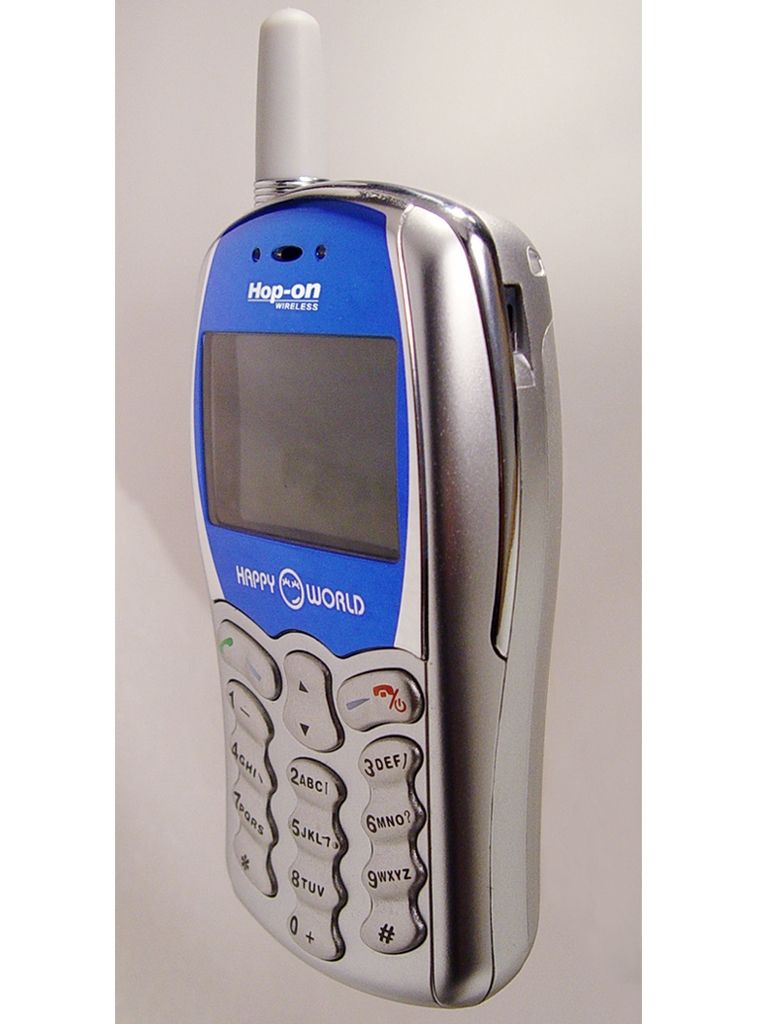

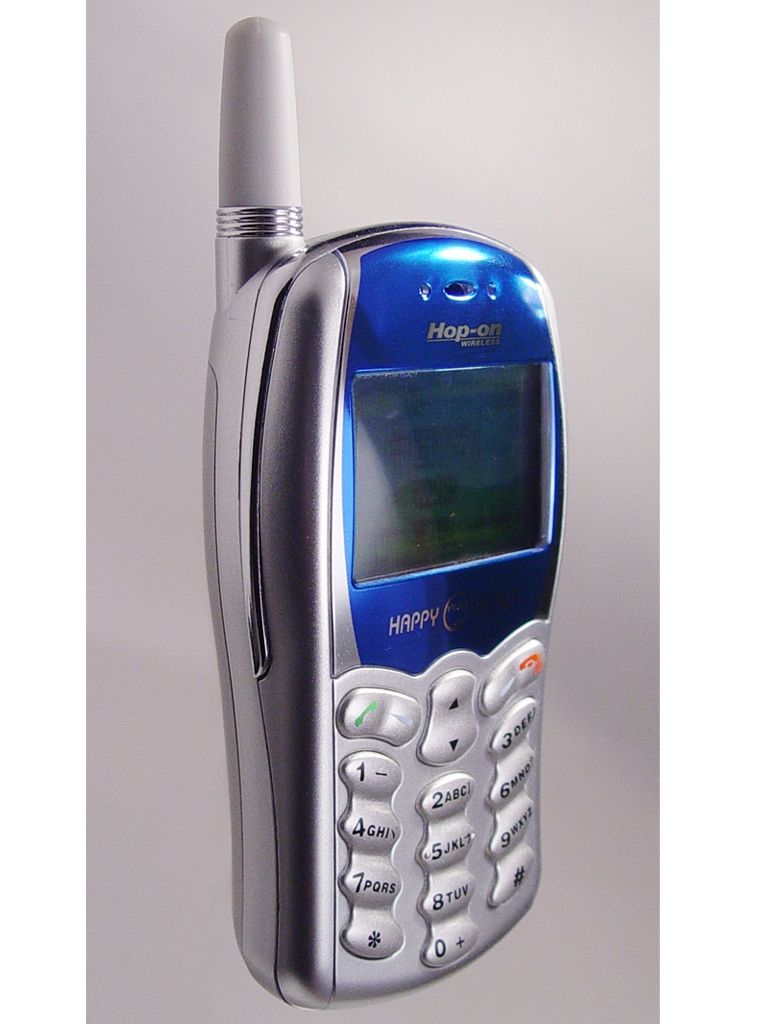

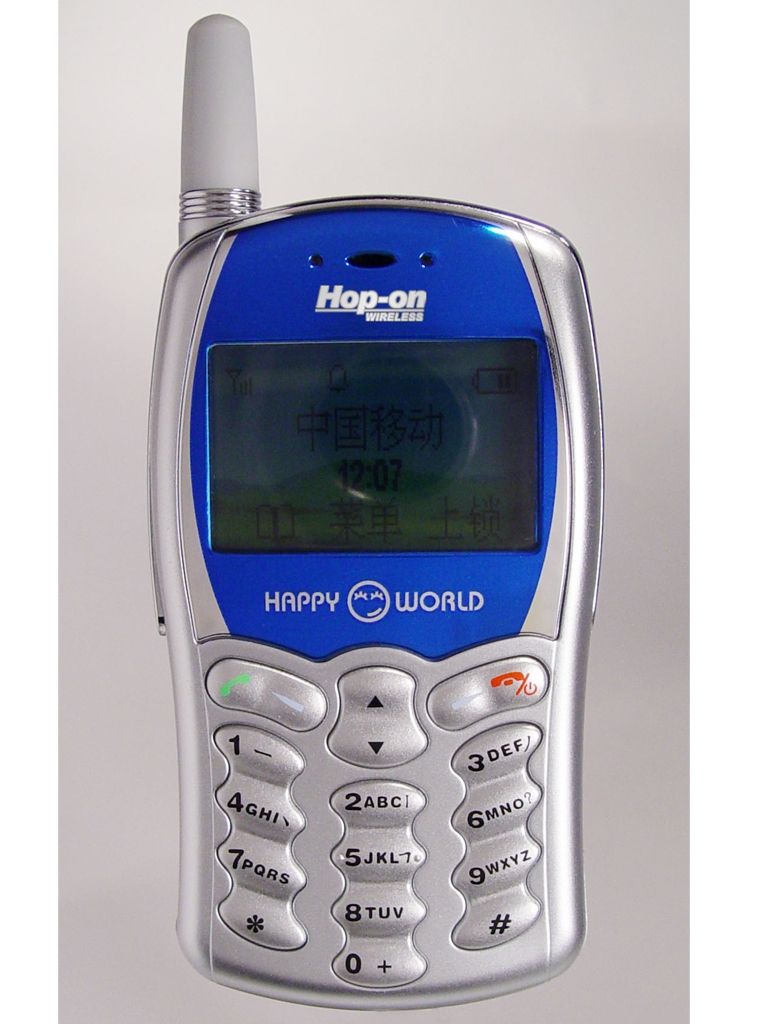

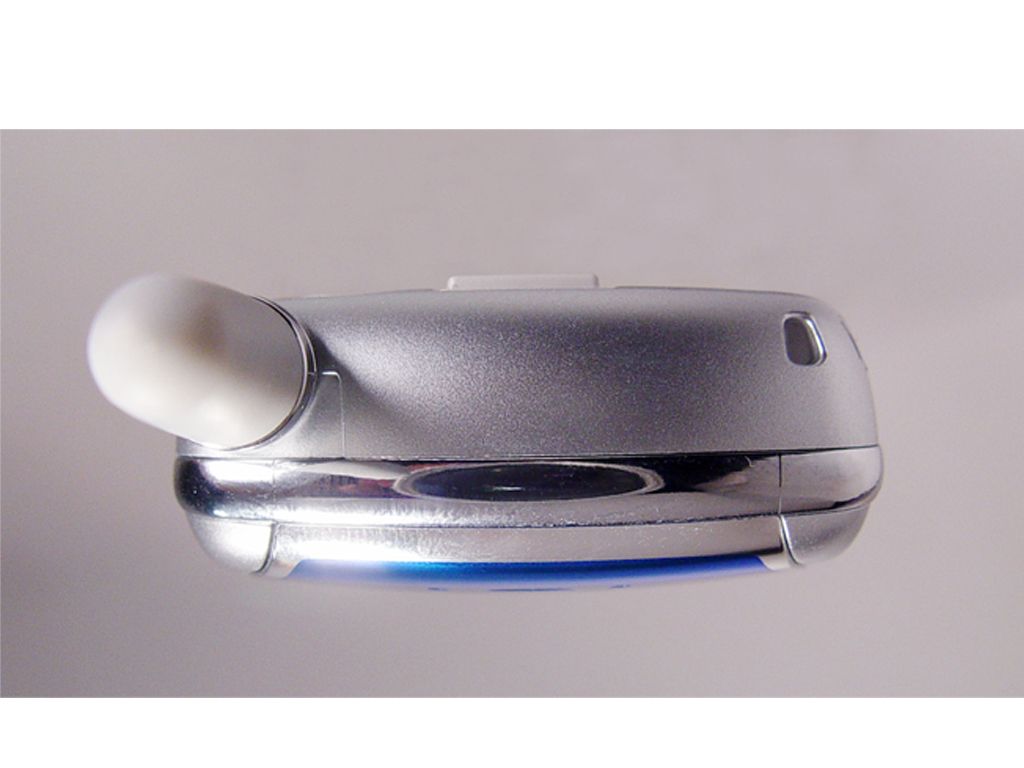

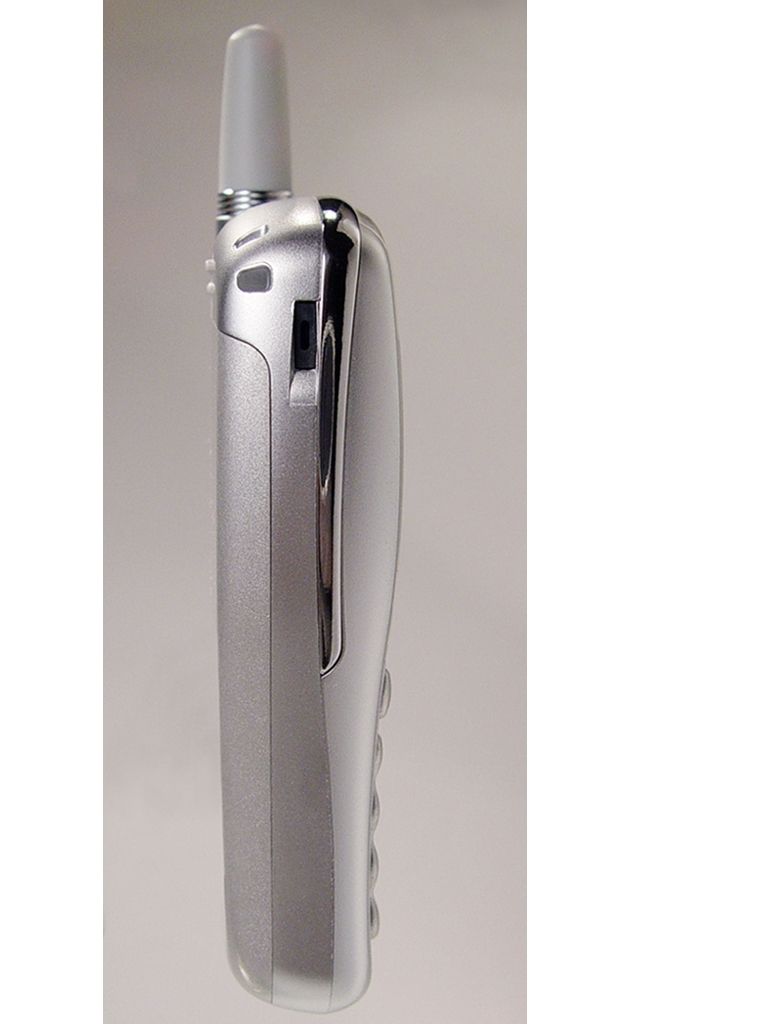

QHOHPN1800Cell Phone

WELCOME TO HOP-ON WIRELESS..................................................3 1. BASIC OPERATIONS..........................................................................4 2. PHONE LAYOUT.................................................................................8 3. SPECIFICATIONS..............................................................................10 4. GETTING STARTED.........................................................................11 5. MAKING AND ANSWERING CALLS.............................................13 6. FEATURES MENU.............................................................................17 6.1 MESSAGE FUNCTIONS.......................................................................17 6.2 RECENT CALLS.............................................................................20 6.3 PHONE BOOK..................................................................................21 6.4 CLOCK...........................................................................................22 6.5 AUDIO PROFILES..............................................................................22 6.6 SETTINGS.......................................................................................23 6.8 GAMES...........................................................................................26 7. ENTRY METHODS............................................................................27 8. SAFETY AND PRECAUTIONS........................................................28 9. HOP-ON ONE-YEAR LIMITED WARRANTY..............................29 10. DISCLAIMERS.................................................................................34 10.1 CAUTIONS.....................................................................................34 10.2 SPECIFICATIONS SUBJECT TO CHANGE................................................34 10.3 FCC COMPLIANCE INFORMATION.......................................................34 HOP1806 Printed in China: 4/2/04 1 10.4 INFORMATION TO THE USER...............................................................35 10.5 ELECTRONIC SERIAL NUMBER (ESN)..................................................36 APPENDIX I : TROUBLESHOOT.......................................................37 APPENDIX II : ABBREVIATIONS AND EXPLANATIONS.............39 APPENDIX II : ABBREVIATIONS AND EXPLANATIONS.............39 Note: Hop-on Wireless reserves the right to change or improve the product design, specifications, and other descriptions in this manual without prior notice. Hop-on also reserves the final explanation right for this manual. HOP1806 Printed in China: 4/2/04 2 WELCOME TO HOP-ON WIRELESS Congratulations on purchasing a Hop-on Wireless cellular phone! This User’s Manual introduces you to your new Hop-on cellular phone through simple and easy-to-follow instructions. You are probably anxious to start using your phone. We do encourage you to immediately go to Section 1: Basic Operations. It contains all the information you need to quickly activate your phone, set up and much more. Then, familiarize yourself with our features by going through Section 6: Features Menu. Enjoy! Thank you for choosing Hop-on Wireless. HOP1806 Printed in China: 4/2/04 3 1. BASIC OPERATIONS This section walks you through the step-by-step basics of setting up service for your Hop-on Wireless Phone. Once you have completed this section, you are ready to explore the advanced features of your new phone. Switching ON To turn your phone on, press and hold the POWER key. Once the phone is ON, it will automatically search the network. When the handset is registered in a network, the network name will be displayed on the screen. You are now ready to make and answer calls. If the screen displays “Please insert SIM card”, switch the phone off by pressing and holding on POWER. Remove the battery and install your SIM card in the designated slot. If a password or PIN code is required, enter the correct password. For security purpose, the code will not be visible as you type. Then, press the Left Soft Key for confirmation. After the phone is unlocked, the handset will indicate the name of the registered network and the signal intensity. Please contact your network supplier if you do not know your PIN code. The handset default password is 1234. Switching OFF To turn off the handset, press and hold the POWER key. The handset will be switched off after the log-off animation. Do not attempt to switch off the phone by directly removing the battery. This may result in SIM card memory loss. Communication Control Keys ƒ CALL/END CALL Keys: Press the CALL key to answer an incoming call and HOP1806 Printed in China: 4/2/04 4 to make a call after entering the phone numbers. In standby mode, press the CALL key to display the latest call records (all answered, missed and dialed calls, maximum 30 numbers). Press CALL twice to dial a record selected. Press END CALL key to end a call or to return to standby mode from menu. END CALL button also serves as power on/off button when pressed and held for 2 seconds. ƒ DIRECTION Keys and Right/Left Soft Keys: In standby mode, press the DIRECTION key to navigate the main menu or browse menu items. Press the Left Soft Key to access the phone book directly. In menu, the functions of the both Soft Keys are displayed at the bottom line of the main screen. ƒ Numeric Keys: Keys from to, , and are used to dial numbers and enter passwords, English letters, symbols, characters etc. They can also be used to select menus. Press and hold to keys for more than 2 seconds to quickly dial the phone number correspondingly to the shortcut key. (Please see Section 6.3 for shortcut key setup). Main Screen Display Icons There are 8 icons in total on the first line of the screen: Antenna. Signal Intensity. Keypad lock. Alarm clock is enabled. Voice mailbox. Icon flashing means message storage is full. Battery indicator. HOP1806 Printed in China: 4/2/04 5 During the handset operational process, ther…

Text truncated - open the document above for the full version.

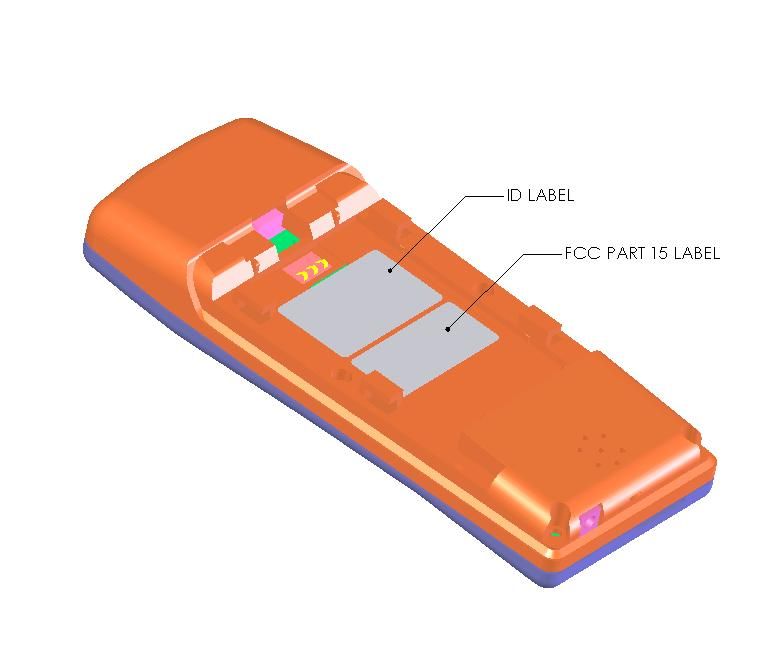

ID/FCC Label ID/FCC LABEL, (GSM HANDSET 1806): Hop-on Wireless Model: HOP1806 FCC ID: QHOHPN1800 ESN: 30.00 mm Max Note, for labels: Labels are to be made of durable vinyl material and is affixed with permanent adhesive. Overall thickness is to be 0.08 mm max (including adhesive layer). R1.0 TYP Barcode (to be added/specified) in this region. 18.00 mm Max

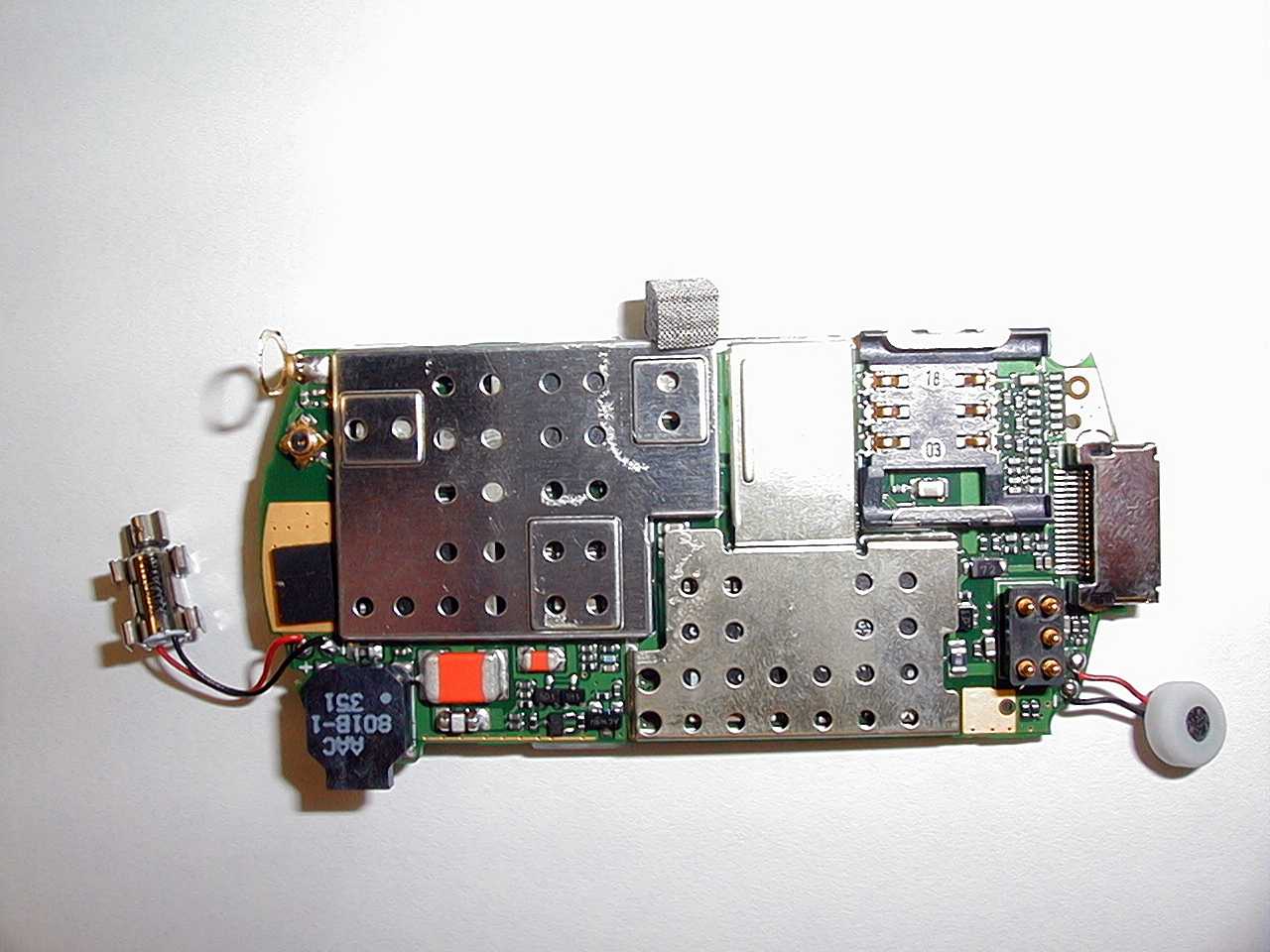

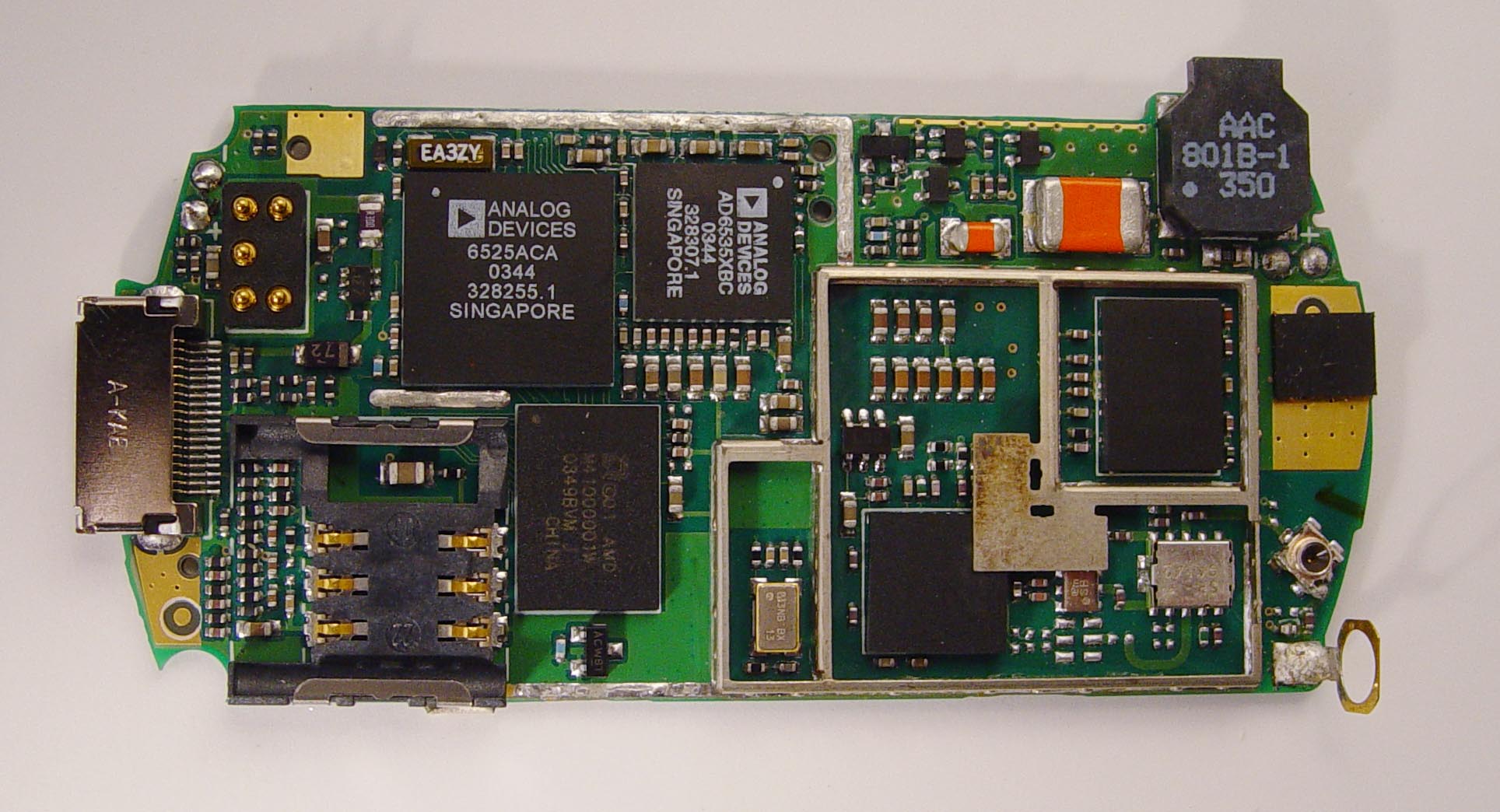

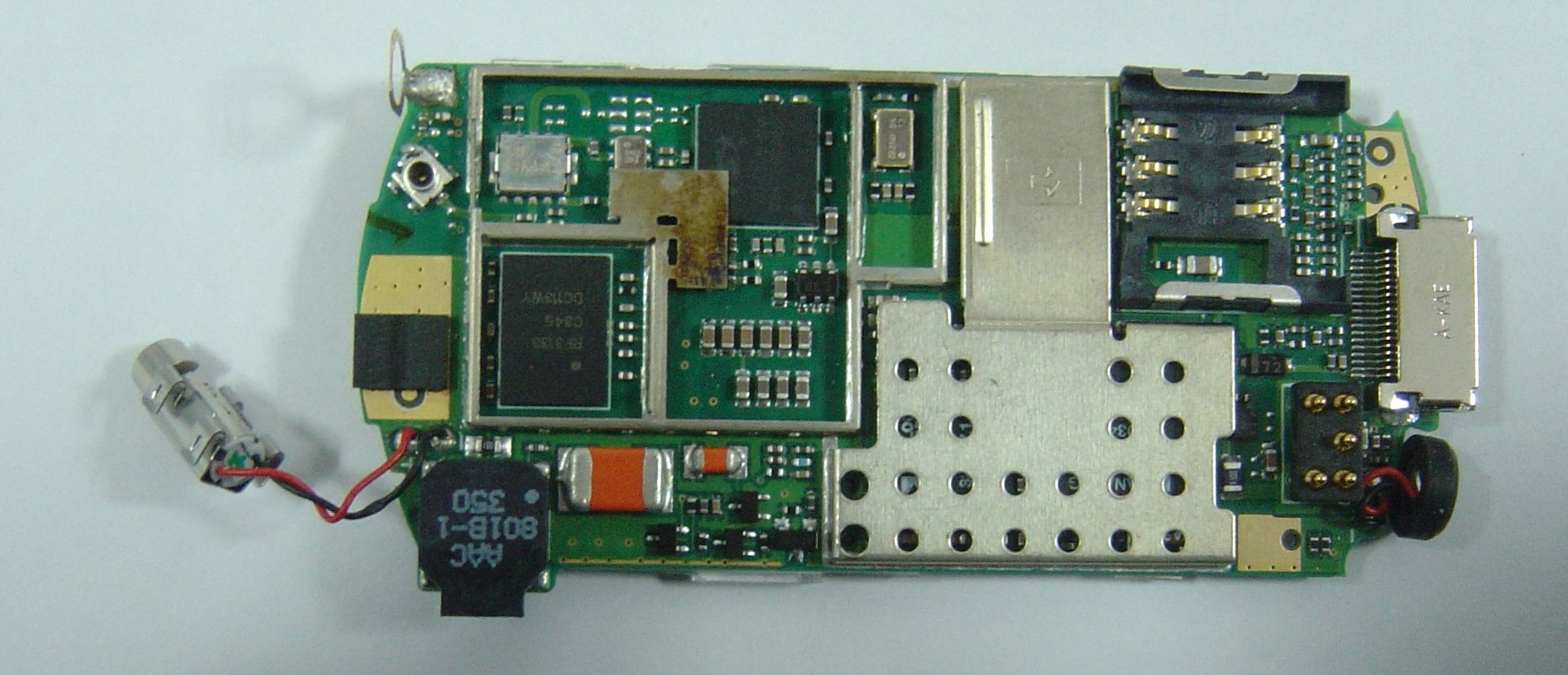

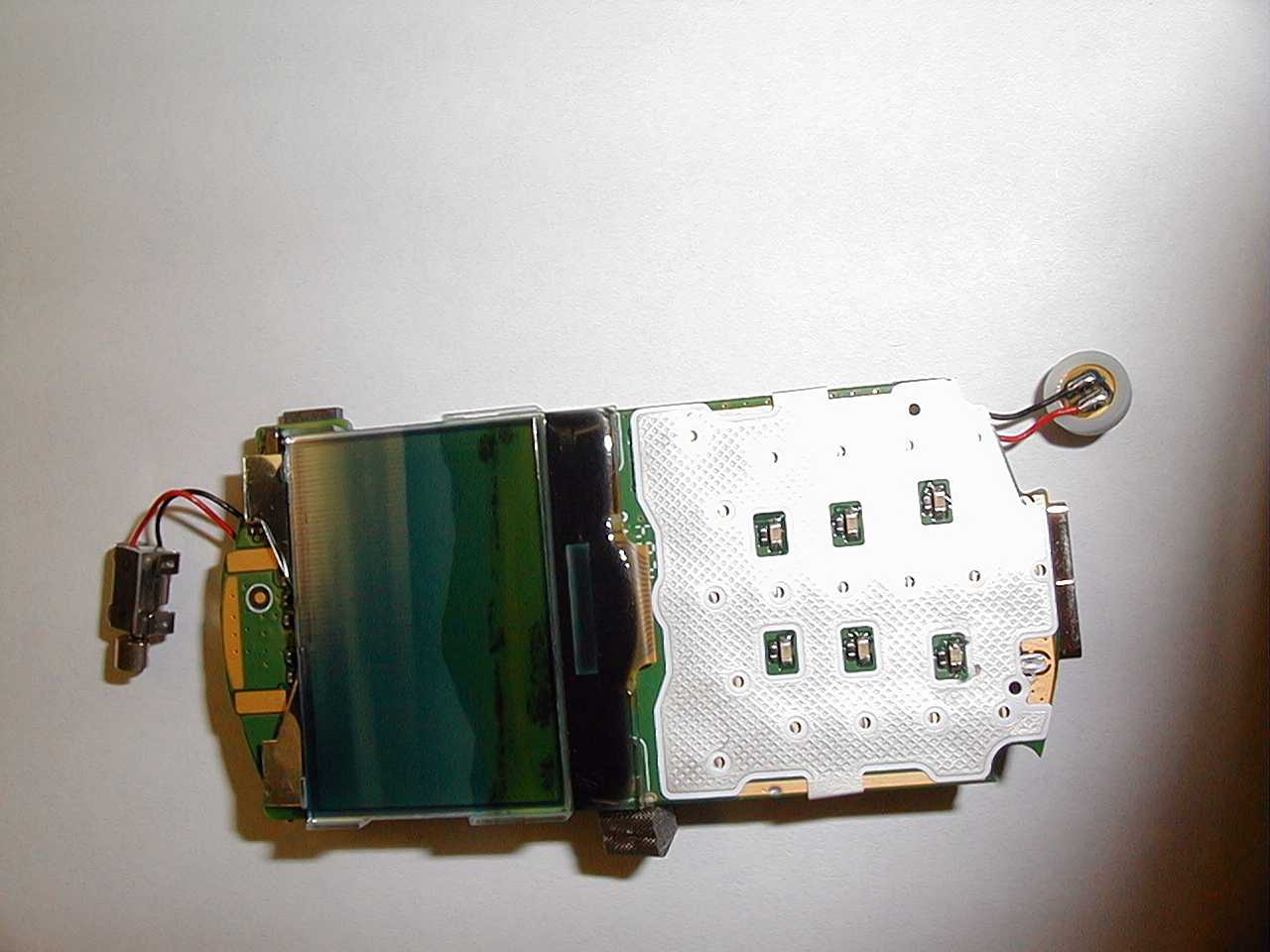

DC Voltages and Currents The transmit chain of HOP1806 consist of Modulator, Predriver and Power Amplifier. Modulator and Predriver reside on RF Transceiver side (IC Si 4205) and consume 70 mA at 3 V. Power amplifier implemented on IC RF3133 and consumes 1.3 A at 3.6 V.

Tune-Up Procedure The power output for this device is factory set and has no provisions for users accessible controls.

© 2004 Celltech Labs Inc. 1 of 24 Test Report S/N: 042204-502AQHO Test Date(s): April 28, 2004 Test Type: FCC SAR Evaluation DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information HOP-ON WIRELESS, INC. 35 Hammond Irvine, CA 92618 FCC Rule Part(s): 47 CFR §2.1093 FCC Classification: PCS Licensed Transmitter held to ear (PCE) Test Procedure(s): FCC OET Bulletin 65, Supplement C (01-01) IEEE Standard 1528-2003 FCC IDENTIFIER: QHOHOP1800 Model(s): HOP1806 Device Type: Portable Single-Band PCS GSM Handset Modulation: GMSK Tx Frequency Range(s): 1850.2 - 1909.8 MHz RF Output Power Measured: 29.77 dBm Peak Conducted (1850.2 MHz) 29.89 dBm Peak Conducted (1880.0 MHz) 30.20 dBm Peak Conducted (1909.8 MHz) Antenna Type Tested: Stubby Battery Type Tested: Lithium-ion 3.7 V, 550 mAh Body-Worn Accessories Tested: Ear-Microphone Max. SAR Levels Measured: Head: 1.10 W/kg (1g average) Body: 0.147 W/kg (1g average) Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), and IEEE Standard 1528-2003 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. © 2004 Celltech Labs Inc. 2 of 24 Test Report S/N: 042204-502AQHO Test Date(s): April 28, 2004 Test Type: FCC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................. 3 3.0SAR MEASUREMENT SYSTEM................................................. 4 4.0MEASUREMENT SUMMARY...................................................... 5-6 5.0DETAILS OF SAR EVALUATION................................................ 7-8 6.0EVALUATION PROCEDURES.................................................... 8-9 7.0SYSTEM PERFORMANCE CHECK............................................. 10 8.0SIMULATED TISSUE MIXTURES............................................... 11 9.0SAR SAFETY LIMITS............................................................... 11 10.0ROBOT SYSTEM SPECIFICATIONS............................................ 12 11.0PROBE SPECIFICATION........................................................... 13 12.0SAM PHANTOM....................................................................... 13 13.0DEVICE HOLDER..................................................................... 13 14.0TEST EQUIPMENT LIST............................................................ 14 15.0MEASUREMENT UNCERTAINTIES............................................. 15-16 16.0REFERENCES.........................................................................17 APPENDIX A - SAR MEASUREMENT DATA............................................ 18 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA......................... 19 APPENDIX C - SYSTEM VALIDATION.................................................... 20 APPENDIX D - PROBE CALIBRATION.................................................. 21 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS............... 22 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY............. 23 APPENDIX G - SAR TEST SETUP & DUT PHOTOGRAPHS...................... 24 © 2004 Celltech Labs Inc. HOP-ON WIRELESS INC. FCC ID: QHOHOP1800 3 of 24 HOP1806 Portable PCS GSM Handset (1850.2-1909.8 MHz) Test Report S/N: 042204-502AQHO Test Date(s): April 28, 2004 Test Type: FCC SAR Evaluation This measurement report demonstrates that the HOP-ON WIRELESS INC. Model: HOP1806 Portable Single-Band PCS GSM Handset FCC ID: QHOHOP1800 complies with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C, (Edition 01-01) (see reference [2]) and IEEE Standard 1528-2003 (see reference [3]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. FCC Rule Part(s) 47 CFR §2.1093 FCC OET Bulletin 65, Supplement C (01-01) Test Procedure(s) IEEE Standard 1528-2003 FCC Device Classification PCS Licensed Transmitter held to ear (PCE) Device Type Portable Single-Band PCS GSM Handset Modulation GMSK FCC IDENTIFIER QHOHOP1800 Model(s) HOP1806 Serial No. 353543000004822 (Production Unit) Tx Frequency Range 1850.2 - 1909.8 MHz 29.77 dBm Peak Conducted 1850.2 MHz 29.89 dBm Peak Conducted 1880.0 MHz RF Output Power Measured 30.20 dBm Peak Conducted 1909.8 MHz Battery Type(s) Tested Lithium-ion 3.7 V, 550 mAh P/N: HOP1806LB550 Antenna Type(s) Tested Stubby Antenna Length: 30 mm Body-Worn Accessories Tested Ear-Microphone 1.0 INTRODUCTION 2.0 DESCRIPTION of DEVICE UNDER TEST (DUT) © 2004 Celltech Labs Inc. HOP-ON WIRELES…

Text truncated - open the document above for the full version.

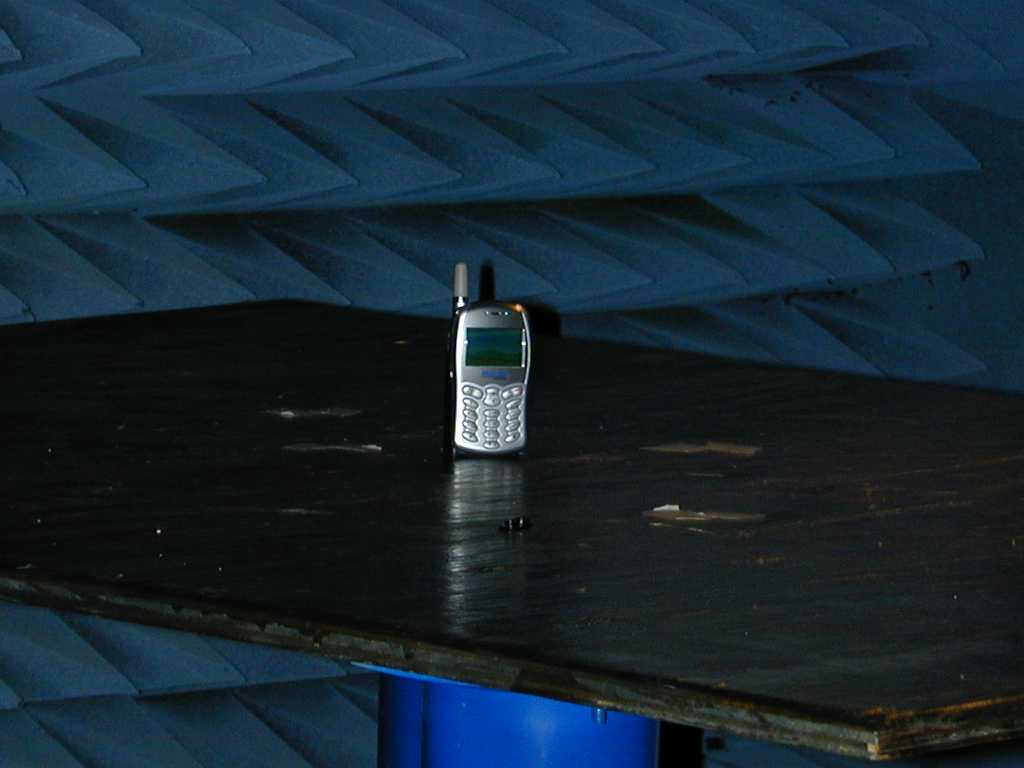

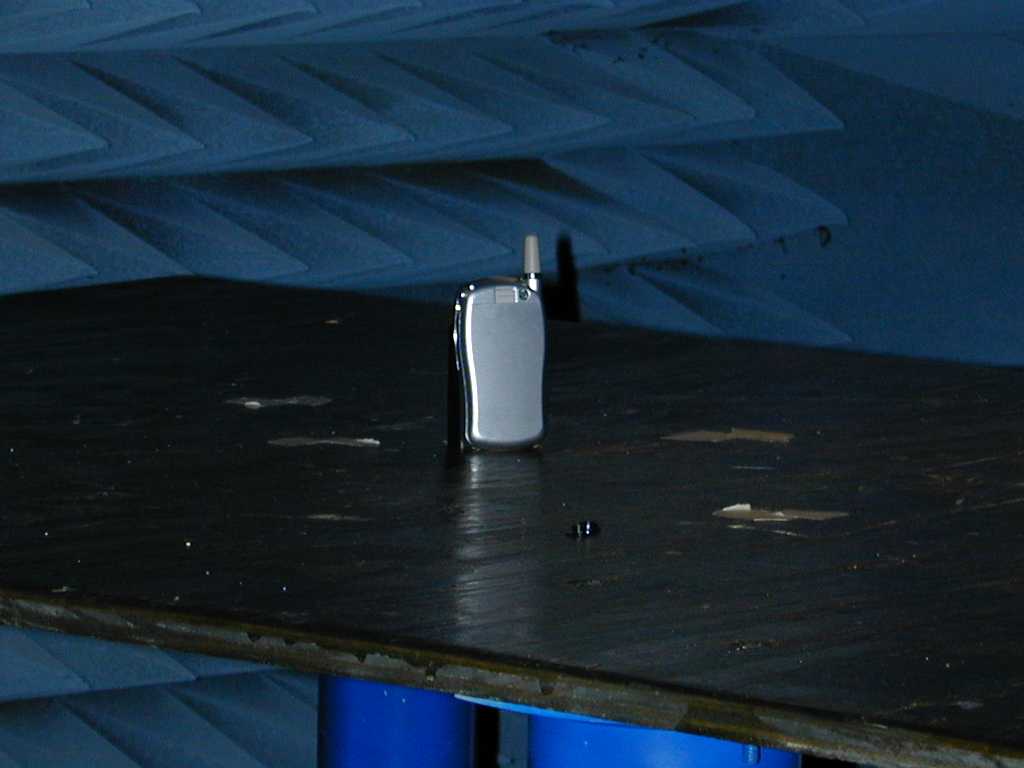

Nemko Test Report: 4L0154RUS1 Applicant: Hop On Wireless. 17000 North Dallas Parkway Suite 105 Dallas, TX 75248 Equipment Under Test: HOP 1806 (E.U.T.) In Accordance With: FCC Part 24, Subpart E Broadband PCS Subscriber Station Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 6/1/04 Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 2 of 30 Table of Contents Section 1. Summary of Test Results..................................................................................3 Section 2. General Equipment Specification....................................................................5 Section 3. RF Power Output................................................................................................7 Section 4. Occupied Bandwidth.........................................................................................8 Section 5. Spurious Emissions at Antenna Terminals.....................................................9 Section 6. Field Strength of Spurious..............................................................................15 Section 7. Frequency Stability..........................................................................................18 Section 8. Test Equipment List.........................................................................................20 ANNEX A - TEST METHODOLOGIES..................................................................................21 ANNEX B - TEST DIAGRAMS................................................................................................27 Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 3 of 30 Section 1. Summary of Test Results Manufacturer: Hop On Wireless Model No.: HOP 1806 Serial No.: 353543000013831 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 4 of 30 Summary Of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 24.232 Complies Occupied Bandwidth (GSM) 24.238 Complies Spurious Emissions at Antenna Terminals 24.238(a) Complies Field Strength of Spurious Emissions 24.238(a) Complies Frequency Stability 24.235 Complies Footnotes: Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 5 of 30 Section 2. General Equipment Specification Frequency Bands: Block A: 1850 – 1865 MHz Block B: 1865 – 1870 MHz Block C 1870 – 1885 MHz Block D 1885 – 1890 MHz Block E 1890 – 1895 MHz Block F 1895 – 1910 MHz Type of Modulation and Designator: 300KG7W Necessary Bandwidth: 300 kHz Output Impedance: 50 ohms RF Output (Rated): 1 W Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 6 of 30 System Description This is a cellular GSM telephone operating in the 900 MHz GSM, 1800 DCS and 1900 PCS bands. System Diagram Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 7 of 30 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: David Light DATE: 4/23/04 Test Results: Complies. Measurement Data: Antenna Conducted: Modulation Type Frequency (MHz) Output Power (dBm) Output Power (W) GSM 1850.2 29.5 0.891 GSM 1867.8 29.8 0.955 GSM 1909.8 29.4 0.871 Radiated: FrequencyMeterCorrectionPre-AmpSubstitutionLimitEIRPEIRPPolarityComments ReadingFactorGainAntenna Gain (MHz)(dBm)(dB) (dB) (dBi)(dBm)(dBm)(mW) 1867.8 -14.431.009.426.0 398.1072V 1867.8 -15.433.009.427.0 501.1872 H 1850.2 -16.031.009.424.4 275.4229 V 1850.2 -15.233.009.427.2 524.8075H 1909.8 -15.731.009.424.7 295.1209V 1909.8 -18.633.009.423.8 239.8833 H Note: The device was oriented in three orthogonal axis to determine worst-case position. Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 8 of 30 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth (GSM) PARA. NO.: 2.1047 TESTED BY: David Light DATE: 4/23/04 Test Results: Complies. Test Data: See attached plots. Test Plot: Page 6 of6 Job No.:4l0154Date:4/23/2004 Specification:pt 24Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Notes: Occupied Bandwidth 26 dB Bandwidth Tx mid band at 29.4 dBm PEAK power 1806 TX Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 9 of 30 Section 5. Spurious Emissions at Antenna Terminals NAME OF TEST: Spurious Emissions @ Antenna Terminals PARA. NO.: 2.1051 TESTED BY: David Light DATE: 4/23/04 Test Results: Complies. Test Data: NAME OF TEST WORST-CASE SPURIOUS LEVEL(dBm) 0 to 20 GHz Spurious -29 Lower Band Edge -18 Upper Band Edge -14 Nemko USA FCC PART 24, SUBPART E BROADBAND PCS SUBSCRIBER STATION EQUIPMENT: HOP 1806 Report No.: 4L0154RUS1 Page 10 of 30 Test Data – Spurious Emissions at Ant…
