QHQ-LACPR Tranining manikin

2022 Laerdal Medical AS. All rights reserved. P.O. Box 377 Tanke Svilandsgate 30 4002 Stavanger, Norway T:(+47) 51 51 17 00 For more information and apps go to: laerdal.com/littleanne QCPR Instructor XXXXXX Rev A 34681 257 EN www.laerdal.com Little Anne PLUS Important Product Information 23 English Little Anne PLUS Important Information Read these instructions thoroughly. Observe all warnings, cautions and instructions in the User Guide and in this Important Product Information booklet. Retain this booklet for future reference. Warnings and Cautions A Warning states a condition, hazard, or unsafe practice that can result in serious personal injury or death. A Caution states a condition, hazard, or unsafe practice that can result in minor personal injury or damage to the product. Notes A note states important information about the product or its operation. Care, Maintanance and Cleaning Keep the manikin clean and in a hygienic condition. Replace the airway filter after every class, especially if mouth to mouth resuscitation is practiced. Change the airway assembly if there are visible signs of wear or damage to lung or metal patch. We recommend that you use a separate Laerdal Manikin Face for every student. If several students use one manikin face, thoroughly sanitize the manikin face after every use. Clean all skin parts regularly. Use warm soapy water or Laerdal manikin wipes. Use of Manikin Face Shields provides a clean barrier between your lips and the manikin face. These can discolor the manikin: • Pigments from lipstick and pens • Latex gloves • Using clothes other than what comes with the product originally. Cautions • Do not use liquids to clean inside the manikin. • Do not submerge any parts. • Do not remove the spring plate rope. Battery Only use consumer grade, non-rechargeable, carbon zinc or alkaline batteries, LR6 1.5V AA. Batteries must be replaced with correct type. Remove batteries if product is not to be used for an extended period. 3 English Little Anne PLUS Important Information Federal Communications Commis- sion (FCC) and Industry Canada (IC) Statements This device complies with part 15 of the FCC Rules and RSS-210 of IC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult the dealer or an experienced radio/ TV technician for help. Caution: Changes or modifications not expressly approved by Laerdal Medical could void the user’s authority to operate the equipment. The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. Mise en garde: Tout changement ou toute modification n’ayant pas fait l’objet d’une approbation expresse de Laerdal Medical peut annuler le droit dont dispose l’utilisateur de se servir de l’équipement. Le terme « IC » qui précède le numéro d’agrément de l’équipement signifie uniquement que les caractéristiques techniques spécifiées par Industrie Canada sont respectées. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC: Japan MIC certification Korea China Basic Torso: CMIIT ID: xxxxxxxxxx 012-220014 R-CMM-Lm1-LA FCCID:QHQ 20263-LA -LA 45 English Little Anne PLUS Important Information EU This product is in compliance with the essential requirements of Council Directive 2014/53/EU on Radio Equipment (RED), The product is in compliance with Council Directive 2011/65/EU on restriction of the use of certain hazardous substances (RoHS). UK UKCA (U.K. Conformity Assessed): This product complies with the requirements of U.K. legislation of Radio Equipment Regulations (S.I. 2017/1206). UKCA (U.K. Conformity Assessed): This product complies with the requirements of U.K. legislation of Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations (RoHS) Regulations((S.I. 2012/3032). Waste Handling Dispose of in accordance with your country’s recommendations. This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, whic…

Text truncated - open the document above for the full version.

P.O.Box 377 Tanke Svilandsgate 30, Stavanger 4002, Norway Tel: +47 51 51 16 30 Email: [email protected] November 7, 2022 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Laerdal Medical AS FCC ID: QHQ-LA To Whom It May Concern: We, Laerdal Medical AS, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number QHQ-LA under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is November 7, 2022. The Limited Agency Agreement expires on December 31, 2022, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Mari Kaada Corporate Director QA/RA Norway, Stavanger Laerdal Medical AS

______________________________________________________________________________________________ Mail address Laerdal Medical AS P.O. Box 377 4002 Stavanger, Norway E-mail and Website [email protected] www.laerdal.com Office address Tanke Svilandsgate 30 4007, Stavanger, Norway Telephone +47 51 51 17 00 Telefax +47 51 52 35 57 Org.no. 979 484 488 Attention: Application Examiner RE: Request for Confidentiality Applicant: Laerdal Medical AS FCC ID: QHQ-LA To Whom It May Concern: Permanent Confidentiality Request is hereby submitted by Laerdal Medical AS to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description  Parts list Rationale for request for confidentiality: Laerdal Medical AS has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Mari Kaada Corporate Director QA/RA Norway, Stavanger Laerdal Medical AS DocuSign Envelope ID: 54AFDE41-994C-4AF8-9F7B-C0881BE07144 10.11.2022 Certificate Of Completion Envelope Id: 54AFDE41994C4AF89F7BC0881BE07144Status: Completed Subject: Please DocuSign This Document Source Envelope: Document Pages: 1Signatures: 1Envelope Originator: Certificate Pages: 1Initials: 0Mari Kaada AutoNav: Enabled EnvelopeId Stamping: Enabled Time Zone: (UTC+01:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna Tanke Svilandsgate 30 Stavanger, Stavanger 4002 [email protected] IP Address: 10.111.40.202 Record Tracking Status: Original 2022-11-10 | 12:47 Holder: Mari Kaada [email protected] Location: DocuSign Signer EventsSignatureTimestamp Mari Kaada [email protected] Corporate Director Q&R Laerdal Medical AS Security Level: Email, Account Authentication (None) Signature Adoption: Pre-selected Style Using IP Address: 79.160.140.131 Sent: 2022-11-10 | 12:48 Viewed: 2022-11-10 | 12:48 Signed: 2022-11-10 | 12:48 Electronic Record and Signature Disclosure: Not Offered via DocuSign In Person Signer EventsSignatureTimestamp Editor Delivery EventsStatusTimestamp Agent Delivery EventsStatusTimestamp Intermediary Delivery EventsStatusTimestamp Certified Delivery EventsStatusTimestamp Carbon Copy EventsStatusTimestamp Witness EventsSignatureTimestamp Notary EventsSignatureTimestamp Envelope Summary EventsStatusTimestamps Envelope SentHashed/Encrypted2022-11-10 | 12:48 Certified DeliveredSecurity Checked2022-11-10 | 12:48 Signing CompleteSecurity Checked2022-11-10 | 12:48 CompletedSecurity Checked2022-11-10 | 12:48 Payment EventsStatusTimestamps

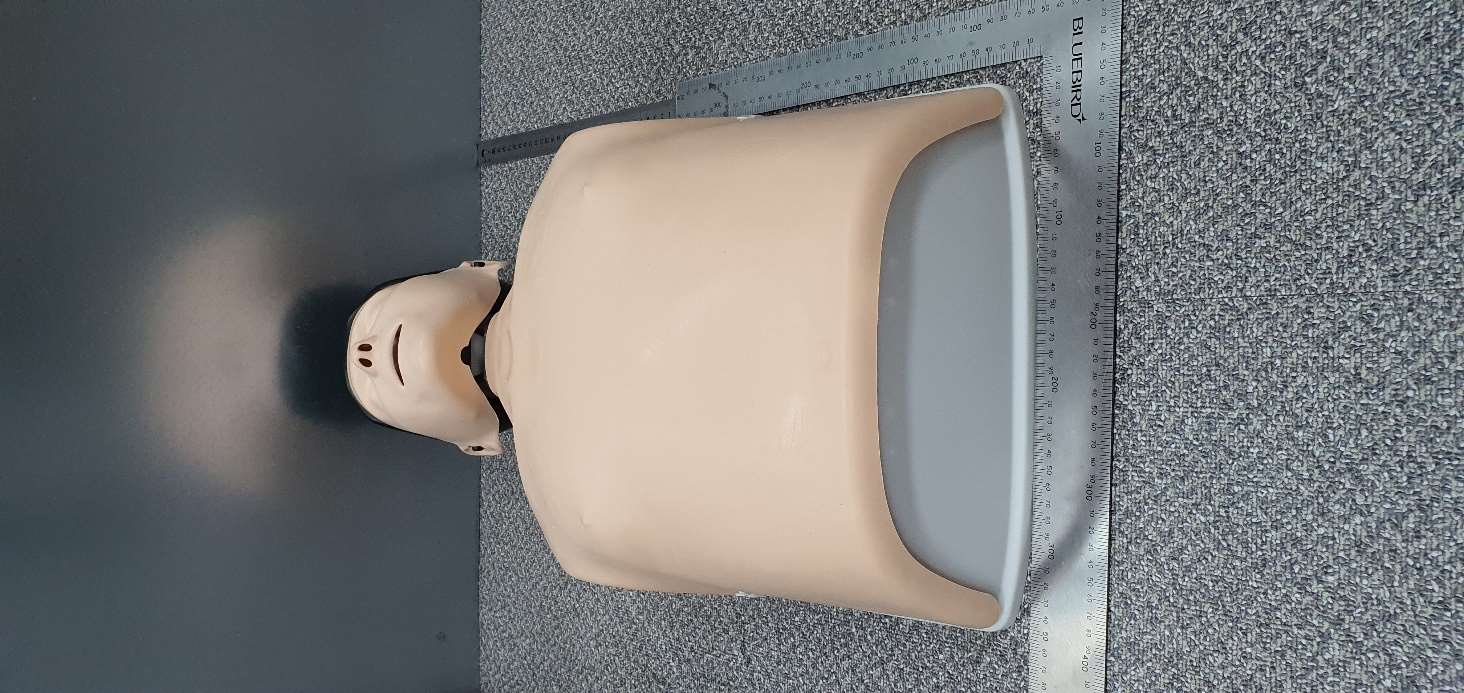

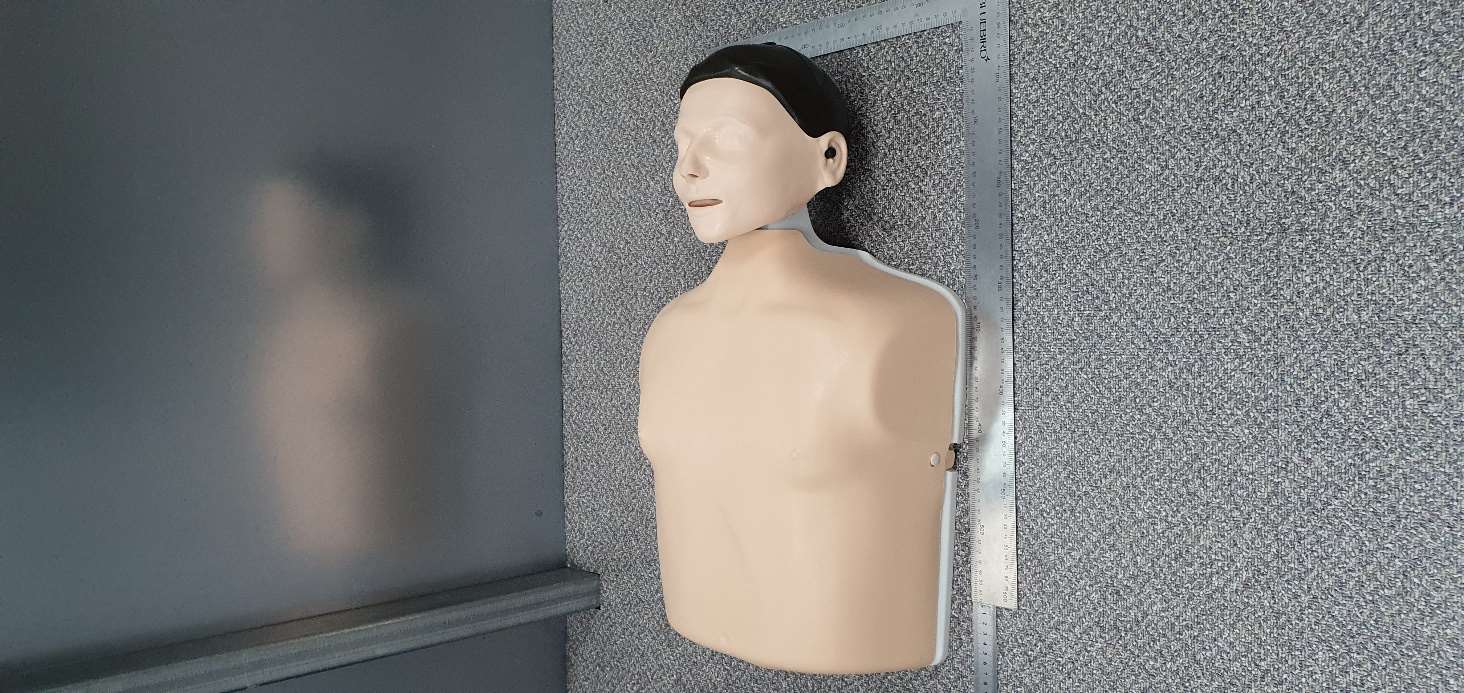

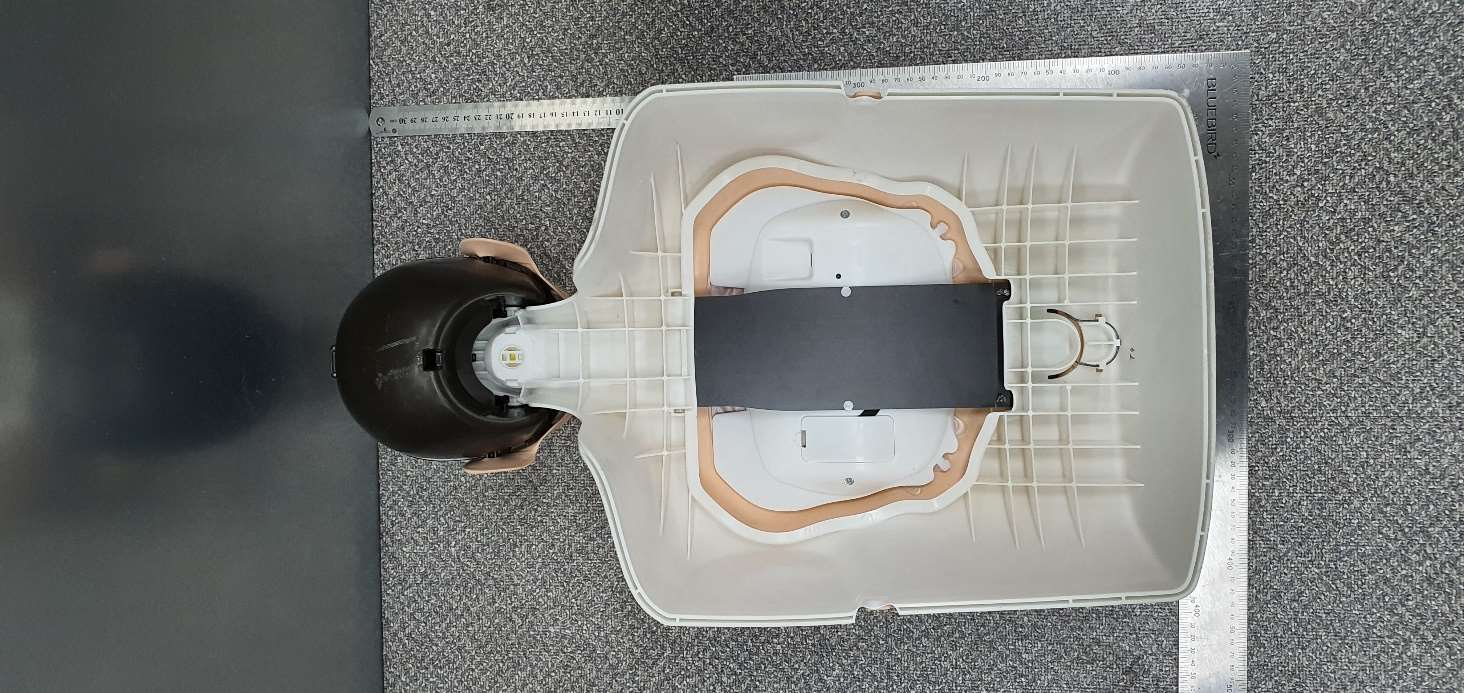

본 Photographs of EUT Front Rear 본 Right Left 본 Top Bottom 본 Front (Display) Rear (Display)

LAERDAL MEDICAL xxx-xxxxx www.laerdal.com Little Anne 20-19530 R ev 1234568910 Made in China Manufactured in China for: Laerdal Medical AS P.O. Box 377 Tanke Svilandsgate 30 4002 Stavanger Norway T: (+47) 51 51 17 00 BARCODE SYMBOLIC Datamatrix w/AL’s, Height = GTIN+LOT/SERIAL/ PROD.DATE (01) 0704543XXXXXXK (10/11/21) 123456789012345678 1 2 4 8 10 12 7 9 68mm 40mm 3 6 11 5 FCC ID: IC: KC: CMIIT ID: xxxxxxxxxxx HVIN: 13 REVC QHQ-LA 20263-LA R-R-Lm1-LA C 012-220014

Photographs of EUT Main Board_Front Main Board_Rear Sensor Board_Front Sensor Board_Rear Display Board_Front Display Board_Rear Ant. Overview

This test report shall not be reproduced, except in full, without the written approval SECTION RF Exposure 1. SUMMARY OF TEST RESULTS RequirementsFCC RuleIC RuleCompliance RF Exposure evaluation 1.1310 2.1093 RSS-102 Issue5 Complied 2. MPE Evaluation 2.1Test Results -Complied -SAR test exclusion thresholds(FCC) Mode Frequency (MHz) Conducted Output Power (dBm] Conducted Output Power (mW) Min. Test Separation Distance (mm) SAR Test Exclusion Thresholds ≤7.5 for 10-g SAR GFSK_1Mbps 2 4802.001.585.000.50 = [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(㎓)] Bluetooth Low Energy = [(1.58)/(5)] ·[√2.480] = 0.50 - Calculation Result of RF Exposure (IC) Mode Frequency (MHz) Max Tune up Power (dB) Antenna Gain (dBi) E.I.R.P (dBm) E.I.R.P (mW/) Min. Test Separation Distance (mm) Limit (mW/) GFSK 1Mbps 2 4802.002.998 4.998 3.1615.00 4 Note1): e.i.r.p. (dBm) = Conducted output power(dBm) + Antenna gain(dBi) -Target power and Tolerance, Max tuneup power Mode Frequency (MHz) Target Power (dBm) Tolerance (dB) Max Tune up Power (dBm) Average Power (dBm) Measured Average Power (dBm) GFSK 1 Mbps 2 4020.0 ±2.0 2.0 1.44-0.58 2 4400.0 ±2.0 2.0 1.00-1.02 2 4800.0 ±2.0 2.0 -0.21-2.23 GFSK 2 Mbps 2 4020.0 ±2.0 2.0 1.37-3.43 2 4400.0 ±2.0 2.0 0.93-3.87 2 4800.0 ±2.0 2.0 -0.31-5.11 Note1): AveragePower(dBm)= MeasuredAveragePower(dBm)+ D.C.C.F(dB) Note2): MeasuredAveragePowerwastested by Power meter & sensor(VBW = 50 MHz) This test report shall not be reproduced, except in full, without the written approval 2.2RF ExposureCompliance Issue Therefore, EUT is not required the SAR Evaluation.

Report No.: 220800121SEL-TEL2 Copyright © 2017IntertekPage 2of 58TRF No. General (eng) / Version: 19 Apr 2017 SECTION 1CONTENTS SECTION NAMESPAGE 1. Contents2 2. General Description3 3. Summary7 4. TestResult8 5. Revision History58 Report No.: 220800121SEL-TEL2 Copyright © 2017IntertekPage 3of 58TRF No. General (eng) / Version: 19 Apr 2017 SECTION 2GENERAL DESCRIPTION 1. Laboratory Information NameIntertek ETL SEMKO Korea Ltd. Address Intertek building, 3, Gongdan-ro 160beon-gil, Gunpo-si, Gyeonggi-do, 15845, Korea Phone No.+82 2 567 7474 Fax No.+82 2 567 8482 Accreditations FCC/IC Site Designation No : KR0163 Industry Company Number: 21965 2. Applicant Information NameLaerdal Medical AS AddressP.O. Box 377, Tanke Svilandsgate 30, 4002 Stavanger, Norway Contact PersonMari Kaada Phone No.+4751511700 3. Description of EUT Product nameLittle Anne Model nameLA Serial No.N/A ManufacturerLaerdal Medical AS Country of Manufacture Norway Rated VoltageDC3.0V(Battery) Approved RF Module N/A Approved Module FCC ID N/A Frequency Range2 402 MHz ~ 2 480MHz(BT LE) Modulation Technique GFSK(1 Mbps/ 2 Mbps) Number of Channel 40CH Antenna TypeIntegral Antenna Antenna Gain2.998dBi TransmitPower1.57dBm(Peak) HVIN(Hardware Version Identification Number)REVC FVIN(FirmwareVersion Identification Number)REVC RF Power Setting Parameter PowerLevel: 8 Report No.: 220800121SEL-TEL2 Copyright © 2017IntertekPage 4of 58TRF No. General (eng) / Version: 19 Apr 2017 4. Test Instrument Control No. EquipmentManufacturerModelSerial No.Cal. Due. EMC001 EMI Test Receiver Rohde & Schwarz ESU401004782023/1/3 EMC002 EMI Test Receiver Rohde & Schwarz ESU261005902023/1/3 EMC003 Open Switch and Control Platform Rohde & Schwarz OSP130101467N/A EMC007 Two-Line V- Network Rohde & Schwarz ENV2161019822022/10/15 EMC009 Loop Antenna Rohde & Schwarz HFH2-Z21004652023/1/5 EMC025 Biconilog (Type7) ETS-Lindgren3142E002035472023/12/9 EMC029 DRG Horn (Medium) ETS-Lindgren3117002037632023/7/11 EMC031 Standard Gain Horn ETS-Lindgren3160-09LM98602023/5/18 EMC074AMPRohde & Schwarz SCU-01D19048432023/6/28 EMC077AMPSchwarzbeckBBV9718D000432023/5/24 EMC079AMPRohde & Schwarz SCU-26D18790692023/6/28 RF003 VECTOR SIGNAL GENERATOR Rohde & Schwarz SMBV100A2615692023/6/27 RF004 SIGNAL GENERATOR Rohde & Schwarz SMB100A1784932023/6/27 RF005 SPECTRUM ANALYZER Rohde & Schwarz FSW431038932023/6/27 RF009 FIXED COAXIAL ATTENUATOR WEINSCHEL56-10710872023/6/28 RF018 Notch Rf filter Micro-Tronics BRM50702-02G0432023/6/27 RF022 System DC Power Supply KEYSIGHTN5747AUS16D4132P 2023/6/28 RF024RF MeterANRITSUML2495A1648009 2023/1/10 RF025RF SensorANRITSUMA2411B1531208 2023/7/28 41SoftwareRohde & Schwarz EMC32Ver10.30.00N/A 5.Support Equipment DescriptionManufacturerModelSerial No. Note-PCSamsung Electronics Co., Ltd.NT500R5Q0HV991BH500176W Report No.: 220800121SEL-TEL2 Copyright © 2017IntertekPage 5of 58TRF No. General (eng) / Version: 19 Apr 2017 6. Channel List Channel No.Frequency(MHz)Channel No.Frequency(MHz) 02 402202 442 12 404212444 22 406222 446 32408232 448 42 410242 450 52 412252 452 62414262 454 72 416272 456 82418282 458 92 420292 460 102 422302 462 112 424312 464 122 426322 466 132 428332468 142 430342 470 152 432352 472 162 434362 474 172 436372476 182 438382 478 192 440392 480 7. Test Condition Mode Test Frequency(MHz) LowestMiddleHighest GFSK_1 Mbps2 4022 4402 480 GFSK_2 Mbps2 4022 4402 480 Report No.: 220800121SEL-TEL2 Copyright © 2017IntertekPage 6of 58TRF No. General (eng) / Version: 19 Apr 2017 8. Duty Cycle Correction Factor Test Mode –GFSK 1 Mbps –Lowest Channel-2 402MHz Note 1) Period : 0.625 5 ms, On time : 0.393 0 ms (Packet Transmission) Note 2) DCCF = 10log(1/x) = 10log(1/0.628) = 2.018 dB, x = 0.625 5 / 0.393 0 = 0.628 Note 3) D = 62.8 % (duty cycle < 98 %) Test Mode –GFSK 2 Mbps –Lowest Channel-2 402MHz Note 1) Period : 0.625 5 ms, On time : 0.207 ms (Packet Transmission) Note 2) DCCF = 10log(1/x) = 10log(1/0.331) = 4.803 dB, x = 0.207/0.625 5 = 0.331 Note 3) D = 33.1 % (duty cycle < 98 %) Report No.: 220800121SEL-TEL2 Copyright © 2017IntertekPage 7of 58TRF No. General (eng) / Version: 19 Apr 2017 SECTION 3SUMMARY 1.Summary of test results 2. RequirementsFCC RuleIC RuleCompliance Antenna Requirement 15.203 15.247(b)(4) N/AComplied Maximum Output Power15.247(b)(4) RSS-247 5.4(d) Complied Power Spectral Density15.247(e) RSS-247 5.2(b) Complied 6 dB Channel Bandwidth15.247(a)(2) RSS-247 5.2(a) Complied Occupied BandwidthN/ARSS-GEN 6.6Complied Radiated Spurious Emissions& Restricted Band, Conducted Spurious Emissions& Band Edge 15.247(d) 15.205(a) 15.209(a) RSS-247 5.5, RSS-GEN8.9, 8.10 Complied Conducted Emissions15.207(a) RSS-GEN, 8.8N/A Test method: According to ANSI C63.10-2013, KDB 558074 D01 15.247 Meas Guidance v05r02 2. Measurement Uncertainty ParametersUncertainty (k= 2) Maximum Peak Conducted Output Power1.66 dB Power Spectral Density1.32dB Channel Bandwidth2.30kHz Spurious Emissions (Conducted)1.32 dB Conducted Emissions 9 kHz to 150kHz3.76dB 150kHz to 30 MHz3.36dB Spurious Emissions (Radiated) 9 kHz to 30 MHz5.10dB 30 MHz to 1 GHz4.90dB 1 GHz to 6 GHz5.62dB 6 GHz to 18 GHz5.78dB 18 GHz to 26.5GHz5.42dB Report No.: 220800121SEL-TEL2 Copyright © 2017IntertekPage 8of 58TRF No. General (eng) / Version: 19 Apr 2017 SECTION 4TEST RESULT 1. Antenna Requirement 1.1 Rule According to §15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna canbe replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. 1.2 Test Results –Complied The antenna(PCBantenna)of this product is permanently attachedand there are no provisions for connection to an external antenn…

Text truncated - open the document above for the full version.

FrequencyAvg. GainEfficiency [MHz]Θ[Deg]Φ[Deg]Value[dBi]Θ[Deg]Φ[Deg]Value[dBi][dBi][%] 2400.00001202.131165345-13.373-2.38657.723 2420.00001202.9981650-11.851-1.51770.522 2440.00001202.914165195-11.949-1.46671.349 2460.00001202.229165195-12.880-1.99563.162 2485.00001202.097165195-13.419-1.99763.143 FrequencyAvg. GainEfficiency [MHz]Θ[Deg]Φ[Deg]Value[dBi]Θ[Deg]Φ[Deg]Value[dBi][dBi][%] 2400.000152701.724150165-37.012-6.74321.168 2420.000152702.5751650-35.570-5.91425.622 2440.000152702.3761650-38.726-5.92725.546 2460.000152701.5501650-32.657-6.53522.207 2485.0000901.47400-34.693-6.55822.089 FrequencyAvg. GainEfficiency [MHz]Θ[Deg]Φ[Deg]Value[dBi]Θ[Deg]Φ[Deg]Value[dBi][dBi][%] 2400.000001.676090-30.361-4.37136.555 2420.000002.426090-27.075-3.47844.900 2440.00001802.203090-25.757-3.39145.804 2460.00001801.534090-24.126-3.87740.955 2485.000001.586090-24.136-3.86641.055 FrequencyAvg. GainEfficiency [MHz]Θ[Deg]Φ[Deg]Value[dBi]Θ[Deg]Φ[Deg]Value[dBi][dBi][%] 2400.000301200.02860225-24.343-5.05031.263 2420.000301200.81360225-26.288-4.21237.917 2440.000301200.78560225-31.167-4.17538.237 2460.000301050.17660225-43.433-4.72133.721 2485.000451050.27560225-36.783-4.73833.593 FrequencyAvg. GainEfficiency [MHz]Θ[Deg]Φ[Deg]Value[dBi]Θ[Deg]Φ[Deg]Value[dBi][dBi][%] 2400.000452550.27075150-32.315-5.77426.461 2420.000452551.31860150-30.465-4.86732.605 2440.000452551.45760150-28.210-4.80033.112 2460.000452550.8797560-24.479-5.31029.441 2485.000452550.7337560-25.829-5.29429.550 Frequency [MHz]Θ[Deg]Φ[Deg]Value[dBi]Θ[Deg]Φ[Deg]Value[dBi] 2400.00015015061.703751500.656 2420.000120067.506601500.687 2440.000027064.350602250.595 2460.0004534564.086602250.154 2485.000022561.454602250.331 LHCP Max ValueMin Value AR Max ValueMin Value Horizontal Max ValueMin Value RHCP Max ValueMin Value 2. Test Results Horizontal + Vertical Max ValueMin Value Vertical Max ValueMin Value Test SiteKTM Technology Co., Ltd Photo / GraphPhoto / GraphPhoto / Graph CustomerLaerdal Medical ASAntenna VersionLittle Anne Model / RevisionLA 3D Radiation Pattern Measurement Results 1. Informations Date2022-01-20Test Engineer백석현 FrequencyAvg. Gain Efficiency [MHz] Θ [Deg] Φ[Deg] Value[dBi] Θ [Deg] Φ[Deg] Value[dBi] [dBi][%] 124009060 -1.26 90195 -4.24 -2.79 52.55 224209045 -0.59 90195 -2.92 -1.98 63.34 324409045 -0.62 90285 -2.75 -1.91 64.42 424609045 -1.24 90285 -3.46 -2.42 57.30 524859030 -1.08 90285 -3.59 -2.47 56.65 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 FrequencyAvg. Gain Efficiency [MHz] Θ [Deg] Φ[Deg] Value[dBi] Θ [Deg] Φ[Deg] Value[dBi] [dBi][%] 1240090120 -5.11 90180 -21.83 -8.19 15.16 2242090240 -4.27 90180 -22.11 -7.52 17.72 3244090240 -3.93 90180 -22.65 -7.46 17.96 4246090255 -4.05 90180 -23.45 -7.89 16.27 5248590255 -3.71 90180 -25.92 -7.74 16.81 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 FrequencyAvg. Gain Efficiency [MHz] Θ [Deg] Φ[Deg] Value[dBi] Θ [Deg] Φ[Deg] Value[dBi] [dBi][%] 124009060 -3.12 90120 -7.03 -4.27 37.39 224209045 -2.36 90255 -6.14 -3.41 45.62 324409030 -2.26 90105 -6.19 -3.33 46.46 424609015 -2.61 90105 -6.91 -3.87 41.03 524859015 -2.40 90105 -7.17 -4.00 39.84 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 H Plane (Vertical + Horizontal) H Plane (Vertical) No Maximum ValueMinimum Value Minimum Value Maximum ValueMinimum Value No H Plane (Vertical + Horizontal) Polar Chart H Plane (Horizontal) No Maximum Value H Plane (Vertical) Polar Chart H Plane (Horizontal) Polar Chart -4.5 -4 -3.5 -3 -2.5 -2 -1.5 -1 -0.5 0 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 2400 2420 2440 2460 2485 -30 -25 -20 -15 -10 -5 0 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 2400 2420 2440 2460 2485 -8 -7 -6 -5 -4 -3 -2 -1 0 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 2400 2420 2440 2460 2485 FrequencyAvg. Gain Efficiency [MHz] Θ [Deg] Φ[Deg] Value[dBi] Θ [Deg] Φ[Deg] Value[dBi] [dBi][%] 124009060 -1.39 90240 -22.11 -5.02 31.45 224209045 -0.81 90240 -21.99 -4.30 37.15 324409045 -0.86 90240 -22.12 -4.29 37.25 424609045 -1.50 90225 -21.49 -4.88 32.49 524859030 -1.50 90225 -23.81 -5.03 31.39 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 FrequencyAvg. Gain Efficiency [MHz] Θ [Deg] Φ[Deg] Value[dBi] Θ [Deg] Φ[Deg] Value[dBi] [dBi][%] 1240090240 -3.11 90135 -28.76 -6.76 21.10 2242090240 -1.97 90135 -24.09 -5.82 26.19 3244090240 -1.62 90120 -22.59 -5.66 27.18 4246090240 -1.88 90120 -24.01 -6.05 24.81 5248590240 -1.80 90120 -24.10 -5.97 25.27 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 H Plane (RHCP) No Maximum ValueMinimum Value H Plane (LHCP) No Maximum ValueMinimum Value H Plane (LHCP) Polar Chart H Plane (RHCP) Polar Chart -25 -20 -15 -10 -5 0 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 2400 2420 2440 2460 2485 -30 -25 -20 -15 -10 -5 0 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 2400 2420 2440 2460 2485 FrequencyAvg. Gain Efficiency [MHz] Θ [Deg] Φ[Deg] Value[dBi] Θ [Deg] Φ[Deg] Value[dBi] [dBi][%] 1240090-15 1.7990-165 -10.08 -1.34 73.45 2242090-15 2.6790-165 -8.73 -0.50 89.17 3244090-15 2.5190-165 -8.03 -0.47 89.68 4246090-30 1.8190-165 -8.09 -1.05 78.60 5248590-30 1.8790-165 -7.50 -1.08 77.93 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 FrequencyAvg. Gain Efficiency [MHz] Θ [Deg] Φ[Deg] Value[dBi] Θ [Deg] Φ[Deg] Value[dBi] [dBi][%] 1240090-15 1.7290-165 -24.39 -3.21 47.79 2242090-15 2.5790120 -20.68 -2.33 58.43 3244090-15 2.3890120 -28.15 -2.31 58.69 4246090-15 1.5590120 -25.62 -2.90 51.28 524859001.4790120 -19.29 -2.91 51.16 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 FrequencyAvg. Gain Efficiency [MHz] Θ [Deg] Φ[Deg] Value[dBi] Θ [Deg] Φ[Deg] Value[dBi] [dBi][%] 1240090120 -1.54 900 -30.36 -5.91 25.66 2242090120 -0.66 900 -27.08 -5.12 30.74 324…

Text truncated - open the document above for the full version.

Setup Photos - Radiated Emissions (9 kHz ~ 30 MHz) - Radiated Emissions (30 MHz ~ 1 GHz) - Radiated Emissions (1 GHz ~ 18 GHz) - Radiated Emissions (18 GHz ~ 26.5 GHz)
