QI3-7300WXWireless-N ADSL2+ Firewall Router

BiPAC 7300W Wireless-N ADSL2+ Firewall Router User Manual Version Released: 1.02 (FW: v2.01.RC1) Last Revised on April 14, 2010 Table of Contents Chapter 1 ....................................................................................................................1 1.1 Introducing the BiPAC 7300W...............................................................1 1.2 Features .................................................................................................3 1.3 Hardware Specifications .........................................................................7 1.3 Applications of the BiPAC 7300W ...........................................................8 Chapter 2 ....................................................................................................................9 2.1 Important Notes ......................................................................................9 2.2 Package Contents ................................................................................10 2.3 The Front LEDs .....................................................................................11 2.4 The Rear Ports .....................................................................................12 2.5 Cabling .................................................................................................14 Chapter 3 ..................................................................................................................15 3.1 Before Configuration.............................................................................15 3.2 Network Configuration ..........................................................................16 3.2.1 Configuring a PC in Windows 7 ..................................................16 3.2.2 Configuring a PC in Windows Vista ............................................18 3.2.3 Configuring a PC in Windows XP ...............................................20 3.2.4 Configuring a PC in Windows 2000 ............................................21 3.2.5 Configuring PC in Windows 98/Me .............................................22 3.2.6 Configuring PC in Windows NT4.0 .............................................23 3.3 Factory Default Settings .......................................................................24 3.4 LAN and WAN Port Addresses .............................................................25 3.5 Information from your ISP.....................................................................25 3.6 Configuring with your BiPAC 7300W ....................................................26 Chapter 4 ..................................................................................................................30 4.2 Quick Start ............................................................................................32 4.3 WAN .....................................................................................................33 4.4 WLAN ...................................................................................................34 Chapter 5 ..................................................................................................................40 5.1 Status ...................................................................................................41 5.1.1 ADSL Status.......................................................................................43 5.1.2 ARP Table ..........................................................................................44 5.1.3 DHCP Table .......................................................................................44 5.1.4 System Log........................................................................................45 5.1.5 Firewall Log .......................................................................................46 5.1.6 UPnP Portmap...................................................................................46 5.2 Quick Start ............................................................................................47 5.3 Configuration ........................................................................................52 5.3.1 LAN (Local Area Network) .................................................................52 5.3.1.1 Ethernet...................................................................................52 5.3.1.2 IP Alias ....................................................................................53 5.3.1.3 Wireless...................................................................................54 5.3.1.4 Wireless Security.....................................................................57 5.3.1.5 WPS ........................................................................................61 5.3.1.6 DHCP Server...........................................................................74 5.3.2 WAN (Wide Area Network) ................................................................76 5.3.2.1 WAN Profile .............................................................................77 5.3.2.3 ADSL Mode .............................................................................86 5.3.3 System ..............................................................................................87 5.3.3.1 Time Zone ...............................................................................88 5.3.3.2 Firmware Upgrade...................................................................89 5.3.3.3 Backup / Restore .....................................................................90 5.3.3.4 Restart Router .........................................................................91 5.3.3.5 User Management ...................................................................91 5.3.3.6 Mail Alert..................................................................................92 5.3.4 Firewall ..............................................................................................93 5.3.4.1 Packet Filter ...........…

Text truncated - open the document above for the full version.

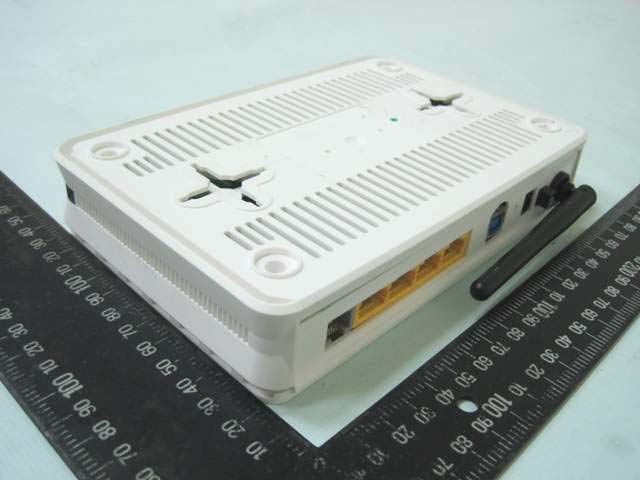

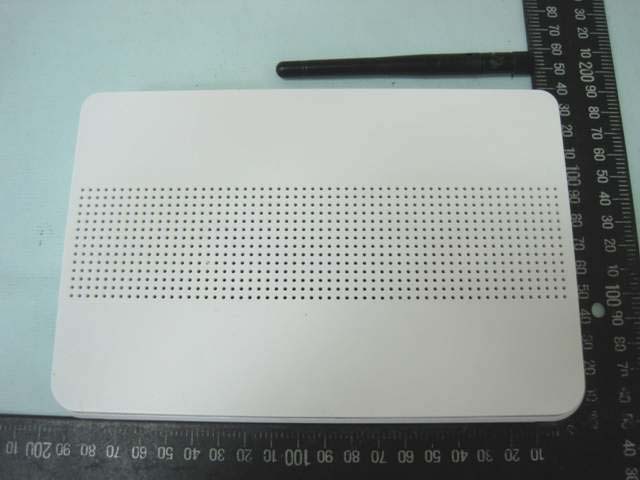

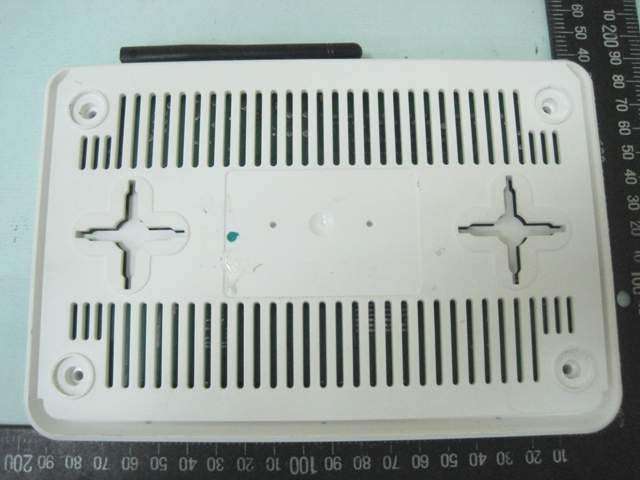

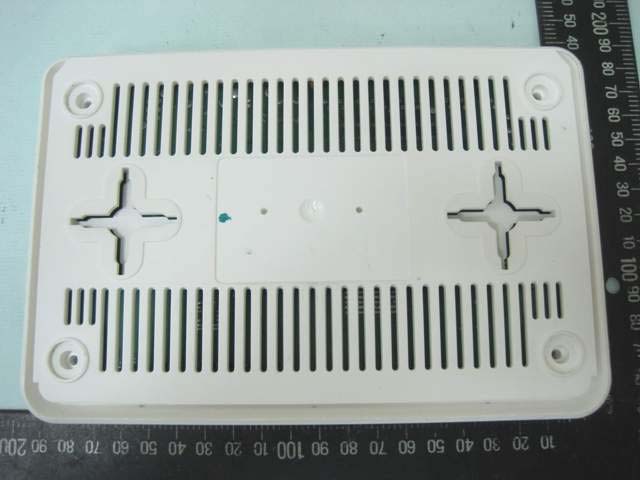

SPORTON International Inc. PAGE NUMBER : A1 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 EUT 1 SPORTON International Inc. PAGE NUMBER : A3 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 EUT 2 SPORTON International Inc. PAGE NUMBER : A6 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT EUT 1 SPORTON International Inc. PAGE NUMBER : A2 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 EUT 2 SPORTON International Inc. PAGE NUMBER : A9 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : May 03, 2010 FAX : 886-2-2696-2255

Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g Ant. A: 21.76dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.7 1.4791 21.7600 149.9685 0.044152 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Billion Electric Co., Ltd. Applicant Address 8F.,No192,Sec2,Chung Hsing Road, Hsin Tien City,Taipei Hsien,Taiwan,R.O.C. FCC ID QI3-7300WX Manufacturer’s company Billion Electric Co., Ltd. Manufacturer Address 8F.,No192,Sec2,Chung Hsing Road, Hsin Tien City,Taipei Hsien,Taiwan,R.O.C. Product Name Wireless-N ADSL2+ Firewall Router Brand Name Billion; BEC Model Name BiPAC 7300WX/BiPAC 7300W/BiPAC 5210W/BiPAC 5200W, BEC 7300WX/BEC 7300W/BEC 5210W/BEC 5200W Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Feb. 25, 2010 Final Test Date May 03, 2010 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR022562 Report Format Version: 01 Page No. : iof ii FCC ID: QI3-7300WX Issued Date : May 07, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Multiple Listing......................................................................................................................................................................7 3.8. Table for Supporting Units ...................................................................................................................................................................7 3.9. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.10. Test Configurations .............................................................................................................................................................................9 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................20 4.3. Power Spectral Density Measurement ..............................................................................................................................................26 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................32 4.5. Radiated Emissions Measurement ....................................................................................................................................................38 4.6. Band Edge Emissions Measurement .................................................................................................................................................58 4.7. Antenna Requirements .....................................................................................................................................................................67 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 68 6. TEST LOCATION.............................................................................................................................................. 70 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 71 APPENDIX A. PHOTOGRAPHS O…

Text truncated - open the document above for the full version.

Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 1 of 7 Appendix B. Test Photos Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 2 of 7 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 3 of 7 Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 4 of 7 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 5 of 7 30MHz~1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 6 of 7 Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR022562 FCC ID: QI3-7300WX Page No. : 7 of 7 Above 1GHz FRONT VIEW REAR VIEW
