BEC 6600AEL Gigabit LTE Multi-Service Router Quick Start Guide BEC 6600AEL Gigabit LTE Multi-Service Router 1 Package Contents ✓ BEC 6600AEL Gigabit LTE Multi-Service Router x 1 ✓ This Quick Start Guide x 1 ✓ RJ-45 Ethernet Cable x 1 ✓ DC Power Adapter x 1 ✓ Wi-Fi Antenna x 2 ✓ LTE Antenna x 4 NOTE: ALL IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. PACKAGE CONTENTS MAY DIFFER FROM ACTUAL PRODUCTS. Warning ⚫ Do not use the router in high humidity or at high temperature. ⚫ Do not use the same power source for the router as other equipment. ⚫ Do not open or repair the case yourself. If the router is too hot, turn off the power immediately and have it repaired at a qualified service center. ⚫ Avoid using this product and all accessories outdoors. Attention ⚫ Place the router on a stable surface. ⚫ Only use the power adapter that comes with the package. Using a different voltage rating power adapter may damage the router. PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE ONLINE USER MANUAL. Quick Start Guide 2 Front Panel - LEDs / LTE Connectors PORT MEANING 1 LTE Antenna Connectors Screw the supplied LTE antennas onto the antenna connectors on both sides. LED STATUS DESCRIPTION Power Green System is up and ready Red Boot failure Ethernet Port LAN 1 - 4 Green Transmission speed is at Gigabit speed (1000Mbps) Orange Transmission speed is at 10/100Mbps Blinking Data being transmitted/received USB Green Connecting to hard drive for storage or file sharing, etc. Wi-Fi 2.4GHz / 5GHz Green Wireless connection to 2.4GHz or 5GHz network is established Blinking Data being transmitted / received WPS Green Wireless device(s) being connected successfully via WPS mode Blinking WPS is enabled and trying to establish a WPS connection LTE (Received Signal Strength Indicator) Green RSSI greater than -69 dBm. Excellent signal condition Green Flashing Quickly RSSI from -81 to -69 dBm. Good signal condition Orange Flashing Quickly RSSI from -99 to -81 dBm. Fair signal condition Orange Flashing Slowly RSSI less than -99 dBm. Poor signal condition Orange No signal and the 4G_LTE module is in service Off No LTE module or LTE module fails Internet Green WAN IP is received, and traffic is passing thru the device Red Cannot get a WAN/public IP address Off The device is either in bridged mode or WAN connection not ready. 1 1 BEC 6600AEL Gigabit LTE Multi-Service Router 3 Rear Panel – Ports / Connectors PORT MEANING 1 Wi-Fi Antenna Connectors Screw the supplied Wi-Fi antennas onto the antenna connectors on both sides LTE Antenna Connectors Screw the supplied LTE antennas onto the antenna connectors on both sides 2 SIM Card Slot Insert the mini SIM card (2FF) with the gold contact facing down Push the mini SIM card (2FF) inwards to eject it 3 WPS & Wireless On/Off By controlling the pressing time, users can achieve two different effects: (1) WPS * : Press &hold the button for less than 6 seconds to trigger WPS function. (2) Wireless ON/OFF button: Press & hold the button for more than 6 seconds to enable or disable the wireless. * Refer to the WPS section in the User Manual for more details. 4 Reset After the device is powered on, press it 6 seconds or above: to restore to factory default settings (this is used when you cannot login to the router, e.g. forgot your password) 5 Gigabit LAN Ethernet (1 - 4) Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps /100Mbps /1000Mbps * Ethernet WAN/4 Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable, for broadband connectivity Note: LAN 4 automatically becomes an ethernet WAN port when the ETH WAN internet interface is being selected in the GUI 6 USB Mainly for storage and file sharing 7 DC Power Jack Connect the supplied Power Adapter to this jack 8 Power ON/OFF Power ON/OFF switch 1 2 7 1 8 3 5 6 4 * Quick Start Guide 4 Hardware Connection Back Panel Ports & Connectors Wi-Fi & LTE Antenna Setup BEC 6600AEL Gigabit LTE Multi-Service Router 5 Hardware Installation 1. Power Connection Plug in the supplied power adapter to the wall jack and the other side to the device. Power ON the 6600AEL by pressing the Power On/Off button. 2. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports and the other side to an Ethernet device. Quick Start Guide 6 3. WAN Link Interface and Connection BEC 6600AEL offers WAN failover and failback between multiple WAN interfaces. <Refer to the User Manual for detailed setup> 3.1 4G/LTE Connection Slide the SIM card into the card slot of the device with the gold contact facing down. Make sure that the SIM card is slid into the bottom of the slot with a click. When removing the SIM card, press the SIM card again to eject from the card slot. 3.2 Ethernet WAN Connection Connect RJ-45 Ethernet cable to the EWAN port, and connect the other side to another alternative broadband device, such as Cable Modem, VDSL, Fiber Modem or PON optic lines. WARNING: Please power off the device before inserting or removing the SIM card. BEC 6600AEL Gigabit LTE Multi-Service Router 7 4. USB for Network File Sharing BEC 6600AEL has built-in FTP and Samba Servers, simply plug in an external USB HD then follow the instruction setup in the User Guide. Quick Start Guide 8 Quick Setup Your Router The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1 ~ 192.168.1.253. Open a web browser and type http://192.168.1.254 in the URL address bar. The login prompt will appear. Input the default username (admin) and password (admin) for Account type, Administrator. *This username / password may vary by different Internet Service Providers. Step 1: Click Quick S…

Text truncated - open the document above for the full version.

Declaration on model difference Date: November 19, 2020 FCC ID: QI3BEC-6600AEL Dear Sir, We, Billion Electric Co., Ltd., hereby declare that our products have the following differences between the twenty three model numbers. All models are electrically identical, different models are for marketing purpose. The function of WiFi and LTE use different firmware for enabling and disabling on the different modes that listing below. Trade Name External LTE Antenna Wi-Fi Antenna VPN VoIP WiFi 5GHz/2.4GHz SIM Slot USB Host Power Adapter BEC 6600VAL BEC LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs X O 5GHz+2.4GHz 1 O DC 15V/ 2.0A BEC 6600AEL BEC LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs O X 5GHz+2.4GHz 1 O DC 15V/ 2.0A BEC 6600X BEC LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs O O 5GHz+2.4GHz 1 O DC 15V/ 2.0A BiPAC 4520VAOZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs O O 5GHz+2.4GHz 2 O DC 15V/ 2.0A BiPAC 4520VAPZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs X O 5GHz+2.4GHz 2 O DC 15V/ 2.0A BiPAC 4500VAOZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs O O 5GHz+2.4GHz 1 O DC 15V/ 2.0A BiPAC 4500VAPZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs X O 5GHz+2.4GHz 1 O DC 15V/ 2.0A BiPAC 4520AZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs O X 5GHz+2.4GHz 2 O DC 15V/ 2.0A BiPAC 4520AZL R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs X X 5GHz+2.4GHz 2 O DC 15V/ 2.0A BiPAC 4500AZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs O X 5GHz+2.4GHz 1 O DC 15V/ 2.0A BiPAC 4500AZL R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *2pcs X X 5GHz+2.4GHz 1 O DC 15V/ 2.0A BiPAC 4520VNOZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *1pcs O O 2.4GHz 2 O DC 15V/ 2.0A BiPAC 4520VNPZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *1pcs X O 2.4GHz 2 O DC 15V/ 2.0A BiPAC 4500VNOZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *1pcs O O 2.4GHz 1 O DC 15V/ 2.0A BiPAC 4500VNPZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *1pcs X O 2.4GHz 1 O DC 15V/ 2.0A BiPAC 4520NZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *1pcs O X 2.4GHz 2 O DC 15V/ 2.0A BiPAC 4520NZL R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *1pcs X X 2.4GHz 2 O DC 15V/ 2.0A BiPAC 4500NZ R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *1pcs O X 2.4GHz 1 O DC 15V/ 2.0A BiPAC 4500NZL R3 Billion LTE Wide-band Antenna *4pcs 5/ 2.4GHz External WiFi Antenna *2pcs 5/ 2.4GHz Embedded WiFi Antenna *1pcs X X 2.4GHz 1 O DC 15V/ 2.0A BiPAC 4520Z R3 Billion LTE Wide-band Antenna *4pcs X O X X 2 O DC 15V/ 2.0A BiPAC 4520ZL R3 Billion LTE Wide-band Antenna *4pcs X X X X 2 O DC 15V/ 2.0A BiPAC 4500Z R3 Billion LTE Wide-band Antenna *4pcs X O X X 1 O DC 15V/ 2.0A BiPAC 4500ZL R3 Billion LTE Wide-band Antenna *4pcs X X X X 1 O DC 15V/ 2.0A Note: "O" means YES, and "X" means NO support in firmware On the behalf of Billion Electric Co., Ltd . DEKRA Testing and Certification Co., Ltd. Name: Vincent Lin Title: Director Tel:+886-2-8601-3788

DTS-UNII Device Declaration Letter November 5, 2020 To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: QI3BEC-6600AEL , (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 2412-2462 Yes , No Yes , No Yes , No Yes , No 2422-2452 Yes , No Yes , No Yes , No Yes , No 5180-5240 Yes , No Yes , No Yes , No Yes , No 5745-5825 Yes , No Yes , No Yes , No Yes , No 5190-5230 Yes , No Yes , No Yes , No Yes , No 5755-5795 Yes , No Yes , No Yes , No Yes , No 5210 Yes , No Yes , No Yes , No Yes , No 5775 Yes , No Yes , No Yes , No Yes , No This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. If you have any questions please do not hesitate to contact us. Sincerely, __________________________ Vincent Lin /Director DEKRA Testing and Certification Co., Ltd. On behalf of Billion Electric Co., Ltd.

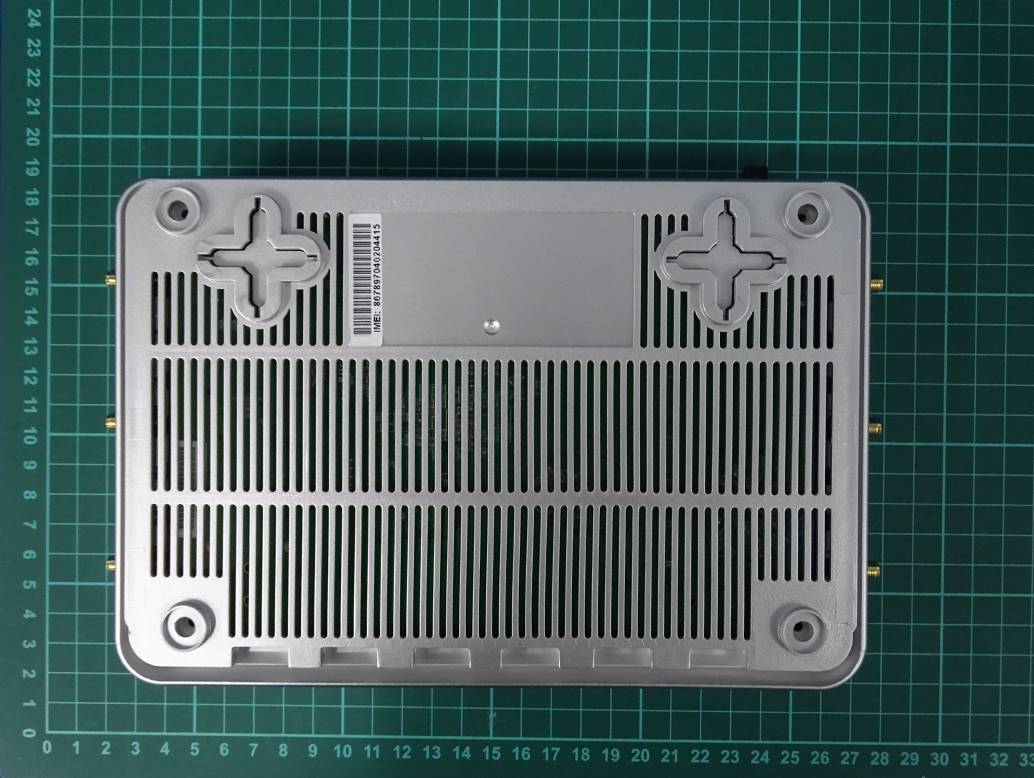

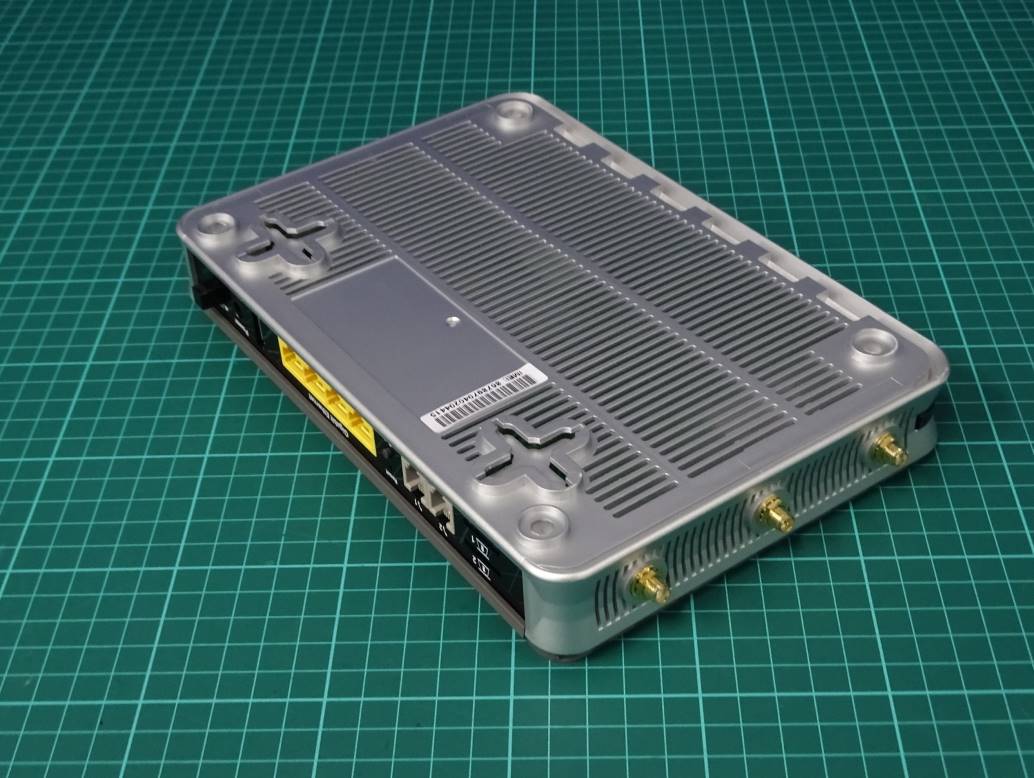

Report No.: 2080882R-E3032110125 Page: 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 2080882R-E3032110125 Page: 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2080882R-E3032110125 Page: 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2080882R-E3032110125 Page: 4 of 4 (7) EUT Photo (8) EUT Photo
