QI3BIL-2073N-RWireless-N HomePlug AV200 Ethernet Adapter

Wireless-N HomePlug AV 200 Wall Plug Ethernet Adapter User Manual Last revised April 2009 Safety Warnings Do not use the adapter in high humidity or high temperature environment.1. Do not open or repair the case yourself.2. Avoid using this product and all its accesories outdoor.3. Place the adapter on a stable surface.4. Only “HomePlug AV” compliant Powerline Communication (PLC) adapter for remote access is 5. necessary. Plug your HomePlug AV device directly to the AC outlet on the wall. It is best to avoid using 6. extension power cable as it may possess noise filter or surge protector functions that may cause interference that may impact the performance of the device. Table of Contents Chapter 1: Product ............................................................................1 Introduction .................................................................................1 No sweat to set up an in-home network ..............................................1 Extended Wireless Coverage ..............................................................1 Smooth traffic and prioritization ...........................................................1 Immune to noise and intervention .......................................................1 Features ......................................................................................2 Quality of Service Control ...................................................................2 Wireless LAN ......................................................................................2 Specifications ..............................................................................3 Chapter 2: Installing the Adapter .....................................................4 Package Content.........................................................................4 Device Overview .........................................................................5 Hardware Installation ..................................................................6 Connecting the HomePlug Adapter .............................................8 Power Connection ...............................................................................8 LAN Connection ..................................................................................8 Networking Setup ................................................................................9 Quick Start (Setup Powerline Network) .....................................10 Push Button usage ............................................................................10 Application Scenarios .......................................................................10 Powerline Network Illustration ...........................................................12 Chapter 3: Basic Network Installation ..........................................13 Network Configuration ...............................................................14 Configuring PC in Windows Vista......................................................14 Configuring PC in Windows XP .........................................................16 Configuring PC in Windows 2000 .....................................................17 Configuring PC in Windows 95/98/Me...............................................18 Configuring PC in Windows NT4.0 ....................................................19 Factory Default Settings ............................................................20 Internet Access Configuration ...................................................21 Configuring with your Web Browser ..................................................21 Chapter 4: Configuration ................................................................22 Status ........................................................................................23 Status ................................................................................................23 Statistic .............................................................................................25 Internet Setting ..........................................................................26 LAN ...................................................................................................26 Wireless Settings ......................................................................28 Basic Wireless Settings.....................................................................29 Wireless Security/Encryption Settings ..............................................32 Secuirty Mode .................................................................................................33 Advanced Wireless Settings .............................................................35 Wi-Fi Protected Setup .......................................................................36 Station List ........................................................................................38 Power Line Settings ..................................................................39 Status ................................................................................................39 Privacy ..............................................................................................40 QoS ...................................................................................................41 Administration ...........................................................................45 System Management ........................................................................45 Firmware Upgrade ............................................................................46 Settings Management .......................................................................47 Chapter 5: Troubleshooting ............................................................48 1 Chapter 1: Product Introduction Thank you for purchasing this Wireless-N HomePlug AV 200 Wall Plug Ethernet Adapter. Your new device is an unit that extends your wireless coverage through power lines. Compliant with the latest HomePlug AV s…

Text truncated - open the document above for the full version.

Billion Electric Co., Ltd. Jun. 15, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: QI3BIL-2073N-R Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompaniment this Application as outlined below: 1. Block Diagram, 2. Schematic Diagram, 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Title: Vice President Applicant: Billion Electric Co., Ltd. Address: 8F., No. 192, Sec.2, Chung Hsing Road, Hsin Tien City, Taipei Hsien, Taiwan, R.O.C. Tel: +886-2914-5665 Fax: +886-2918-6731 E-Mail: [email protected]

Billion Electric Co., Ltd. Declaration of Conformity We, Billion Electric Co., Ltd., Herby, certify and declare that as following equipment is under our full responsibility: Product Description: 802.11n Wireless-N HomePlug AV200 Ethernet Adapter FCC ID: QI3BIL-2073N-R In USA, the channels 1-11 only can be used since the channel setting could be set from this device via IE browser. Company: Billion Electric Co., Ltd. Address: 8F., No. 192, Sec.2, Chung Hsing Road, Hsin Tien City, Taipei Hsien, Taiwan, R.O.C. Telephone No.: +886-2914-5665 Fax No.: +886-2918-6731 E-Mail: [email protected] Signature: Name and Title: Felix Cheng / Vice President Date: Jun. 17, 2011

Billion Electric Co., Ltd. Federal Communications Commission Dear Sir, We, the undersigned, hereby authorize Cerpass Technology Corp. to act on our behalf in all matters relating to application for 802.11n Wireless-N HomePlug AV200 Ethernet Adapter (FCC ID: QI3BIL-2073N-R) authorization, including the signing of all documents relating to these matters. Any and all carried out by Cerpass Technology Corp. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant (e.g., corporation), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988.21 U.S.A. 862, For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: Felix Cheng (Signature) (Printed) Title: Vice President Applicant: Billion Electric Co., Ltd. Address: 8F., No. 192, Sec.2, Chung Hsing Road, Hsin Tien City, Taipei Hsien, Taiwan, R.O.C. Tel: +886-2914-5665 Fax: +886-2918-6731 E-Mail: [email protected] Date: Jun. 17, 2011

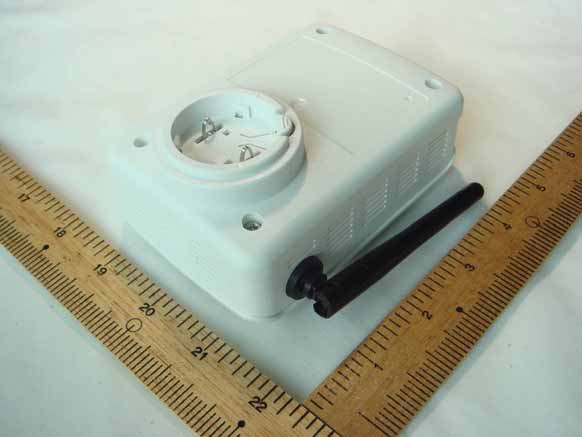

CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A11 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A11

Label & Location This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A8 of A11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A9 of A11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A10 of A11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued Date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A11 of A11

1.1. Test Result of RF Exposure Evaluation . Product: Wireless-N HomePlug AV200 Ethernet Adapter . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain Antenna 1 : 2.24dBi Antenna 2 : 2.24dBi 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance (1)Test Date: Jan. 13, 2011 Temperature: 20 Humidity: 65 Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) Ant1 Ant2 Ant1 Ant2 802.11b (11Mbps) 01 2412 20.75 20.65 0.040 0.039 06 2437 20.37 20.39 0.036 0.036 11 2462 20.39 20.42 0.036 0.037 802.11g (54Mbps) 01 2412 16.73 16.51 0.016 0.015 06 2437 17.14 16.41 0.017 0.015 11 2462 16.15 16.28 0.014 0.014 (2) Test Date: Jan. 13, 2011 Temperature: 20 Humidity: 65 Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) Ant1Ant2Total Ant1 Ant2 Total 802.11n, HT20 (104Mbps) 01 2412 15.82 15.4718.66 0.013 0.012 0.024 06 2437 15.25 15.3718.32 0.011 0.011 0.023 11 2462 15.74 14.8518.33 0.012 0.010 0.023 802.11n, HT40 (108Mbps) 03 2422 14.79 14.7017.76 0.010 0.010 0.020 06 2437 14.90 14.7017.81 0.010 0.010 0.020 09 2452 14.83 14.6117.73 0.010 0.010 0.020 The MPE is calculated as 0.040mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 177 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Billion Electric Co., Ltd. Address : 8F., No. 192, Sec. 2, Chung Hsing Road, Hsin Tien City, Taipei Hsien, Taiwan, R.O.C. Equipment : Wireless-N HomePlug AV200 Ethernet Adapter Model No. : BiPAC 2073N, BEC 2073N, BiPAC 2171N, BEC 2171N, BiPAC 3100SN, BiPAC 2073W, BEC 2073W, BiPAC 3100SW, 220P-I1, 210P-I1, BEC 3100SN, BEC 3100SW FCC ID : QI3BIL-2073N-R Trade Name : Billion, BEC, Innoband Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 177 Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Wireless LAN ............................................................................................................................. 7 2.3 Carrier Frequency of Channels .................................................................................................. 7 2.4 Test Mode and Test Software ..................................................................................................... 8 2.5 Description of Test System ......................................................................................................... 9 2.6 Connection Diagram of Test System ........................................................................................ 10 2.7 General Information of Test ...................................................................................................... 11 2.8 Measurement Uncertainty ........................................................................................................ 11 2.9 History of this test report .......................................................................................................... 12 3. Antenna Requirements ..................................................................................................................... 13 3.1 Standard Applicable ................................................................................................................. 13 3.2 Antenna Construction and Directional Gain ............................................................................. 13 4. Test of Conducted Emission ............................................................................................................ 14 4.1 Test Limit .................................................................................................................................. 14 4.2 Test Procedures ....................................................................................................................... 14 4.3 Typical Test Setup .................................................................................................................... 15 4.4 Measurement Equipment ......................................................................................................... 15 4.5 Test Result and Data of Carrier current on .............................................................................. 16 4.6 Test Result and Data of Carrier current off .............................................................................. 22 4.7 Test Photographs ..................................................................................................................... 28 5. Test of Radiated Emission ............................................................................................................... 29 5.1 Test Limit .................................................................................................................................. 29 5.2 Test Procedures ....................................................................................................................... 29 5.3 Typical Test Setup .................................................................................................................... 30 5.4 Measurement Equipment ......................................................................................................... 30 5.5 Test Result and Data ................................................................................................................ 31 5.6 Test Photographs ..................................................................................................................... 83 6. 6dB Bandwidth Measurement Data ................................................................................................. 84 6.1 Test Limit .................................................................................................................................. 84 6.2 Test Procedures ....................................................................................................................... 84 6.3 Test Setup Layout ..........................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 103 of 177 Modulation Standard: 802.11g (54Mbps), Ant1 Channel: 01 Modulation Standard: 802.11g (54Mbps), Ant1 Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 104 of 177 Modulation Standard: 802.11g (54Mbps), Ant1 Channel: 11 Modulation Standard: 802.11g (54Mbps), Ant2 Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 105 of 177 Modulation Standard: 802.11g (54Mbps), Ant2 Channel: 06 Modulation Standard: 802.11g (54Mbps), Ant2 Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 106 of 177 Modulation Standard: 802.11n HT20 (130Mbps), Ant1 Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps), Ant1 Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 107 of 177 Modulation Standard: 802.11n HT20 (130Mbps), Ant1 Channel: 11 Modulation Standard: 802.11n HT20 (130Mbps), Ant2 Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 108 of 177 Modulation Standard: 802.11n HT20 (130Mbps), Ant2 Channel: 06 Modulation Standard: 802.11n HT20 (130Mbps), Ant2 Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 109 of 177 Modulation Standard: 802.11n HT40 (270Mbps), Ant1 Channel: 03 Modulation Standard: 802.11n HT40 (270Mbps), Ant1 Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 110 of 177 Modulation Standard: 802.11n HT40 (270Mbps), Ant1 Channel: 09 Modulation Standard: 802.11n HT40 (270Mbps), Ant2 Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 111 of 177 Modulation Standard: 802.11n HT40 (270Mbps), Ant2 Channel: 06 Modulation Standard: 802.11n HT40 (270Mbps), Ant2 Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 112 of 177 26dB Bandwidth Modulation Standard: 802.11b (11Mbps), Ant1 Channel: 01 Modulation Standard: 802.11b (11Mbps), Ant1 Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 113 of 177 26dB Bandwidth Modulation Standard: 802.11b (11Mbps), Ant1 Channel: 11 Modulation Standard: 802.11b (11Mbps), Ant2 Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 114 of 177 26dB Bandwidth Modulation Standard: 802.11b (11Mbps), Ant2 Channel: 06 Modulation Standard: 802.11b (11Mbps), Ant2 Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 115 of 177 26dB Bandwidth Modulation Standard: 802.11g (54Mbps), Ant1 Channel: 01 Modulation Standard: 802.11g (54Mbps), Ant1 Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 116 of 177 26dB Bandwidth Modulation Standard: 802.11g (54Mbps), Ant1 Channel: 11 Modulation Standard: 802.11g (54Mbps), Ant2 Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 117 of 177 26dB Bandwidth Modulation Standard: 802.11g (54Mbps), Ant2 Channel: 06 Modulation Standard: 802.11g (54Mbps), Ant2 Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 118 of 177 26dB Bandwidth Modulation Standard: 802.11n HT20 (130Mbps), Ant1 Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps), Ant1 Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 119 of 177 26dB Bandwidth Modulation Standard: 802.11n HT20 (130Mbps), Ant1 Channel: 11 Modulation Standard: 802.11n HT20 (130Mbps), Ant2 Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 120 of 177 26dB Bandwidth Modulation Standard: 802.11n HT20 (130Mbps), Ant2 Channel: 06 Modulation Standard: 802.11n HT20 (130Mbps), Ant2 Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 121 of 177 26dB Bandwidth Modulation Standard: 802.11n HT40 (270Mbps), Ant1 Channel: 03 Modulation Standard: 802.11n HT40 (270Mbps), Ant1 Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 122 of 177 26dB Bandwidth Modulation Standard: 802.11n HT40 (270Mbps), Ant1 Channel: 09 Modulation Standard: 802.11n HT40 (270Mbps), Ant2 Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 28 of 177 4.7 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI0906271-A Cerpass Technology Corp. Issued date : Feb. 25, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 83 of 177 5.6 Test Photographs Front View Rear View
