QI3BIL-5200GR4802.11g ADSL2+Firewall Router

BiPAC 5200 Series (802.11g) ADSL2+ Firewall Router User’s Manual Chapter 1................................................................................................1 1.1 Introducing the BiPAC 5200 Series.......................................1 1.2 Features of the BiPAC 5200 Series.......................................3 1.3 Applications for the BiPAC 5200 Series.................................6 Chapter 2................................................................................................8 2.1 Important note for using the BiPAC 5200 Series...................8 2.2 Package Contents.................................................................8 2.3 The Front LEDs.....................................................................9 2.4 The Rear Ports....................................................................10 2.5 Cabling................................................................................12 Chapter 3..............................................................................................13 3.1 Before Configuration............................................................13 3.2 Step-by-Step Installation......................................................18 3.3 Factory Default Settings......................................................22 3.4 LAN and WAN Port Addresses............................................23 3.5 Information from your ISP....................................................23 3.6 Configuring with your Web Browser....................................24 Chapter 4..............................................................................................25 4.1 Quick Start...........................................................................26 4.2 Interface Setup....................................................................31 4.3 Advanced Setup...................................................................42 4.4 Access Management...........................................................51 4.5 Maintenance........................................................................60 4.6 Status...................................................................................65 4.7 Help.....................................................................................71 Chapter 5..............................................................................................72 APPENDIX.............................................................................................74 ii Chapter 1 Introduction the BiPAC 5200 Series 1.1 Introducing the BiPAC 5200 Series Welcome to the Billion BiPAC 5200 Series ADSL2+ Modem/Router. Your Billion router is an “all-in-one” unit, combining an ADSL modem, ADSL router and Ethernet network switch, providing everything you need to get the machines on your network connected to the Internet over your ADSL broadband connection. The BiPAC 5200 Series complies with ADSL2+ standards for worldwide deployment and supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It is designed for small office, home office and residential users, enabling even faster speed Internet connections. User can enjoy ADSL services and broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier and faster than ever before. The product supports PPPoA (RFC 2364 – PPP (Point-to-Point Protocol) over ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with ISP. The product also supports VC-based and LLC-based multiplexing. It is the perfect solution to connect a small group of PCs to a high-speed broadband Internet connection. Multi-users can have high-speed Internet access simultaneously. This product also serves as an Internet firewall, protecting your network from being accessed by outside users. Not only provide the natural firewall function (Network Address Translation, NAT), it also provides rich firewall features to secure user’s network. All incoming data packets are monitored and filtered. Besides, it can also be configured to block internal users from accessing to the Internet. The product provides two levels of security support. First, it masks LAN users’ IP addresses which are invisible to outside users on the Internet, making it much more difficult for a hacker to target a machine on your network. Secondly, it can block and redirect certain ports to limit the services that outside users can access. For example, to ensure that games and other Internet applications will run properly, user can open some specific ports for outside users to access internal services in network. Integrated DHCP (Dynamic Host Control Protocol) services, client and server, allow multiple users to get their IP addresses automatically on boot up from the product. Simply set local machines as a DHCP client to accept a dynamically assigned IP address from DHCP server and reboot. Each time local machine is powered up; the router will recognize it and assign an IP address to instantly connect it to the LAN. For advanced users, Virtual Service function allows the product to provide limited visibility to local machines with specific services for outside users. An ISP (Internet Service Providers) provided IP address can be set to the product and then specific services can be rerouted to specific computers on the local network. For instance, a dedicated web server can be connected to the Internet via the product and then incoming requests for HTML that are received by the product can be rerouted to the dedicated local web server, even though the server now has a different IP address. In this example, the product is on the Internet and vulnerable to attacks, but the server is protected. Virtual Server can also be used to re-task services to multiple servers. For instance, the product can be set to allow separated FTP, Web, and Multiplayer game servers to share the sam…

Text truncated - open the document above for the full version.

Billion Electric Co., Ltd 8F., No.192, Sec.2, Chung -Hsing Road, Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. TEL:+886-2-29145665 FAX:+886-2-29182859 Date: 2007/08/03 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation,including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Billion Electric Co., Ltd. 8F., No.192, Sec.2, Chung -Hsing Road, Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Confidentiality Request FCC ID： QI3BIL-5200GR4 Product：802.11g ADSL2+Firewall Router Model：BiPAC 5200G R4 / BEC 5200G R4 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature:

http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11511618df93d910&ww=1131&cvap=8&qt=&zx=3j049fdkurqj Billion Electric Co., Ltd., FCC ID: QI3BIL-5200GR4, Assessment NO.: AN07T7168, Notice#2 Inbox Reply from "vicky.liu" <[email protected]> hide details Sep 10 (7 days ago) to [email protected] cc [email protected] date Sep 10, 2007 9:37 PM subject Billion Electric Co., Ltd., FCC ID: QI3BIL-5200GR4, Assessment NO.: AN07T7168, Notice#2 Dear Tim, Thank you for your reply and my answer is as belowing. Q1: The user manual must include the following additional statement with the information on page 78/78. Please provide a revised manual. "The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons." ans: Please find the attachment for revised user manual. Q2: The user manual page 40 in the Channel ID function shows UNITED STATES. Please provide an attestation statement that units marketed to the US will not allow users to access or select settings that will allow operation on channels outside the frequency range of 2412-2462 MHz. ans: Please find the attachment for the attestation. If this form is OK, my client will sign it. ----- vicky.liu/ccsemc 2007/09/10 09:25 AM ----- <[email protected]> 2007/09/07 11:31 PM "Vicki Liu" <[email protected]> <[email protected]> Billion Electric Co., Ltd., FCC ID: QI3BIL-5200GR4, Assessment NO.: AN07T7168, Notice#2 http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...1511618df93d910&ww=1131&cvap=8&qt=&zx=3j049fdkurqj (1 of 4)9/17/2007 11:46:22 AM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11511618df93d910&ww=1131&cvap=8&qt=&zx=3j049fdkurqj Dear Vicki, The review is complete. Please reply to the following items. If you have questions, please ask. Q1: The user manual must include the following additional statement with the information on page 78/78. Please provide a revised manual. "The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons." Q2: The user manual page 40 in the Channel ID function shows UNITED STATES. Please provide an attestation statement that units marketed to the US will not allow users to access or select settings that will allow operation on channels outside the frequency range of 2412-2462 MHz. Best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. ________________________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention. 2 attachments — Download all attachments BiPAC 5200G R4 BEC 5200G R4_User Manual(960910).pdf 3916K View as HTML Download Attestation.doc 28K View as HTML Open as a Google document Download Reply Reply to all Forward Invite vicky.liu to Gmail Reply from Tim Dwyer <[email protected]> hide details Sep 11 (6 days ago) to "vicky. liu" <[email protected]> http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...1511618df93d910&ww=1131&cvap=8&qt=&zx=3j049fdkurqj (2 of 4)9/17/2007 11:46:22 AM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11511618df93d910&ww=1131&cvap=8&qt=&zx=3j049fdkurqj cc [email protected], [email protected] date Sep 11, 2007 12:42 PM subject Re: Billion Electric Co., Ltd., FCC ID: QI3BIL-5200GR4, Assessment NO.: AN07T7168, Notice#2 mailed-by gmail.com Dear Vicki, Yes the statement is ok. Please sign and send to me. Thank you and best regards, Tim - Show quoted text - <tim.dwyer@ccsemc. com> 2007/09/07 11:31 PM "Vicki Liu" < [email protected]> <[email protected] > Billion Electric Co., Ltd., FCC ID: QI3BIL-5200GR4, Assessment NO.: AN07T7168, Notice#2 Reply Reply to all Forward Reply from "vicky.liu" <[email protected]> hide details Sep 16 (13 hours ago) to Tim Dwyer <[email protected]> cc [email protected], [email protected] date Sep 16, 2007 10:38 PM subject Re:Re: Billion Electric Co., Ltd., FCC ID: QI3BIL-5200GR4, Assessment NO.: AN07T7168, Notice#2 Dear Tim, Thank you for your reply and please find the attachment for Attestation. If it still has any questions, please let me know. http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...1511618df93d910&ww=1131&cvap=8&qt=&zx=3j049fdkurqj (3 of 4)9/17/2007 11:46:22 AM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11511618df93d910&ww=1131&cvap=8&qt=&zx=3j049fdkurqj "Tim Dwyer" <Timothy_Dwyer@ieee. org> [email protected] 2007/09/12 12:42 AM "vicky.liu" <[email protected]> [email protected], [email protected] Re: Billion Electric Co., Ltd., FCC ID: QI3BIL-5200GR4, Assessment NO.: AN07T7168, Notice#2 - Show quoted text - <tim.dwyer@ccsemc. com> 2007/09/07 11:31 PM "Vicki Liu" < [email protected]> < [email protected] > Billion Electric Co., Ltd., FCC ID: QI3BIL-5200GR4, Assessment NO.: AN07T7168, Notice#2 BiPAC 5200G R4 BEC 5200G R4_Attestation.pdf 25K View as HTML Download http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...1511618df93d910&ww=1131&cvap=8&qt=&zx=3j049fdkurqj (4 of 4)9/17/2007 11:46:22 AM

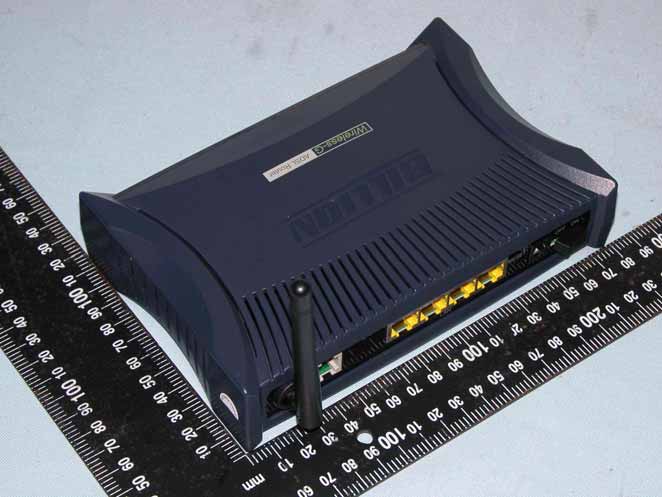

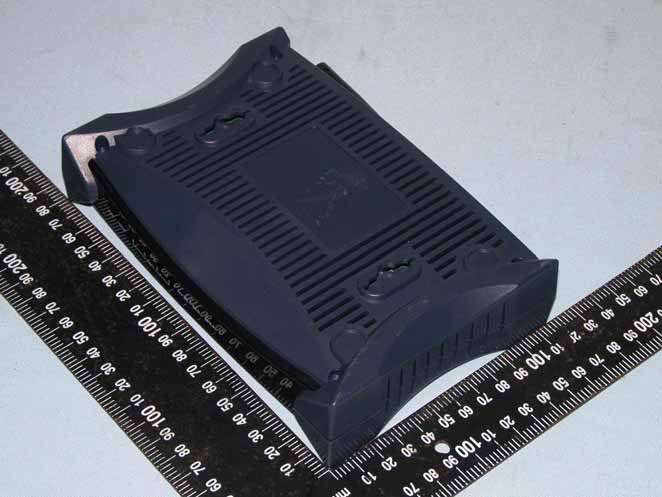

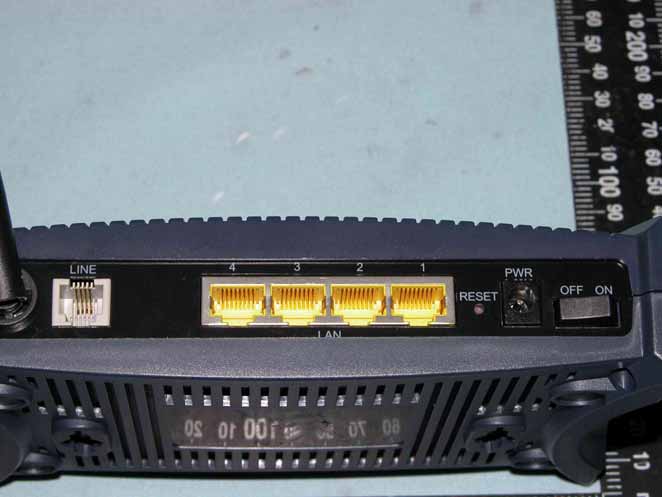

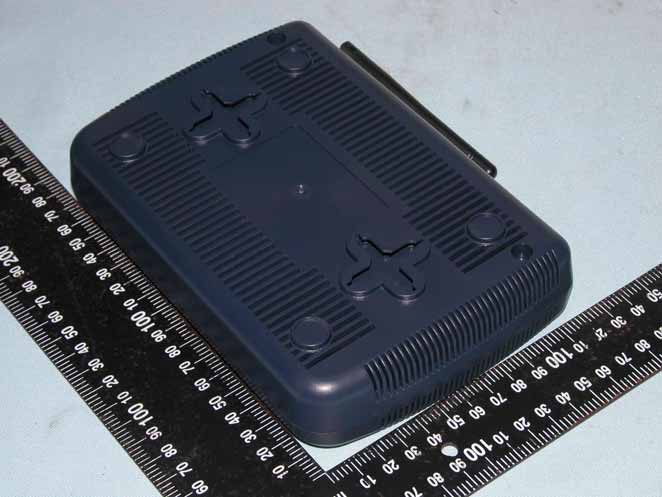

Compliance Certification Services Inc. Report No.70725304 Page 1 of 12 External Photo Compliance Certification Services Inc. Report No.70725304 Page 2 of 12 Compliance Certification Services Inc. Report No.70725304 Page 3 of 12 Compliance Certification Services Inc. Report No.70725304 Page 4 of 12

Billion Electric Co., Ltd. Product: 802.11g ADSL2+ Firewall Router Power Input: 12V AC, 1A (Minimum) The device confirmed to comply with the requirements of FCC Part 15 and Part 68 Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Model: BiPAC 5200GR4 FCC ID:QI3BIL-5200GR4 Made in China

Compliance Certification Services Inc. Report No.70725304 Page 5 of 12 Internal Photo Compliance Certification Services Inc. Report No.70725304 Page 6 of 12 Compliance Certification Services Inc. Report No.70725304 Page 7 of 12 Compliance Certification Services Inc. Report No.70725304 Page 8 of 12 Compliance Certification Services Inc. Report No.70725304 Page 9 of 12 Compliance Certification Services Inc. Report No.70725304 Page 10 of 12 Power Adapter Photo Compliance Certification Services Inc. Report No.70725304 Page 11 of 12 Compliance Certification Services Inc. Report No.70725304 Page 12 of 12

亞 驪 企 業 股 份 有 限 公 司 ARISTOTLE ENTERPRISES 承 認 申 請 書 客戶名稱: Customer 盛達電業股份有限公司 廠商料號: Part No. RFA-02-C2H0-70B-70C 品名: Description 2.4GHz,平轉軸,無鉛 圖號: Drawing No. RFA-02-C2H0-70B-70C.DWG 客戶料號: Drawing No. 出廠簽章: 檢 查 TEST BY 核 對 CHECK BY 承 認 APPROVE BY 周沂珮 黃秋芳 廖煥文 承認簽章: 檢 查 TEST BY 核 對 CHECK BY 承 認 APPROVE BY 地址:台北縣中和市莒光路63號8樓 電話:02-2225-8209 傳真:02-2225-7523 表單編號：QP-0603-F02 版本：A DESCRIPTION : Swivel Access Point Antenna MODEL NO : RFA-02-C2H0-70B-70C 1.1 ELECTRICAL Frequency Range: 2400~2500 MHZ Gain: 2.0dBi (min.) VSWR: ≦ 2 Polarization: Linear, Vertical Impedance： 50Ω Cable: φ1.13mm 1.2 MECHANICAL Condition：Non operating during test. Material : PCABS(UL94V-0) Endurance Number of 90° rotation of the connector：1000 cycles (min.) Mandatory：Guaranty of functionalities after test. Bending: Number of 90°at the hinge parts and bending on one direction with1 ㎏ force：1000 cycles Mandatory：No mechanical damage tolerated. Guaranty of functionalities after test. Antenna resistance Tests are applicable to all parts and both sides. Traction: Tractions force applied 3 times on plugs during 15 second：5 ㎏ Mandatory：No mechanical damage tolerated. Guaranty of functionalities after test. 1.3 ENVIROMENTAL Storage Condition： Non operating during test. Cold: -40°C during 72h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +80°C during 96h (IEC 68-2-2 standard Bb/Bd test) Humidity: +40°C at 95%R.H. during 4 days (IEC 68-2-56 standard Cb test) Mandatory：No mechanical or visible damage tolerated. Guaranty of functionalities after test. Operation Condition： Operating during test. Cold: -10°C during 48h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +55°C during 48h (IEC 68-2-2 standard Bb/Bd test) Composite: -10°Cto +55°C 95%R.H 4 cycles(IEC 68-2-30 standard Nb test) Mandatory：No mechanical or visible damage tolerated. Guaranty of functionalities during and after test. ANTENNA RADIATION PATTERN 11b dipole Antenna Radiation pattern : E-Plane 11b dipole Antenna Radiation pattern : H-Plane -Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) -Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) -Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) A B C D E F G H Impedance Impedance Impedance Impedance Approved by Approved by Customer REMARK : B & F ELECTRONICS CO., LTD. Checked byReported by 100 MHz MIN 72 Test Frequancy Test Frequancy MIN 46 25 MHz SPECIFICATION 3.50 ±0.15mm Date : 1,OCT.05 Customer : 驪 Item : B15 RH 3.5x9x1.3 Ref. No : K5B RH 3.5x9x1.3Mechanical Assembly Test equipment : HP E4991A Test Frequancy Test Frequancy Electrical Requirement 1.30 ±0.15mm 9.00 ±0.30mm Wire : TCWφ0.65x63mm Winding : 1 Turn Material : B15 Nickel/Zinc HP 16194A TEST FIXTUREHP E4991A B. F. B CA ABC ODHTID MINMIN ±0.15±0.30±0.15 46Ω72Ω 3.509.001.30 1 82.5116.43.549.111.39 2 82.9116.83.569.051.37 3 83.2117.53.559.081.40 4 82.6116.93.539.091.36 5 82.2116.53.569.031.38 6 7 8 9 10 X R 驪 HPE4991A/16194A 1~1000 MHz TCWφ 0.65x63mm at 1 turn Ref. No. B15 RH 3.5x9x1.3K5B RH 3.5x9x1.3 1-Nov-05 B & F ELECTRONICS CO., LTD. SPEC. INSPECTION DATA Date FREQ. Impedance 25 MHz 100 MHz Coil Spec. Customer Item Part No. Test equipment Test Frequency Dimension (Unit : mm) B. F. Ω) -Heat-Shrinkable Tubing(for SGS-POLYOLEFIN HEAT SHRINKABLE TUBE(LONEWELL) CE/2005/75754) -Heat-Shrinkable Tubing(for SGS-POLYOLEFIN HEAT SHRINKABLE TUBE(LONEWELL) CE/2005/75754)

Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 1 of 73 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For 802.11g ADSL2+Firewall Router Model : BiPAC 5200G R4 ; BEC 5200G R4 Data Applies To : BiPAC 5200G R5 ; BiPAC 7300G R4 ; BEC 5200G R5 ; BEC 7300G R4 Issued for Billion Electric Co., Ltd. 8F., No. 192, Sec. 2, Chung-Hsing Road, Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 2 of 73 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................6 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES .......................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................ 6 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 8 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9-10 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 11 8.1 6dB BANDWIDTH ................................................................................................................ 11-16 8.2 99% BANDWIDTH ............................................................................................................... 17-22 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 23-28 8.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 29-30 8.5 AVERAGE POWER............................................................................................................... 31-32 8.6 POWER SPECTRAL DENSITY ............................................................................................ 33-38 8.7 CONDUCTED SPURIOUS EMISSION................................................................................ 39-43 8.8 RADIATED EMISSIONS ...................................................................................................... 44 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................. 44-47 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................ 48 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................... 49-54 8.8.4 RESTRICTED BAND EDGES..................................................................................... 55-62 8.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 63-66 9. ANTENNA REQUIREMENT .................................................................................................... 67 9.1 STANDARD APPLICABLE................................................................................................... 67 9.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 67 APPENDIX SETUP PHOTOS....................................................................................................... 68-73 Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 3 of 73 1. TEST REPORT CERTIFICATION Applicant Billion Electric Co., Ltd. Address 8F., No. 192, Sec. 2, Chung-Hsing Road, Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test 802.11g ADSL2+Firewall Router Model BiPAC 5200G R4 ; BEC 5200G R4 Data Applies To BiPAC 5200G R5 ; BiPAC 7300G R4 ; BEC 5200G R5 ; BEC 7300G R4 Tested Date July 25 ~ August 08, 2007 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2006 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Serv…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 68 of 73 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 69 of 73 Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 70 of 73 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 71 of 73 Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 72 of 73 RF PORT COUNTED MEASURE SETUP Compliance Certification Services Inc.FCC ID QI3BIL-5200GR4 Report No.70725304-RP1 Page 73 of 73 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
