QI3BIL-6200NXL3.75G Wireless-N Broadband Router

BiPAC 6200NXL 3.75G Wireless-NBroadband Router User Manual Version release: 1.02h Last revised: 2010-8-3 Table of Contents Chapter 1: Introduction .......................................................................................................................1 Introduction to your R outer .............................................................................................................1 Features......................................................................................................................................2 Operating Environment...............................................................................................................5 Chapter 2: Product Ov erview .............................................................................................................6 Important note for usin g this router .................................................................................................8 Package Contents ...........................................................................................................................8 Device Description..........................................................................................................................9 Cabling...........................................................................................................................................11 Chapter 3: Basic Installation .............................................................................................................12 Network Configuration..................................................................................................................13 Factory Default Settings................................................................................................................21 Information from your ISP.............................................................................................................22 Configuring with your Web Browser ..............................................................................................23 Chapter 4: Basic Configuration.........................................................................................................24 Status............................................................................................................................................25 Quick Start ....................................................................................................................................26 WAN .............................................................................................................................................27 WLAN ...........................................................................................................................................29 Chapter 5: Advanced Configuration..................................................................................................32 Status............................................................................................................................................33 3G Status ..................................................................................................................................34 USB Status ................................................................................................................................35 ARP Table.................................................................................................................................36 DHCP Table..............................................................................................................................36 System Log...............................................................................................................................37 Firewall Log...............................................................................................................................37 UPnP Portmap ..........................................................................................................................38 Quick Start....................................................................................................................................39 Configuration.................................................................................................................................44 LAN (Local Area Network) ......................................................................................................... 44 Ethernet.................................................................................................................................45 IP Alias...................................................................................................................................45 Wireless.................................................................................................................................46 Wireless Security...................................................................................................................48 WPS ......................................................................................................................................51 DHCP Server.........................................................................................................................63 WAN (Wide Area Network)........................................................................................................65 WAN Interface(EW AN)...........................................................................................................65 WAN Interface(3G)................................................................................................................ 65 WAN Interface(Dual WAN).....................................................................................................66 WAN Profile...........................................................................................................................67 Syste…

Text truncated - open the document above for the full version.

Date: 12/15/2009 Subject: Ad Hoc Mode Function Declaration FCC ID: QI3BIL-6200NXL To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards,

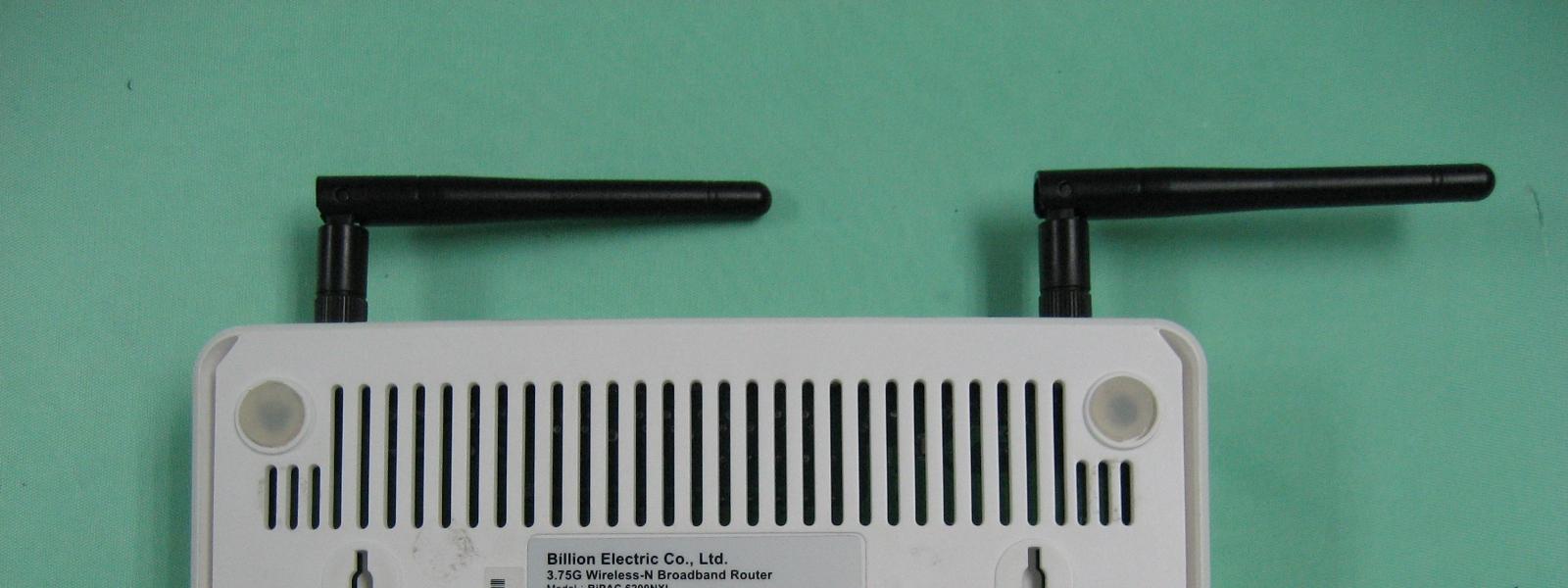

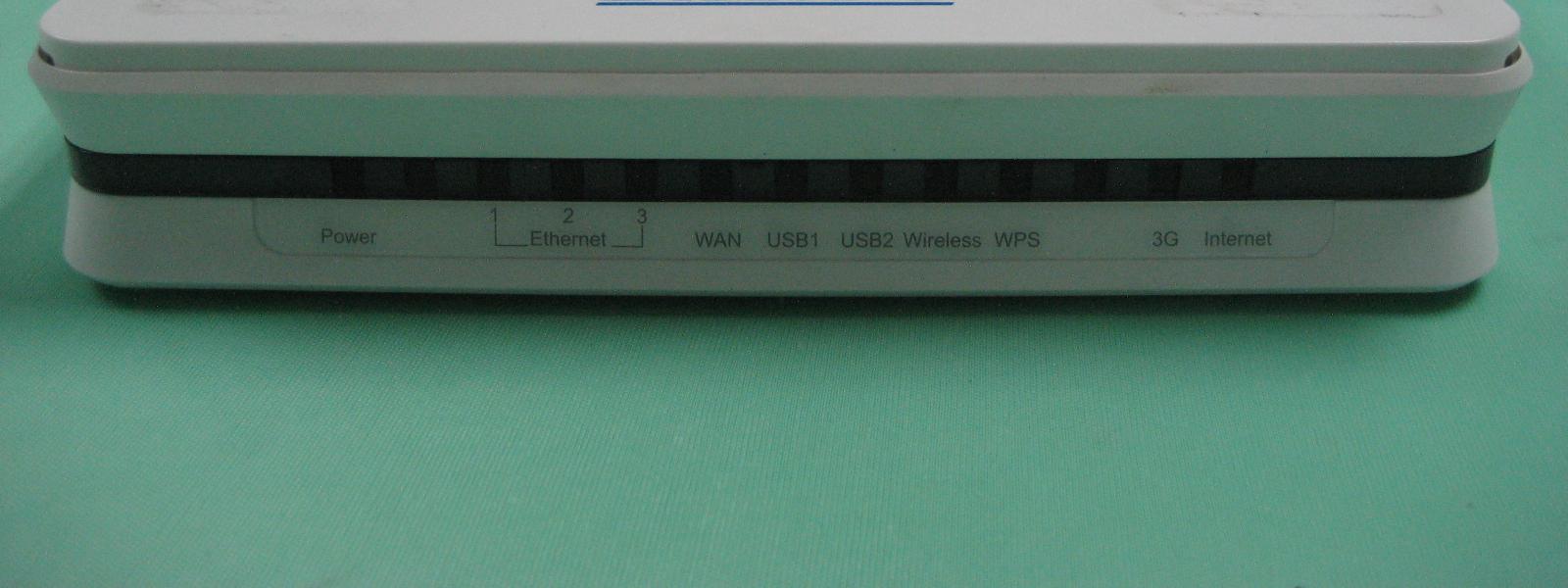

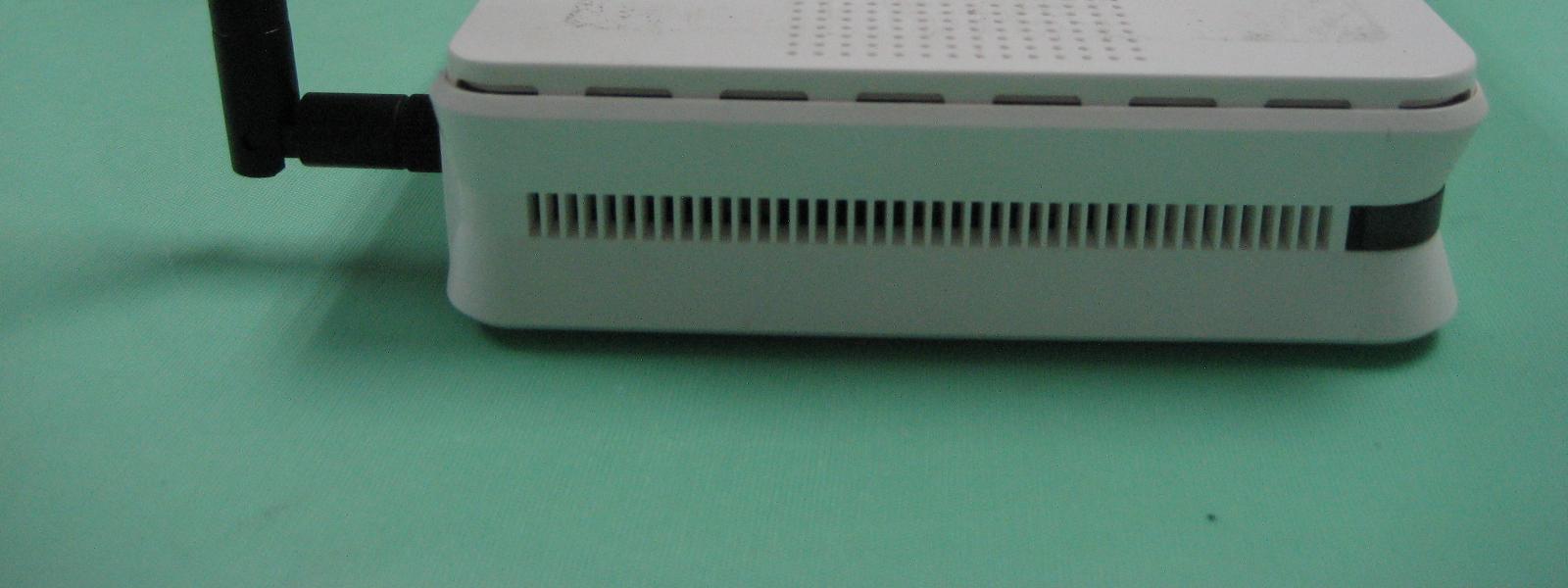

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

FCC ID: QI3BIL-6200NXL Operation Description The Equipment Under Test (EUT) is a Billion Electric Co., Ltd., 3.75G Wireless-N Broadband Router, the transmission signal is digital modulated with channel frequency range 2412- 2462MHz / 2422-2452MHz. The measurement were conducted at different modulation and data rate, the test results shown in this test report is based on the worst case of the initial investigation. Broadband signal from the Ethernet port come in through the RT3052 processing, and generates a WiFi signal, through U510/U512 filter, transmit from antennas. The EUT has 2pcs 20cm Dipole Antenna which is connected to the reverse-polarity SMA connector on the PCB of the main unit, the antenna gain = 2dBi. All component install on inside of EUT. User unable to remove or changed the Antenna. The user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the user’s manual. The EUT is a router with WiFi function, continues to transmit while power on, Modulation by IC; and type is DSSS/ OFDM modulation. DSSS:CCK/DBPSK/DQPSK, OFDM:BPSK/QPSK/16QAM/64QAM. Antenna: 2dBi Dipole Fixed Antenna with SMA connector x 2 (2T2R Spatial Multiplexing MIMO configuration; both antennas are for signal transceiving.) Channel List for 802.11 b/g, n20/40: For both 20MHz bandwidth systems, use Channel 1-Channel 11. For both 40MHz bandwidth systems, use Channel 3-Channel 9. Transmit Power: 11n:14dBm±1.5dBm, 11g: 14dBm±1.5dBm, 11b: 17dBm±1.5dBm maximum transfer rate: 802.11b-11Mbps, and 802.11g- 54Mbps, and 802.11n-300Mbps.

1.1. Test Result of RF Exposure Evaluation . Product: 3.75G Wireless-N Broadband Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain Antenna 1 : 2.0dBi Antenna 2 : 2.0dBi 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance (1)Test Date: Oct. 29, 2009 Temperature: 27°C Humidity: 61％ Modulation Standards Antenna Gain (dBi) Minimum Separation Distance (cm) Frequency (MHz) Output Power to Antenna (dBm) Power Density(s) (mW/cm 2 ) 802.11b (11Mbps) 2.0 20 2412 14.98 0.0099 802.11g (54Mbps) 2.0 20 2437 14.47 0.0088 (2) Test Date: Oct. 29, 2009 Temperature: 27°C Humidity: 61％ Modulation Standards Antenna Gain (dBi) Minimum Separation Distance (cm) Frequency (MHz) Output Power to Antenna (dBm) Power Density(s) (mW/cm 2 ) 802.11n, HT20 (6.5Mbps) 2.0 20 2462 15.49 0.0112 802.11n, HT40 (13.5Mbps) 2.0 20 2422 12.51 0.0056 The MPE is calculated as 0.020mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

STC Test Report Date : 2010-07-07 Page 1 of 71 No. : MH183886 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (C00802): Billion Electric Co., Ltd. 8F, No. 192, Sec.2, Chung Hsing Rd., Hsin Tien City, Taipei Hsien Taiwan. Manufacturer: Billion Electric Co., Ltd. 8F, No. 192, Sec.2, Chung Hsing Rd., Hsin Tien City, Taipei Hsien Taiwan. Description of Sample(s): Submitted sample(s) said to be Product: 3.75G Wireless-N Broadband Router Brand Name: BILLION Model Number: BiPAC 6200NXL FCC ID: QI3BIL-6200NX Date Sample(s) Received: 2010-02-23 Date Tested: 2010-03-05 to 2010-07-21 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 4 Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2010-07-07 Page 2 of 71 No. : MH183886 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 71 Content Page 2-3 of 71 1.0 General Details 1.1 Test Laboratory Page 2 of 71 1.2 Applicant Details Page 3 of 71 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 4 of 71 Description of EUT operation 1.4 Date of Order Page 4 of 71 1.5 Submitted Sample(s) Page 4 of 71 1.6 Test Duration Page 4 of 71 1.7 Country of Origin Page 4 of 71 2.0 Technical Details 2.1 Investigations Requested Page 5 of 71 2.2 Test Standards and Results Summary Page 5 of 71 3.0 Test Results 3.1 Emission Page 6 – 65 of 71 STC Test Report Date : 2010-07-07 Page 3 of 71 No. : MH183886 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 66 of 71 Appendix B Ancillary Equipment Page 67 of 71 Appendix C Transmitter Function Parameters Page 68-69 of 71 Appendix D Photographs Page 70 -71 of 71 STC Test Report Date : 2010-07-07 Page 4 of 71 No. : MH183886 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Billion Electric Co., Ltd. 8F, No. 192, Sec.2, Chung Hsing Rd., Hsin Tien City, Taipei Hsien Taiwan. Manufacturer Billion Electric Co., Ltd. 8F, No. 192, Sec.2, Chung Hsing Rd., Hsin Tien City, Taipei Hsien Taiwan. STC Test Report Date : 2010-07-07 Page 5 of 71 No. : MH183886 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample(s) Product: 3.75G Wireless-N Broadband Router Manufacturer: Billion Electric Co., Ltd. Brand Name: BILLION Model Number: BiPAC 6200NXL Additional Product Name(s): 3.75G Broadband Router, 3.75G Wireless-N VPN Broadband Router, 3.75G VPN Broadband Router Additional Model Number(s): BiPAC 6200NX Input Voltage: The AC/DC Adaptor used for the tests was provided by the applicant with the following details: Two pins (Live / Neutral) only adaptor, Model Number: PAW018A12UL 8066, Input: 100-240Va.c. 50/60Hz 0.5A, Output: 12Vd.c. 1.2A. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Billion Electric Co., Ltd., 3.75G Wireless-N Broadband Router, the transmission signal is digital modulated with channel frequency range 2412- 2462MHz / 2422-2452MHz. The measurement were conducted at different modulation and data rate, the test results shown in this test report is based on the worst case.of the initial investigation. 1.4 Date of Order 2010-02-23 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2010-03-05 to 2010-04-12 1.7 Country of Origin China STC Test Report Date : 2010-07-07 Page 6 of 71 No. : MH183886 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
