QI3BIL-6300VNPVoIP Wireless-N VPN Broadband Router

BiPAC 6300VNP VoIP Wireless-N (VPN) Broadband Router  User Manual Version release: v1.02b.dt28 Last revised: July 2, 2014 Table of Contents Chapter1:Introduction ........................................................................................................................................ 1 IntroductiontoyourRouter............................................................................................................................. 1 Features&Specifications ................................................................................................................................. 2 HardwareSpecifications................................................................................................................................... 4 ApplicationDiagram......................................................................................................................................... 4 Chapter2:ProductOverview................................................................................................................................ 5 ImportantNoteforUsingThisRouter.............................................................................................................. 5 DeviceDescription............................................................................................................................................ 6 FrontPanelLEDs........................................................................................................................................... 6 RearPanelConnectors ................................................................................................................................. 7 Cabling .............................................................................................................................................................. 8 Chapter3:BasicInstallation................................................................................................................................. 9 NetworkConfiguration–IPv4 ........................................................................................................................ 10 Configuring PCinWindows7(IPv4) ........................................................................................................... 10 ConfiguringPCinWindowsVista(IPv4)..................................................................................................... 12 ConfiguringPCinWindowsXP(IPv4)......................................................................................................... 14 ConfiguringPCinWindows2000(IPv4)..................................................................................................... 15 ConfiguringPCinWindows98/ME ............................................................................................................ 16 ConfiguringPCinWindowsNT4.0.............................................................................................................. 17 NetworkConfiguration–IPv6 ........................................................................................................................ 18 ConfiguringPCinWindows7(IPv6) ........................................................................................................... 18 ConfiguringPCinWindowsVista(IPv6)..................................................................................................... 20  ConfiguringPCinWindowsXP(IPv6)......................................................................................................... 22 DefaultSettings .............................................................................................................................................. 23 InformationfromYourISP.............................................................................................................................. 24 Chapter4:DeviceConfiguration......................................................................................................................... 25 LogintoyourDevice....................................................................................................................................... 25 Status .............................................................................................................................................................. 27 DeviceInfo.................................................................................................................................................. 27 SystemLog.................................................................................................................................................. 29 Statistics...................................................................................................................................................... 30 DHCPTable ................................................................................................................................................. 33 DiskStatus .................................................................................................................................................. 33 VoIPStatus.................................................................................................................................................. 33 VoIPStatus.............................................................................................................................................. 33 VoIPCallLog ........................................................................................................................................... 34 QuickStart ...................................................................................................................................................... 35 Configuration....................................................…

Text truncated - open the document above for the full version.

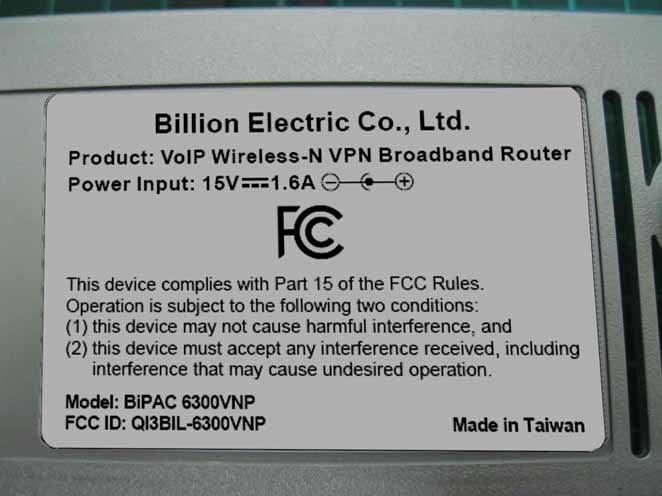

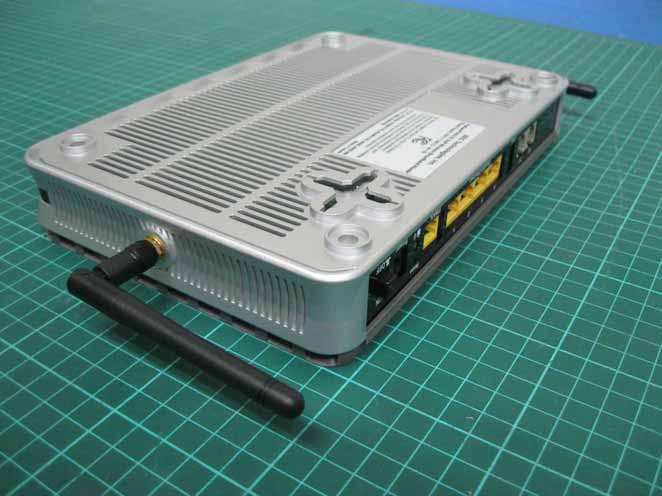

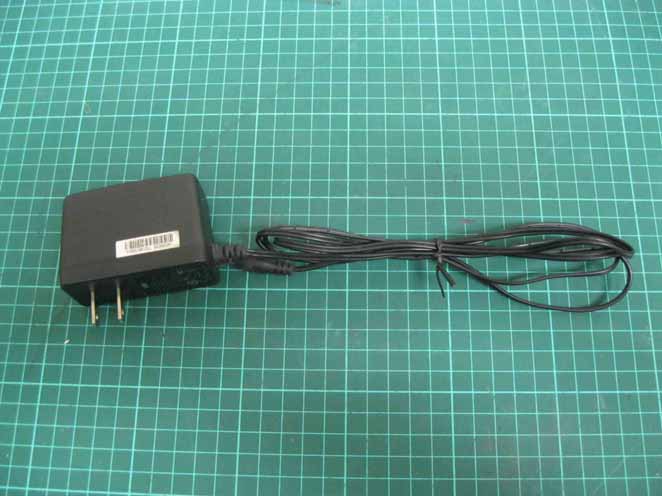

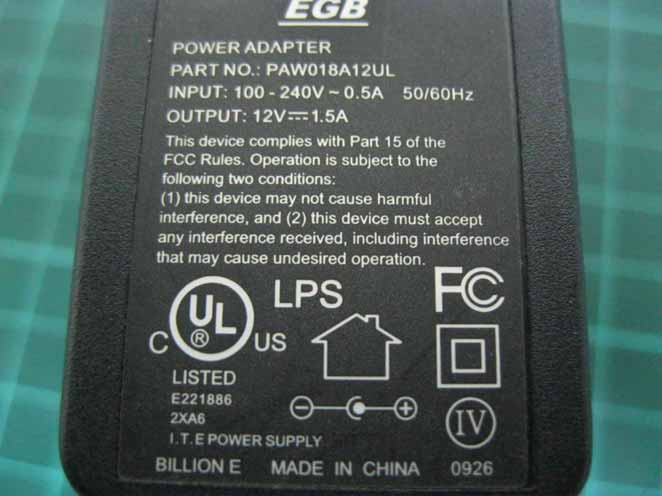

Report No.T140506S03 Page 1 of 9 External Photo(Model : BiPAC 6300VNP , BEC VG2600 ) Report No.T140506S03 Page 2 of 9 Report No.T140506S03 Page 3 of 9 Report No.T140506S03 Page 4 of 9 Adapter Photo(Model : PAW024A15US) Report No.T140506S03 Page 5 of 9 Report No.T140506S03 Page 6 of 9 Adapter Photo(Model : PAW018A12UL) Report No.T140506S03 Page 7 of 9 Report No.T140506S03 Page 8 of 9 Report No.T140506S03 Page 9 of 9 Antenna Photo

Report No.T140506S03 Page 1 of 8 Internal Photo(Model : BiPAC 6300VNP , BEC VG2600) Report No.T140506S03 Page 2 of 8 Report No.T140506S03 Page 3 of 8 Report No.T140506S03 Page 4 of 8 Report No.T140506S03 Page 5 of 8 Report No.T140506S03 Page 6 of 8 Report No.T140506S03 Page 7 of 8 Report No.T140506S03 Page 8 of 8

Compliance Certification Services Inc. Report No.: T140506S03-RP1 Date of Issue: June 24, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT VoIP Wireless-N VPN Broadband Router Model BiPAC 6300VNP , BEC VG2600 Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :2.36 dBi (Numeric gain 1.72) Maximum output power IEEE 802.11b Mode: 25.41 dBm (347.536 mW) IEEE 802.11g Mode: 26.52 dBm (448.745 mW) IEEE 802.11n HT 20 Mod e 26.23 dBm (419.759 mW) IEEE 802.11n HT 40 Mod e 24.35 dBm (272.270 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140506S03-RP1 Date of Issue: June 24, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/06/24 Initial Issue ALL Michelle Chiu Compliance Certification Services Inc. Report No.: T140506S03-RP1 Date of Issue: June 24, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 377 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/377 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140506S03-RP1 Date of Issue: June 24, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 112412~2462347.541.72200.11901 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 112412~2462448.751.72200.15361 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 112412~2462419.761.72200.14371 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 72422~2452272.271.72200.09321

FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 1 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2009 TEST REPORT For VoIP Wireless-N VPN Broadband Router Model : BiPAC 6300VNP , BEC VG2600 Trade Name : Billion , BEC Issued for Billion Electric Co., Ltd. 8F, No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: June 24, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 2 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/24/2014 Initial Issue All Page 125 Michelle Chiu FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 3 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 7 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS ................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 12 7.1 6dB BANDWIDTH .................................................................................................. 12 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 30 7.3 AVERAGE POWER ............................................................................................... 33 7.4 POWER SPECTRAL DENSITY ............................................................................. 36 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 55 7.6 RADIATED EMISSION ........................................................................................... 80 7.7 CONDUCTED EMISSION ...................................................................................... 115 APPENDIX I SETUP PHOTOS ........................................................................................ 122 FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 4 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Billion Electric Co., Ltd. Address 8F, No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Equipment Under Test VoIP Wireless-N VPN Broadband Router Model BiPAC 6300VNP , BEC VG2600 Trade Name Billion , BEC Tested Date May 06 ~ June 14 , 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 5 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name VoIP Wireless-N VPN Broadband Router Model Number BiPAC 6300VNP , BEC VG2600 Identify Number T140506S03 Received Date May 06, 2014 Frequency Range IEEE 802.11b/g, 802.11gn HT20 : 2412MHz ~ 2462MHz IEEE 802.11gn HT40 : 2422MHz ~ 2452MHz Transmit Power IEEE 802.11b : 25.41dBm (0.3473W) IEEE 802.11g : 26.52dBm (0.4488W) IEEE 802.11gn HT20 : 26.23dBm (0.4201W) IEEE 802.11gn HT40 : 24.35dBm (0.2721W) Channel Spacing IEEE 802.11b/g, 802.11gn HT20/HT40 : 5MHz Channel Number IEEE 802.11b/g, 802.11gn HT20: 11 Channels IEEE 802.11gn HT40 : 7 Channels Transmit Data Rate IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11gn HT20 : 144.4, 130, 117, 115.6, 104, 86.7, 78, 72.2, 65, 58.5, 57.8, 52, 43.3, 39, 28.9, 26, 21.7, 19.5, 14.4, 13, 7.2, 6.5 Mbps IEEE 802.11gn HT40 : 300, 270, 243, 240, 216, 180, 162, 150, 135, 121.5, 120, 108, 90, 81, 60, 54, 45, 40.5, 30, 27, 15, 13.5 Mbps Type of M…

Text truncated - open the document above for the full version.

FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 122 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 123 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 124 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP FCC IDQI3BIL-6300VNP Report No.T140506S03-RP1 Page 125 of 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
