QI3BIL-7404VGOXC3G / VoIP/ 802.11g ADSL2+ VPN Firewall Router

BiPAC 7404V(G)PX 3G/VoIP/(802.11g) ADSL2+ (VPN) Firewall Router User Manual Version release:1.09(5.53.s6.b1.dg8) Last Revised Date: 03-02-2010 Table of Contents Chapter 1: Introduction ............................................................................................ 1 Chapter 2: Installing the Router ............................................................................... 5 Package Contents .............................................................................................. 5 The Front LEDs............................................................................................. 6 The Rear Ports.............................................................................................. 7 Cabling ............................................................................................................... 8 Chapter 3: Basic Installation .................................................................................... 9 Connecting Your Router ................................................................................... 10 Network Configuration .......................................................................................11 Configuring PC in windows 7 .......................................................................11 Configuring PC in Windows Vista ............................................................... 13 Configuring PC in Windows XP ................................................................... 15 Configuring PC in Windows 2000 ............................................................... 16 Configuring PC in Windows 95/98/Me ........................................................ 17 Configuring PC in Windows NT4.0 .............................................................. 18 Factory Default Settings ................................................................................... 19 Information from your ISP................................................................................. 20 Configuring with your Web Browser ................................................................. 21 Chapter 4: Configuration........................................................................................ 22 Status ............................................................................................................... 23 ADSL Status................................................................................................ 23 3G Status .................................................................................................... 23 EWAN Status .............................................................................................. 24 iBurst Status................................................................................................ 25 ARP Table ................................................................................................... 25 DHCP Table ................................................................................................ 26 Routing Table .............................................................................................. 28 NAT Sessions.............................................................................................. 29 UPnP Portmap ............................................................................................ 29 PPTP Status................................................................................................ 30 IPSec Status ............................................................................................... 31 L2TP Status ................................................................................................ 31 VoIP Status.................................................................................................. 32 VoIP Call Log............................................................................................... 32 Event Log .................................................................................................... 33 Error Log ..................................................................................................... 34 Diagnostic ................................................................................................... 34 Quick Start ........................................................................................................ 35 Configuration .................................................................................................... 40 LAN - Local Area Network........................................................................... 41 Bridge Interface ..................................................................................... 41 Ethernet ................................................................................................. 42 IP Alias................................................................................................... 42 Ethernet Client Filter .............................................................................. 43 Wireless ................................................................................................. 45 Wireless Security ................................................................................... 47 Wireless Client / MAC Address Filter..................................................... 50 WPS ...................................................................................................... 51 Port Setting ............................................................................................ 60 DHCP Server ......................................................................................... 61 WAN - Wide Area Network .......................................................................... 62 WAN Interface........................................................................................ 62 WAN Profile ........................................................................................... 65 ADSL Mode ...................…

Text truncated - open the document above for the full version.

Date: 12/15/2009 Subject: Ad Hoc Mode Function Declaration FCC ID: QI3BIL-7404VGOXC To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards,

亞 驪 企 業 股 份 有 限 公 司 ARISTOTLE ENTERPRISES 承 認 申 請 書 客戶名稱: Customer 盛達電業股份有限公司 廠商料號: Part No. RFA-02-C2H0-70B-85C 品名: Description WLAN ANTENNA 2.4GHz,BLACK 圖號: Drawing No. RFA-02-C2H0-70B-85C .DWG 客戶料號: Drawing No. 出廠簽章: 檢 查 TEST BY 核 對 CHECK BY 承 認 APPROVE BY 周沂珮 黃秋芳 廖煥文 承認簽章: 檢 查 TEST BY 核 對 CHECK BY 承 認 APPROVE BY 地址:台北縣中和市莒光路63號8樓 電話:02-2225-8209 傳真:02-2225-7523 表單編號：QP-0603-F02 版本：A ROHS COMPLIANCE DESCRIPTION : Swivel Access Point Antenna MODEL NO : RFA-02-C2H0-70B-85C 1.1 ELECTRICAL Frequency Range: 2400~2500 MHZ Gain: 2.0dBi (min.) VSWR: ≦ 2 Polarization: Linear, Vertical Impedance： 50Ω Connector: IPEX MHF Cable: φ1.13mm 1.2 MECHANICAL Condition：Non operating during test. Material : PCABS(UL94V-0) Endurance Number of 90° rotation of the connector：1000 cycles (min.) Mandatory：Guaranty of functionalities after test. Bending: Number of 90°at the hinge parts and bending on one direction with1 ㎏ force：1000 cycles Mandatory：No mechanical damage tolerated. Guaranty of functionalities after test. Antenna resistance Tests are applicable to all parts and both sides. Traction: Tractions force applied 3 times on plugs during 15 second：5 ㎏ Mandatory：No mechanical damage tolerated. Guaranty of functionalities after test. 1.3 ENVIROMENTAL Storage Condition： Non operating during test. Cold: -40°C during 72h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +80°C during 96h (IEC 68-2-2 standard Bb/Bd test) Humidity: +40°C at 95%R.H. during 4 days (IEC 68-2-56 standard Cb test) Mandatory：No mechanical or visible damage tolerated. Guaranty of functionalities after test. Operation Condition： Operating during test. Cold: -10°C during 48h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +55°C during 48h (IEC 68-2-2 standard Bb/Bd test) Composite: -10°Cto +55°C 95%R.H 4 cycles(IEC 68-2-30 standard Nb test) Mandatory：No mechanical or visible damage tolerated. Guaranty of functionalities during and after test. ANTENNA RADIATION PATTERN 11b dipole Antenna Radiation pattern : E-Plane 11b dipole Antenna Radiation pattern : H-Plane -Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) -Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) -Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) A B C D E F G H Impedance Impedance Impedance Impedance Approved by Approved by Customer REMARK : B & F ELECTRONICS CO., LTD. Checked byReported by 100 MHz MIN 72 Test Frequancy Test Frequancy MIN 46 25 MHz SPECIFICATION 3.50 ±0.15mm Date : 1,OCT.05 Customer : 驪 Item : B15 RH 3.5x9x1.3 Ref. No : K5B RH 3.5x9x1.3Mechanical Assembly Test equipment : HP E4991A Test Frequancy Test Frequancy Electrical Requirement 1.30 ±0.15mm 9.00 ±0.30mm Wire : TCWφ0.65x63mm Winding : 1 Turn Material : B15 Nickel/Zinc HP 16194A TEST FIXTUREHP E4991A B. F. B CA ABC ODHTID MINMIN ±0.15±0.30±0.15 46Ω72Ω 3.509.001.30 1 82.5116.43.549.111.39 2 82.9116.83.569.051.37 3 83.2117.53.559.081.40 4 82.6116.93.539.091.36 5 82.2116.53.569.031.38 6 7 8 9 10 X R 驪 HPE4991A/16194A 1~1000 MHz TCWφ 0.65x63mm at 1 turn Ref. No. B15 RH 3.5x9x1.3K5B RH 3.5x9x1.3 1-Nov-05 B & F ELECTRONICS CO., LTD. SPEC. INSPECTION DATA Date FREQ. Impedance 25 MHz 100 MHz Coil Spec. Customer Item Part No. Test equipment Test Frequency Dimension (Unit : mm) B. F. Ω) -Heat-Shrinkable Tubing(for SGS-POLYOLEFIN HEAT SHRINKABLE TUBE(LONEWELL) CE/2005/75754) -Heat-Shrinkable Tubing(for SGS-POLYOLEFIN HEAT SHRINKABLE TUBE(LONEWELL) CE/2005/75754) PE PE

Attestation FCC ID : QI3BIL-7404VGOXC Product : 3G / VoIP/ 802.11g ADSL2+ VPN Firewall Router Model : BiPAC 7404VGOX Statements: 1. The BiPAC 7404VGOX Router may have the 3G function, but the 3G function is for optional function. 2. We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature Name/Title: Felix Chent Applicant: Billion Electric Co., Ltd Address: 8F., No.192, Chung-Hsing Road, Hsin-Tien City, Taipei Hsien, Taiwan R,O,C TEL:03-5753268 FAX:03-5753266 Email: [email protected] (Name / Date) 11/30/2009

Date: 12/18/2009 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: QI3BIL-7404VGOXC , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards,

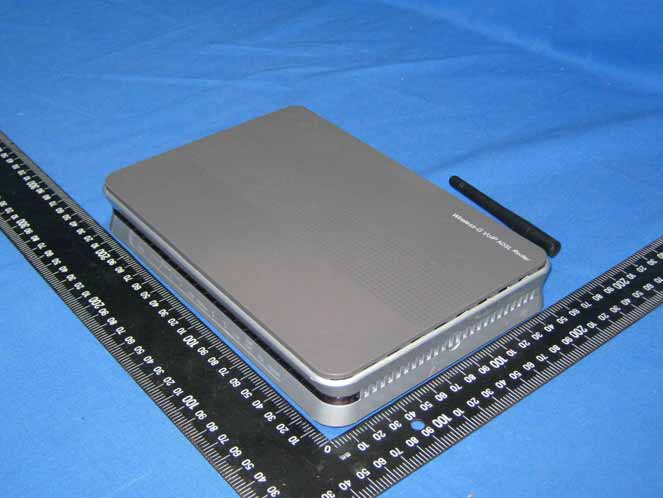

Compliance Certification Services Inc. Report No.91007301 Page 1 of 14 External Photo Compliance Certification Services Inc. Report No.91007301 Page 2 of 14

Label Location Billion Electric Co., Ltd. Product: 3G / VoIP/ 802.11g ADSL2+ VPN Firewall Router Power Input: 12V DC, 1A (Minimum) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: BiPAC 7404VGOX FCCID: QI3BIL-7404VGOXC Made in Taiwan

Compliance Certification Services Inc. Report No.91007301 Page 3 of 14 Internal Photo Compliance Certification Services Inc. Report No.91007301 Page 4 of 14 Compliance Certification Services Inc. Report No.91007301 Page 5 of 14 Compliance Certification Services Inc. Report No.91007301 Page 6 of 14 Compliance Certification Services Inc. Report No.91007301 Page 7 of 14 Compliance Certification Services Inc. Report No.91007301 Page 8 of 14 Compliance Certification Services Inc. Report No.91007301 Page 9 of 14 Compliance Certification Services Inc. Report No.91007301 Page 10 of 14 Compliance Certification Services Inc. Report No.91007301 Page 11 of 14 Antenna Compliance Certification Services Inc. Report No.91007301 Page 12 of 14 Power Adapter Photo(Model : PAW018A12UL 8066) Compliance Certification Services Inc. Report No.91007301 Page 13 of 14 Power Adapter Photo(Model : PAW024A15US) Compliance Certification Services Inc. Report No.91007301 Page 14 of 14

Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 26 of 71 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 27 of 71 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (dB) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 2.09 20.0 23.04 1.62 1.00 0.064822 IEEE 802.11g 2.09 20.0 18.52 1.62 1.00 0.022894 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 1 of 71 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For 3G / VoIP/ 802.11g ADSL2+ VPN Firewall Router Model : BiPAC 7404VGOX Data Applies To : Please refer to section 2 (altogether 47 series models) Tra d e Na me: BILLION ; BEC Issued for Billion Electric Co., Ltd. 8F., No. 192, Sec. 2, Chung -Hsing Road, Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Laboratory No. 8, Jiu Cheng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 2 of 71 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 11/20/2009 Initial Issue All Page 71 Jeter Wu Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 3 of 71 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 4 2. EUT DESCRIPTION.................................................................................................................. 5 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 5-8 3. DESCRIPTION OF TEST MODES .......................................................................................... 9 4. TEST METHODOLOGY............................................................................................................9 5. FACILITIES AND ACCREDITATIONS .................................................................................. 9 5.1 FACILITIES .......................................................................................................................... 9 5.2 EQUIPMENT ........................................................................................................................ 9 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 9 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 10 6. CALIBRATION AND UNCERTAINTY .................................................................................... 11 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 11 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 11 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 12-13 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 14 8.1 6dB BANDWIDTH ................................................................................................................ 14-19 8.2 MAXIMUM PEAK OUTPUT POWER ................................................................................. 20-25 8.3 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 26-27 8.4 AVERAGE POWER............................................................................................................... 28-29 8.5 POWER SPECTRAL DENSITY ............................................................................................ 30-35 8.6 CONDUCTED SPURIOUS EMISSION................................................................................ 36-40 8.7 RADIATED EMISSIONS ...................................................................................................... 41 8.7.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................ 41-44 8.7.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................ 45 8.7.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................... 46-51 8.7.4 RESTRICTED BAND EDGES ........................................................................................ 52-59 8.8 POWERLINE CONDUCTED EMISSIONS .......................................................................... 60-65 APPENDIX SETUP PHOTOS....................................................................................................... 66-71 Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 4 of 71 1. TEST REPORT CERTIFICATION Applicant Billion Electric Co., Ltd. Address 8F., No. 192, Sec. 2, Chung -Hsing Road, Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test 3G / VoIP/ 802.11g ADSL2+ VPN Firewall Router Model BiPAC 7404VGOX Data Applies To Please refer to section 2 (altogether 47 series models) Trade Name BILLION ; BEC Tested Date October 07 ~ December 08, 2009 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS Approved by: Reviewed by: Jeter Wu Section Manager Eric Yang Senior Engineer WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 5 of 71 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name 3G / VoIP/ 802.11g AD…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 66 of 71 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 67 of 71 Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 68 of 71 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 69 of 71 Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 70 of 71 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID QI3BIL-7404VGOXC Report No.91007301-RP1 Page 71 of 71 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
