QI3BIL-8200NX(3G) 802.11n VDSL (VPN) Firewall Router

BiPAC 8200N 802.11n VDSL2 4-port Firewall Router User Manual Last revised on July 2009 Table of Contents Chapter 1: Product ............................................................................1 Introduction to your Router ..........................................................1 Features .....................................................................................4 Hardware Specifications ............................................................5 Physical Specifications........................................................................5 Power Requirements...........................................................................5 Operating Environment ...............................................................5 Chapter 2: Product Overview............................................................6 Package Contents .......................................................................7 Important note for using this router .............................................7 Device Description ......................................................................8 The Front LEDs ...................................................................................8 The Rear Ports ...................................................................................9 Cabling ......................................................................................11 Chapter 3: Basic Installation .........................................................12 Applications of the device .........................................................13 Network Configuration ...............................................................14 Configuring PC in Windows Vista......................................................14 Configuring PC in Windows XP .........................................................16 Configuring PC in Windows 2000 .....................................................17 Configuring PC in Windows 95/98/Me...............................................18 Configuring PC in Windows NT4.0 ....................................................19 Factory Default Settings ............................................................20 Information from your ISP .......................................................21 Chapter 4: Configuration ................................................................22 Easy Sign-On (EZSO) ...............................................................22 Configuration via Web Interface ................................................25 Quick Start ................................................................................26 Basic Configuration Mode .........................................................33 Status ................................................................................................33 WAN – Main Port: VDSL ...................................................................34 Obtain IP Address Automatically (VDSL) ........................................................34 Fixed IP Address (VDSL) ................................................................................35 PPPoE Connection (VDSL) ............................................................................36 Pure Bridge (VDSL) ........................................................................................37 WAN – Main Port: EWAN ..................................................................38 Obtain IP Address Automatically (EWAN) .......................................................38 Fixed IP Address (EWAN) ..............................................................................39 PPPoE Connection (EWAN) ...........................................................................40 WLAN ................................................................................................41 Advanced Configuration Mode ..................................................43 Status ................................................................................................43 VDSL Status ...................................................................................................45 ARP Table .......................................................................................................46 DHCP Table ....................................................................................................47 System Log.....................................................................................................48 Firewall Log ....................................................................................................49 UPnP Portmap ................................................................................................50 Configuration .....................................................................................51 LAN - Local Area Network ..............................................................................52 WAN - Wide Area Network .............................................................................72 System ...........................................................................................................81 Firewall ...........................................................................................................88 QoS - Quality of Service .................................................................................98 Virtual Server ................................................................................................103 Time Schedule ..............................................................................................109 Advanced......................................................................................................110 Save Configuration to Flash ....................................................124 Restart ....................................................................................125 Logout .....................................................................................126 Chapter 5: Troubleshoot…

Text truncated - open the document above for the full version.

69 4. Enter the AP SSID then click Next. 5. Enter the passphrase then click Next. 6. When you have come to this step, you will have comleted the Wi-Fi network setup using the built-in WCN feature in Windows Vista. 70 71 DHCP Server DHCP allows networked devices to obtain information on the parameter of IP, Netmask, Gateway as well as DNS through the Ethernet Address of the device. To configure the router’s DHCP Server, select DHCP Server from the DHCP Server Mode drop- down menu. You can then configure parameters of the DHCP Server including the domain, IP pool (starting IP address and ending IP address to be allocated to PCs on your network), lease time for each assigned IP address (the period of time the IP address assigned will be valid), DNS IP address and the gateway IP address. These details are sent to the DHCP client (i.e. your PC) when it requests an IP address from the DHCP server. If you check “Use Router as a DNS Server”, the Router will perform the domain name lookup, find the IP address from the outside network automatically and forward it back to the requesting PC in the LAN (your Local Area Network). Click Apply to enable this function. If you select DHCP Relay from the DHCP Server Mode drop-down menu, you must enter the IP address of the DHCP server that assigns an IP address to the DHCP client in the LAN. Use this function only if advised to do so by your network administrator or ISP. Click Apply to enable this function. 72 WAN - Wide Area Network A WAN (Wide Area Network) is a computer network that covers a broad geographical area (eg. Internet) that is used to connect LAN and other types of network systems. WAN Profile - Main Port: VDSL Obtain an IP Address Automatically (VDSL) When connecting to the ISP, your router also functions as a DHCP client. By configuring DHCP settings, the device is able to obtain IP settings automatically from the ISP. Protocol: Select the protocol you will use in the device. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account by sharing the single IP address. If users on your LAN have their own public IP addresses to access the Internet, NAT function can be disabled. Obtain DNS: Select this check box to activate DNS. Primary DNS/ Secondary DNS: Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the netmask. MAC Spoofing: This option is required by some service providers. You must fill the MAC address specified by your service provider when this information is required. It will temporarily change your router’s MAC address to the one you have specified in this field. The default setting is set to disable. Click Apply to confirm the settings. Fixed IP Address (VDSL) A Static WAN connection will be configured according to the IP properties defined by your ISP. Protocol: Select the protocol you will use in the device. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account by sharing the single IP address. If users on your LAN have their own public IP addresses to access the Internet, NAT function can be disabled. IP Address: Enter your fixed IP address. Each IP address entered in the field must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format. Netmask: User can change it to others such as 255.255.255.128. Type the netmask assigned to you by your ISP (if given) Gateway: Enter the IP address of the default gateway (if given). Obtain DNS: Select this check box to activate DNS. Primary DNS/ Secondary DNS: Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the netmask. MAC Spoofing: This option is required by some service providers. You must fill the MAC address specified by your service provider when this information is required. It will temporarily change your router’s MAC address to the one you have specified in this field. The default setting is set to disable. Click Apply to confirm the settings. 73 74 PPPoE (VDSL) PPPoE (PPP over Ethernet) provides access control in a manner which is similar to dial-up services using PPP. Protocol: Select the protocol you will use in the device. Username: Enter the username provided by your ISP. You can input up to 256 alphanumeric characters (case sensitive). This is in the format of “username@ispname” instead of simply “username”. Password: Enter the password provided by your ISP. You can input up to 32 alphanumeric characters (case sensitive). Service Name: This item is for identification purposes. If it is required, your ISP will provide you the necessary information. Maximum input is 32 alphanumeric characters. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account by sharing the single IP address. If users on your LAN have their own public IP addresses to access the Internet, NAT function can be disabled. IP (0.0.0.0.Auto): Enter your fixed IP address. Leave this at 0.0.0.0 to automatically obtain an IP address from your ISP. Auth. Protocol: Default is Auto. Please consult your ISP on whether to use Pap or Chap. Obtain DNS: Select this check box to activate DNS. Primary DNS/ Secondary DNS: Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the netmask. Connection: Click on Always On to establish a PPPoE session during start up and to automatically re-establish the PPPoE session when disconnected by the ISP. You may uncheck the item to disable this function. Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no activity on the line for a predetermined period of time. MTU: Maximum Transmission Unit. The size of the largest datagram (excluding media-specific headers) tha…

Text truncated - open the document above for the full version.

QoS - Quality of Service QoS helps you to control the data upload traffic of each application from LAN (Ethernet and/ or Wireless) to WAN (Internet). It facilitates you the features to control the quality and speed of throughput for each application when the system is running with full upstream load. After clicking the QoS item, you can Add/Edit/Delete a QoS policy. This page will show the brief information for policies you have added or edited. This page will also display the total available (Non-assigned) bandwidth, in percentage, can be assigned. Application: Assign a name that identifies the new QoS application rule. Direction: The traffic flow direction to be controlled by the QoS policy. There are two settings to be provided in the Router: LAN to WAN: Control the traffic flow from the local network to the outside world. For example, when you have a FTP server inside the local network and want to have a limited traffic rate controlled by the QoS policy, you need to add a policy with LAN to WAN direction setting. WAN to LAN: Control Traffic flow from the WAN to LAN. (The connection maybe either issued from LAN to WAN or WAN to LAN.) Protocol: Select the supported protocol from the drop down list. For GRE protocol, there is no need to specify the IP addresses or Application ports in this page. For other protocols, at least one value shall be given. Any: No protocol type is specified. TCP UDP ICMP GRE: For PPTP VPN Connections. 98 99 DSCP Marking: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP Marking allows users to classify the traffic of the application to be executed according to the DSCP value. See DSCP Mapping Table. Note: Make sure that the router(s) in the network backbone are capable to execute and check the DSCP throughout the QoS network. DSCP Mapping Table DSCP Mapping Table (Wireless) VDSL RouterStandard DSCP DisabledNone Best EffortBest Effort (000000) PremiumExpress Forwarding (101110) Gold service (L)Class 1, Gold (001010) Gold service (M)Class 1, Silver (001100) Gold service (H)Class 1, Bronze (001110) Silver service (L)Class 2, Gold (010010) Silver service (M)Class 2, Silver (010100) Silver service (H)Class 2, Bronze (010110) Bronze service (L)Class 3, Gold (011010) Bronze service (M)Class 3, Silver (011100) Bronze service (H)Class 3, Bronze (011110) Rate Type: Two types are provided: Limited (Maximum): Specify a limited data rate for this policy. It is the maximal rate for this policy. As above FTP server example shows, if you want to “throttle” the outgoing FTP speed to 20% of 100M and limit to it, please choose this type. Guaranteed (Minimum): Specify a minimal data rate for this policy. For example, if you want to provide a guaranteed data rate for your outside customers to access your internal FTP server with, say at least, 20% of your total bandwidthm, please choose this type. Then, if the available bandwidth is not used, it will be given to this policy by following priority assignment. Ratio: Assign the data ratio for this policy to be controlled. For examples, when we want to allow only 20% of the total data transfer rate for the LAN-to-WAN direction to be used for FTP server, we can specify here with data ratio = 20. If you have VDSL LINE with 100M/bps.rate, the estimated data rate, in kbps, for this rule is 20%*100*0.9 = 20Mbps. (For 0.9 is an estimated factor for the effective data transfer rate for a VDSL LINE from LAN to WAN. For WAN-to-LAN, it is 0.85 to 0.8). Priority: The priority given to each policy/application. You may adjust this setting to fit your policy / application. For examples, you are allowed to specify two different QoS policies for different applications. Both applications need minimal or higher bandwidth, besides the assigned one, if there is any available/non-used one available, you can specify which application can have higher priority by acquiring the non-used bandwidth. High Normal: The default is set to normal. Low For the sample priority assignment for different policies, it is served in a First-In-First-Out way. Internal IP Address: The IP address values for Local LAN machines you want to control. (For IP packets from LAN to WAN, it is the source IP address. For IP packages from WAN to LAN, it is the destination IP address.) Internal Port: The Application port values for local LAN machines you want to control. (For TCP/ UDP packets from LAN to WAN, it is the source port value. For TCP/UDP packets from WAN to LAN, it is the destination port value.) External IP Address: The IP address values for Remote WAN machines you want to control. (For IP packets from LAN to WAN, it is the destination IP address. For IP packages from WAN to LAN, it is the source IP address.) External Ports: The Application port values for remote machines you want to control. (For TCP/ UDP packets from LAN to WAN, it is the destination port value. For TCP/UDP packets from WAN to LAN, it is the source port value.) Time Schedule: Scheduling your prioritization policy. Remember clicking Add to save your settings. 100 Example: QoS for your Network Connection Diagram ApplicationIP / PortsControl FlowData RateTime Schedule VoIP user192.168.0.1OutgoingMinimal 20% with high priority for non-used bandwidth with DSCP marking Class 1 Gold Service. Always FTP Server192.168.0.100Incoming & Outgoing Outgoing :minimal 30% data rate. Incoming :minimal 30% data rate. Both with low priority for non- used bandwidth. Only during working hours 9:00 to 17:00 Monday to Friday HTTP Web user80Incoming & Outgoing Outgoing : limited 20% data rate. Incoming : limited 30% data rate. Always 101 Restricted PC Normal PCs VoIP 102 Example: QoS Setup VoIP application Voice is latency-sensitive application. Most VoIP devices are used SIP protocol and the port number will be assigned by SIP module automatically. Better to use fixed IP address for catching VoIP packets as high priority. 103 Virtual Server Virtual Server allows you to direct incoming traffic …

Text truncated - open the document above for the full version.

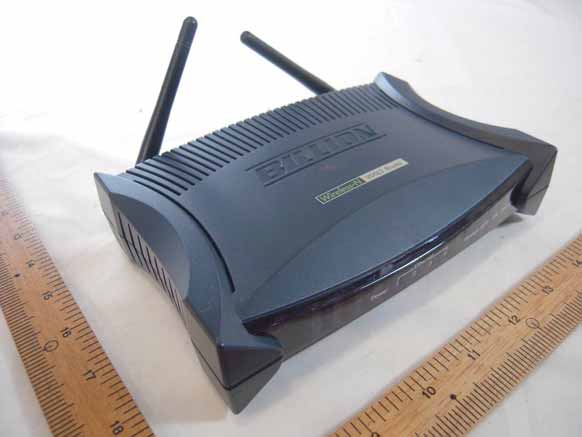

CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued Date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A5 Appendix A. Photographs of EUT

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued Date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A5 CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued Date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A5 CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued Date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A5 CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued Date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A5

1.1. Test Result of RF Exposure Evaluation . Product: (3G) 802.11N (VDSL2) Firewall Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain Antenna 1 : 2.09dBi Antenna 2 : 2.09dBi 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance (1)Test Date: Oct. 29, 2009 Temperature: 27 °C Humidity: 61％ Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) Ant1 Ant2 Ant1 Ant2 802.11b (11Mbps) 01 2412 17.36 17.76 0.018 0.019 06 2437 17.49 17.49 0.018 0.018 11 2462 17.54 17.89 0.018 0.020 802.11g (54Mbps) 01 2412 14.41 14.40 0.009 0.009 06 2437 14.42 14.30 0.009 0.009 11 2462 14.28 14.53 0.009 0.009 (2) Test Date: Oct. 29, 2009 Temperature: 27 °C Humidity: 61％ Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) Ant1Ant2TotalAnt1 Ant2 Total 802.11n, HT20 (6.5Mbps) 01 2412 11.56 11.8714.73 0.005 0.005 0.010 06 2437 11.48 12.2014.87 0.005 0.005 0.010 11 2462 11.41 12.3014.89 0.004 0.005 0.010 802.11n, HT40 (13.5Mbps) 03 2422 10.719.0812.98 0.004 0.003 0.006 06 2437 10.749.0913.00 0.004 0.003 0.006 09 2452 10.399.3912.93 0.004 0.003 0.006 The MPE is calculated as 0.020mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 117 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Billion Electric Co., Ltd. Address : 8F., No. 192, Sec. 2, Chung Hsing Road, Hsin Tien City, Taipei Hsien, Taiwan Equipment : (3G) 802.11N (VDSL2) Firewall Router Model No. : BiPAC 8200NX, BiPAC 8200N, BiPAC 6201NXL, BiPAC 6201NX FCC ID. : QI3BIL-8200NX Trade Name : BILLION Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 117 Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Wireless LAN ............................................................................................................................. 7 2.3 Carrier Frequency of Channels .................................................................................................. 7 2.4 Test Mode and Test Software ..................................................................................................... 8 2.5 Description of Test System ......................................................................................................... 8 2.6 Connection Diagram of Test System .......................................................................................... 9 2.7 General Information of Test ...................................................................................................... 10 2.8 Measurement Uncertainty ........................................................................................................ 10 2.9 History of this test report .......................................................................................................... 11 3. Antenna Requirements ..................................................................................................................... 12 3.1 Standard Applicable ................................................................................................................. 12 3.2 Antenna Construction and Directional Gain ............................................................................. 12 4. Test of Conducted Emission ............................................................................................................ 13 4.1 Test Limit .................................................................................................................................. 13 4.2 Test Procedures ....................................................................................................................... 13 4.3 Typical Test Setup .................................................................................................................... 14 4.4 Measurement Equipment ......................................................................................................... 14 4.5 Test Result and Data ................................................................................................................ 15 4.6 Test Photographs ..................................................................................................................... 21 5. Test of Radiated Emission ............................................................................................................... 22 5.1 Test Limit .................................................................................................................................. 22 5.2 Test Procedures ....................................................................................................................... 22 5.3 Typical Test Setup .................................................................................................................... 23 5.4 Measurement Equipment ......................................................................................................... 23 5.5 Test Result and Data ................................................................................................................ 24 5.6 Test Photographs ..................................................................................................................... 60 6. 6dB Bandwidth Measurement Data ................................................................................................. 61 6.1 Test Limit .................................................................................................................................. 61 6.2 Test Procedures ....................................................................................................................... 61 6.3 Test Setup Layout .................................................................................................................... 61 6.4 Measurement Equipment ......................................................................................................... 61 6.5 Test Result and Data ..............................................................…

Text truncated - open the document above for the full version.

驪 ARISTOTLE ENTERPRISES 料 RFA-02-C2H1-06-120CR 2.4GHz,I-PEX,, RFA-02-C2H1-06-120CR.DWG 料 AAP0ANTENNAL26 : TEST BY CHECK BY APPROVE BY : TEST BY CHECK BY APPROVE BY :北路638樓 :02-2225-8209 :02-2225-7523 QP-0603-F02 A RFA-02-C2H1-06-120CR AP0ANTENNAL26 -ABS PA757 (Antennal Shell) -ABS PA757 (Hinge) Coaxial Cable (Heat Shrinkable Tube) Ferrite Core PE (Cooper Tube) (Heat Shrinkable Tube) (PE ) MHF SERIES CONNECTOR (I-PEX) RFA-02-C2H1-06-120CR Specifications Frequency Range 2.4~2.5GHz Impedance 50 Ohms nominal VSWR 2 Gain 2 dBi Radiation Omni Polarization Vertical Operation Temperature -20C~+65C Storage Temperature -30C ~+75C DESCRIPTION : Swivel Access Point Antenna MODEL NO : RFA-02-C2H1-06-120CR 1.1 ELECTRICAL Frequency Range: 2400~2500 MHZ Gain: 2.0dBi (min.) VSWR: 2 Polarization: Linear, Vertical Impedance50 Connector: IPEX MHF Cable: 1.13mm 1.2 MECHANICAL ConditionNon operating during test. Material : PCABS(UL94V-0) Endurance Number of 90° rotation of the connector1000 cycles (min.) MandatoryGuaranty of functionalities after test. Bending: Number of 90at the hinge parts and bending on one direction with1 force1000 cycles MandatoryNo mechanical damage tolerated. Guaranty of functionalities after test. Antenna resistance Tests are applicable to all parts and both sides. Traction: Tractions force applied 3 times on plugs during 15 second5 MandatoryNo mechanical damage tolerated. Guaranty of functionalities after test. 1.3 ENVIROMENTAL Storage ConditionNon operating during test. Cold: -40during 72h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +80during 96h (IEC 68-2-2 standard Bb/Bd test) Humidity: +40at 95%R.H. during 4 days (IEC 68-2-56 standard Cb test) MandatoryNo mechanical or visible damage tolerated. Guaranty of functionalities after test. Operation ConditionOperating during test. Cold: -10during 48h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +55during 48h (IEC 68-2-2 standard Bb/Bd test) Composite: -10to +5595%R.H 4 cycles(IEC 68-2-30 standard Nb test) MandatoryNo mechanical or visible damage tolerated. Guaranty of functionalities during and after test.

CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 21 of 117 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI0909253 Cerpass Technology Corp. Issued date : Dec. 02, 2009 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 60 of 117 5.6 Test Photographs Front View Rear View
