QI3BIL-9800VNXPDPoint-to-Point Fibre Wireless-N VPN VoIP Gateway

BiPAC 9800 VNX(L) Point-to-Point Fibre Wireless-N (VPN) VoIP Gateway User Manual Version Released: 1.11 Last Revised Date: November 20, 2013 Table of Contents Chapter 1................................................................................................................................................................1 1.1 Introducing the BiPAC 9800VNX(L) ..............................................................................................................1 1.2 Features of the BiPAC 9800VNX(L)...............................................................................................................3 Network Protocols and Features....................................................................................................................3 WAN Protocol.................................................................................................................................................3 Firewall...........................................................................................................................................................4 Quality of Service Control...............................................................................................................................4 USB Application Server...................................................................................................................................4 Virtual Private Network (VPN)........................................................................................................................4 Wireless LAN...................................................................................................................................................4 VoIP.................................................................................................................................................................4 IPTV Applications ............................................................................................................................................5 Management ..................................................................................................................................................5 1.3 Hardware Specifications ...............................................................................................................................5 Physical Interface ............................................................................................................................................5 1.4 Applications for the BIPAC 9800VNX(L) .......................................................................................................6 Chapter 2................................................................................................................................................................7 2.1 Important note for using the BIPAC 9800VNX(L).........................................................................................7 2.2 Package Contents.........................................................................................................................................8 2.3 The Front LEDs ..............................................................................................................................................9 2.4 The Rear Ports............................................................................................................................................10 2.6 Cabling........................................................................................................................................................11 Chapter 3 ..............................................................................................................................................................12 3.1 Before Configuration ..................................................................................................................................12 3.1.1 Confi guring a PC in Windows 7 ...........................................................................................................13 3.1.2 Confi guring a PC in Windows Vista......................................................................................................16 3.1.3 Configuring a PC in Windows XP .........................................................................................................18 3.1.4 Confi guring a PC in Windows 2000 .....................................................................................................20 3.1.5 Configuring a PC in Windows 98/Me...................................................................................................21 3.1.6 Configuring a PC in Windows NT4.0....................................................................................................22 3.2 Factory Default Settings .............................................................................................................................23 3.2.1 Username and Password .....................................................................................................................23 3.3 LAN Port Addresses....................................................................................................................................24 3.4 Information from your ISP .........................................................................................................................24 Chapter 4..............................................................................................................................................................25 4.1 C onfiguring BiPAC 9800VNX(L) with your Web Browser ...........................................................................25 4.2 Status ..........................................................................................................................................................27 4.2.1 Device Info.....................................................................…

Text truncated - open the document above for the full version.

79 4.4.2 Dual WAN Dual WAN is specially designed to offer users Failover/Fallback or Load Balance feature. Auto Failover/Failback is to ensure an always-on internet connection. Users can set a WAN1 (main WAN) and WAN 2 (backup WAN), and when WAN1 fails, it will switch to WAN2, and when WAN1 restores, it will switch to WAN1 again. 4.4.2.1 General Setting Select Failover to enable the failover/failback feature or Load Balance to make the router work in load balance mode.  Failover WAN Port Service Detection Policy WAN1: Select “EWAN”, “SFP” or “3G/4G-LTE USB” for WAN1 (The main WAN). WAN2: Select the “SFP” or “3G/4G-LTE USB” for WAN2 as backup port if you select “EWAN” as WAN1. Connectivity Decision: Set how many times of probing failure to switch to backup port. Probe Cycle: Set the time duration for the Probe Cycle to determine when the router will switch to the backup connection (backup port) once the main connection (main port) fails. For example, when set to 30 seconds, the probe will be conducted every 30 seconds. Note: 1) The time set is for each probe cycle, but the decision to change to the backup port is determined by Probe Cycle multiplied by connection Decision amount (e.g. From the image above it will be 30 seconds multiplied by 3 consecutive fails, the router will determine failover to WAN2 (backup port)). 2).The failback setting follow the same decision policy as the failover. For example, according to settings above 80 in the screenshot, the connection probe will be carried out every 30 seconds, and 3 consecutive times of probe success is found, the router will determine failback to WAN1 (main WAN). Probe WAN 1: Choose the probe policy, to probe gateway or host (users decide themselves)  Gateway: It will send ping packets to gateway of Wan1 interface and wait for response from it in every “Probe Cycle” to check the connectivity of the gateway of WAN1 interface.  Host: It will send ping packets to specific host and wait for response in every “Probe Cycle”. The host must be an IP address. 81 4.4.3 Advanced Setup Advanced Step provides some advanced features including Firewall, Routing, NAT, Static DNS, QoS, IPSEC Setting, PPTP Server, PPTP Client, L2TP, Port Isolation and Time Schedule for all advanced users. Please move on to have a picture of what the exact feature is about and how to use it. 82 4.4.3.1 Firewall Y our router includes a firewall for helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet. Firewall: To automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.  Enabled: It activates your firewall function.  Disabled: It disables the firewall function. SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.  Enabled: It activates your SPI function.  Disabled: It disables the SPI function. 83 4.4.3.2 Routing This is st atic route feature. You are equipped with the capability to control the routing of all the traffic across your network. With each routing rule created, user can specifically assign the destination where the traffic will be routed to. #: Item number Destination IP Address: IP address of the destination network Subnet Mask: The subnet mask of destination network. Gateway IP Address: IP address of the gateway or existing interface that this route uses. Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15. Interface: Media/channel selected to append the route. Edit: Edit the route; this icon is not shown for system default route. Drop: Drop the route; this icon is not shown for system default route. 84 ADD Route Destination IP Address: This is the destination subnet IP address. Destination Subnet Mask: The subnet mask of destination network. Gateway IP Address/Interface：This is the gateway IP address or existing interface to which packets are to be forwarded. Metric：It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15. 85 4.4.3.3 NAT The NA T (Network Address Translation) feature transforms a private IP into a public IP, allowing multiple users to access the internet through a single IP account, sharing the single IP address. NAT break the originally envisioned model of IP end-to-end connectivity across the internet so NAT can cause problems where IPSec/ PPTP encryption is applied or some application layer protocols such as SIP phones are located behind a NAT. And NAT makes it difficult for systems behind a NAT to accept incoming communications. In this session, there are “VPN Passthrough”, “SIP ALG”, “DMZ” and “Virtual Server” provided to solve these nasty problems. NAT Status: Enabled. It depends on ISP Connection Type in Internet settings. VPN Passthrough: VPN pass-through is a feature of routers which allows VPN client on a private network to establish outbound VPNs unhindered. SIP ALG: Enable the SIP ALG when SIP phone needs ALG to pass through the NAT. Disable the SIP ALG when SIP phone includes NAT-Traversal algorithm. Interface: Select to set DMZ/Virtual Server for “EWAN”, “SFP” or “3G/4G-LTE USB”. Click DMZ or Virtual Server to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario. DMZ The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets will be checked by the Firewall and NAT algorithms then passed to the DMZ host, when a packet received does not use a port number used by any other Virtual Server entries. DMZ for: Indicate the related WAN interface which allows outside network to connect in and communicate. Note: Here yo…

Text truncated - open the document above for the full version.

亞 驪 企 業 股 份 有 限 公 司 ARISTOTLE ENTERPRISES 承 認 申 請 書 客戶名稱: Customer 盛達電業股份有限公司 廠商料號: Part No. RFA-02-C2M2 品名: Description 2.4GHz,無鉛製程 圖號: Drawing No. RFA-02-C2M2-08.DWG 客戶料號: Drawing No. 出廠簽章: 檢 查 TEST BY 核 對 CHECK BY 承 認 APPROVE BY 方美鑾 傅千玲 廖煥文 承認簽章: 檢 查 TEST BY 核 對 CHECK BY 承 認 APPROVE BY 地址:台北縣中和市莒光路63號8樓 電話:02-2225-8209 傳真:02-2225-7523 表單編號：QP-0603-F02 版本：A ROHS COMPLIANCE 零件 F or RFA-02-C2M2-08 小銅管φ 4.4*25 (Cooper Tube) 銅管到轉軸上端的線外露約 3.5+/-1.5mm 1. Specification Description: Dipole antenna Part NO.:RFA-02-C2M2 Electrical specification 1. Frequency range: 2400 – 2500MHz 2. Average Gain: = >1.5 dBi 3. VSWR: ＜＝ 2.0 4. Polarization: Linear, vertical 5. Impedance: 50 Ohm 6. Connector: RP-SMA plug ( Reverse Polarity meets FCC part 15. 203 Requirement ) Mechanical Testing Results Condition：Non operating during test. 1 Endurance test result: 1). Number of connection/disconnection of the connector：500 cycles 2). Number of 360° rotation of the connector：1000 cycles Mandatory：Guaranty of functionalities after test. 2 Resistance test result: ( tests are applicable to all parts and both sides. ) 2-1 Traction test result: 1). Traction force applied 3 times on plugs during 15 second：1 kg Mandatory：No mechanical damage tolerated. Guaranty of functionalities after testing. 2-2 Bending force test result: 1). Number of 90° at the hinge parts and bending on one direction with 1 lbs force: 1000 cycles. 2). Bending at the antenna hinge parts reversely guaranteed the quality under 1 kgw force. 2-3 Top cover & joint Tensility test result Test equipment: IMADA FB-50K A). Minimum pull test force: 8kgw B). Maximum pull test force: 15.5kgw C). Average pull test force over 10kgw Testing items 1 2 3 4 Reference force specification 8kg ↑ Torsion test data 15.5kg 10.5kg 12kg 15kg Decision ( Result) OK OK OK OK Mandatory：No mechanicaldamage tolerated. Guaranty of functionalities after testing. 2.4 Connector rotation torque test A) minimun torque test force:200gf/cm B) maximum torque test force: 600gf/cm Testing items 1 2 3 4 Reference force specification 200gf/cm-600gf /cm Decision ( Result) OK OK OK OK Mandatory：No mechanicaldamage tolerated. Guaranty of functionalities after testing. 3 Environmental Testing Results 3-1 Storage test results Condition： Non operating during test. Cold: -40°C during 72h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +60°C during 96h (IEC 68-2-2 standard Bb/Bd test) Humidity: +25°C at 95%R.H. during 4 days (IEC 68-2-56 standard Cb test) Mandatory：No mechanical or visible damage tolerated. Guaranty of functionalities after test 3-2 Operation test results Condition：Operating during test. Cold: -10°C during 48h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +55°C during 48h (IEC 68-2-2 standard Bb/Bd test) Composite: -10°Cto +55°C 95%R.H 4 cycles(IEC 68-2-30 standard Nb test) Mandatory：No mechanical or visible damage tolerated. Guaranty of functionalities during and after test














































































































(for SGS-金C3604 CE/2005/53261A) (for SGS-BERYLLIOM COPPER C17300 M25 CE/2005/84740) (for SGS-BERYLLIOM COPPER C17300 M25 CE/2005/84740) 龍( for SGS-PTFE ET94O-09-035) SPECIFICATION FOR APPROVAL DOCUMENT: A30178B001 STYLE： 200°C 30V RG-178B/U SIZE: 7/0.102 SCCS RECOGNIZED: WONDERFUL WIRE CABLE CO.,LTD OFFICE：72WU KONG 6TH ROAD, WU KU IND. DISTRICT TAIPEI HSIEN,TAIWAN TEL：(02)22988033 FAX：(02)22988031-2 FACTORY：17 PEI YUAN ROAD, CHUNG-LI IND. PARK TAIWAN, R.O.C. TEL：(03)4527777 FAX：(03)4517214 WONDERFUL WIRE CABLE CO., LTD SPECIFICATION STYLE 200°C 30V COAXIAL DOCUMENT NO : A30178B001 SIZE RG-178B/U ESTABLISHED DATE: 2000/06/29 STANDARD : MIL-C-17 Size AWG 30 Material ---- Silver-Coated Copper Clad Steel Conductors No. ---- 7 Conductors Size mm 0.102 Conductor O.D. mm 0.30 Average Thickness mm 0.28 Diameter mm 0.86 Material ---- FEP Insulation Color ---- Clear Material ---- Silver-Coated Copper Construction mm 16 / 3 / 0.10 Braid Coverage % 95 Average Thickness mm 0.25 Diameter mm 1.80 ±0.05 Material ---- FEP Jacket Color ---- Brown Marking M17/93-RG178B/U WONDERFUL Drawing AK001/210X297/1.0 PAGE : 1 EDITION : 1.0 REVISED DATE : MAKER : CONFIRM : APPROVAL : WONDERFUL WIRE CABLE CO., LTD SPECIFICATION Electrical & Physical Properties Item RG-178B/U Rating Temp Voltage 200°C 30V Conductor Resistance 838.0 OHM/KM/20°C MAX. Insulation Resistance 100 MEGA OHM/KM MIN. Dielectric Strength AC 1.0 KV/Minute Spark Test 0.5 KV Tensile Strength2500 PSI MIN.( 1.76 Kg / ｍ㎡) Unaged Elongation 200% MIN. Tensile StrengthUNAGED MIN.75%(168HRS×232°C) Insulation Aged Elongation UNAGED MIN.75%(168HRS×232°C) Tensile Strength2500 PSI MIN.( 1.76 Kg / ｍ㎡) Unaged Elongation 200% MIN. Tensile StrengthUNAGED MIN.75%(168HRS×232°C) Jacket Aged Elongation UNAGED MIN.75%(168HRS×232°C) Nom. Impedance 50 Ohms VSWR MAX. 1.3 at 0.4G~3GHz Nom. Vel. of Prop. 69.5% Flame Test VW-1 OK 50MHz 100MHz400MHz900MHz1.8GHz 3GHz Attenuation (dB/100m) 34.4 45.9 91.8 139.4 207.5 308.2 AK001/210X297/1.0 PAGE : 2 EDITION : 1.0 REVISED DATE : MAKER : CONFIRM : APPROVAL :

DECLARATION OF CONFORMITY (DoC) Equipment:Point-to-Point Fibre Wireless-N VPN VoIP Gateway Trademark(s) and Model(s):BILLION / BiPAC 9800VNX-PD FCC ID in case other parts of this equipment are subject to certification: QI3BIL-9800VNXPD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:T131105S01Issue date:2014-01-10 Test Lab: Compliance Certification Services Inc. Company name: Billion Electric Co., Ltd. Name/Title (legal representative): Ted Ho / CTO Address: 8F, No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) E-mail: [email protected] Date: 2014-01-10 Signature:

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Billion Electric Co., Ltd. Address : 8F,No.192, Sec. 2, Zhongxing Rd., Xindian Dist., City: New Taipei City 231, Country: Taiwan (R.O.C.) To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: QI3BIL-9800VNXPD Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2014-01-10 Name and signature of applicant: Ted Ho Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

RF_160, Issue 03 Declaration of Authorization We Name: Billion Electric Co., Ltd. Address: 8F, No.192, Sec. 2, Zhongxing Rd., Xindian Dist., City: New Taipei City 231 Country: Taiwan (R.O.C.) Declare that: Name Representative of agent: Rubeca Yu Agent Company name: Compliance Certification Services Inc. Address: NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, City: Hsinchu County Country : Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Point-to-Point Fibre Wireless-N VPN VoIP Gateway Type designation: BiPAC 9800VNX-PD Trademark: Billion on our behalf. Date:2014-01-10 Signature: ... Name/Title: Ted Ho / CTO Company Name: Billion Electric Co., Ltd. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

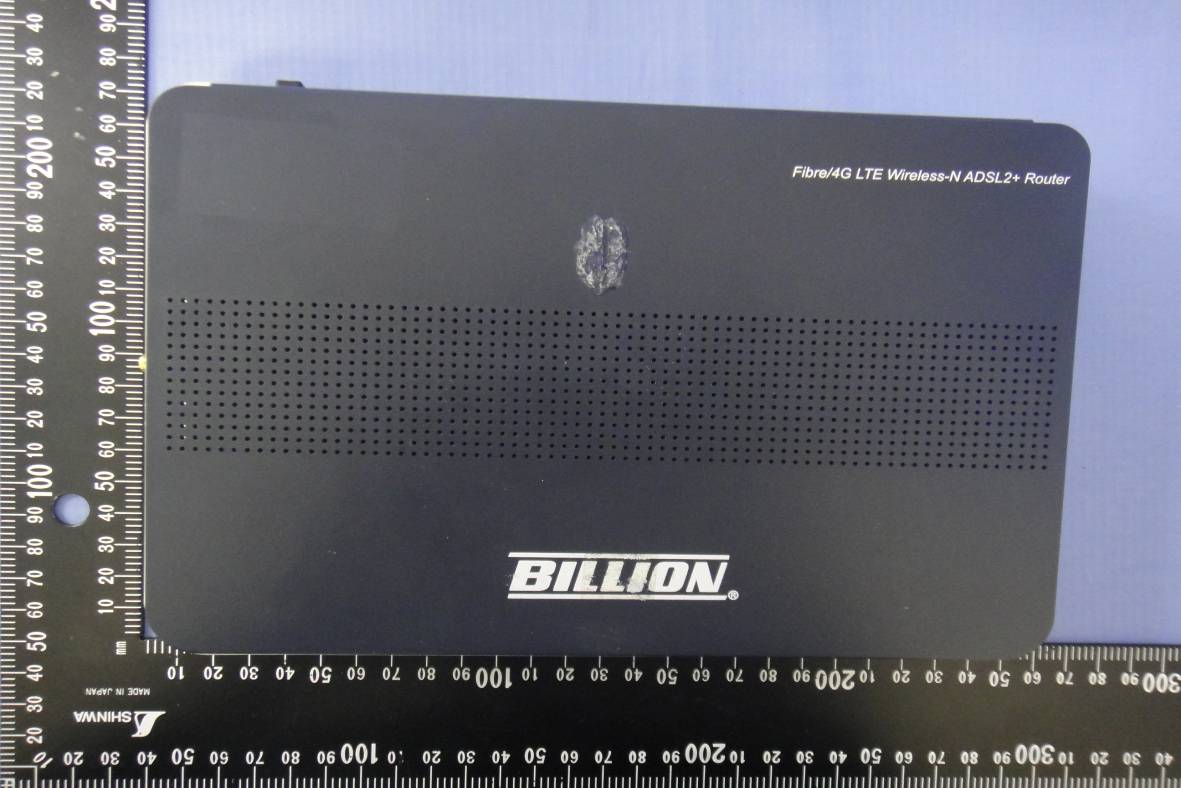

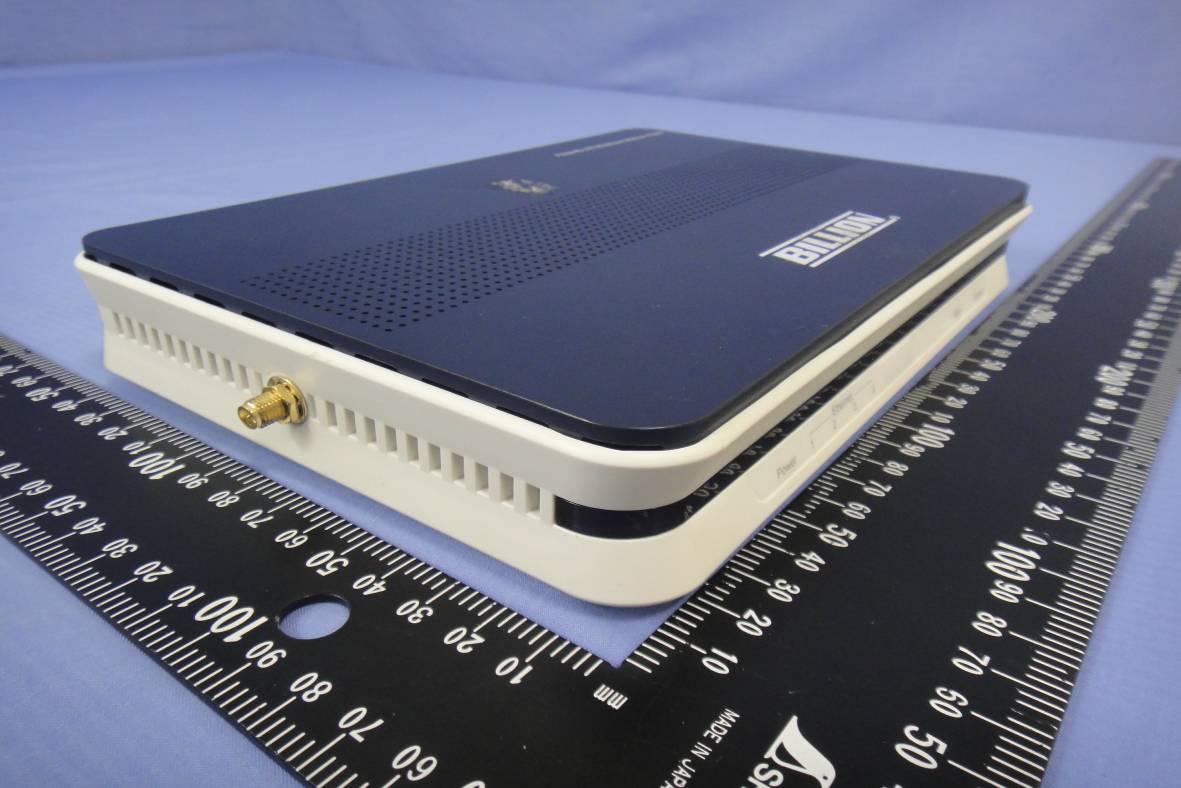

Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 1 Total Page: 11 Rev.00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 2 Total Page: 11 Rev.00 Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 3 Total Page: 11 Rev.00 Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 4 Total Page: 11 Rev.00 Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 5 Total Page: 11 Rev.00 Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 6 Rev.00 Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 7 Rev.00 Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 8 Rev.00 Antenna

2014/1/10 RoxyKatie Nicole Billion BiPAC 9800VNX-PD 1. 材質為反銀龍貼紙 2. Billion Electric Co., Ltd. 為 Arial Bold 8級 3. 為 Arial Bold 6.5級 4. 為 Arial Bold 5.5級 5. 其餘文字為 Arial Regular 5.5 級 6. 黑色印刷 7. 產地別需依照生產地作變動 59.7x39.7mm/±0.15mm 0.15mm 59.7±0.15 39.7±0.15 R1.0 R1.0 R1.0 R1.0 Billion Electric Co., Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Taiwan Model: BiPAC 9800VNX-PD FCC ID: QI3BIL-9800VNXPD Made in Taiwan Model: BiPAC 9800VNX-PD FCC ID: QI3BIL-9800VNXPD Product: Point-to-Point Fibre Wireless-N VPN VoIP Gateway Power Input: 12V 1.5A Product: Point-to-Point Fibre Wireless-N VPN VoIP Gateway Power Input: 12V 1.5A N12127

Lable Location

Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 9 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 10 Rev.00 Compliance Certification Services Inc. Report No.: T131105S01 Date of Issue: December 6, 2013 A1 - 11 Rev.00 Module

FCC ID : QI3BIL-9800VNXPD Report No.T131105S01-RP1 Page 1 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC ID : QI3BIL-9800VNXPD Report No.T131105S01-RP1 Page 2 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Chain Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Total Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 0 2 20 17.6117.61 1.58 1.00 0.018185 IEEE 802.11g 0 2 20 24.8624.86 1.58 1.00 0.096543 0 2 23.901.58 IEEE 802.11n HT20 1 2 20 19.67 25.29 1.58 1.00 0.106619 0 2 22.541.58 IEEE 802.11n HT40 1 2 20 18.40 23.96 1.58 1.00 0.078401 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Compliance Certification Services Inc. FCC ID: QI3BIL-9800VNXPD Report No.: T131105S01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 128 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Point-to-Point Fibre Wireless-N VPN VoIP Gateway Model: BiPAC 9800VNX-PD, BiPAC 9800VNXL-PD, BiPAC 9800VN-PD, BiPAC 9800VNL-PD, BiPAC 9800VX-PD, BiPAC 9800VXL-PD, BiPAC 9800V-PD, BiPAC 9800VL-PD, BiPAC 9800X-PD, BiPAC 9800XL-PD, BiPAC 9800N-PD, BiPAC 9800NL-PD, BiPAC 9800-PD, BiPAC 9800L-PD, BiPAC 9800VNX, BiPAC 9800VNXL, BiPAC 9800VN, BiPAC 9800VNL, BiPAC 9800VX, BiPAC 9800VXL, BiPAC 9800V, BiPAC 9800VL, BiPAC 9800X, BiPAC 9800XL, BiPAC 9800N, BiPAC 9800NL, BiPAC 9800, BiPAC 9800L, BEC 9800VN, BEC 9800VNL, BEC 9800V, BEC 9800VL, BEC 9800N, BEC 9810VN, BEC 9810VNL Trade Name: Billion Issued to Billion Electric Co., Ltd. 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: December 9, 2013 Compliance Certification Services Inc. FCC ID: QI3BIL-9800VNXPD Report No.: T131105S01-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 9, 2013 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: QI3BIL-9800VNXPD Report No.: T131105S01-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 7 3.1 EUT CONFIGURATION ........................................................................................................................ 7 3.2 EUT EXERCISE .................................................................................................................................... 7 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 8 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 9 4. INSTRUMENT CALIBRATION ...................................................................................................... 10 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................................... 10 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 10 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 11 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 12 5.1 FACILITIES ....................................................................................................................................... 12 5.2 EQUIPMENT ................................................................................................…
