QI3BIL-AWML067-41LTE Module

8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.). TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895 www.billion.com - 1 - WW ML067 ( Band 41 only) LTE Module Specification Version 0.3 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.). TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895 www.billion.com - 2 - Revision History Document Release Date Modification Initials Approved Version 0.1 2014/03/28 1. First release Shengyen. Fan Ivan. Chen Version 0.2 2014/09/18 1. Recommended design PCIE LTE connect maximum power Vic. Lee Ivan. Chen Version 0.3 2014/12/01 1. Band 41 only Vic. Lee Ivan. Chen 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.). TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895 www.billion.com - 3 - 1. General Description 1 1. Product Overview and Functional Description Billion Electric Co., Ltd. WW ML067 is a (4G) LTE mini-PCIE module. It implements 3GPP release 9 modem on a mini-PCI Express card. It supports next-generation LTE standards with Category 4 150Mbps for DL and 50 Mbps for UL (megabits-per-second) throughput. User can surf internet by WW-ML067 in anywhere and anytime where 4G TD-LTE (Band 41) networks covered. WW-ML067 is designed to provide fast, reliable and easy user experience. WW ML067 uses Marvell PXA1802 communications processor. The PXA1802 is an advanced, highly integrated Long-Term Evolution (LTE) modem for multimedia-centric handsets. The PXA1802 solution incorporates mature and proves LTE technology to provide Mobile handset platform. <FCC Part 15.21 statement> ‧Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. ‧This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. <FCC Part 15.105 statement> Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipments does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. A simplified block diagram of the WW-ML067 module is depicted in the figure below. 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.). TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895 www.billion.com - 4 - RF exposure statements: Information to OEM integrator The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product. The user manual which is provided by OEM integrators for end users must include the following information in a prominent location. 1. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. 2. Only those antennas with same type and lesser gain filed under this FCC ID number can be used with this device. 3. The regulatory label on the final system must include the statement: “Contains FCC ID: xxxx or using electronic labeling method as documented in KDB 784748. 4. The final system integrator must ensure there is no instruction provided in the user manual or customer documentation indicating how to install or remove the transmitter module except such device has implemented two ways authentication between module and the host system. This module can't be used on radio system and operation individually. Using others antenna must be re-testing and certification. 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.). TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895 www.billion.com - 5 - 1 2. Antenna Description 1.) Type #1 Dipole: 2.) Type #2 Dipole: 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.). TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895 www.billion.com - 6 - 3.) Type #3 Patch antenna: RF Specification Frequency range 2500 2700 MHz Polarization Linear, Vertical / Horizontal HPBW/Horizontal Port 1:22∘ ∘∘ ∘/ Port 2:21∘ ∘∘ ∘ HPBW/Vertical Port 1:23∘ ∘∘ ∘/ Port 2:22∘ ∘∘ ∘ Peak Gain 11.5 dBi (Cable Loss Included) VSWR 2.0 max:1 Isolation 20 dB typ. Power handing 2W (cw) Impedance 50 Ohms Cable Ф1.37, 250mm (Port1: Gray; Port2: White) Connector U.FL x2 4.) Type #4 Dipole (全頻 全頻全頻 全頻) 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.). TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895 www.billion.com - 7 - Figure 1. WW-ML067 Mini-PCIE Module Block Diagram 1 2. Key Features Supported Frequency Bands TDD-LTE Band 41 Supported Network Modes Time Division Long Term Evolution (TDD-LTE) Provided Services High-speed LTE packet data service of up to 150 Mbit/s *Maximum data rate is subject to 4G services pro…

Text truncated - open the document above for the full version.

Product Number: AN0727-64DP5BSM Product Name: Antenna Page 1 Specification For Approval Date: 2014 / 04/ 09 File No.: 140409002 Version: 1.0 Customer： 盛達電業股份有限公司 Customer P/N： AAZANDHS2AN0727600 INVAX P/N： AN0727-64DP5BSM Description : Antenna Cortec Checked By: Customer Approved By: INVAX System Technology Corp. Cortec Technology Inc. 4F. No. 815.Chung Hsiao East Rd.,Sec.5 Xian-Xi Industrial, Sha-Tou Administration Zone, Taipei, TAIWAN Chang-An Town, Dong-Guan City, Guangdong Province, China TEL:886-2-2788-5218 FAX:886-2-2783-1658 TEL:86-769-85388261 FAX:86-769-85317869 htt p://www.invaxsystem.com http://www.cortec.com.cn Product Number: AN0727-64DP5BSM Product Name: Antenna Page 2 Index: 1. Revision History / Page 3 2. Specification / Page 4 3. Characteristics and Reliability Test / Page 5 4. Antenna - S Parameter Test Data / Page 6 5. Antenna - Radiation Pattern Test Data / Page 7 ~ 8 6. Mechanical and Packing Drawing / Page 9 ~ 10 7. Material Description and RoHS Test Report / Page 11 ~ end Product Number: AN0727-64DP5BSM Product Name: Antenna Page 3 3. Revision History Revision Date Change NotificationDescription 1.0 Product Number: AN0727-64DP5BSM Product Name: Antenna Page 4 4. Specification Sample Photo A. Electrical Characteristics Frequency 700 ~ 960 MHz 1710 ~ 2700 MHz S.W.R. <= 2.0 @ 824 MHz <= 2.0 @ 1880 ~ 2300 MHz Antenna Gain 0.5 ± 0.5dBi @ 700 ~ 960 MHz 2.0 ± 0.7dBi @ 1710 ~ 2700 MHz Efficiency (%) 40 % @ 700 ~ 960 MHz 76% @ 1710 ~ 2700 MHz Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic BODY: ABS HINGE:ABS Cable Type RG-178U-03 Connecter Type SMA Male C. Environmental Operation Temperature - 40 °C ~ + 65 °C Storage Temperature - 40 °C ~ + 80 °C Antenna Color Storage life < 2 year Product Number: AN0727-64DP5BSM Product Name: Antenna Page 5 5. Characteristics and Reliability Test Test Items Test Condition and Procedure Requirements C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2 Ant enna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1 Vibration GB / T2423 . 48-1997 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2 Rand om Drop GB / T2423.8-1995 Height: 1.0 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5% M3 Solderability GB 2423 . 28- 82 Solder iron: 260±5°C; Duration: 5 seconds 1. Mounted on PCB 2. No Visual Damage M4 T erminal- Pull Test Holding with individual specification; force applied to axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M5 T erminal- Torque Test Holding with individual specification; applied clockwise and counterclockwise to the axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M6 Dimension Inspection of dimension, color, material, package, surface process Directive DUT specification E1 Salt Spray GB / T 2423 . 17- 93 Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%; Time: 24 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E2 Humidity GB / T 2423 . 4 - 93 Temp: 80°C / 12 H; -40°C / 12H RH: >= 90%; Time: 24 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E3 Thermal Shock GB / T 2423 . 22 - 87 1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes) Cycles: 24 After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E4 Life (High Temp.) GB /T 2423 . 2 - 89 Temp: 80°C; Time: 24 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% R1 RoHS With Reference to IEC 62321:2008 with flow chart Directive RoHS 2011/65/EU R2 PFOS With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC R3 PFOA With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC Product Number: AN0727-64DP5BSM Product Name: Antenna Page 6 6. Antenna - S Parameter Test Data Product Number: AN0727-64DP5BSM Product Name: Antenna Page 7 7. Antenna - Radiation Pattern Test Data 704 MHZ 824 MHZ 960 MHZ Product Number: AN0727-64DP5BSM Product Name: Antenna Page 8 1710 MHZ 2200 MHZ 2700 MHZ 8. Mechanical Drawing See attached files 9. Material Description and RoHS Test Report See attached files 填表： 時麗 部門： 研發部 職務： 文員 Cd Pb Hg Cr(VI) PBBs PBDEs 1 Hinge-AN67-01B Hinge ABS N.D. N.D. N.D. N.D. N.D. N.D. 10044908 034 2014.01.02 ABS-757 TuvRheinland 2 AN64D-P5-01B Body ABS N.D. N.D. N.D. N.D. N.D. N.D. 10044908 034 2014.01.02 ABS-757 TuvRheinland 3 SMA207-CCT5AN19-A SMA Male 銅 60 31000 N.D. Negative CE/2013/73960 2013.07.25 R EECUTTINGBRASSB A SGS 康捷電子有限公司 物料名稱： AN0727-64DP5BSM 各構成物料的材質 物料中 HSF 對象物質含量調查表 測試名稱 測試報告裡 RoHS 對應物質測試結果 檢測報告編號 歐盟ROHS指令豁免條款2009/95/BC、钢中合金元素中的铅含量达0.35%、铝含量达0.4%、铜合金中的铅含量达4% COR/F-G-47a 包裝材料中鉛、鎘、汞、六價鉻總含量不超過 100ppm ，鎘的允許濃度為 5ppm 測試日期 物料型號 物料各構成名 稱 測試機構 名稱 序號 根據測試報告如實填寫鉛、鎘、汞、六價鉻、 PBBs 和 PBDEs 六項禁用物質的含量 頁數(Page): 1 of 4 : : : : : ============================================================================================================================= 依據客戶要求, 參考RoHS 2011/65/EU Annex II 指令進行鎘, 鉛, 汞, 六價鉻測試. (As specified by client, with reference to RoHS Directive 2011/65/EU Annex II to determine Cadmium, Lead, Mercury, Cr(VI) contents in the submitted sample.) 送樣廠商(Sample Submitted By)宮前五金股份有限公司 (KUON CHEN HARDWARE CO., LTD.) 測試結果(Test Results) ： 請見下一頁 (Please refer to next pages). 測試需求(Test Requested) : 2013/07/19 TO 2013/07/25 測試方法(Test Method) ： 參考IEC 62321: 2008方法 / With reference to IEC 62321: 2008. 測試報告 Test Report 宮前五金股份有限公司 KUON CHEN HARDWARE CO., LTD. *CE/2013/73960* 號碼(No.) : CE/2013/73960日期(Date) : 2013/07/25 桃園縣龜山鄉頂湖一街24號 NO. 24, DINGHU 1ST ST, GUISHAN SHIANG, TAOYUAN COUNTY 333, TAIWAN (R. O. C.) 以下測試樣品係由申請廠商所提供及確認 (The following sample(s) was/were submitted and identified by/on behalf of the applicant as)： FREE CUTTING BRASS BAR樣品名稱(Sample Description) 2013/07/19 樣品型號(Style/Item No.) 測試期間(Testing Period) 收件日期(Sample Receivi…

Text truncated - open the document above for the full version.

Tel : +886-2-29177353 / http://www.grand-tek.com/ [email protected] / LTE B41 16dBi Dual Polarization Directional Antenna 2500~2700MHz GTT P/N: DA-B41-16-01-BL
RF Specification • Frequency Range: 2500~2700 MHz • Polarization: Linear, Vertical / Horizontal • HPBW / Horizontal: Port1:22 ∘ / Port2:21 ∘ • HPBW / Vertical: Port1:23 ∘ / Port2:22 ∘ • Peak Gain: 11.5 dBi (Cable Loss Included) • VSWR: 2.0max:1 • Isolation: 20 dB typ. • Power Handing: 2W(cw) • Impedance: 50 Ohms • Cable: Ф 1.37, 250mm(Port1: Gray; Port2: White) • Connector: U.FL x 2
Environmental & Mechanical Characteristics • Temperature: -40 °C to +70 °C •Humidity: 95% @55 °C •Weight: 105g •Dimensions: 320(L)x320(W)x18(T)mm
VSWR
Isolation Tel : +886-2-29177353 / http://www.grand-tek.com/ [email protected] / Performance Summary
RADIATION PATTERN PORT#1 -180 -150 -120 -90-60-300306090120150180 -20 -15 -10 -5 0 5 10 15 20 Gain(dBi) Angle( degree) 2500 MHz 2600 MHz 2700 MHz H-Plane Co-Polar Pattern -180 -150 -120 -90-60-300306090120150180 -20 -15 -10 -5 0 5 10 15 20 Gain(dBi) Angle( degree) 2500 MHz 2600 MHz 2700 MHz V-Plane Cross-Polar Pattern -180 -150 -120 -90-60-300306090120150180 -20 -15 -10 -5 0 5 10 15 20 Gain(dBi) Angle( degree) 2500 MHz 2600 MHz 2700 MHz H-Plane Cross-Polar Pattern -180 -150 -120 -90-60-300306090120150180 -20 -15 -10 -5 0 5 10 15 20 Gain(dBi) Angle( degree) 2500 MHz 2600 MHz 2700 MHz V-Plane Co-Polar Pattern Tel : +886-2-29177353 / http://www.grand-tek.com/ [email protected] /
RADIATION PATTERN PORT#2 -180 -150 -120 -90-60-300306090120150180 -20 -15 -10 -5 0 5 10 15 20 Gain(dBi) Angle( degree) 2500 MHz 2600 MHz 2700 MHz H-Plane Co-Polar Pattern -180 -150 -120 -90-60-300306090120150180 -20 -15 -10 -5 0 5 10 15 20 Gain(dBi) Angle( degree) 2500 MHz 2600 MHz 2700 MHz H-Plane Cross-Polar Pattern -180 -150 -120 -90-60-300306090120150180 -20 -15 -10 -5 0 5 10 15 20 Gain(dBi) Angle( degree) 2500 MHz 2600 MHz 2700 MHz V-Plane Cross-Polar Pattern -180 -150 -120 -90-60-300306090120150180 -20 -15 -10 -5 0 5 10 15 20 Gain(dBi) Angle( degree) 2500 MHz 2600 MHz 2700 MHz V-Plane Co-Polar Pattern

Product Number: AN2600-5002BSM Product Name: Antenna Page 1 Specification For Approval Date: 2014 / 12 / 24 File No.: 141224009 Version: 1.0 Customer： 盛達電業股份有限公司 Customer P/N： / INVAX P/N： AN2600-5002BSM Description : Antenna Cortec Checked By: Customer Approved By: INVAX System Technology Corp. Cortec Technology Inc. 4F. No. 815.Chung Hsiao East Rd.,Sec.5 Xian-Xi Industrial, Sha-Tou Administration Zone, Taipei, TAIWAN Chang-An Town, Dong-Guan City, Guangdong Province, China TEL:886-2-2788-5218 FAX:886-2-2783-1658 TEL:86-769-85388261 FAX:86-769-85317869 http://www.invaxsystem.comhttp://www.cortec.com.cn Product Number: AN2600-5002BSM Product Name: Antenna Page 2 Index: 1. Revision History / Page 3 2. Specification / Page 4 3. Characteristics and Reliability Test / Page 5 ~ 6 4. Antenna - S Parameter Test Data / Page 7 5. Antenna - Radiation Pattern Test Data / Page 8 6. Mechanical and Packing Drawing / Page 9 ~ 10 7. Material Description and RoHS Test Report / Page 11 ~ end Product Number: AN2600-5002BSM Product Name: Antenna Page 3 1. Revision History Revision Date Change Notification Description 1.0 Product Number: AN2600-5002BSM Product Name: Antenna Page 4 2. Specification Sample Photo A. Electrical Characteristics Frequency 2500 ~ 2700 MHz S.W.R. <= 2.0 Peak Gain 4.15dBi Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic TPEE / ABS Cable Type RG-178 Connector Type SMA Male C. Environmental Operation Temperature - 40 °C ~ + 65 °C Storage Temperature - 40 °C ~ + 80 °C Antenna Color Storage life < 2 year Product Number: AN2600-5002BSM Product Name: Antenna Page 5 3. Characteristics and Reliability Test Test Items測試 項目 Test Condition and Procedure測試方法 Requirements要求 Result 結果 C1 V.S.W.R. 電壓駐波比 Set DUT on Network Analyzer; make individual calibration to test 設置網路分析儀參數進行測試 Directive DUT specification 符合待測物規範 OK C2 Insertion Loss插入損 失 Set DUT on Network Analyzer; make individual calibration to test 設置網路分析儀參數進行測試 Directive DUT specification 符合待測物規範 N/A C3 Antenna Gain 天線增益 Set DUT on Antenna Chamber; make individual calibration to test 設置天線暗室參數進行測試 Directive DUT specification 符合待測物規範 OK C4 Voltage Breakdown 耐電壓 Test voltage should be applied between insulated portions, or between ground as specified. 在绝缘部分测试电压,或指定接地面之间 Max Voltage≥ 500 V or directive material specification最大電壓≥500V 或符合材料規範 N/A C5 Insulation Resistance 絕緣阻抗 Set Voltage: 500 ± 50V; between the insulated portions, or between ground as specified. 設置電壓500 ± 50V,在绝缘部份測試或指定接地面之 间 Resistance≥500 M ohm or directive material specification阻抗≥500M ohm 或符合材料規範 N/A C6 Contact Resistance 接觸阻抗 Air Temp: 26°C; measured with test equipment 室溫26°C，指定量測設備 Directive material specification 符合材料規範 N/A M1 Vibration 震動 GB / T2423.48-2008 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction 振幅1.5mm；頻率20~80~20Hz；3個方向各2H 1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% OK GB / T2423.8-1995 Single：Height: 1.0 Meter; 3 directions; 1 time for each direction單支天線，高1m；3個方向各1次 OK Packing：Height: 0.76 Meter; 1 corner, 3 edges, 6 surface 包裝：高0.76m，一角、三棱、六面各一次 OK M2 Random Drop 跌落 Antenna+Machine:Height: 0.76 Meter; 1 corner, 3 edges, 6 surface.整機：高0.76m，一角、三棱、六面 各一次 1. No parts separated、fracture 2. Frequency Tol.≤5% 產品無脫落、斷裂;頻率偏移≤5% N/A Product Number: AN2600-5002BSM Product Name: Antenna Page 6 M3 Solderability 可焊性 GB / T2423.28-2005 Temp: 260±5°C;Duration: 5 seconds 溫度260± 5°C;持續5秒 Tin evenly on full 上錫均勻飽滿 N/A M4 Pull Test 拉力 Holding with individual specification; force applied to axis of terminal .單獨定義產品端子拉力 1. Directive DUT specification 2. Frequency Tol.≤5% 符合待測物規範;頻率偏移≤5% OK M5 Torque Test 扭力 Holding with individual specification; applied clockwise and counterclockwise to the axis of terminal 單獨定義產品端子之順時針及逆時針扭力 1. Directive DUT specification 2. Frequency Tol.≤ 5% 符合待測物規範;頻率偏移≤5% OK M6 Dimension 尺寸 Inspection of dimension, color, material, package, surface process.检查尺寸,颜色,材料,包装,表面處理 Directive DUT specification 符合待測物規範 OK E1 Waterproof 防水 With Reference to IEC 60529 // IP Code Definition 參考IEC60529 IP定義 Directive DUT specification 符合待測物規範 N/A E2 Salt Spray鹽 霧 GB / T 2423.17-2008 Temp: 35°C; RH: ≥ 95%; NaCl solution: ≥ 5%;Time: 24H 溫度35°C；濕度≥95%;鹽水濃度≥5%；測試24H 1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% OK E3 Temperature and Humidity Chamber 恒溫恒濕 GB / T 2423.3-2006 Temp: 80°C / 12 H; -40°C / 12H RH: ≥ 90%; Time: 24H 溫度80°C測試12H轉-40°C測試12H；濕度≥ 90%； 時間24H After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.≤5% 恢復2H后，無明顯外觀不良;頻 率偏移≤5% OK E4 Thermal Shock 冷熱衝擊 GB / T 2423.22 - 2008 - 40°C (30 minutes) to + 80°C (30 minutes)；Cycles: 24 - 40°C測試30分轉80°C測試30分為一個週期；共24 週期 After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.≤5% 恢復2H后，無明顯外觀不良;頻 率偏移≤5% N/A E5 Aging test 老化 GB /T 2423.2 - 2008 Temp: 80°C; Time: 24 hours 溫度80°C，測試24H After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% OK E6 High Temp. 高溫 Temp. 270±10°C；Times：120 seconds 溫度 270±10°C，測試時間120秒 No Visual Damage 無明顯外觀不良 N/A R1 RoHS With Reference to IEC 62321:2008 with flow chart 參考IEC 62321測試流程 Directive RoHS 2011/65/EU 符合RoHS 2011/65/EU標準 OK R2 PFOS With Reference to USA EPA 3550C:1996 by LC/MS 參考USA EPA 3550C測試流程 Directive RoHS 2006/122/EC 符合RoHS 2011/65/EU標準 OK Product Number: AN2600-5002BSM Product Name: Antenna Page 7 4. Antenna - S Parameter Test Data Product Number: AN2600-5002BSM Product Name: Antenna Page 8 5. Antenna - Radiation Pattern Test Data 2500 MHz 2600 MHz 2700 MHz 6. Mechanical Drawing See attached files 7. Material Description and RoHS Test Report See attached files 填表： 時麗 部門： 研發部 職務： 文員 Cd Pb Hg Cr(VI) PBBs PBDE s 1 BODY-AN50-01B Body1 TPEE N.D. N.D. N.D. N.D. N.D. N.D. GZHG1403005664OT 2014.03.13 TPEE 63D SGS 2 AN9201-06B Body3 ABS N.D. N.D. N.D. N.D. N.D. N.D. 10044908 034 2014.01.02 ABS-757 TuvRheinland 3 AN0304-T07B Body2 ABS N.D. N.D. N.D. N.D. N.D. N.D. 10044908 034 2014.01.02 ABS-757 TuvRheinland 4 ASM-T6…

Text truncated - open the document above for the full version.

Product Number: AN2600-6008BSM Product Name: Antenna Page 1 Specification For Approval Date: 2013 / 08 / 28 File No.: 130828002 Version: 1.0 Customer： 盛達電業股份有限公司 Customer P/N： / INVAX P/N： AN2600-6008BSM Description : Antenna Cortec Checked By: Customer Approved By: INVAX System Technology Corp. Cortec Technology Inc. 4F. No. 815.Chung Hsiao East Rd.,Sec.5 Xian-Xi Industrial, Sha-Tou Administration Zone, Taipei, TAIWAN Chang-An Town, Dong-Guan City, Guangdong Province, China TEL:886-2-2788-5218 FAX:886-2-2783-1658 TEL:86-769-85388261 FAX:86-769-85317869 htt p://www.invaxsystem.com http://www.cortec.com.cn Product Number: AN2600-6008BSM Product Name: Antenna Page 2 Index: 1. Revision History / Page 3 2. Specification / Page 4 3. Characteristics and Reliability Test / Page 5 4. Antenna - S Parameter Test Data / Page 6 5. Antenna - Radiation Pattern Test Data / Page 7 ~ 8 6. Mechanical and Packing Drawing / Page 9 ~ 10 7. Material Description and RoHS Test Report / Page 11 ~ end Product Number: AN2600-6008BSM Product Name: Antenna Page 3 1. Revision History Revision Date Change NotificationDescription 1.0 2013.08.28 Product Number: AN2600-6008BSM Product Name: Antenna Page 4 2. Specification Sample Photo A. Electrical Characteristics Frequency 2500 ~ 2700 MHz S.W.R. <= 2.5 Antenna Gain 6 dBi Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic Body: ABS Holder: PA+ABS Cable Type RG178 Connector Type SMA Male Connector Pull Test >= 5 Kg C. Environmental Operation Temperature - 40 ̊C ~ + 65 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C Antenna Color Storage life < 1 year Product Number: AN2600-6008BSM Product Name: Antenna Page 5 3. Characteristics and Reliability Test Test Items Test Condition and Procedure Requirements C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2 Antenna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1 Vibration MIL-STD-202G, 201A Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2 Random Drop Height: 1.5 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5% M3 Solderability MIL-STD-202G, 210F, cond. A Solder iron: 350±10°C; Duration: 5 seconds 1. Mounted on PCB 2. No Visual Damage M4 Terminal- Pull Test MIL-STD-202G, 211A, cond. A Holding with individual specification; force applied to axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M5 Terminal- Torque Test MIL-STD-202G, 211A, cond. E Holding with individual specification; applied clockwise and counterclockwise to the axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M6 Dimension Inspection of dimension, color, material, package, surface process Directive DUT specification E1 Salt Spray MIL-STD-202G, 101E, cond. B Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E2 Humidity MIL-STD-202G, 103B, cond. B Temp: 40°C; RH: >= 95%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E3 Thermal Shock 1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes) Cycles: 24 After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E4 Life (High Temp.) MIL-STD-202G, 108A, cond. A Temp: 85°C; Time: 96 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% R1 RoHS With Reference to IEC 62321:2008 with flow chart Directive RoHS 2002/95/EC R2 PFOS With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC R3 PFOA With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC Product Number: AN2600-6008BSM Product Name: Antenna Page 6 4. Antenna - S Parameter Test Data Product Number: AN2600-6008BSM Product Name: Antenna Page 7 5. Antenna - Radiation Pattern Test Data Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna Product Number: AN2600-6008BSM Product Name: Antenna Page 8 6. Mechanical Drawing See attached files 7. Material Description and RoHS Test Report See attached files 填表： 時麗 部門： 研發部 職務： 文員 Cd Pb Hg Cr(VI) PBBs PBDEs 1 AN0303-T01B Body2 PA+ABS N.D. N.D. N.D. N.D. N.D. N.D. CANEC1304205854 2013.04.12 ABS/PA NC SGS 2 AN6003-01B Body ABS N.D. N.D. N.D. N.D. N.D. N.D. KA/2012/C1575 2013.01.02 ACRYLONITRILE SGS 4 R-AN60-01B Hat PVC N.D. N.D. N.D. N.D. N.D. N.D. CANEC1304137802 2013.04.03 PVC GRAIN SGS 5 R-AN1901-05 R-AN527515 Tube 銅 N.D. 14 N.D. Negative N.D. N.D. CANML1216541101 2012.12.05 C2700 SGS 6 R-AN60-03R-AN60-04 Spring 銅 66 31000 N.D. Negative CE201314616 2013.01.28 F REECUTTINGBRASSBA R SGS 3 AN03-514CZ Pin 銅 66 31000 N.D. Negative CE201314616 2013.01.28 F REECUTTINGBRASSBA R SGS 8 銅 66 31000 N.D. Negative CE201314616 2013.01.28 F REECUTTINGBRASSBA R SGS 9 鍍鎳 N.D. 10 N.D. Negative CANML1307214802 2013.05.22 Ni terminal SGS 7 R-GS-SP1005001 EVA EVA N.D. 62 N.D. N.D. N.D. N.D. CANEC1303102105 2013.03.19 EVA+gum. SGS 10 FEP N.D. N.D. N.D. N.D. N.D. N.D. RHS05F011891001E 2013.08.26 电线电缆料 CTI 11 PTFE N.D. N.D. N.D. N.D. N.D. N.D. RHS05F011891002E 2013.08.26 电线电缆料 CTI 12 鍍銀銅 N.D. N.D. N.D. Negative N.D. N.D. RHS05F011891004E 2013.08.26 电线电缆料 CTI 根據測試報告如實填寫鉛、鎘、汞、六價鉻、 PBBs 和 PBDEs 六項禁用物質的含量 包裝材料中鉛、鎘、汞、六價鉻總含量不超過 100ppm ，鎘的允許濃度為 5ppm 測試日期 物料型號 物料各構成名稱 測試機構 名稱 序號 各構成物料的材質 R-RG-178U Cable COR/F-G-47a 歐盟 ROHS 指令豁免條款 2009/95/BC 、钢中合金元素中的铅含量达 0.35% 、铝含量达 0.4% 、铜合金中的铅含量达 4% SMA336-CN8MNANT SMA Male 康捷電子有限公司 物料中 HSF 對象物質含量調查表 物料名稱： AN2600-6008BSM 測試名稱 測試報告裡 RoHS 對應物質測試結果 檢測報告編號

RF_160, Issue 03 Declaration of Authorization We Name: Billion Electric Co., Ltd. Address: 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) City: New Taipei City Country: Taiwan Declare that: Name Representative of agent: Winnie Chen Agent Company name: Compliance Certification Services Inc. Address: No.989-1 Wen Shan Rd., Shang Shan Village,Qionglin Township, City: Hsinchu County 30741, Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: LTE Module Type designation: WW-ML067 Trademark: Billion on our behalf. Date:2015/2/9 Signature: Name/Title: Ted Ho/CTO Company Name: Billion Electric Co., Ltd. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

DECLARATION OF CONFORMITY (DoC) Equipment: LTE Module Trademark(s) and Model(s): Billion / WW-ML067 FCC ID in case other parts of this equipment are subject to certification: QI3BIL-AWML067-41 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:T150119S01 Issue date:2015/2/9 Test Lab: Compliance Certification Services Inc. Company name: Billion Electric Co., Ltd. Name/Title (legal representative): Ted Ho/CTO Address: 8F, No. 192, Sec. 2, Zhongxing Road, Xindian Dist. New Taipei City 231, Taiwan (R.O.C.) E-mail: [email protected] Date: 2015/2/9 Signature:

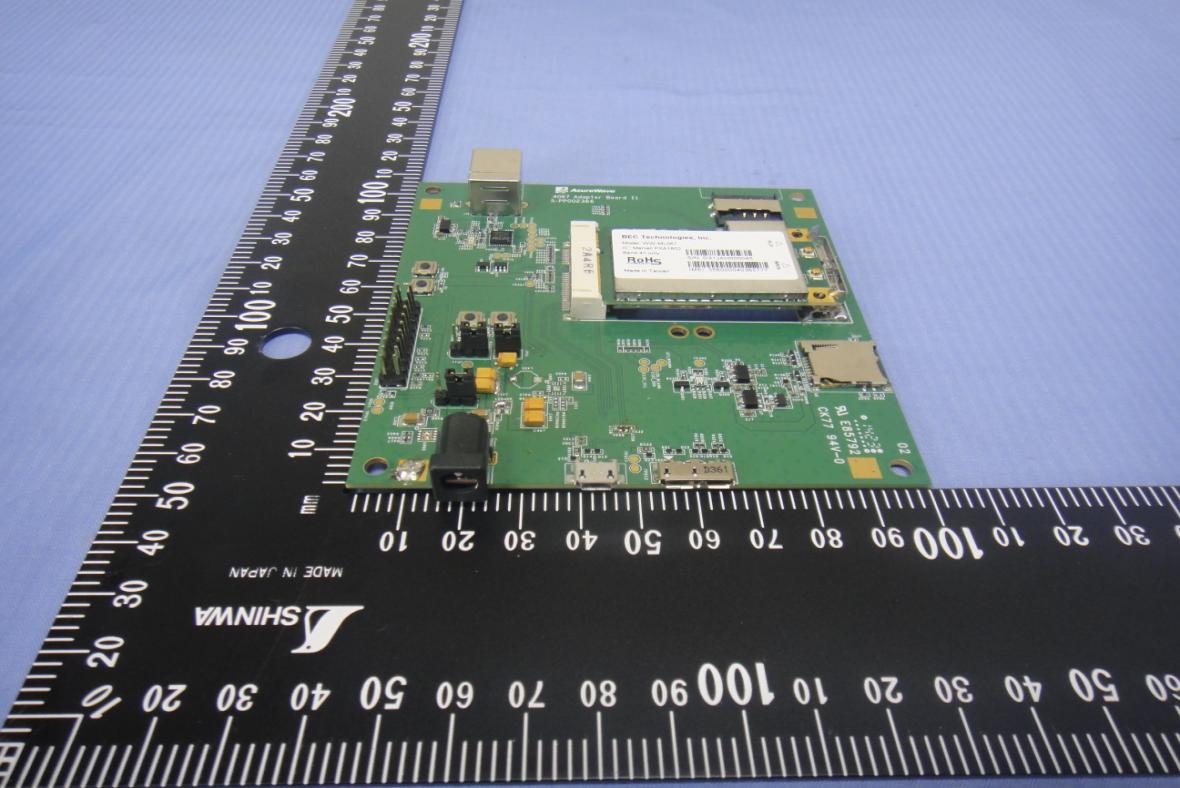

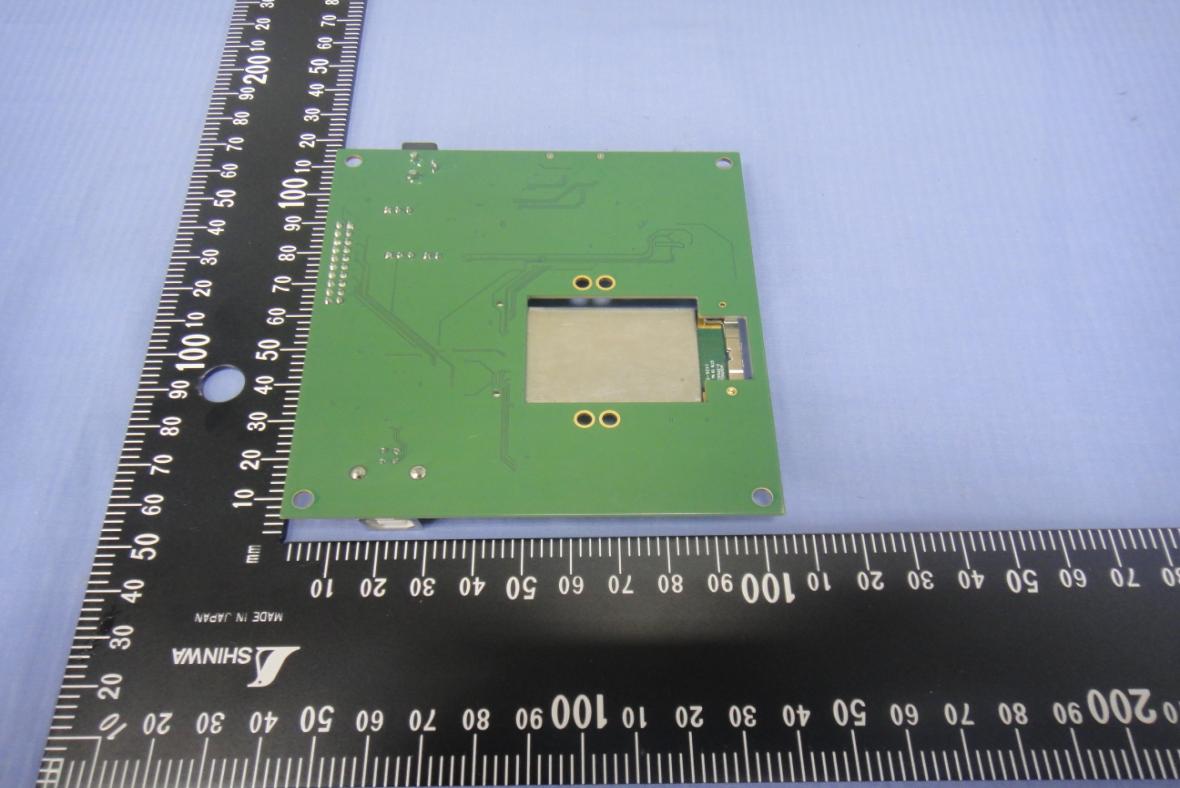

Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 1 / 10 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 4 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 7 Rev. 00

Model: WW-ML067FCC ID: QI3BIL-AWML067-41IC: Marvell PXA1802 Billion Electric Co., Ltd. IMEI: xxxxxxxxxxxxxxx S/N: xxxxxxxxxxxx Made in Taiwan IMEI: xxxxxxxxxxxxxxx S/N: xxxxxxxxxxxx

Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T150119S01 Date of Issue: January 30, 2015 A1 - 10 Rev. 00 RF IC

Billion Electric Co., Ltd. Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting: TDD-LTE Band 41 is 23 dBm± 2 dB (power class 3) Billion Electric Co., Ltd. 公司代表 : Mr. Ted HO 職稱 : C.T.O. TEL: +886-2-29145665 FAX: +886-2-29186731 E-Mail: [email protected]

Compliance Certification Services Inc. FCC ID: QI3BIL-AWML067-41 Report No.: T150119S01-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 215 Rev.00 FCC TEST REPORT and IC TEST REPORT For LTE Module Model: WW-ML067 Trade Name: Billion Issued to Billion Electric Co., Ltd. 8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Issued by Compliance Certifi…

Text truncated - open the document above for the full version.
