QI3BIL-MX200MXConnect M2M Advanced Industrial 4G/LTE Router

Last revised: October, 2015 Version release: v1.10 User Manual BEC MX-200 Advanced Industrial 4G/LTE Wireless Router TABLE OF CONTENTS CHAPTER 1: INTRODUCTION ......................... 1 INTRODUCTION TO YOUR ROUTER .............................................................. 1 FEATURES & SPECIFICATIONS .................................................................... 3 HARDWARE SPECIFICATIONS ..................................................................... 5 APPLICATION DIAGRAMS ......................................................................... 6 CHAPTER 2: PRODUCT OVERVIEW ............... 7 IMPORTANT NOTE FOR USING THIS ROUTER ................................................ 7 DEVICE DESCRIPTION .............................................................................. 8 SYSTEM RECOVERY PROCEDURES ............................................................. 11 CABLING ............................................................................................ 11 CHAPTER 3: BASIC INSTALLATION ............ 12 NETWORK CONFIGURATION – IPV4 ......................................................... 13 Configuring PC in Windows 10 (IPv4) .............................................................. 13 Configuring PC in Windows 7/8 (IPv4) ............................................................. 15 Configuring PC in Windows Vista (IPv4) .......................................................... 17 Configuring PC in Windows XP (IPv4) .............................................................. 19 NETWORK CONFIGURATION – IPV6 ......................................................... 21 Configuring PC in Windows 10 (IPv6) .............................................................. 21 Configuring PC in Windows 7/8 (IPv6) ............................................................. 23 Configuring PC in Windows Vista (IPv6) .......................................................... 25 Configuring PC in Windows XP (IPv6) .............................................................. 27 DEFAULT SETTINGS ............................................................................... 28 CHAPTER 4: DEVICE CONFIGURATION ...... 29 LOGIN TO YOUR DEVICE ......................................................................... 29 STATUS .............................................................................................. 31 Device Info ...................................................................................................... 31 System Log ...................................................................................................... 33 3G/4G-LTE Status............................................................................................. 34 Statistics .......................................................................................................... 36 DHCP Table ...................................................................................................... 39 IPSec Status ..................................................................................................... 40 PPTP Status ..................................................................................................... 41 L2TP Status ...................................................................................................... 42 GRE Status ....................................................................................................... 42 ARP Table ........................................................................................................ 43 QUICK START ...................................................................................... 44 CONFIGURATION .................................................................................. 46 Interface Setup ................................................................................................ 46 Internet ........................................................................................................................ 46 LAN ............................................................................................................................... 54 Dual WAN ........................................................................................................ 58 General Setting ............................................................................................................. 58 Outbound Load Balance ............................................................................................... 61 Protocol Binding ........................................................................................................... 62 Advanced Setup .............................................................................................. 63 Firewall ......................................................................................................................... 63 Routing ......................................................................................................................... 64 Dynamic Routing .......................................................................................................... 65 NAT ............................................................................................................................... 67 Static DNS ..................................................................................................................... 72 Time Schedule .............................................................................................................. 73 Mail Alert ..................................................................................................................... 74 Remote System Log ...................................................................................................... 75 Serial (RS-232 Port) ....................................................................................................... 76 VPN ......................................................................…

Text truncated - open the document above for the full version.

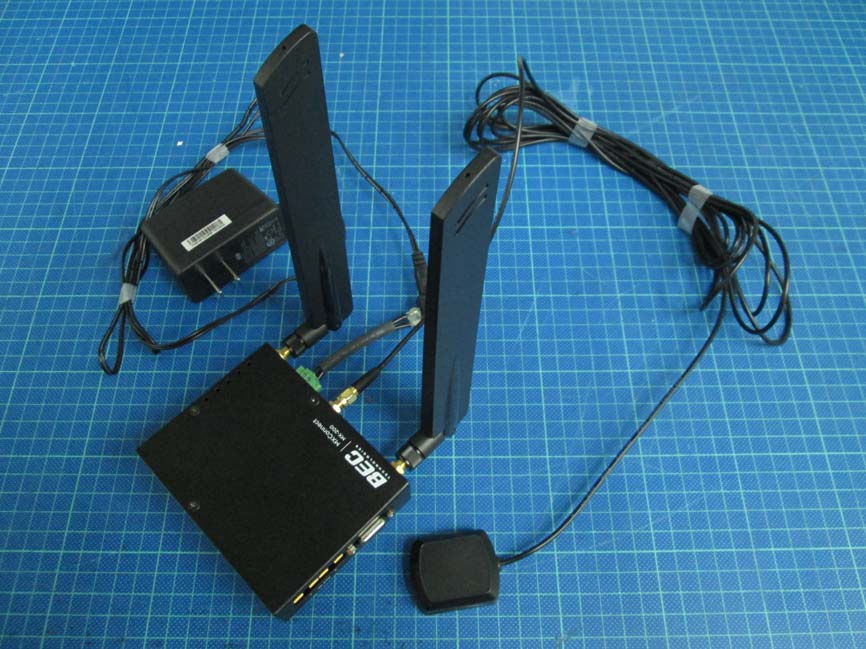

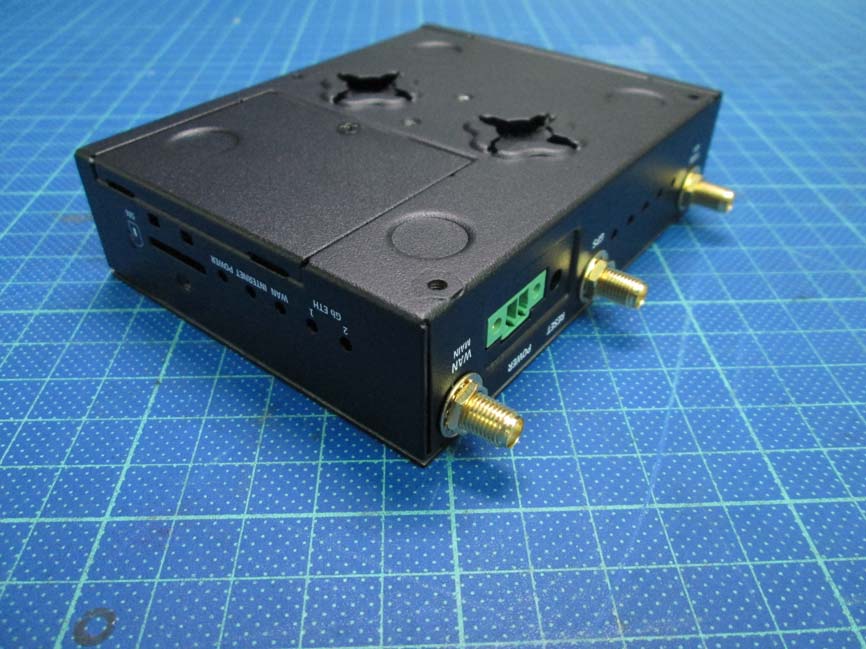

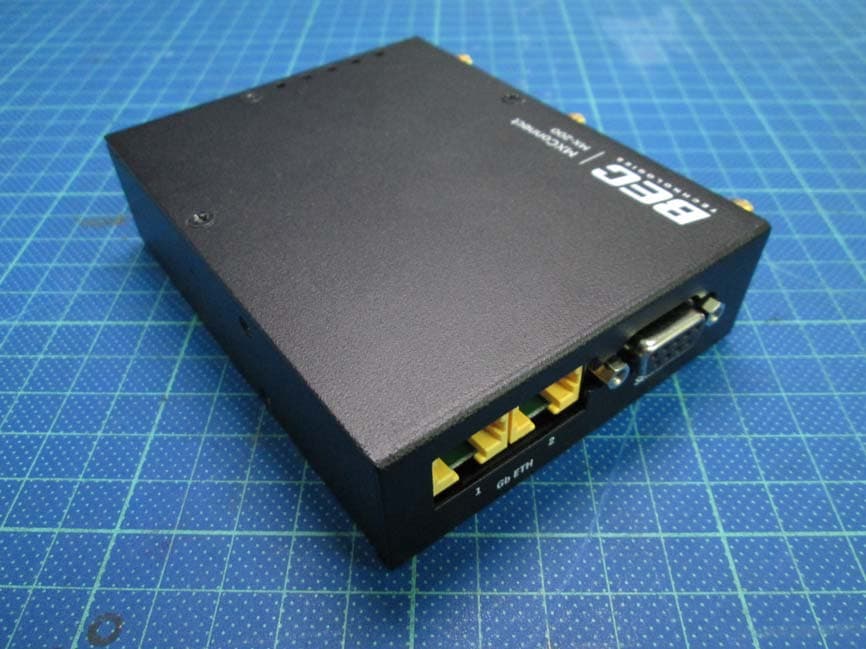

External photo of EUT External photo of EUT External photo of EUT External photo of EUT External photo of EUT

Product Name: MXConnect M2M Advance Industrial 4G/LTE Router Model No.: MX-200 Label location

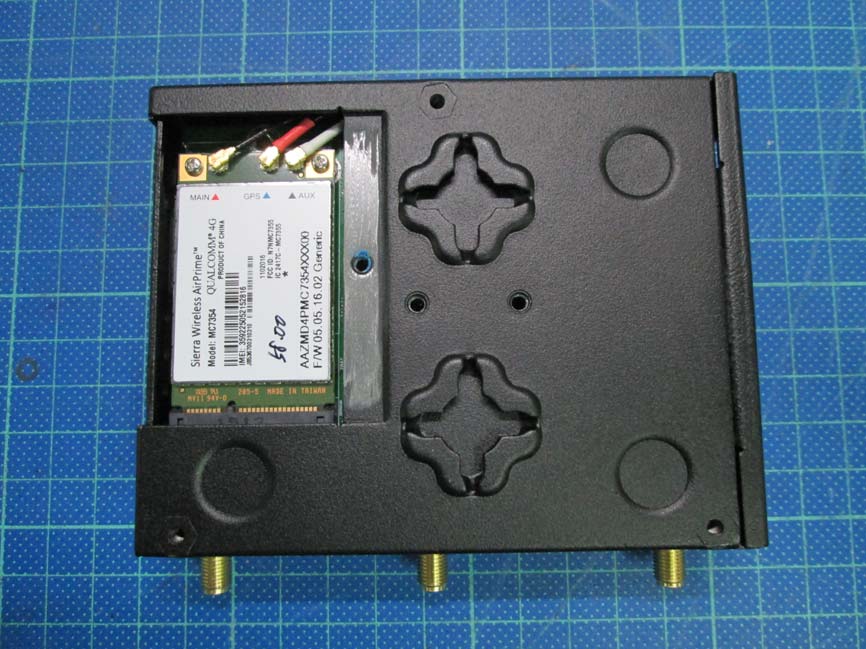

Internal photo of EUT Internal photo of EUT Internal photo of EUT Antenna 0 Antenna 1 Internal photo of EUT Module_1 Internal photo of EUT Module_2 Module_3 Internal photo of EUT Antenna_AB07 Antenna_AB07 Internal photo of EUT AB07 _Connector Antenna_AN64D Internal photo of EUT Antenna_AN64D AN64D_Connector Internal photo of EUT GPS Antenna GPS Antenna Internal photo of EUT GPS Ant connector

FCC ID: QI3BIL-MX200 Report No.: 151100385TWN-001 Page 1 of 13 0597 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : 151100385TWN-001 Model No. : BEC MX-200 Issued Date : Nov. 24, 2015 Applicant: Billion Electric Co., Ltd. 8f., No.192, Sec.2,Zhongxing Road, Xindian Dist., New Ta i p e i C i t y, Ta i w a n . Test Method/ Standard: FCC 1.1310 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Candy Liu/ Assistant These measurements were taken by: Sign on File Terry Hsu/ Engineer The test report was reviewed by: Name Jimmy Yang Title Senior Engineer FCC ID: QI3BIL-MX200 Report No.: 151100385TWN-001 Page 2 of 13 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 1.1 Identification of the EUT ........................................................................................4 1.2 Additional information about the EUT....................................................................5 1.3 Antenna description.................................................................................................5 2. Test specifications .........................................................................................................6 2.1 Introduction .............................................................................................................6 2.2 RF Exposure calculations........................................................................................6 2.3 Operation mode .......................................................................................................7 2.4 Test equipment ........................................................................................................7 2.5 Test Set-up ...............................................................................................................7 3. Test results .....................................................................................................................8 FCC ID: QI3BIL-MX200 Report No.: 151100385TWN-001 Page 3 of 13 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997, IEEE C95.1-2005 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1Complies FCC ID: QI3BIL-MX200 Report No.: 151100385TWN-001 Page 4 of 13 1. General information 1.1 Identification of the EUT Product: MXConnect M2M Advanced Industrial 4G/LTE Router Model No: BEC MX-200 FCC ID: QI3BIL-MX200 Manufacturer: Billion Electric Co., Ltd. Address: 8f., No.192, Sec.2, Zhongxing Road, Xindian Dist., New Taipei City, Taiwan. TX Frequency: GSM850: 824.2 MHz ~ 848.8 MHz GSM1900: 1850.2 MHz ~ 1909.8 MHz WCDMA Band V: 826.4 MHz ~ 846.6 MHz WCDMA Band II:: 1852.4 MHz ~ 1907.6 MHz LTE Band 17: 706.5 MHz ~ 713.5 MHz RX Frequency: GSM850: 869.2 MHz ~ 893.8 MH ,GSM1900: 1930.2 MHz ~ 1989.8 MHz z WCDMA Band V: 871.4 MHz ~ 891.6 MHz WCDMA Band II:: 1932.4 MHz ~ 1987.6 MHz LTE Band 17: 736.5MHz ~ 743.5 MHz Maximum Output Power to Antenna: GSM850: 32.2 dBm,GSM1900: 29.0 dBm WCDMA Band V: 22.83dBm ,WCDMA Band II: 22.47 dBm LTE Band 17 : 22.67 dBm Rated Power: DC 12 V from adapter Power Cord: N/A Sample Received: Sep. 30, 2015 Sample condition: Workable Test Date(s): Oct. 1, 2015 ~ Oct. 29, 2015 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID: QI3BIL-MX200 Report No.: 151100385TWN-001 Page 5 of 13 1.2 Additional information about the EUT Product SW/HW version : M200_GPS / 1.00C Radio SW/HW version : 05.05.58.00 / 11 Test SW Version : N/A 1.3 Antenna description Antenna 1 Antenna model number : AN0727-64DP5BSM The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain : 0.28 dBi max (850 Band ), 0.64 dBi max (1900 Band), -1.3 dBi (LTE Band 17) Antenna Type : Dipole antenna Connector Type : SMA Antenna 2 Antenna model number : AB0727-88Y04BSM The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain : -1.01 dBi max (850 Band ), -0.47 dBi max (1900 Band) -7.31 dBi (LTE Band 17) Antenna Type : Dipole antenna Connector Type : SMA The model number “ AN0727-64DP5BSM” is worst case in ERP/EIRP measurement. FCC ID: QI3BIL-MX200 Report No.: 151100385TWN-001 Page 6 of 13 2. Test specifications 2.1 Introduction The EUT operates in the 700MHz/850MHz/1900MHz band. Due to the EU…

Text truncated - open the document above for the full version.

FCC ID. : QI3BIL-MX200 Report No.: 150700091TWN-001 Page 1 of 58 EMC TEST REPORT Report No. : 150700091TWN-001 Model No. : BEC MX-200 Issued Date : Oct 28, 2015 Applicant: Address: Billion Electric Co., Ltd. 8f., No.192, Sec.2,Zhongxing Road, Xindian Dist., New Taipei City, Taiwan. Test Method/ Standard: 47 CFR FCC Part 22, 47 CFR FCC Part 24, 47 CFR FCC Part 2, ANSI/TIA-603-D-2010 KDB 971168 D01 Power Meas License Digital Systems v02r02 Te s t B y : Address: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Candy Liu/ Assistant These measurements were taken by: Sign on File Terry Hsu/ Engineer The test report was reviewed by: Name Jimmy Yang Title Senior Engineer FCC ID. : QI3BIL-MX200 Report No.: 150700091TWN-001 Page 2 of 58 Table of Contents 1. Summary of Test Data................................................................................................... 3 2. General Information...................................................................................................... 4 3. Output Power Measurement ....................................................................................... 12 4. Frequency Stability ..................................................................................................... 19 5. Occupied Bandwidth Measurement ............................................................................ 24 6. Peak Excursion to Average Ratio................................................................................ 33 7. Emission on the Band Edge ........................................................................................ 37 8. Conducted Spurious Emissions................................................................................... 41 9. Radiated Emission Measurement................................................................................ 49 Appendix A: Test equipments list ................................................................................... 57 Appendix B: Measurement Uncertainty ......................................................................... 58 FCC ID. : QI3BIL-MX200 Report No.: 150700091TWN-001 Page 3 of 58 1. Summary of Test Data Test Requirement Applicable Rule Limit Result Conducted Output Power 2.1046 Reporting Only Pass Effective Radiated Power 22.913(a)(2) ERP < 7 Watts Pass Equivalent isotropic radiated power 24.232(c) ERP < 2 Watts Pass Frequency Stability 2.1055 22.355 24.235 27.54 < 2.5 ppm / Within frequency range Pass Occupied Bandwidth 2.1049 22.917(b) 24.238(a) 27.53(h) Reporting Only Pass Peak to average ratio 24.232(d) < 13 dB Pass Band Edge Measurements 2.1049 2.1051 22.917(a) 24.238(a) 27.53(g) < 43+10log10(P[Watts]) Pass Conducted Spurious Emissions 2.1051 22.917(a) 24.238(a) 27.53(g) < 43+10log10(P[Watts]) Pass Radiated Spurious Emissions 2.1053 22.917(a) 24.238(a) 27.53(g) < 43+10log10(P[Watts]) Pass FCC ID. : QI3BIL-MX200 Report No.: 150700091TWN-001 Page 4 of 58 2. General Information 2.1 Identification of the EUT Product: MXConnect M2M Advanced Industrial 4G/LTE Router Model No: BEC MX-200 FCC ID: QI3BIL-MX200 Manufacturer: Billion Electric Co., Ltd. Address: 8f., No.192, Sec.2, Zhongxing Road, Xindian Dist., New Taipei City, Taiwan. TX Frequency: GSM850: 824.2 MHz ~ 848.8 MHz, GSM1900: 1850.2 MHz ~ 1909.8 MHz WCDMA Band V: 826.4 MHz ~ 846.6 MHz WCDMA Band II:: 1852.4 MHz ~ 1907.6 MHz RX Frequency: GSM850: 869.2 MHz ~ 893.8 MH ,GSM1900: 1930.2 MHz ~ 1989.8 MHz z WCDMA Band V: 871.4 MHz ~ 891.6 MHz WCDMA Band II:: 1932.4 MHz ~ 1987.6 MHz Maximum Output GSM850: 32.2 dBm,GSM1900: 29.0 dBm WCDMA Band V: 22.83dBm ,WCDMA Band II: 22.47 dBm Rated Power: DC 12 V from adapter Power Cord: N/A Sample Received: Sep. 30, 2015 Sample condition: Workable Test Date(s): Oct. 1, 2015 ~ Oct. 29, 2015 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. : QI3BIL-MX200 Report No.: 150700091TWN-001 Page 5 of 58 2.2 Emission designator FCC Rule System Type of Modulation BW Emission Designator Frequency Tolerance (ppm) Maximum ERP (Watts) Maximum EIRP (Watts) Part 22 GSM850 GSM+GPRS GMSK 0.241 241KGXW0.022 1.079 - Part 22 GSM850 GSM+EDGE 8PSK 0.245 245KG7W0.064 0.290 - Part 22 WCDMA Band V RMC 12.2Kbps QPSK 4.181 4M18F9W0.013 0.125 - Part 24 GSM1900 GSM/GPRS GMSK 0.242 242KG7W0.013 - 0.920 W Part 24 GSM1900 GSM/EDGE 8PSK 0.241 241KG7W0.011 - 0.374 W Part 24 WCDMA Band II RMC 12.2Kbps QPSK 4.194 4M19F9W0.012 - 0.205 W FCC ID. : QI3BIL-MX200 Report No.: 150700091TWN-001 Page 6 of 58 2.3 Description of EUT Product SW/HW version : M200_GPS / 1.00C Radio SW/HW version : 05.05.58.00 / 11 Test SW Version : N/A 2.4 Antenna description Antenna 1 Antenna model number : AN0727-…

Text truncated - open the document above for the full version.

FCC ID. : QI3BIL-MX200 Report No.: 150700093TWN-001 Page 1 of 46 EMC TEST REPORT Report No. : 150700093TWN-001 Model No. : BEC MX-200 Issued Date : Oct. 29, 2015 Applicant: Address: Billion Electric Co., Ltd. 8F., No. 192, Sec. 2, Zhongxing Road, Xindian Dist., New Ta i p e i C i t y, Ta i w a n Test Method/ Standard: 47 CFR FCC Part 27, 47 CFR FCC Part 2, ANSI/TIA-603-D-2010 KDB 971168 D01 Power Meas License Digital Systems v02r02 Te s t B y : Address: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Candy Liu/ Assistant These measurements were taken by: Sign on File Terry Hsu/ Engineer The test report was reviewed by: Name Jimmy Yang Title Senior Engineer FCC ID. : QI3BIL-MX200 Report No.: 150700093TWN-001 Page 2 of 46 Table of Contents 1. Summary of Test Data................................................................................................... 3 2. General Information...................................................................................................... 4 3. Output Power Measurement ....................................................................................... 10 4. Frequency Stability ..................................................................................................... 16 5. Occupied Bandwidth Measurement ............................................................................ 19 6. Peak Excursion to Average Ratio................................................................................ 25 7. Emission on the Band Edge ........................................................................................ 27 8. Conducted Spurious Emissions................................................................................... 34 9. Radiated Emission Measurement................................................................................ 39 Appendix A: Test equipments list ................................................................................... 45 Appendix B: Measurement Uncertainty ......................................................................... 46 FCC ID. : QI3BIL-MX200 Report No.: 150700093TWN-001 Page 3 of 46 1. Summary of Test Data Test Requirement Applicable Rule Limit Result Conducted Output Power 2.1046 Reporting Only Pass Effective Radiated Power (Band 17) 27.50(c)(10) ERP < 3 Watts N/A Frequency Stability 2.1055 27.54 < 2.5 ppm / Within frequency range Pass Occupied Bandwidth 2.1049 27.53 Reporting Only Pass Peak to average ratio 27.50(d)(5) < 13 dB Pass Band Edge Measurements 2.1049 27.53(g) < 43+10log10(P[Watts]) Pass Conducted Spurious Emissions 2.1051 27.53(g) < 43+10log10(P[Watts]) Pass Radiated Spurious Emissions 2.1053 27.53(g) < 43+10log10(P[Watts]) Pass FCC ID. : QI3BIL-MX200 Report No.: 150700093TWN-001 Page 4 of 46 2. General Information 2.1 Identification of the EUT Product: MXConnect M2M Advanced Industrial 4G/LTE Router Model No: BEC MX-200 FCC ID: QI3BIL-MX200 Manufacturer: Billion Electric Co., Ltd. Address: 8F., No. 192, Sec.2, Zhongxing Road, Xindian Dist., New Taipei City, Taiwan TX Frequency: LTE Band 17: 706.5 MHz ~ 713.5 MHz RX Frequency: LTE Band 17: 736.5MHz ~ 743.5 MHz Bandwidth: 5MHz / 10MHz (Band 17) Maximum Output Power to Antenna: LTE Band 17 : 22.67 dBm / 0.185 W Modulation: LTE Band 17: QPSK, 16QAM Rated Power: DC 12 V from adapter Power Cord: N/A Sample Received: Sept. 30, 2015 Sample condition: Workable Test Date(s): Oct. 1, 2015 ~ Oct. 29, 2015 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. : QI3BIL-MX200 Report No.: 150700093TWN-001 Page 5 of 46 2.2 Emission designator FCC Rule System Type of Modulation BW Emission Designator Frequency Tolerance (ppm) Maximum ERP (Watts) Part 27 LTE Band 17 QPSK 5 MHz 4M49G7D 1.12 0.084 W Part 27 LTE Band 17 16QAM 5 MHz 4M50D7W 1.03 0.058 W Part 27 LTE Band 17 QPSK 10 MHz 8M93G7D 1.3 0.078 W Part 27 LTE Band 17 16QAM 10 MHz 8M92D7W 1.05 0.059 W FCC ID. : QI3BIL-MX200 Report No.: 150700093TWN-001 Page 6 of 46 2.3 Description of EUT Product SW/HW version : M200_GPS / 1.00C Radio SW/HW version : 05.05.58.00 / 11 Test SW Version : N/A 2.4 Antenna description Antenna 1 Antenna model number: AN0727-64DP5BSM The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain : -1.3 dBi (LTE Band 17) Antenna Type : Dipole antenna Connector Type : SMA Antenna 2 Antenna model number: AB0727-88Y04BSM The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain :…

Text truncated - open the document above for the full version.

Conducted Emission Test set-up photo

Radiated Emission Test set-up photo Radiated Emission Test set-up photo
