QI3BIL-SG6200NXLZigBee Wireless-N Broadband Router

The Billion SG6200NXL is an all-in-one router designed for users to enjoy real-time power management and secured wireless Internet access. Integrated with ZigBee technology, the Billion SG6200NXL can communicate with ZigBee-based HAN (Home Area Network) devices such as smart meters, IHD (In-home display) devices, load-control devices, and PCT (Programmable Communicating Thermostat) devices. By Internet access, the users can remotely monitor energy consumption and manage event control on appliances that connect to Billion SG3010 ZigBee meter. In addition, this device is a compact broadband router offering rich functions. Supported with 802.11n Wireless AP delivering a data rate up to 300Mbps, this router allows users to enjoy blistering Wireless LAN connection speed. Dual WAN design - Internet Access via broadband/DSL and/or back up through 3G network - keeps you always-on-line. With the Billion SG6200NXL, you can easily download photos, stream High Definition (HD) video files, run media-intensive applications, watch Internet movies or share files with your clients, team members, friends or family. The Billion SG6200NXL can even function as a printer server, Webcam or FTP server for network device sharing *6 . Instant and Real-time Remote Management The Billion SG6200NXL provides full featured connectivity and allows a greater diversity of devices and applications in a ZigBee HAN configuration. The ZigBee-based SG6200NXL can serve as data concentrator capable of collecting power data, managing, and controlling appliances that are connected to ZigBee-based meters and other ZigBee HAN devices. Its Graphic User Interface enables a monitoring configuration that delivers real-time power usage and instant switching on/off for specific home appliances that are connect to a ZigBee meter, ie. Billion’s SG3010. Remote in-home energy management like switching on your air conditioner when you are on the way home can be easy using your 3G phone over the Internet. Always-on Connectivity With the built-in USB port, users can connect a 3G / HSDPA USB modem, enabling access to the Internet over a 3.5G / HSDPA, 3.75G / HSUPA, HSPA+, UMTS, EDGE, GPRS, or GSM networks, making downstream rates of up to 14.4 Mbps*1 possible! The built-in auto fail-over ensures maximum connectivity and minimum interruption by quickly and smoothly connecting to a 3G network in the event that your existing wire connection fails. It will also automatically reconnect to the wire connection when it's restored, reducing minimizing connection costs. These features are perfect for office situations where constant connection is paramount. Wireless Mobility and Security With an integrated 802.11n Wireless Access Point, the router delivers up to 3 times the wireless coverage of a 802.11b / g network device and supports a data rate of up to 300Mbps, so that wireless access is available everywhere in the house or office. The Billion SG6200NXL also supports the Wi-Fi Protected Setup (WPS) standard and allows users to establish a secure wireless network by simply pushing a button. If your network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows you to expand your wireless network without the need for any additional wires or cables. Multiple SSIDs allow users to access different networks through a single access point. Network managers can assign different policies and functions for each SSID, increasing the flexibility and efficiency of the network infrastructure. 3G Management Center With the Billion SG6200NXL, monitoring your 3G connection status is a breeze. Billion’s unique 3G Management Center is a utility tool visually displaying its current 3G-signal status for users to maximize their connection. You can monitor the bandwidth with current upload and download speed. This tool also calculates the total amount of hours or data traffic used per month, allowing you to manage your 3G monthly subscriptions. • ZigBee for reliable and flexible RF network • Remote power monitoring and management with ZigBee meter • Dual WAN interfaces for EWAN and 3.5G / 3.75G connections • 802.11n Wireless AP • High-speed wireless connection up to 300 Mbps data rate • Wireless security supports WPA/WPA2 and WPS • 2 x USB 2.0 ports to support 3G network and multiple functions • Supports multiple SSIDs for flexibility of network infrastructure • Quality of Service for traffic prioritization and bandwidth management • Auto fail-over for always-on connection • SOHO firewall security with DoS prevention and SPI • Parental control with URL content filtering and packet filtering • Dynamic Domain Name System (DDNS) • Easy to Use with quick installation wizard • 3G Management Center tool • Ideal for: - Residential and office users - Utility companies • Works as part of ZigBee-based Energy Management solution for business partners: - Systems integrators - Power utilities: solar power, wind power...etc. - Green house developers/engineers - Suppliers of Smart Energy devices in IHD, Load Control, and PCT Compact ZigBee Wireless-N 3.75G / Broadband Router Billion SG6200NXL Ideal for Residential, office users, and Utility Application Scenario for Energy Management Energy Management for Home Users Via Billion SG6200NXL customers can remotely control electrical devices that are connected with a Billion SG3010 ZigBee Meter in an in-home area network. Users can obtain power utilization information via ZigBee gateway automatically for downstream analysis and profiling. Energy Management for Utilities Utility companies can collect power usage data from a smart ZigBee meter via a ZigBee gateway located on the ground floor of a home/office building. Single-phase 3-wire (e.g. USA and Taiwan) Single-phase 2-wire (e.g. Europe) Billion SG6200NXL Users on-the-go to remotely control in-home appliances Home Area Network Internet Utility Control Center ZigBee Mesh Network Smart Meter with ZigBee Module Termination Cabinet ZigBee Gateway ON T 2 …

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Billion Electric Co., Ltd FCC ID: QI3BIL-SG6200NXL FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Ted Ho Position CTO Company Name Billion Electric Co., Ltd Address Floor 8, No. 192, Sec. 2, Chung Hsin Road, Hsin-tien Dist., New Taipei City 231, Taiwan, R.O.C. Tel / Fax +886-2-2914-5665 / +886-2-2918-2895 E-Mail [email protected]

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 Date: 10/3/2011 Subject: Ad Hoc Mode Function Declaration FCC ID: QI3BIL-SG6200NXL To Whom it may concern, This device is acting as master and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is available on client mode but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Signatory Name Ted Ho Position CTO Company Name Billion Electric Co., Ltd Address Floor 8, No. 192, Sec. 2, Chung Hsin Road, Hsin-tien Dist., New Taipei City 231, Taiwan, R.O.C. Tel / Fax +886-2-2914-5665 / +886-2-2918-2895 E-Mail [email protected]

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 03/10/2011 FCC ID: QI3BIL-SG6200NXL Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Name Ted Ho Position CTO Company Name Billion Electric Co., Ltd Address Floor 8, No. 192, Sec. 2, Chung Hsin Road, Hsin-tien Dist., New Taipei City 231, Taiwan, R.O.C. Tel / Fax +886-2-2914-5665 / +886-2-2918-2895 E-Mail [email protected]

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 Date:2011/09/30 Subject: Serial Model Number Declaration FCC ID: QI3BIL-SG6200NXL Model no. Billion SG6200NXL-Std Series No. :Billion SG6200NXL-SDK, Billion SG6200NX-SDK, BEC SG6200NXL-SDK, BEC SG6200NX-SDK, Billion SG6200NX-Std, BEC SG6200NXL-Std, BEC SG6200NX-Std, Rosonix RSG-2000 To Whom it may concern, The device of all model numbers in this application are the same, only the difference showing as following table: Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Ted Ho/CTO Tel: +886-2-2914-5665 Fax: +886-2-2918-2895 E-Mail: [email protected]

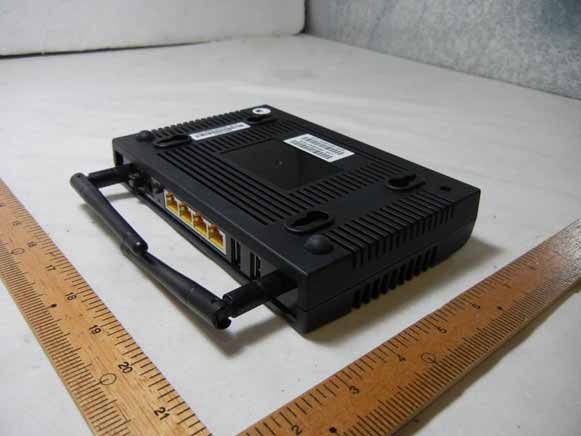

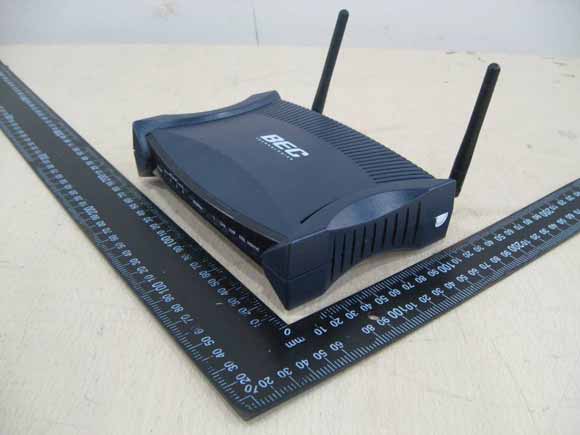

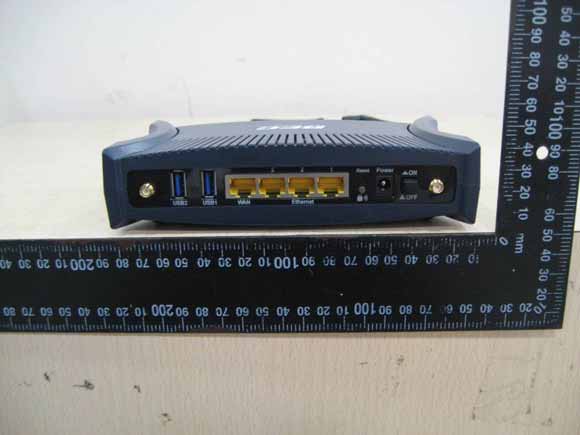

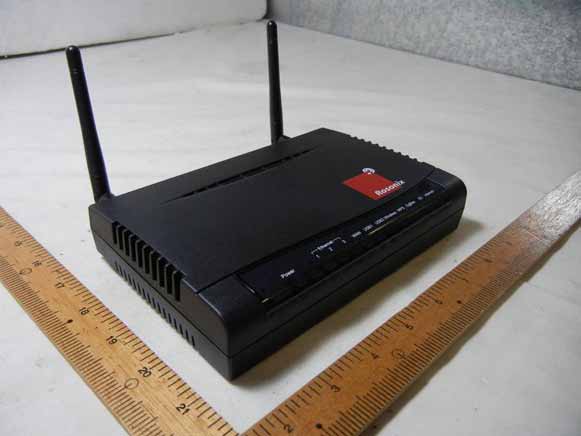

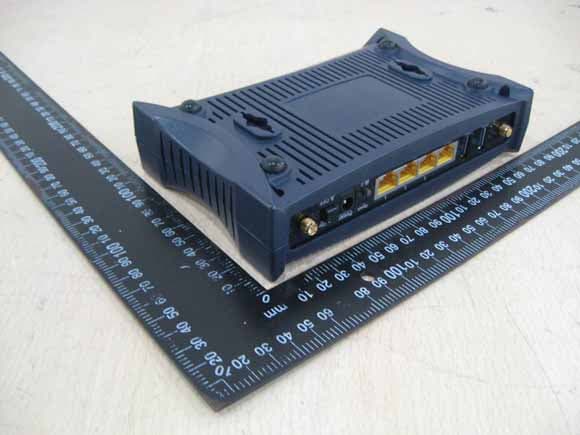

CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A5 FCC ID : QI3BIL-SG6200NXL Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A5 FCC ID : QI3BIL-SG6200NXL CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A5 FCC ID : QI3BIL-SG6200NXL CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A5 FCC ID : QI3BIL-SG6200NXL CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A5 FCC ID : QI3BIL-SG6200NXL

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A5 FCC ID : QI3BIL-SG6200NXL CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A5 FCC ID : QI3BIL-SG6200NXL CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A5 FCC ID : QI3BIL-SG6200NXL CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A5 FCC ID : QI3BIL-SG6200NXL CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A5 FCC ID : QI3BIL-SG6200NXL

Test Result of RF Exposure Evaluation . Product: ZigBee Wireless-N Broadband Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD Antenna Gain Frequency Range: 2.4 GHz Antenna 1 -Antenna type: Dipole Antenna -Antenna Gain: 2.0 dBi EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Aug. 16, 2011 Temperature: 25 Atmospheric pressure: 1020 hPa Humidity: 46% Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Power Density (S) (mW/Cm2) ANT R ANT L ANT R ANT L 802.11b (11Mbps) 01 2412 17.52 17.88 0.018 0.019 06 2437 17.66 17.91 0.018 0.019 11 2462 17.78 17.74 0.019 0.019 802.11g (54Mbps) 01 2412 14.73 14.68 0.009 0.009 06 2437 14.69 14.66 0.009 0.009 11 2462 14.56 14.88 0.009 0.010 Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Power Density (S) (mW/Cm2) R + L R + L 802.11n HT20 (130Mbps) 01 2412 14.89 0.010 06 2437 14.51 0.009 11 2462 14.58 0.009 802.11n HT40 (270Mbps) 03 2422 14.75 0.009 06 2437 14.16 0.008 09 2452 14.34 0.009 ANT Modulation Type Channel Frequency (MHz) Output Power to Antenna (dBm) WIFI+Zigbee Power Density (S) (mW/Cm2) WIFI+Zigbee (Boost mode) Power Density (S) (mW/Cm2) R 802.11b 01 2412 17.52 06 2437 17.66 11 2462 17.78 O-QPSK 01 2405 3.90 0.020 09 2445 3.03 0.020 16 2480 2.36 0.021 O-QPSK (boost mode) 01 2405 6.76 0.021 09 2445 6.20 0.021 16 2480 2.86 0.021 802.11g 01 2412 14.73 06 2437 14.69 11 2462 14.56 O-QPSK 01 2405 3.90 0.011 09 2445 3.03 0.011 16 2480 2.36 0.010 O-QPSK (boost mode) 01 2405 6.76 0.012 09 2445 6.20 0.012 16 2480 2.86 0.010 802.11n HT20 01 2412 11.55 06 2437 11.12 11 2462 11.59 O-QPSK 01 2405 3.90 0.006 09 2445 3.03 0.005 16 2480 2.36 0.006 O-QPSK 01 2405 6.76 0.007 09 2445 6.20 0.006 16 2480 2.86 0.006 802.11n HT40 03 2422 11.69 06 2437 11.22 09 2452 11.30 O-QPSK 01 2405 3.90 0.006 09 2445 3.03 0.005 16 2480 2.36 0.005 O-QPSK (boost mode) 01 2405 6.76 0.007 09 2445 6.20 0.006 16 2480 2.86 0.005 L 802.11b 01 2412 17.88 06 2437 17.91 11 2462 17.74 O-QPSK 01 2405 3.90 0.022 09 2445 3.03 0.022 16 2480 2.36 0.021 O-QPSK (boost mode) 01 2405 6.76 0.023 09 2445 6.20 0.023 16 2480 2.86 0.021 802.11g 01 2412 14.68 06 2437 14.66 11 2462 14.88 O-QPSK 01 2405 3.90 0.011 09 2445 3.03 0.011 16 2480 2.36 0.011 O-QPSK (boost mode) 01 2405 6.76 0.012 09 2445 6.20 0.012 16 2480 2.86 0.011 802.11n HT20 01 2412 12.18 06 2437 11.85 11 2462 11.54 O-QPSK 01 2405 3.90 0.007 09 2445 3.03 0.006 16 2480 2.36 0.006 O-QPSK (boost mode) 01 2405 6.76 0.008 09 2445 6.20 0.007 16 2480 2.86 0.006 802.11n HT40 03 2422 11.79 06 2437 11.08 09 2452 11.35 O-QPSK 01 2405 3.90 0.006 09 2445 3.03 0.005 16 2480 2.36 0.005 O-QPSK (boost mode) 01 2405 6.76 0.007 09 2445 6.20 0.006 16 2480 2.86 0.005 The MPE is calculated as 0.023 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Oct. 14, 2011 Tel:886-2-2792-3366 Fax:886-2-2792-1100 Page No. : 1 of 141 FCC ID : QI3BIL-SG6200NXL FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Billion Electric Co., Ltd. Address : Floor 8, No. 192, Sec. 2, Chung Hsin Road, Hsin-tien Dist., New Taipei City 231, Taiwan, R.O.C. Equipment : ZigBee Wireless-N Broadband Router Model No. : Billion SG6200NXL-Std Series No. : Billion SG6200NXL-SDK, Billion SG6200NX-SDK BEC SG6200NXL-SDK, BEC SG6200NX-SDK Billion SG6200NX-Std, BEC SG6200NXL-Std BEC SG6200NX-Std, Rosonix RSG-2000 FCC ID : QI3BIL-SG6200NXL Trade Name : BILLION, BEC ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Oct. 14, 2011 Tel:886-2-2792-3366 Fax:886-2-2792-1100 Page No. : 2 of 141 FCC ID : QI3BIL-SG6200NXL Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 7 2.5 General Information of Test ........................................................................................................ 8 2.6 Measurement Uncertainty .......................................................................................................... 8 2.7 History of this test report ............................................................................................................ 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 19 5. Test of Radiated Emission ............................................................................................................... 20 5.1 Test Limit .................................................................................................................................. 20 5.2 Test Procedures ....................................................................................................................... 20 5.3 Typical Test Setup .................................................................................................................... 21 5.4 Measurement equipment ......................................................................................................... 21 5.5 Test Result and Data ................................................................................................................ 22 5.6 Test Photographs ..................................................................................................................... 78 6. 6dB Bandwidth Measurement Data ................................................................................................. 79 6.1 Test Limit .................................................................................................................................. 79 6.2 Test Procedures ....................................................................................................................... 79 6.3 Test Setup Layout .................................................................................................................... 79 6.4 Measurement equipment ......................................................................................................... 79 6.5 Test Result and Data ................................................................................................................ 79 7. Maximum Peak Output Power .....…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFA1106205 Cerpass Technology Corp. Issued date : Oct. 14, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 81 FCC ID : QI3BIL-SG6200NXL FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Billion Electric Co., Ltd. Address : Floor 8, No. 192, Sec. 2, Chung Hsin Road, Hsin-tien Dist., New Taipei City 231, Taiwan, R.O.C. Equipment : ZigBee Wireless-N Broadband Router Model No. : Billion SG6200NXL-Std Series No. : Billion SG6200NXL-SDK, Billion SG6200NX-SDK BEC SG6200NXL-SDK, BEC SG6200NX-SDK Billion SG6200NX-Std, BEC SG6200NXL-Std BEC SG6200NX-Std, Rosonix RSG-2000 FCC ID. : QI3BIL-SG6200NXL Trade Name : BILLION, BEC ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFA1106205 Cerpass Technology Corp. Issued date : Oct. 14, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 81 FCC ID : QI3BIL-SG6200NXL Contents s 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 7 2.5 General Information of Test ........................................................................................................ 8 2.6 Measurement Uncertainty .......................................................................................................... 8 2.7 History of this test report ............................................................................................................ 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement Equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 17 5. Test of Radiated Emission ............................................................................................................... 18 5.1 Test Limit .................................................................................................................................. 18 5.2 Test Procedures ....................................................................................................................... 18 5.3 Typical Test Setup .................................................................................................................... 19 5.4 Measurement Equipment ......................................................................................................... 19 5.5 Test Result and Data ................................................................................................................ 20 5.6 Test Photographs ..................................................................................................................... 60 6. 6dB Bandwidth Measurement Data ................................................................................................. 61 6.1 Test Limit .................................................................................................................................. 61 6.2 Test Procedures ....................................................................................................................... 61 6.3 Test Setup Layout .................................................................................................................... 61 6.4 Measurement Equipment ......................................................................................................... 61 6.5 Test Result and Data ................................................................................................................ 61 7. Maximum Peak Output Power ...…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2792-3366 Fax:886-2-2792-1100 Page No. : 19 of 119 FCC ID : QI3BIL-SG6200NXL 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1106205 Cerpass Technology Corp. Issued Date : Aug. 30, 2011 Tel:886-2-2792-3366 Fax:886-2-2792-1100 Page No. : 58 of 119 FCC ID : QI3BIL-SG6200NXL 5.6 Test Photographs Front View Rear View
