QIH-CL0201CamLite Video System

CAMLITE VIDEO SYSTEM Operating Instructions and Warranty Model R-1 On behalf of the CamLite Corporati on, w e w e lcome y our purchase and us e of the CamLite Video Sy stem. Please read this manual prior to using y our CamLite. It prov ides important safety and operating instructions. SAVE T H ESE INST RUCT IONS. The batteries must be charged befo re first use. It generally t akes about ___ hours for the R-1 model. SA FETY 1. THIS DEVICE IS FOR LICENSED USE ONLY. ( S ee FCC Information) 2. W a rning! – this device com p lies with FCC licensed operation a nd RF exposure requirem e nts. Do not hold the Cam L ite around the band while the transm itter is operational. This will reduce perform a nce and violate FCC RF exposure requirem e nts. 3. W a rning! – Changes or m odifications not expressly approved by Cam L ite Corporation could void the user’s authority to operate the equipm ent. 4. The Cam L ite is not approved for use in hazardous atm o spheres. DO NOT use in areas that require explosion proof operation. 5. DO NOT use attachm e nts not authorized by Cam L ite. 6. Keep the Cam L ite dry. Although this system is water resistant, exposure to extrem ely wet conditions or im m e rsion in water m ay dam a ge the electronics within the Cam L ite. 7. Only use the batteries, recharging devices and cables provided by Cam L ite (See Parts List) . 8. DO NOT put any m e tal parts into or onto the charging term inals of the charger. It m a y cause an electrical shock or burning. DO NOT use the charger to charge any other products. 9. DO NOT use any dam a ged cords. Replace im m e diately. 10. Dispose of the batteries properly and in accordance with local laws. DO NOT incinerate the batteries as it m a y cause them to explode. 11. DO NOT short circuit batteries. Be certain no m e tal objects such as coins, paper clips, keys, etc. touch the term inals. D O NOT attem p t to disassem b le, drop or m u tilate the batteries. 12. DO NOT attem p t to service this video system yourself. Refer all servicing to qualified Cam L ite service technicians. 13. Minim i ze strong shocks and dropping of the unit. Although the Cam L ite is built to withstand heavy use, it can be dam a ged t hrough m i suse or carelessness. FCC Information 2 T he CamLite contains an analog video transmi ssion sy stem operating in the 2.4 GHz ISM band. T he ISM band is an unlicenced band allocated by the F CC. Because the transmitter is designated for PART 90 use, it requires a license to be obtained by the end user. T hose licenses may be obtaine d by application w i th the F CC on the follow i ng w ebsite: h ttp ://w ireless.fcc.g o v /u ls/ . This equipment has been tested and found to comply with the limits for a Class B digita l devices, pursuant to Part 15 of the FC C Ru les. T h ese limits are d esig n e d to p r o v id e reaso n a b l e p r o t ectio n ag ain s t h a rmfu l in terferen ce in a r esid e n t ial in stallatio n . T h i s eq u i p m en t g e n e rates, u ses, an d can rad i ate rad i o freq u e n cy en erg y an d , if n o t in stalled an d u sed in acco rd an ce with th e in stru ctio n man u a l, may cau se h a rmfu l in terferen ce to rad i o co mmu n i catio n s . Ho wev er, th ere is n o g u a ran t ee th at interference will not occur in a particular installation. If this equipment does cau se harmful interference to radio or televi sio n recep tio n , wh ich can b e d e termin e d b y tu rn in g th e eq u i p m en t o ff an d o n , th e u ser is en co u r ag ed to try to co rrect th e in terferen ce b y o n e o r mo re o f th e fo llo win g mea su res: • Reo r ien t o r relo cate th e receivin g an ten n a • In crease th e sep aratio n b e tween th e eq u i p m en t an d receiver • Connect the equipment into an outlet on a circuit diffe rent from that to which the receiver is connected • Co n s u l t th e d ealer o r an exp erien ced rad i o / T V tech n i cian fo r h e lp T h is device is F CC approved under F CC ID QIH-CL0201. Any changes or misuse of the product may vo id the user’s authority to ope rate the product. In order to comply w i th the F CC exposur e requirements, the antenna must be kept one (1”) inch aw ay from the body . T he antenna i s located on the back of t he Camlite, directly in line w i th the buttons (see diagram). W A RNING ! - Do not hold CamLite on the end w hen the transmitter is on. T h is w ill r educe the performance and violate the FCC RF exposure requirements. To p Vie w I n te gr ate d a n te nn a lo ca t i o n Warning – Changes or modifications not expressly approved by CamLite Corporation could void the user’s authority to operate the equipment. Getting Started T hese instructions are for use w i th any of the CamLite Sy stems. If the Sy stem y ou have does not contain the components mention ed, simply skip those instructions and move to the next section. C h e c k i n g S u p p l i e d C o m p o n e n t s 3 Determine the Sy stem y ou have and then check to ma ke sure the follow i ng components have been supplied: For the Ca mLite Vide o Sy s t e m Mode l R-1 9 T he CamLite flashlight 9 Eight (8) ½ D size NiCad batteries 9 Receiver 9 Charger for ½ D batteries 9 One extra light bulb P o w e r for the Components F U LLY CHARGE YOUR BAT T E RIES BEF ORE F I RST USE. F o r safety reas ons rechargeable batteries are sh ipped in a discharged state. It may take several charging and discharge cy cles before the full c apacity of the batteries is achieved. Becaus e all rechargeable batteries gradually lose thei r pow er over time, if stored for more than a few day s, a top-off charge before use is recommended. Mode l R-1 is pow ered by four (4) ½ D size NiCad batteries and y ou w e re s upplied w i th eight (8). T he batteries may be charged by simply installing them in the charger. T hey w ill generally take about ____ hours to charge. Carefully review the battery charger instructions prior to use. T he CamLite is designed to be left in the char ger continuously w hen not in us…

Text truncated - open the document above for the full version.

CamLite Corporation 10221 North 32 nd Street, Suite A Phoenix, AZ 85028 (602) 494-6311 (602) 494-6314 (fax) July 16, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: CamLite Corporation Product: CamLite Video System Model: R-1 FCC ID: QIH-CL0201 Dear Sir/Madam, We, CamLite Corporation would like to request that the schematic diagrams and system block diagrams, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. The detailed confidential materials are listed as follows: No. Title Drawing No. Sheet No. 1 Block Diagram 2 Schematic for K&A FM Module 3 Schematic for K&A Power amplifier board If you have any queries, please do not hesitate to contact us at: 602-494-6311 Sincerely, David LaBau Chief Operating Officer

A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC Name: CamLite Video System Model: R-1 and 2 Block Diagram Integrated Printed Dipole Power Amplifier Board K&A FM 2-channel module Integrated Video Camera Power Amplifier Output RF Filter CamLite 2617 JUAN TABO NE, SUITE A ALBUQUERQUE NM 87112 PHONE 505-338-2380 FAX 505-338-2382 [email protected]

A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC Top View Bottom View FCC Label Camlite Corporation Camlite Video System Model Number: Camlite R1 FCC ID: QIH-CL0201 Actual Size PROPOSED FCC LABEL AND LOCATION 2617 JUAN TABO BLVD NE, SUITE A ALBUQUERQUE NM 87112 PHONE 505-338-2380 FAX [email protected]

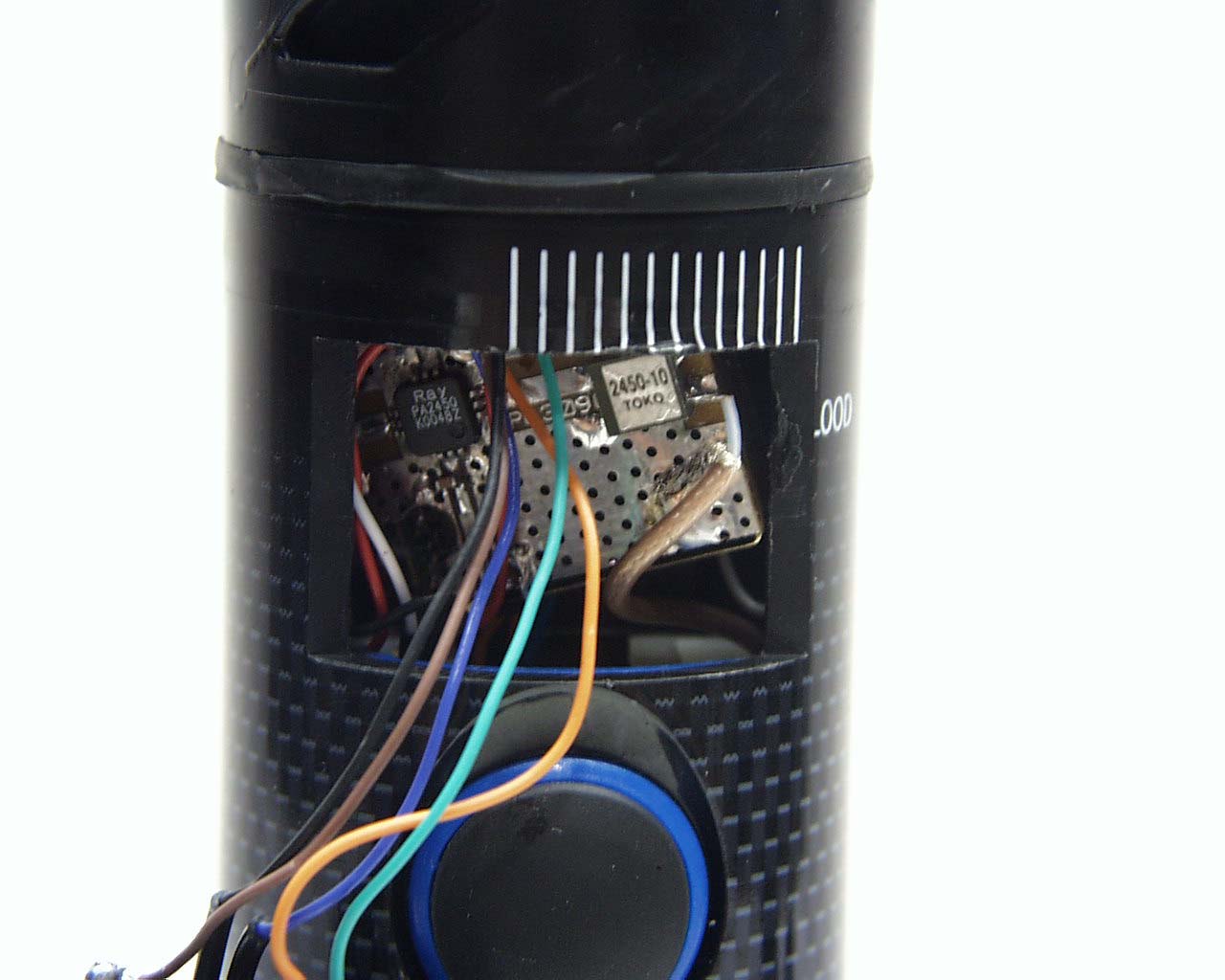

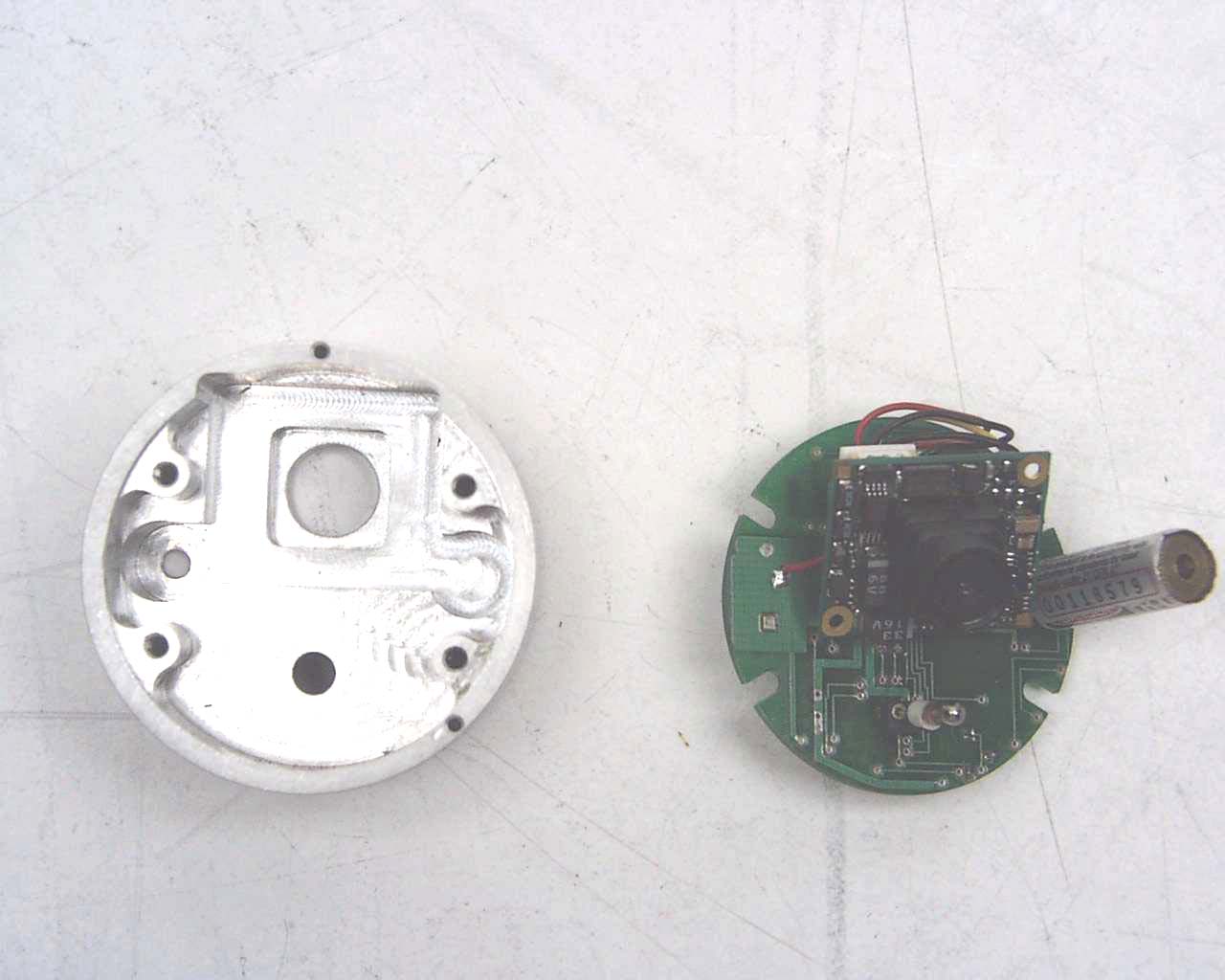

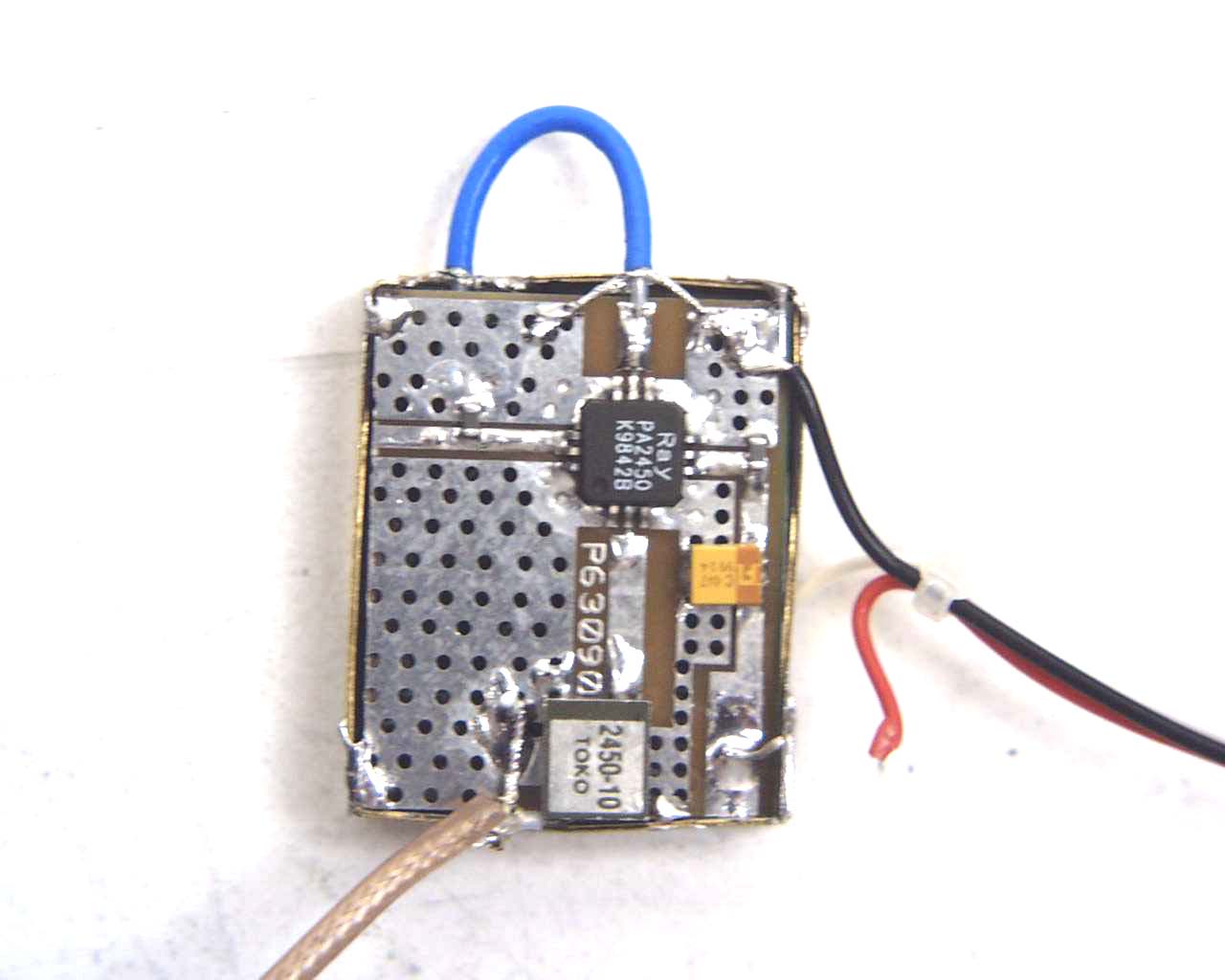

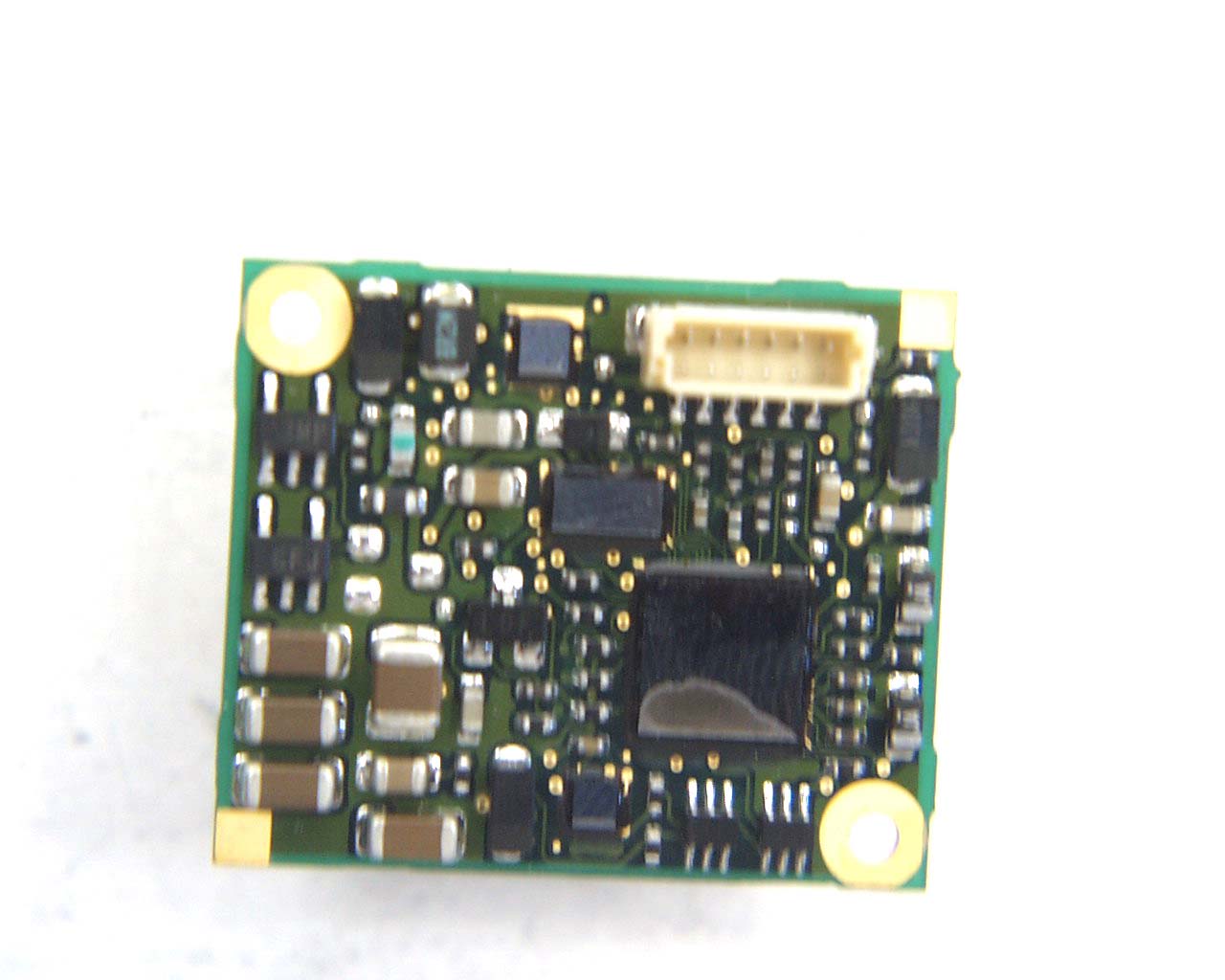

ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 1 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 2 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 3 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 4 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 5 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 6 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 7 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 8 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 9 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 10 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 11 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 12 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 13 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 14 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 15 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 16 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 17 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 18 ANNEX 4 – INTERNAL EUT PHOTOS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A4 - 19

A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC Technical Description The transmitter requesting certification is the integration of the K&A FM transmitter module and a power amplifier/gate regulator board. The power amplifier board is used to increase the output power. In order to control spurious emissions, we have incorporated an output RF filter and a video buffer section on the front end. The power amplifier consists of a bias circuit with switching regulators to maintain constant gain on the amplifier. The video level is maintained by the camera, which is also integrated into the CamLite. In addition, to comply with the frequency limitations of Part 90 (2450-2483.5 MHz), the K&A module is limited to operation on two channels. The channel frequencies are 2458MHz and 2474 MHz. The channel can be selected by the manufacturer of the CamLite, but is not accessible to the end user. The antenna is an integrated printed dipole antenna on a flying lead from the transmitter placed on the inside of the CamLite. The operation of the transmitter will consist of depressing a switch on the CamLite to turn the transmitter on. 2617 JUAN TABO BLVD NE, SUITE A ALBUQUERQUE NM 87112 PHONE 505-338-2380 FAX [email protected]

ItemDevice TypeValue and Tol. 1 Capacitor.1uF 2Capacitor220uF 3Capacitor100pF 4Capacitor18pF 5Capacitor22pF 6Capacitor1 pF 7Capacitor470pF 8Capacitor.1pF 9Capacitor47uF 10Capacitor2700pF 11ICMAX4212 12ICPIC12C508A 13ICLMX2326 14ICMAX2750 15ICMAX2472 16ICERA-3SM 17Inductor18uH 18Inductor1.2nH 19OSC20 MHz OSC 20Resistor24 21Resistor43 22Resistor51 23Resistor100 24Resistor10K OHMS 25Resistor150 26Resistor500, 40% 27Resistor75 28Resistor20 29Resistor270 30Switch2POS-SW K&A FM MODULE BOM Revision 3 April 15, 2002 ItemCountLabel-Value 1150 212.2uF 31100uF 42.5pF 511000pF 61100pF 724.7uF 81Ferrite Bead 928.2nH 101100k 11150K var 121MAX1673 131RMPA2450-58 141TDFS8A-2450-P Bill of Materials for: Camlite_PA.BOM

CamLite Video System Model No.: R-1 FCC ID: QIH-CL0201 Applicant: CamLite Corporation 10221 N 32nd St, Suite A Phoenix, Arizona United States, 85028 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: K&A-006F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: ........................... Report Prepared by: Dan Huynh Tested by: Hung Trinh, EMI/RFI Technician Issued Date: July 19, 2002 Test Dates: July 8-10, 2002 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 00-034 FCC PARTS 2 & 90, SUBPART I, LICENSED NON-BROADCAST RADIO TRANSMITTER Contents i CamLite Video System, Model R-1 FCC ID: QIH-CL0201 ULTRATECH GROUP OF LABS File #: K&A-006F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 July 19, 2002 Tel.: 905-829-1570, Fax. : 905-829-8050 All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 2 31040/SIT C-1376 46390-2049 200093-0 00-034 TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST .................................................................................................................. 1 EXHIBIT 2. INTRODUCTION .................................................................................................................................... 2 2.1. SCOPE........................................................................................................................................................................ 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)............................................................................................................................ 2 2.3. NORMATIVE REFERENCES.......................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .........................................................................................................3 3.1. CLIENT INFORMATION................................................................................................................................................ 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION........................................................................................................... 3 3.3. EUT’S TECHNICAL SPECIFICATIONS............................................................................................................................ 4 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .......................... 5 4.1. CLIMATE TEST CONDITIONS....................................................................................................................................... 5 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS.................................................................... 5 EXHIBIT 5. SUMMARY OF TEST RESULTS.......................................................................................................... 6 5.1. LOCATION OF TESTS................................................................................................................................................... 6 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS.................................................................................. 6 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES................................................................. 6 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS.......................... 7 6.1. TEST PROCEDURES..................................................................................................................................................... 7 6.2. MEASUREMENT UNCERTAINTIES................................................................................................................................7 6.3. MEASUREMENT EQUIPMENT USED.............................................................................................................................. 7 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER................................................................. 7 6.5. RF POWER OUTPUT @ FCC 2.1046 & 90.205.............................................................................................................. 8 6.5.1. Limits @ FCC 90.205 ..................................................................................................................................... 8 6.5.2. Method of Measurements ................................................................................................................................ 8 6.5.3. Test Equipment List......................................................................................................................................... 8 6.5.4. Test Arrangement............................................................................................................................................ 8 6.5.5. Test Data......................................................................................................................................................... 8 6.6. RF EXPOSURE REQUIREMENTS @ 1.1310 & 2.1091 ................................................................................................... 9 6.7. FREQUENCY STABILITY @ FCC 2.1055 & 90.213..................................................................................................... 10 6.7.1. Limits @ FCC 90.213 …

Text truncated - open the document above for the full version.

ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 1 Plot # 1 99% Emission Bandwidth Carrier Frequency: 2458 MHz Modulation: Video NTSC ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 2 Plot # 2 99% Emission Bandwidth Carrier Frequency: 2458 MHz Modulation: Video NTSC ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 3 Plot # 3 99% Emission Bandwidth Carrier Frequency: 2474 MHz Modulation: Video NTSC ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 4 Plot # 4 99% Emission Bandwidth Carrier Frequency: 2474 MHz Modulation: Video NTSC ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 5 Plot # 5 Emission Mask Carrier Frequency: 2458 MHz Modulation: Video NTSC ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 6 Plot # 6 Emission Mask Carrier Frequency: 2458 MHz Modulation: Video NTSC ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 7 Plot # 7 Emission Mask Carrier Frequency: 2474 MHz Modulation: Video NTSC ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 8 Plot # 8 Emission Mask Carrier Frequency: 2474 MHz Modulation: Video NTSC ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 9 Plot # 9 Frequency Stability Carrier Frequency: 2458 MHz (channel 1) Modulation: Video NTSC Temperature: 20 °C ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 10 Plot # 10 Frequency Stability Carrier Frequency: 2458 MHz (channel 1) Modulation: Video NTSC Temperature: -30 °C ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 11 Plot # 11 Frequency Stability Carrier Frequency: 2458 MHz (channel 1) Modulation: Video NTSC Temperature: +50 °C ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 12 Plot # 12 Frequency Stability Carrier Frequency: 2474 MHz (channel 2) Modulation: Video NTSC Temperature: +20 °C ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 13 Plot # 13 Frequency Stability Carrier Frequency: 2474 MHz (channel 2) Modulation: Video NTSC Temperature: -30 °C ANNEX 1 - TEST DATA PLOTS CamLite Corporation CamLite Video System, Model R-1 FCC ID: QIH-CL0201 A1 - 14 Plot # 14 Frequency Stability Carrier Frequency: 2474 MHz (channel 2) Modulation: Video NTSC Temperature: +50 °C
