QIODG-150MP Player

1 CONTENTS 1. Preparation Product Details Package Contents Name of parts LCD Display Loading the Battery 2. Windows98/SE Driver Install Windows98/SE Driver Install 3. Computer Connection Connecting to a PC Downloading Files Disconnecting from a PC 4. Basic Operation Turning Power On/Off Playing the Track File Navigation Main Menu Voice-Recording Playing the FM Radio Playback the voice-recorded files Button List 5. Settings DISPLAY REPEAT MODE FILE MEMORY INFO USER EQ TEMPO RESUME SLEEP TIME Menu Chart 6. Remarks Precautions Product Specifications Trouble Shooting Note) Contents of product manual are subject to change due to improvement of the product without previous notice. 2 1. Preparation P P P r r r o o o d d d u u u c c c t t t D D D e e e t t t a a a i i i l l l s s s ● Playing MP3, WMA files, FM Radio, Voice Recording ● Built-in Memory(128MB/256MB/512MB) ● GUI(Graphic User Interface) Menu Support - Easy to use multi-functions using graphic display like icon ● 6 Equalizers - Normal/Jazz/Classic/Pop/Rock/User-defined ● Navigation - Easy to search for files. ● Repeat Section“A<->B" - Repeating any section you want to listen again for studying foreign language ● PC USB Power - Using the PC’s USB Power when connected to a PC (no battery required for data transfer) ● NO software Required (device seen as new drive letter) - (Note: driver needed in Windows 98/SE) ● Long Battery Life - 10 hours with AAA type battery 3 P P P a a a c c c k k k a a a g g g e e e C C C o o o n n n t t t e e e n n n t t t s s s CD Necklace cable DG-150 Battery (AAA X 1EA) Earphones User Guide N N N a a a m m m e e e o o o f f f p p p a a a r r r t t t s s s Note) Plastic protect-cover is on LCD display at shipment 4 L L L C C C D D D D D D i i i s s s p p p l l l a a a y y y ① Displays operations (Playback, Voice-recording, FM radio) ② Appears when sleep time is set up ③ Displays playback type (repeat type) ④ Displays when the Hold Switch is on ⑤ MP3 / WMA (File type) ⑥ Volume Level Icon ⑦ Displays the battery’s power level ⑧ Equalizer(EQ) Icon ⑨ Present file’s name or ID3 tag ⑩ Present file number / Total file numbers ⑪ Displays the volume output as the visualization of audio signal ⑫ Elapsed time of a present file / Total playing time of a present file ⑬ BIT RATE ⑭ Repeat Section Icon ⑮ Playing/Stop Icon 5 L L L o o o a a a d d d i i i n n n g g g t t t h h h e e e B B B a a a t t t t t t e e e r r r y y y Cautions) If you do not intend to use the battery for a long period of time, remove the battery from the product. If the battery is leaking, remove it from the product. If the battery is leaking, wipe the battery terminal clean and then loading the new battery. 6 2. Windows98/SE Driver Install W W W i i i n n n d d d o o o w w w s s s 9 9 9 8 8 8 / / / S S S E E E D D D r r r i i i v v v e e e r r r I I I n n n s s s t t t a a a l l l l l l Note) Install this on a PC that uses Windows98/SE OS, only first installation is necessary. (1) Insert the enclosed CD into the CD-Rom Drive and then plug DG-150 into a USB port on a PC. You may see following window (“Add New Hardware Wizard”). Click “Next” button. (2) The following window will appear. Select the first option (“Search for the best driver for your device”) and click “Next” button 7 (3) Select “CD-ROM drive” and click “Next” button (4) The following window will appear. Click “Next” button. 8 (5) Click “Finish” button. Driver Installation is completed. “Removable Disk” will shown in “My Computer” folder. When it is removed from your computer, the “Removable Disk” will disappear from “My Computer”. 9 3. Computer Connection C C C o o o n n n n n n e e e c c c t t t i i i n n n g g g t t t o o o a a a P P P C C C (1) Remove the main body from the battery case (2) Plug the main body into a USB port on your computer (3) “Removable Disk” will shown in “My Computer” folder The main body of DG-150 can be used like a floppy diskette or removable HDD. When it is removed from your computer, the “Removable Disk” will disappear from “My Computer”. "USB CONNECTED” message as shown will be displayed on the main body’s LCD screen when the main body is plugged into your computer. 10 D D D o o o w w w n n n l l l o o o a a a d d d i i i n n n g g g F F F i i i l l l e e e s s s (1) Select the music files from your PC and then Press right button on you mouse and Select “copy” (2) Paste the selected files in the “Removable Disk” in “My Computer” 11 (3) Copying the files to “Removable Disk” will be shown. Note) Make sure that you see “Line Ready” on the LCD screen at DG-150 BEFORE removing DG-150 from you PC because files are copying even if download looks like completed on the monitor of your PC. <Connection into PC> <files are being transferred> <transfer is completed> D D D i i i s s s c c c o o o n n n n n n e e e c c c t t t i i i n n n g g g f f f r r r o o o m m m a a a P P P C C C In Windows 2000/ME/XP, click the “Safely Remove Hardware” icon () in your system tray and Stop the device you want to unplug or eject. In Windows 98/SE, select the “Removable Disk” and right click your mouse and select the “Eject” command before pulling DG-150 from your PC. 12 4. Basic Operation T T T u u u r r r n n n i i i n n n g g g P P P o o o w w w e e e r r r O O O n n n / / / O O O f f f f f f ● To Power On, press and hold the (PLAY) button about 1 second. ● To Power Off, press and hold the (PLAY) button about 2 seconds in playback or stop mode. ● If no button is pressed in stop mode, power will be cut off automatically within 1 minute to preserve the battery. Note) “KEY HOLD!!”Message will be blinking if you press (PLAY) button when Hold switch (HOLD) is on. If Hold Switch (HOLD) is not Off within 5 seconds, power will be cut off automatically. P P P l l l a a a y y y i i i n n n g g g t t t h h h e e e T T T r r r a a a c c c k k k ● If you turn power on, a track will be playing right away. If there is no file, “NO TRACK” message will be displayed. <No file> <file> ● If you are in ot…

Text truncated - open the document above for the full version.

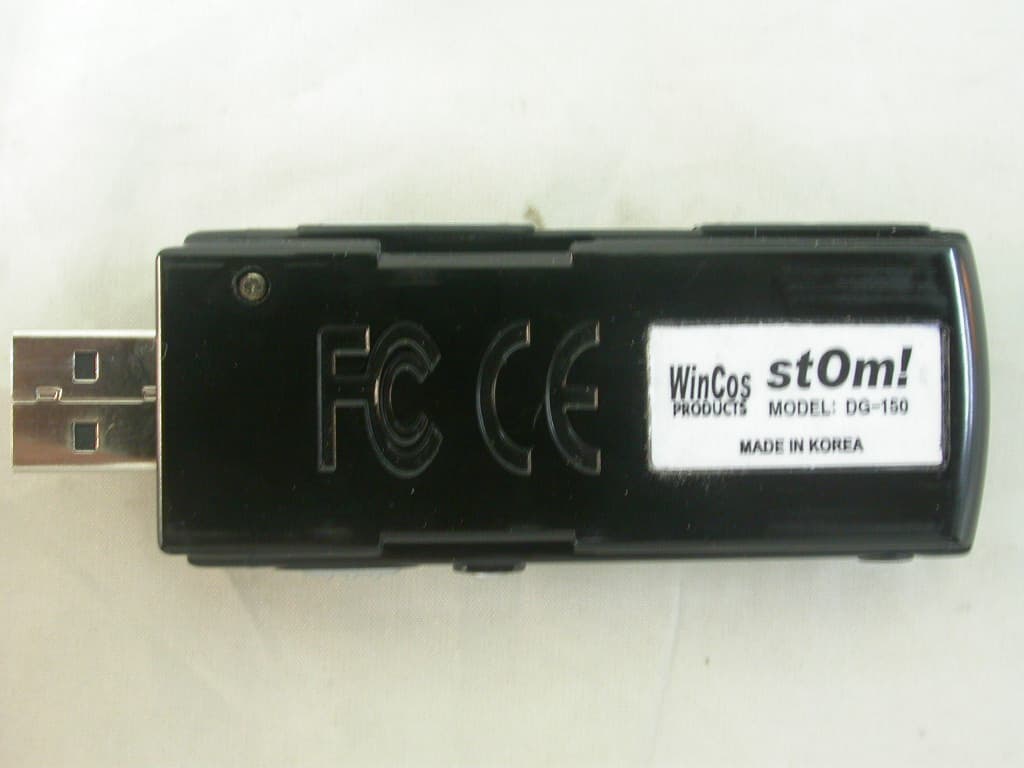

EXTERNAL PHOTO 1. Front 2. Rear

DG Lab Co., Ltd. MP PLAYER MODEL : DG-150 FCC ID : QIODG150 Caution : This device complies with part 15 of the FCC Rules

INTERNAL PHOTO 1. MAIN BOARD 1.1 Front 1.2 Rear 1.3 SETUP

Compliance Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date2004-06-03 ~ Testing location Standard □ Class A ■ Class B Test resultOK □ Class A ■ Class B Test resultOK Tested by Reviewed by Abbreviation * Note - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned Report Number : ESTF150406-002 , Web : www. estech. co. kr Page 1 of 19 Report NumberESTF150406-002 Manufacturer Country of origin Applicant Product 2004-06-07 MP PLAYER DG-150 NONE DG Lab Co., Ltd. Korea Date of issue2004-06-07 ESTECH. Co., Ltd. 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Test item ■ Conducted Emission ■ Radiated Emission FCC PART 15 2002 , ANSI C 63.4 2001 OK, Pass = Passed, Fail = Failed, N/A = not applicable DG Lab Co., Ltd. Room 306, Han-Sol B/D # 145-1, GuMi-Dong, BunDang-Gu, SeongNam-City, KyeongGi-Do, Korea 82-31-711-0534 Measurement facility registration number Senior Engineer J.M. Yang Director T.K. Lee 94696 (Signature) (Signature) 3 4 5 6 8 8 8 9 10 12 12 12 13 14 14 14 15 16 19 Appendix 1. Spectral diagram Appendix 2. Phorographs of EUT in side PCB Appendix 3. Block diagram of EUT Appendix 4. Circuit Diagram 8.3 Test data ............................................................................................. ... 9. Photographs of test setup ........................................................................... 10. Photogra phs of EUT .................................................................................... Report Number : ESTF150305-001 , Web : www. estech. co. kr Page 2 of 19 7.3 Test data ................................................................................................ 8. Measurement of conducted emission ............................................................ 8.1 Measurement e quipment ........................................................................ 8.2 Environmental conditions ........................................................................ ... 4. Measurement condition ................................................................................. 5. Measurement of radiated emission ............................................................... Contents 1. Laboratory Information ................................................................................. 2. Description of EUT ....................................................................................... 3. Test Standards ............................................................................................. ★ Testing EUT Under connecting PC 5.1 Measurement e quipment ........................................................................ 5.2 Environmental conditions ..................................................................... ... 7.1 Measurement equipment ........................................................................ 7.2 Environmental conditions ..................................................................... ... 5.3 Test data ................................................................................................ ★ We test only EUT 6. Measurement condition .............................................................................. ... 7. Measurement of radiated emission ............................................................... 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co. Ltd Head Office : 3 rd Fl., Chungdam Bldg., 119-1 Chungdam-dong Kangnam-gu , Seoul, Korea (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 1.3 Official Qualification(s) MIC : Granted Accreditation from Ministry of Information & Communication for EMC, Safety and Telecommunication KOLAS : Accredited Lab By Korea Laboratory Accreditation Schema base on CENELEC requirements FCC : Filed Laboratory at Federal Communications Commission VCCI : Granted Accreditation from Voluntary Control Council for Interference from ITE This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report. ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTF150406-002 , Web : www. estech. co. kr Page 3 of 19 2. Description of EUT 2.1 Summary of Equipment Under Test Product: Model Number : Serial Number : Manufacturer : Country of origin : Rating : Receipt Date : 2.2 General descriptions of EUT Earphones S/N Ratio Output Frequency Earphones S/N Ratio Output Frequency BatteryAAA type battery * 1EA 90 dB Report Number : ESTF150406-002 , Web : www. estech. co. kr Page 4 of 19 MP PLAYER DG-150 NONE DG Lab Co., Ltd. Korea 120V, 60Hz 2004-05-31 28.4 * 94.2 * 26.6mm (W X L X H) 20 Hz ~ 20 KHz Size Weight Memory Main Clock Audio Output 38g (without battery) (128MB/256MB/512MB) built in Memory 6Mhz 6.0 mW / 16Ω FM 6.0 mW / 16Ω 50 dB 88 MHz ~ 108 MHz Approx. 17 hrs – (256MB ,ADPCM) Graphic 3 Line with Backlight Multi-Languages (Korean, English, Chinese, Japanese) 4 Mbps (Depending on PC) Approx. 10 hrs (128 kbps, MP3, 20 Volume, Normal EQ) 0 ~ 40 °C Supporting USB 1.1 (Plug & Play) Wind98/SE(with driver) , WindME/2000/XP , Mac 9.0 or above Voice-Recording LCD Language Download Speed Max. Playing Time Operating Temperature USB OS 3. Test Standards Test Standard : FCC PART 15 (2002) Test Method : ANSI C 63.4 (2001) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in…
