QJGAROMA49BWireless Handsfree-Base Unit

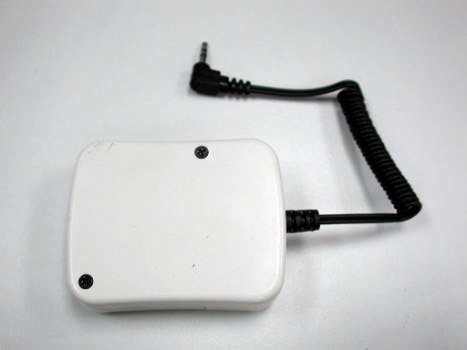

ETC Report No.: ET91S-01-155-02Page 1 of 1 FCC ID: QJGAROMA49B Rev. No 1.0 Construction Photos 1. Front View of EUT 2. Rear View of EUT

FCC ID:QJGAROMA49B

ETC Report No.: ET91S-01-155-02Page 1 of 2 FCC ID: QJGAROMA49B Rev. No 1.0 Construction Photos 3. Inside view of EUT 4. Inside view of EUT ETC Report No.: ET91S-01-155-02Page 2 of 2 FCC ID: QJGAROMA49B Rev. No 1.0 5. Front view of PCB 6. Rear view of PCB

The Action principle of aroma 49 Wireless Handsfree . Base Set: 1. The power of each part was supplied from 3.6V 40mA Battery. 2. Transmit section: Voice Frequency send to Q5 to stronger the sound signal through connect line, and send to U1 to drive the power. Sound signal become FM radio frequency through D1’XL1, Q1, and it use Q2, Q3 transmitter to eradiate through Duplexer from the antenna. 3. Receive section: When the antenna receive the frequency from son device, it will be stronger by Q4 RF Low Noise Amp. Through Duplexer and change to sound signal by U2 FM radio circuit IC and then eradiate through connect line.

FCC ID: QJGAROMA49B Rev. No 1.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : Wireless Handsfree (Baseunit) FCC ID: QJGAROMA49B MODEL: AROMA49 Working Frequency: 46.770MHz Issused Dated: July 17, 2002 for APPLICANT: YIH TAY TECHNOLOGY CO., LTD. ADDRESS: 3F., NO. 651-3, CHUNG CHENG RD., SHIN CHUANG, TAIPEI HSIEN, TAIWAN, R. O. C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel: (03) 3276170-3276174 Fax:(03)3276188 Report Number: ET91S-01-155-02 ETC Report No.: ET91S-01-155-02FCC ID: QJGAROMA49B Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: YIH TAY TECHNOLOGY CO., LTD. 3F., NO. 651-3, CHUNG CHENG RD., SHIN CHUANG, TAIPEI HSIEN, TAIWAN, R. O. C. Manufacturer: SINOCA ENTERPRISES CO., LTD. NO. 2, CHUNG HO RD., KEELUNG TAIWAN, R. O. C. Description of EUT: a) Type of EUT: Wireless Handsfree (Baseunit) b) Trade Name: AROMA c) Model No.: AROMA49 d) FCC ID: QJGAROMA49B e) Working Frequency: 46.770MHz f) Power Supply: DC 3.6V Battery Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The results of the testing report relate only to the items tested. 2.The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date: May 20, 2002 Test Engineer: Approve & Authorized Signer:July 17, 2002 Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: ET91S-01-155-02FCC ID: QJGAROMA49B Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION............................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...................................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:.......................................................................................................................................................1 1.3 TEST METHODOLOGY......................................................................................................................................................................1 1.4 TEST FACILITY..................................................................................................................................................................................1 2. DEFINITION AND LIMITS..............................................................................................................................................................2 2.1 DEFINITION........................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.............................................................................................................................................2 2.3 LIMITATION.......................................................................................................................................................................................2 2.4 LABELING REQUIREMENT...............................................................................................................................................................4 2.5 USER INFORMATION.........................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT....................................................................................................................................5 3.1 APPLICABLE STANDARD.................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM.......................................................................................................................................................5 3.3 MEASUREMENT PROCEDURE..........................................................................................................................................................6 3.4 TEST DATA.........................................................................................................................................................................................8 3.5 FIELD STRENGTH CALCULATION................................................................................................................................................10 3.6 RADIATED TEST EQUIPMENT.......................................................................................................................................................10 3.7 MEASURING INSTRUMENT SETUP...............................................................................................................................................11 3.8 RADIATED MEASUREMENT PHOTOS...........................................................................................................................................12 4. CONDUCTED EMISSION MEASUREMENT.............................................................................................................................13 4.1 APPLICABLE STANDARD..............................................................................................................................................................13 4.2 MEASUREMENT PROCEDURE.................................................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.: ET91S-01-155-02Page 12 of18 FCC ID: QJGAROMA49B Rev. No 1.0 3.8 Radiated Measurement Photos Baseunit ETC Report No.:ET91S-01-155-02Page 18 of 18 FCC ID:QJGAROMA49B Rev. No 1.0 4.6 Conducted Measurement Photos Baseunit
