QJIFR-CH0002Base for Wireless Hands-Free Cellular Headset

User's Manual Wireless Hands-Free Cellular Headset Hands-Free Communications for Your Cellular Phone WITHOUT Cords or Wires! IMPORTANT Before using your new Wireless Hands-Free Cellular Headset, we recommend you read this manual thoroughly. Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Parts Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . .4 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . .9 To Place and To Receive a Call . . . . . . . . . . . . . . . . . .10 Turning ‘Off’ Your Hands-Free Cellular Headset . . . . . .11 Caring For Your Hands-Free Cellular Headset . . . . . . .12 Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 FCC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Frequently Asked Questions (FAQs) . . . . . . . . . . . . . . .15 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . .16 3 SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Introduction (Page 2) Congratulations. You have just purchased the latest in cellular phone technology: a completely state-of-the-art Wireless Hands-Free Cellular Headset. Now you can talk hands-free on your cellular phone without the inconvenience or hassle of wires that tangle and confine. The following is a list of the many attractive features offered by your Hands-Free Cellular Headset: • 2.4 GHz • Easy to use! No installation required. • No wires connecting the headset to your phone. • Lightweight and comfortable to wear. Headset weighs only 1.8 ounces! • Crystal clear reception and transmission sound quality. • Extended talk time. Each battery offers up to 3 hours of talk time! • Up to 48 hours standby time. • Move up to 20 feet away from the Base Unit without confining cords. • Flexible over the ear loop allows you to wear your headset comfortably on your right or left ear • Additional replacement flexible over the ear loop included. • Includes Wireless Hands-Free Cellular Headset, Base Unit, Cigarette Lighter Adapter, 100-240 Volt Wall Charger and 3 Connector Adapters. • 3 Interchangeable 220mA Li-polymer batteries. • Universal-Works with most cellular phones! • Base unit has a 2.5mm headset jack that works on Audiovox®, Kyocera®, L.G. InfoComm®, Motorola®, Samsung®, Sanyo® and Touchpoint® cellular phones. • Includes 3 additional adapters: Ericsson® 600/700, A1228, R280/R289/R300 and T60 Series; Nokia® 3285, 5100 Series, 6100 Series, 6300 Series; Nokia® 8290 and 3300 Series handsets. • Belt Clip on Base Unit for handy access. • 1-Year Limited Warranty. Parts Check List (Page 3) A. Hands-Free Cellular Headset B. Base Unit C. Cigarette Lighter Adapter D. 120-240 Volt Wall Charger E. Three 220mA Li-polymer Batteries F. Adapter plug for the Ericsson ® 600/700, A1228, R280/R289/R300, T60 Series handsets G. Adapter for the Nokia® 3285, 5100 Series, 6100 Series & 6300 Series handsets H. Adapter for the Nokia® 8290 and 3300 Series handsets I. Extra - Flexible over the ear loop This User's Manual is designed to familiarize you with your Cordless Headset. Before using your Cordless Headset, we recommend you read this manual thoroughly. Important Safety Instructions (Page 4) When using your Wireless Hands-Free Cellular Headset, basic safety precautions should always be followed to reduce the risks of fire, electric shock and injury to persons including, but not limited to, the following: 1. Read and understand all instructions. 2. Follow all instructions and warnings marked on your Wireless Hands-Free Cellular Headset. 3. Use a slightly damp cloth when cleaning your Wireless Hands-Free Cellular Headset. Do not use liquid cleaners or aerosol cleaners. 4. Use precaution when using your Wireless Hands-Free Cellular Headset near water, for example, near a bathtub, kitchen sink or swimming pool. 5. Do not expose your Wireless Hands-Free Cellular Headset to moisture, extreme temperature or high voltage. 6. Although your Wireless Hands-Free Cellular Headset is quite sturdy, it is a complex piece of hardware and can be broken. 7. Never put objects of any kind on top of or spill liquid of any kind into your Wireless Hands-Free Cellular Headset. 8. Do not disassemble your Wireless Hands-Free Cellular Headset or any of the components for any reason. Never open or crack the product casings as this will immediately void the warranty and could damage the delicate circuitry inside the product and cause damage to your wireless phone. If you have any questions regarding the operation of your Wireless Hands-Free Cellular Headset please contact Case Logic Wireless at 1-800-854-6598 or e-mail us at: [email protected]. 9. Discontinue use of the Wireless Hands-Free Cellular Headset: A. If Wireless Hands-Free Cellular Headset is damaged. B. If liquid has been spilled into the Wireless Hands-Free Cellular Headset. C. If the Wireless Hands-Free Cellular Headset does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because improper adjustment of other controls may result in damage and will often require extensive work to restore your Hands-Free Cellular Headset to normal operation. D. If the Wireless Hands-Free Cellular Headset has been dropped and the casing has been damaged. E. If the Wireless Hands-Free Cellular Headset exhibits a distinct change in performance. Important Safety Instructions (cont’d) (Page 5) 10. Unplug your Base Unit from your wireless phone: A. If the Base Unit is damaged. B. If liquid has been spilled into the Base Unit or your cellular phone. C. If Base Unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because improper adjustment of other contro…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 11, 2002 RE: FITRIGHT Industrial Co., Ltd. FCC ID: QJIFR-CH0002 After a review of the submitted information, I have a few comments on the above referenced Application. 1) NOTE: We have copied all relevant information from the related filing possible. 2) Please provide a new label exhibit just for this application (base only). 3) Please provide a new schematic exhibit that is for this application only (base only). 4) Test results in section 3.4 of the report show average results that are slightly higher than peak results. Please explain why some average measurements are higher when peak measurements should always be worse case. (also see #4 below) 5) It appears that fundamental data appears in 2 locations in the report with a 30 dB difference between them. The results provided in section 3.4 are significantly below the limit (by about 30 dB). From previous discussions we believed that the power was going to be reduced to bring the EUT just into compliance with 15.249, but it appears that the fundamental is much lower than expected. However, section 6.4 of the test report shows values much higher within the 2.4 - 2.4835 GHz Band. Additionally some peak fundmaental readings in the 2.4 - 2.4835 GHz band exceeded the average limit (Please note that the peak limit = 114 dBuV and the average limit is 94 dBuV for the fundamental emission), yet average measurements are not shown. Please explain and/or correct the appropriate sections of the test report. 6) Section 6.1 does not appear to show uncorrected average measurements. It is not clear if average measurements were also performed, or only average measurements + duty cycle correction was applied. Please explain. 7) Section 6.1 of the test report appears to utilize a duty cycle correction for averaging. However detailed information regarding operation of the transmitter and its duty cycles was not provided. Please provide information showing what the worse case duty cycle is and how the correction factor was calculated. 8) Please explain any changes or modifications that were necessary from the manufacturer to bring the device into compliance with 15.249 vs 15.247. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 18, 2002 RE: FITRIGHT Industrial Co., Ltd. FCC ID: QJIFR-CH0002 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Your response to question 5 suggests that the spurious data is from the earlier results but the new fundamental field strength is from the unit B. Although a slight variance may be expected between units, a 30 dB variance of the fundamental suggests a problem either with the units or the testing. This problem must be resolved, and the test report corrected for whichever power is the actual worse case power. Currently the worse case fundamental data appears to be in the spurious emissions tables. Please note that permissive change applications expect power variations of no more that +/- 3 dB. A 30 dB variance is not acceptable. 2) In order to utilize a 10 Hz RBW for an average measurement, the TX must be set to a CW output without a duty cycle. From the measurements provided (high peak to average values, given a 1 MHz bandwidth), it appears that the device may not have actually been tested for average measurements with the TX set to a CW output. Please provide either: a) Confirmation that the device was tested with a CW output, or b) If the device was not tested with a CW output, then provide worse case dwell time per channel information so that averaging for duty cycle can be calculated. This is usually sufficient correction for this type of TX in order to meet the average limit. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 Email: [email protected] TRCSince1985 ® November 18, 2002 RE : FITRIGHT Industrial Co., Ltd. FCC ID : QJIFR-CH0002 Dear Tim: After the review of your comments, we have made some response upon your advice; they are summarized as follows: 1. OK!! And thanks for your kindly help upon this issue. 2. The new label of the headset is uploaded. Please find it as an exhibit uploaded. 3. The new schematic of the handset is uploaded. Please find it as an exhibit uploaded. 4. Regarding to your comments, we have performed the testes again and found that the results seem corrected but have been put into incorrect column. Please refer to the one attached. 5. We have 2 samples from the FITRIGHT given. Most data are measured by the Sample #A in the past, as the recalling for the testes about the 15.249 is launched recently, we have do some additional testes as shown on the <field strength> and <bandwidth> etc. with the Sample #B as Sample #A doesn’t work anymore in our recent testes. This is the reason why the data seems not match each other. But in our testes ensure that both samples are complied with the rules whatever they seem slightly different each other. 6. In section 6.4, you may find no correction factor (for the freq. >3.5GHz) in the table. As I have explained before, the spectrum analyzer we’d used from the HP is the one so-called “total-solution”, none correct factors is taken into account as they’re built-in. The corrected amplitude will be displayed directly so none correction factor to be counted. 7. As the test condition (Sect.6.1) stated, we have applied the VBW=10Hz is to be considered enough to “capture” the emission so we haven’t applied the duty cycle correction to measuring the average measurement. FYI. (See also in next page) Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 Email: [email protected] TRCSince1985 ® 8. Firstly, the FITRIGHT doesn’t make any changes or modifications to bring the device to comply the 15.249. We have applied the 15.247 at the beginning is based hopping properties of the device, but it is suspended in sometime as the power issue makes it need the SAR evaluation. After the conversation between our manager and William at your side, they conclude that the device can be approved under the 15.249 as it’s power is not exceeded the threshold of 15.249’s but it bear no SAR limitation. Then we re-do some testes and re-submit the materials as uploaded recently. It is already complies with both 15.247 and 15.249, none changes or modification is bought to comply instead. Should you have any questions or more information is requested, please don’t hesitate to ask us. Thank you. Sincerely yours, Eric Wong Project Engineer Training Research Co Ltd.

Dear Tim: I have uploaded those 2 new reports with the modified field strength measurements, spurious emission with average measurement and the duty cycle measurement to the second server at the ATCB. Thank you and FYI... Eric To: "'Timothy R. Johnson'" <[email protected]> Subject: RE: FW: FITRIGHT applications... (FCC ID: QJIFR-CH0001 & QJIFR-CH0002) Page 1 of 1FITRIGHT QJIFR-CH0002 Printed for "Timothy R. Johnson" <[email protected]>

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; 2. This device must accept any interference received including interference that may cause undesired operation. FCC ID: QJIFR-CH0002 Model No.: FR-CH0001

Test Report ----------------------------------------------------------------------------- 1/3 Report No.: F2915477 (Version 2.2 – Duty Cycle Measurement) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Transmitter Duty Cycle Measurements Test Condition and Setup The duty cycle measurements were performed in a shielded enclosure. The EUT was placed on a wooded table which is 0.8 meters height and a bi-log periodic antenna was used distance about 3 meters for receiving. While testing EUT was set to transmit continuously. Various key configurations were also investigated to find the maximum duty cycle. The resolution bandwidth and video bandwidth of the spectrum analyzer was set to 1MHz to encompass all significant spectral components during the test. The analyzer operated in linear scale and zero span mode after tuning to the transmitter carrier frequency. The spectrum analyzer measured pulse width. The pulse width was determined by the difference between the two half voltage points on a pulse. The duty cycle was determined by the following equation: Total on interval in a complete pulse train Duty Cycle (%) = X 100% Length of a complete pulse train To calculate the actual field intensity, the duty cycle correction factor in decibel is needed for later use and be obtained from following conversion: Duty Cycle Correction Factor (dB) = 20 X Log 10 Duty Cycle List of Test Instruments Instrument Name Model No. Brand Serial No. Last time Next time EMI Receiver 8546A H P 3520A00242 06/29/02 06/29/03 RF Filter Section 85460A H P 3448A00217 06/29/02 06/29/03 Bi-log Antenna CBL6141A Schaffner 4206 03/09/02 03/09/03 Test Report ----------------------------------------------------------------------------- 2/3 Report No.: F2915477 (Version 2.2 – Duty Cycle Measurement) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Test Instruments Configuration 2.4 Test Result Following is the test result, which produce maximum duty cycle: Total on interval in a complete pulse train = 0.825 ms Length of a complete pulse train = 6.750 ms Duty Cycle (%) = 0.825 ms / 6.750 ms 100% = 0.12222 Duty Cycle Correction Factor (dB) = 20 Log 0.12222 = -18.257 A plot is attached on the following page. Wood Table 0.8 meters Schaffner Bi-Log periodic Antenna 3 meters EUT HP 8546A & HP 85460A Resolution Bandwidth: 1 MHz Video Bandwidth : 1 MHz Span : 0 Hz Vertical Scale : Linear Test Report ----------------------------------------------------------------------------- 3/3 Report No.: F2915477 (Version 2.2 – Duty Cycle Measurement) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Hardcopy of the Spectrum Analyzer

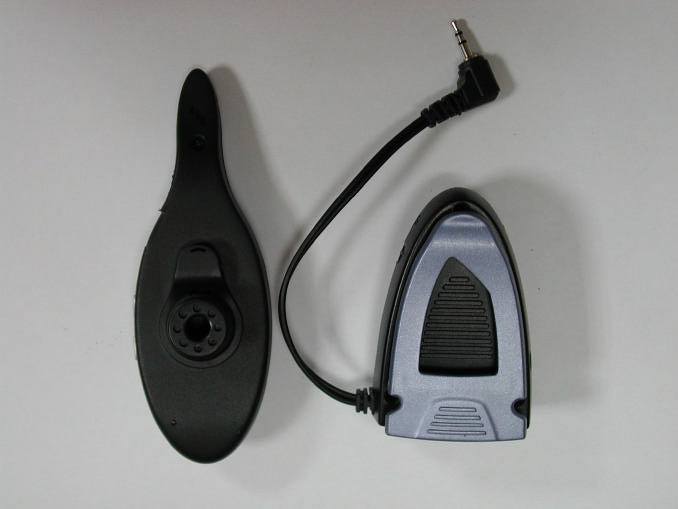

Test Report ------------------------------------------------------------------------------ 1/34 Report No.: F2915477 (Version 2.2a) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of the Base of WIRELESS HANDS-FREE CELLULAR HEADSET Applicant : Fitright Industrial Co., Ltd. Model No. : FR-CH0001 (Base) EUT : Wireless Hands-free Cellular Headset (Base) FCC ID : QJIFR-CH0002 Report No. : F2915477 (Version 2.2a) Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------ 2/34 Report No.: F2915477 (Version 2.2a) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.249. Applicant : Fitright Industrial Co., Ltd. Model No. : FR-CH0001 (Base) EUT : Wireless Hands-free Cellular Headset (Base) FCC ID : QJIFR-CH0002 Report No. : F2915477 (Version 2.2a) Test Date : Oct, 31, 2002 Prepared by: Approved by: Eric Wong Frank Tsai Tested by : Training Research Co., Ltd. TEL: 886-2-26935155 FAX: 886-2-26934440 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------ 3/34 Report No.: F2915477 (Version 2.2a) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ..................................................................................................................... 4 1.1 Introduction .............................................................................................................. 4 1.2 Description of EUT .................................................................................................. 4 1.3 Description of Support Equipment ........................................................................... 5 1.4 Configuration of System Under Test ........................................................................ 5 1.5 Verify the Frequency and Channel ........................................................................... 6 1.6 Test Procedure ......................................................................................................... 8 1.7 Location of the Test Site .......................................................................................... 8 1.8 General Test Condition ............................................................................................ 8 II. Power Line Conducted Emissions for AC Powered Units ......................................... 9 2.1 Test Condition & Setup ............................................................................................ 9 2.2 List of Test Instruments ............................................................................................ 9 2.3 Test Configuration .................................................................................................. 10 2.4 Test Results of Conducted Emissions ..................................................................... 11 III. Measurement of Field Strength.................................................................................... 13 3.1 Test Condition & Setup ........................................................................................... 13 3.2 List of Test Instruments ........................................................................................... 13 3.3 Test Configuration .................................................................................................. 14 3.4 Test Results of Conducted Emissions ..................................................................... 15 IV. Measurement of Occupied Bandwidth......................................................................... 16 4.1 Test Condition ........................................................................................................ 16 4.2 Test Instruments Configuration ............................................................................... 17 4.3 List of Test Instruments ........................................................................................... 17 4.4 Test Results ............................................................................................................. 18 V. Band-edge Compliance.................................................................................................. 21 5.1 Test Condition & Setup............................................................................................. 21 5.2 List of Test Instruments............................................................................................. 21 5.3 Test Instruments Configuration ................................................................................ 21 5.4 Test Results .............................................................................................................. 22 VI. Measurement of Spurious Radiated Emissions .......................................................... 26 6.1 Test Condition & Setup............................................................................................. 26 6.2 List of Test Instruments............................................................................................. 26 6.3 Test Instruments Configuration................................................................................…

Text truncated - open the document above for the full version.

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Test setup photos Wireless Hands-free Cellular Headset (Test report no.: F2915477) FCC ID: QJIFR-CH0001 Test Instruments Configuration of Conducted Emissions Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Configuration of test of carrier frequency separation Configuration of test of number of hopping frequency Horn Antenna EUT (Headset) EUT (Base) Horn Antenna EUT (Headset) EUT (Base) Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Configuration of test of time of occupancy (Dwell time) Configuration of test of 20dB bandwidth P.S.: Notebook computer to control the EUT at maximal power output and channel Number and set antenna kit Horn Antenna EUT (Headset) EUT (Base) Horn Antenna EUT (Headset) EUT (Base) Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Test Setup of Power Output Test Setup of bandedge compliance Horn Antenna EUT Spectrum Analyzer EUT Spectrum Analyzer Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Front View of the Test Configuration (Base) Rear View of the Test Configuration (Base) The test configuration for frequency between 1GHz to 18GHz is same as above.
