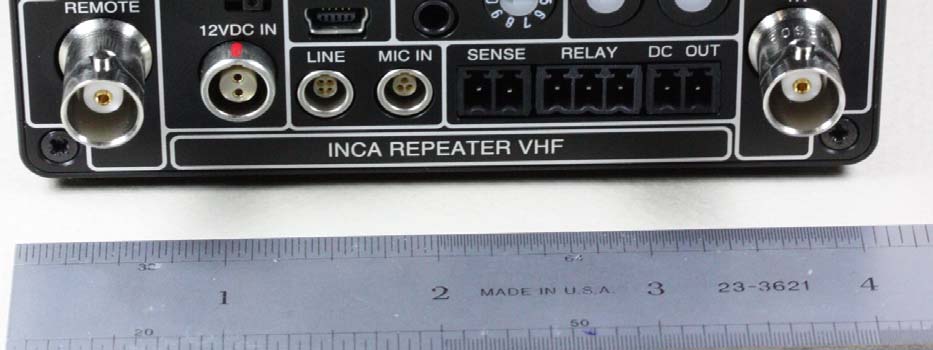

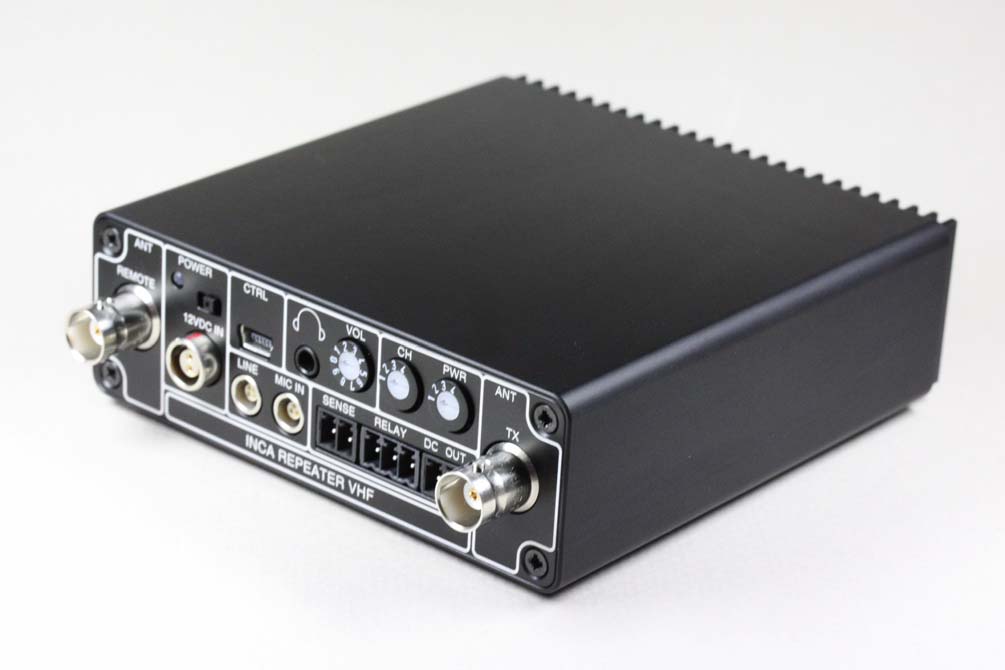

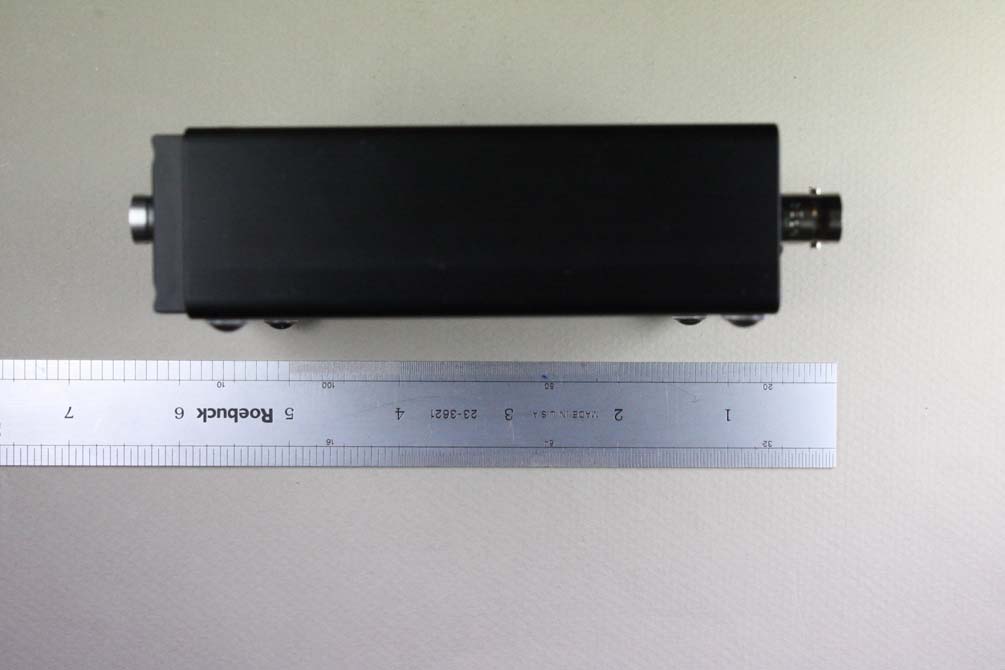

QKE-90136040VHF Radio Transmitter with Repeater functionality

Quick Start Guide INCA Repeater The most important thing we build is trust 8 0 0114 2 2 www.cobham.com/tcs Sept. 2014 - Version 1.4.1 INCA Repeater Software Configuration To configure the INCA Repeater software: 1. Connect the INCA Repeater to a computer containing the INCA Repeater Setup Utility software. 2. The power LED will illuminate Orange to indicate the INCA Repeater is receiving power via the USB. Note: Connecting external power to the INCA Repeater is not required when programming the INCA Repeater. The INCA Repeater is powered via USB for software configuration. 3. Select the Operating Mode in the Operation Tab - (Repeater, Receiver (RX) only, or Transmitter (TX) only). Note: The specified operating mode will determine what options and settings are available when configuring the INCA Repeater. 4. Set the Activate Condition in the Operation Tab. Note: The RSSI activate condition is only available when operating the device in Repeater mode. 5. Set the Audio Path options in the Operation Tab. Note: Two audio paths exist with-in the INCA Repeater. One for on-site listening (repeater location) and the other for the rebroadcasted signal. The operating mode determines which configuration options for the audio path are available. 6. Set the required Frequencies, Volume, and Power level in the Main Tab. Note: If the user is employing the device in Repeater mode the recommended technique is to invert the RX frequencies with the TX frequencies ensuring the paired TX and RX frequency contains at least 100 MHz of frequency separation between paired channels. 1 4 2 5 3 6 INCA Repeater Remote Commands 0On4N/A8Channel 3CPower Level 3 1Off (sleep mode)5N/A9Channel 4DPower Level 4 2N/A6Channel 1 APower Level 1EN/A 3N/A7Channel 2BPower Level 2FN/A Quick Start Guide INCA Repeater www.cobham.com/tcs 8 0 0114 2 2 Sept. 2014 - Version 1.4 INCA Repeater Hardware Setup To setup the INCA Repeater hardware: 1. Connect an antenna to the ANT RX BNC connector. Note: This antenna is NOT required when operating the INCA Repeater in TX mode. 2. Connect an antenna to the ANT TX BNC connector. Note: This antenna is NOT required when operating the INCA Repeater in RX mode. 3. Connect a remote control antenna to the REMOTE BNC connector, if Remote Control or Remote Repeat is required. 4. Connect a 12 V DC power supply to the 12 V DC IN Lemo jack. Note: Do NOT connect the INCA Repeater directly to AC power. The INCA Repeater supply voltage range is 10.0 V to 15.6 V DC. Only use the included power supply or an external battery. 5. Connect the required audio in or audio out cables depending on the operating mode configuration. 6. Slide the power switch to the left to turn On the INCA Repeater. In normal configuration, the LED will illuminate green. 1 4 2 5 3 6 INCA Repeater Software Configuration (continued) 7. Set the Remote Control option in the Remote Tab, if required. Note: It is possible to control different functions of the INCA Repeater with the X-IDER and/or INCA GM Keyfob, if enabled. 8. Set the Remote Repeat option in the Remote Tab, if required. Note: It is possible to control installed transmitter(s) by rebroadcasting the remote commands from and X-IDER and/or INCA GM Keyfob through the INCA Repeater, if enabled. 9. Set additional options in the General Tab, if required. Note: Refer to the User Manual for additional information on the options available in the General Tab. 7 89 Quick Start Guide INCA Repeater www.cobham.com/tcs 8 0 0114 2 2 Sept. 2014 - Version 1.4 This device is FCC approved and hence compliant to FCC regulations. Any changes or modifications to the device which are not expressly approved by the manufacturer will void the compliance and the users authority to operate the device. To ensure safe levels of RF signal exposure a minimum distance of 50 cm (2 ft) to the antennas must be kept. FCC ID no.: QKE-90136040 The device is intended for operation with authorized antennas and cables only. Authorized antennas and cables are: 67002217 Whip Antenna 67002223 Antenna RC 67002233 Antenna VHF 67002234 Antenna Car Mount 65914003 Antenna Cable 65914004 Antenna Cable Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FCC approval only applies to the VHF version of the INCA Repeater.

Document 75925939 Report 03 Issue 2 July 2014 Report On RF Exposure Assessment of the Cobham Tactical Communications INCA Repeater COMMERCIAL-IN-CONFIDENCE FCC ID: QKE-90136040 TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk COMMERCIAL-IN-CONFIDENCE Document 75925939 Report 03 Issue 2 Page 1 of 13 COMMERCIAL-IN-CONFIDENCE REPORT ON RF Exposure Assessment of the Cobham Tactical Communications INCA Repeater Document 75925939 Report 03 Issue 2 July 2014 PREPARED FOR Cobham Tactical Communications Skindbjergvej Grenaa 8500 Denmark PREPARED BY Maggie Whiting Project Manager APPROVED BY Simon Bennett Authorised Signatory DATED 03 July 2014 This report has been up-issued to Issue 2 to include the FCC ID. COMMERCIAL-IN-CONFIDENCE Document 75925939 Report 03 Issue 2 Page 2 of 13 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Brief Summary of Results ............................................................................................................. 5 1.3 Product Information ...................................................................................................................... 7 1.4 Summary ...................................................................................................................................... 7 2 TEST DETAILS ............................................................................................................................ 8 2.1 Rationale for Assessment of the RF Exposure ............................................................................ 9 2.2 Defined Limits ............................................................................................................................. 10 2.3 Establishing Wavelength and 1/4 Wavelength ........................................................................... 10 2.4 Far Field Calculations ................................................................................................................. 11 3 DISCLAIMERS AND COPYRIGHT ........................................................................................... 12 3.1 Disclaimers and Copyright .......................................................................................................... 13 COMMERCIAL-IN-CONFIDENCE Document 75925939 Report 03 Issue 2 Page 3 of 13 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY RF Exposure Assessment of the Cobham Tactical Communications INCA Repeater COMMERCIAL-IN-CONFIDENCE Document 75925939 Report 03 Issue 2 Page 4 of 13 COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show verification of the RF Exposure Assessment of the Cobham Tactical Communications INCA Repeater to the requirements of the applied test specifications. Objective To perform RF Exposure Assessment to determine the Equipment Under Test's (EUT’s) compliance of the applied rules. Applicant Cobham Tactical Communications Manufacturer Cobham Tactical Communications Manufacturing Description Repeater Model Number(s) INCA Test Specification/Issue/Date EN 62311:2008 FCC KDB 447498 D01 RSS-102 Issue 4 March 2010 Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard: 2003 Related Document(s) Council Recommendation 1999/519/EC:1999 FCC CFR 47 Part 1: 2013 FCC CFR 47 Part 2: 2013 Health Canada's Safety Code 6 ARPANSA ICNIRP 1998 National Council on Radiation Protection and Measurements (NRPC) - Report No. 86(1986) EN 50383:2002 IEEE Std C95.1-2005 Australian Standard 2772.2 – 1988 COMMERCIAL-IN-CONFIDENCE Document 75925939 Report 03 Issue 2 Page 5 of 13 COMMERCIAL-IN-CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS 1.2.1 General Public Exposure Levels Antenna Gain (Numeric) Peak Output Power (mW) Field Calculated RF Exposure at 0.5 m (50cm) General Public Exposure Limit Application 1.000 5000 S 1.59 W/m 2 2 W/m 2 ICNIRP S 0.159 mW/cm 2 0.2 mW/cm 2 FCC 47 CFR § 1.1310 S 1.59 W/m 2 2 W/m 2 Canada’s RF Safety Code 6 S 1.59 W/m 2 2 W/m 2 ARPANSA E 24.49 V/m 28 V/m ICNIRP E 24.49 V/m 27.5 V/m FCC 47 CFR § 1.1310 E 24.49 V/m 28 V/m Canada’s RF Safety Code 6 E 24.49 V/m 27.4 V/m ARPANSA H 0.06 A/m 0.073 A/m ICNIRP H 0.06 A/m 0.073 A/m FCC 47 CFR § 1.1310 H 0.06 A/m 0.073 A/m Canada’s RF Safety Code 6 H 0.06 A/m 0.0729 A/m ARPANSA The calculations have shown that they meet the General Public Exposure Levels described in the ICNIRP Guidelines, FCC 47 CFR § 1.1310 Guidelines, Health Canada’s RF exposure guideline Safety Code 6 and the Australian ARPANSA limits at 50cm, the point of investigation. COMMERCIAL-IN-CONFIDENCE Document 75925939 Report 03 Issue 2 Page 6 of 13 COMMERCIAL-IN-CONFIDENCE 1.2.2 Occupational Exposure Levels Antenna Gain (Numeric) Peak Output Power (mW) Field Calculated RF Exposure at 0.5 m (50cm) Occupational Exposure Limit Application 1.000 5000 S 1.59 W/m 2 10 W/m 2 ICNIRP S 0.159 mW/cm 2 1 mW/cm 2 FCC 47 CFR § 1.1310 S 1.59 W/m 2 10 W/m 2 Canada’s RF Safety Code 6 S 1.59 W/m 2 10 W/m 2 ARPANSA E 24.49 V/m 61 V/m ICNIRP E 24.49 V/m 61.4 V/m FCC 47 CFR § 1.1310 E 24.49 V/m 60 V/m Canada’s RF Safety Code 6 E 24.49 V/m 61.4 V/m ARPANSA H 0.06 A/m 0.16 A/m ICNIRP H 0.06 A/m 0.163 A/m FCC 47 CFR § 1.1310 H 0.06 A/m 0.163 A/m Canada’s RF Safety Code 6 H 0.06 A/m 0.163 A/m ARPANSA The calculations have shown that they meet the Occupational Exposure Levels described in the ICNIRP Guidelines, FCC 47 CFR § 1.1310 Guidelines, Health Canada’s RF exposure guideline Safety Code 6 and the Australian ARPANSA limits at 50 cm, the point of investigation. COMMERCIAL-IN-CONFIDENCE Document 75925939 Report 03 Issue 2 Page 7 of 13 COMMERCIAL-IN-CONFIDENCE 1…

Text truncated - open the document above for the full version.

Document 75925939 Report 02 Issue 2 July 2014 Report On FCC Testing of the Cobham Tactical Communications Inca Repeater In accordance with FCC CFR 47 Part 2 and FCC CFR 47 Part 90 COMMERCIAL-IN-CONFIDENCE FCC ID: QKE-90136040 TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk COMMERCIAL-IN-CONFIDENCE Document 75925939 Report 02 Issue 2 Page 1 of 48 COMMERCIAL-IN-CONFIDENCE REPORT ON FCC Testing of the Cobham Tactical Communications Inca Repeater In accordance with FCC CFR 47 Part 2 and FCC CFR 47 Part 90 Document 75925939 Report 02 Issue 2 July 2014 PREPARED FOR Cobham Tactical Communications Skindbjergvej Grenaa 8500 Denmark PREPARED BY Natalie Bennett Senior Administrator, Technical Solutions APPROVED BY Ryan Henley Authorised Signatory DATED 03 July 2014 This report has been up-issued to Issue 2 to include the FCC ID. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 2 and FCC CFR 47 Part 90. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Matthew Russell Andrew Galpin Tony Guy Stephen Milliken Document 75925939 Report 02 Issue 2 Page 2 of 48 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Brief Summary of Results ............................................................................................................. 5 1.3 Application Form ........................................................................................................................... 6 1.4 Product Information ...................................................................................................................... 8 1.5 Test Conditions ............................................................................................................................. 8 1.6 Deviations from the Standard ....................................................................................................... 8 1.7 Modification Record ...................................................................................................................... 8 2 TEST DETAILS ............................................................................................................................ 9 2.1 Effective Radiated Power ........................................................................................................... 10 2.2 Type of Emissions ...................................................................................................................... 12 2.3 Bandwidth Limitations ................................................................................................................. 15 2.4 Emission Mask ............................................................................................................................ 18 2.5 Power and Antenna Height Limits .............................................................................................. 32 2.6 Frequency Stability ..................................................................................................................... 35 2.7 Transient Frequency Behaviour ................................................................................................. 37 3 TEST EQUIPMENT USED ......................................................................................................... 42 3.1 Test Equipment Used ................................................................................................................. 43 3.2 Measurement Uncertainty .......................................................................................................... 46 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 47 4.1 Accreditation, Disclaimers and Copyright ................................................................................... 48 Document 75925939 Report 02 Issue 2 Page 3 of 48 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC Testing of the Cobham Tactical Communications Inca Repeater In accordance with FCC CFR 47 Part 2 and FCC CFR 47 Part 90 Document 75925939 Report 02 Issue 2 Page 4 of 48 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show verification of the FCC Testing of the Cobham Tactical Communications Inca Repeater to the requirements of FCC CFR 47 Part 2 and FCC CFR 47 Part 90. Objective To perform FCC Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Cobham Tactical Communications Model Number(s) Inca Repeater Serial Number(s) 891050 Number of Samples Tested 1 Test Specification/Issue/Date FCC CFR 47 Part 2 (2013) FCC CFR 47 Part 90 (2013) Incoming Release Date Application Form 26 March 2014 Disposal Reference Number Date Held Pending Disposal Not Applicable Not Applicable Order Number Date 23561-3 19 February 2014 Start of Test 26 February 2014 Finish of Test 21 March 2014 Name of Engineer(s) M Russell T Guy A Galpin S Milliken Related Document(s) ANSI C63.4: 2009 KDB 971168 D01 v02 r01 Document 75925939 Report 02 Issue 2 Page 5 of 48 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of the tests carried out in accordance with FCC CFR 47 Part 2 and FCC CFR 47 Part 90 is shown below. Section Spec Clause Tes…

Text truncated - open the document above for the full version.
