QKICA262DMLCDMA Repeater

CELLTRONIK MICROWAVE 2029 Boul. Industrel, Laval, Quebec, Canada H7S 1P7 Tel: (450) 629-1145 Fax: (450) 629-1140 P1 CA262DML CDMA & U850 Band High Power Amplifier User/Maintenance Handbook Version 1.0 CELLTRONIK MICROWAVE 2029 Boul. Industrel, Laval, Quebec, Canada H7S 1P7 Tel: (450) 629-1145 Fax: (450) 629-1140 P2 Table of Content 1 INTRODUCTION ........................................................................................... 4 2 SAFETY CONSIDERATIONS ...................................................................... 5 2.1 Electrical Shock............................................................................................................................................. 5 2.2 RF Radiation Hazard ..................................................................................................................................... 5 2.3 Emergency Contact Numbers ........................................................................................................................ 6 3 OVERWIEW ................................................................................................... 7 4 SPECIFICATIONS ......................................................................................... 8 4.1 Part Lists........................................................................................................................................................ 8 4.2 Technical Specification ................................................................................................................................. 9 4.3 CA323SML Block diagram and Layout diagram ........................................................................................ 11 5 SUB-UNIT MODULES ................................................................................. 15 5.1 Bandpass Tri-Band Tx and Rx Combiner.................................................................................................... 15 5.1.1 Description .................................................................................................................................................. 15 5.1.2 U850 Downlink Dual Band Pass Filter Technical Specification (CD535F2).............................................. 15 5.1.3 U850 Uplink Dual Band Pass Filter Technical Specification (CD535F1) ................錯誤! 尚未定義書籤。 5.2 Downlink Amplifier .................................................................................................................................... 17 5.2.1 Description .................................................................................................................................................. 17 5.3 Uplink Amplifier ......................................................................................................................................... 17 5.3.1 Description .................................................................................................................................................. 17 5.4 28V 500W Switching Power Supply (CP402) ............................................................................................ 18 5.4.1 Description .................................................................................................................................................. 18 5.4.2 Technical Specification ............................................................................................................................... 18 5.5 Controller/Monitor Board (CC813) ............................................................................................................. 19 5.5.1 Features ....................................................................................................................................................... 19 6 SYSTEM DESIGN AND INSTALLATION.............................................................. 21 6.1 Natures of Coverage Design by Repeater.................................................................................................... 21 6.2 Antenna Installation & Gain Calculations ................................................................................................... 22 6.3 Automatic Gain Control (AGC) .................................................................................................................. 24 6.4 Modem Initialisation.................................................................................................................................... 25 7 MAINTENANCE .......................................................................................... 26 7.1 General Comments ...................................................................................................................................... 26 7.1.1 Procedures ................................................................................................................................................... 26 7.1.2 Downlink ..................................................................................................................................................... 27 7.1.3 Uplink .......................................................................................................................................................... 27 7.1.4 Fault repair .................................................................................................................................................. 27 7.1.5 Checking service ......................................................................................................................................... 28 7.1.6 Service Support ........................................................................................................................................... 28 7.2 Tools & Test Equipment.............................................................................................................................. 28 7.3 Care of Modules ......................................................…

Text truncated - open the document above for the full version.

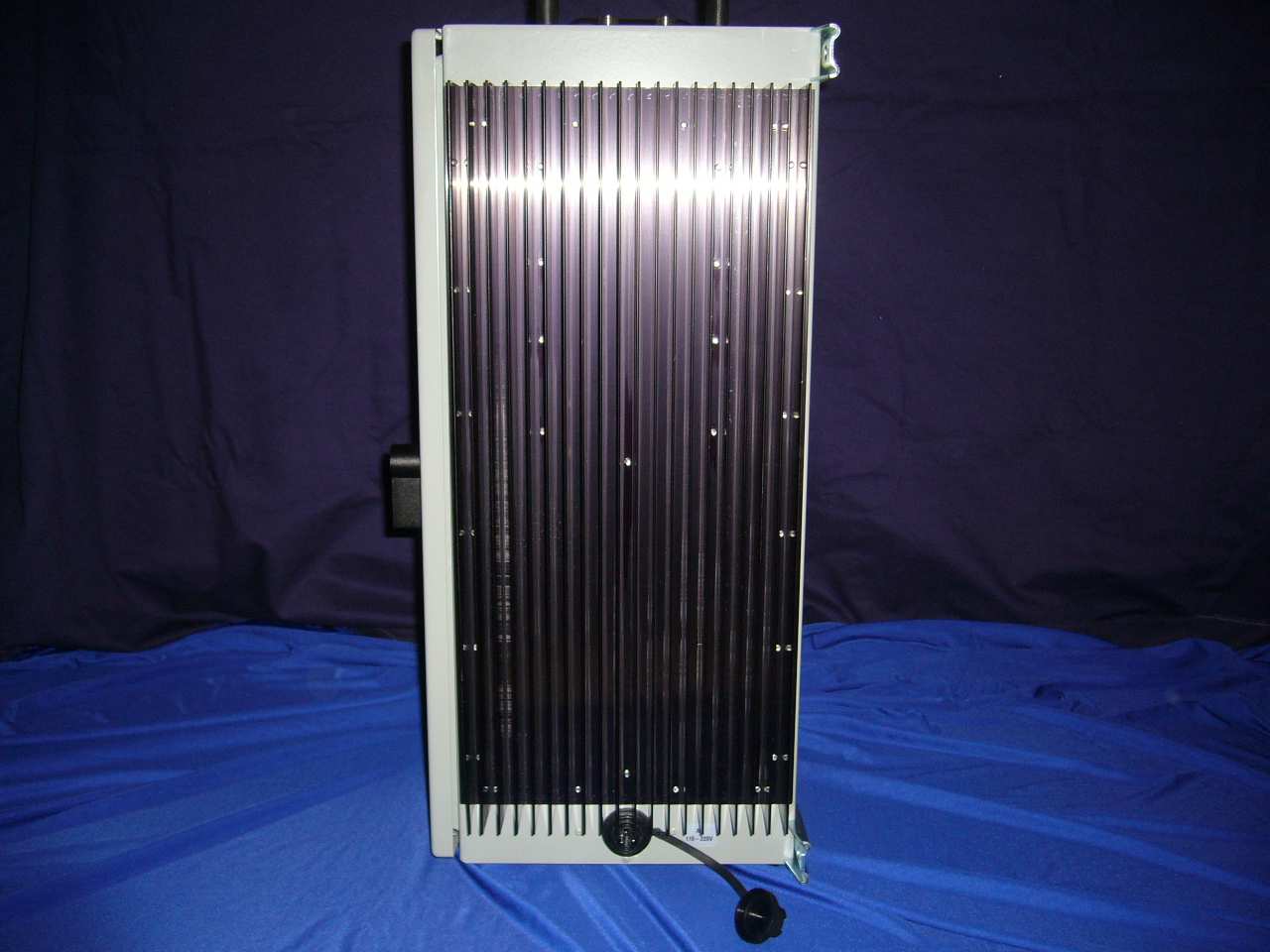

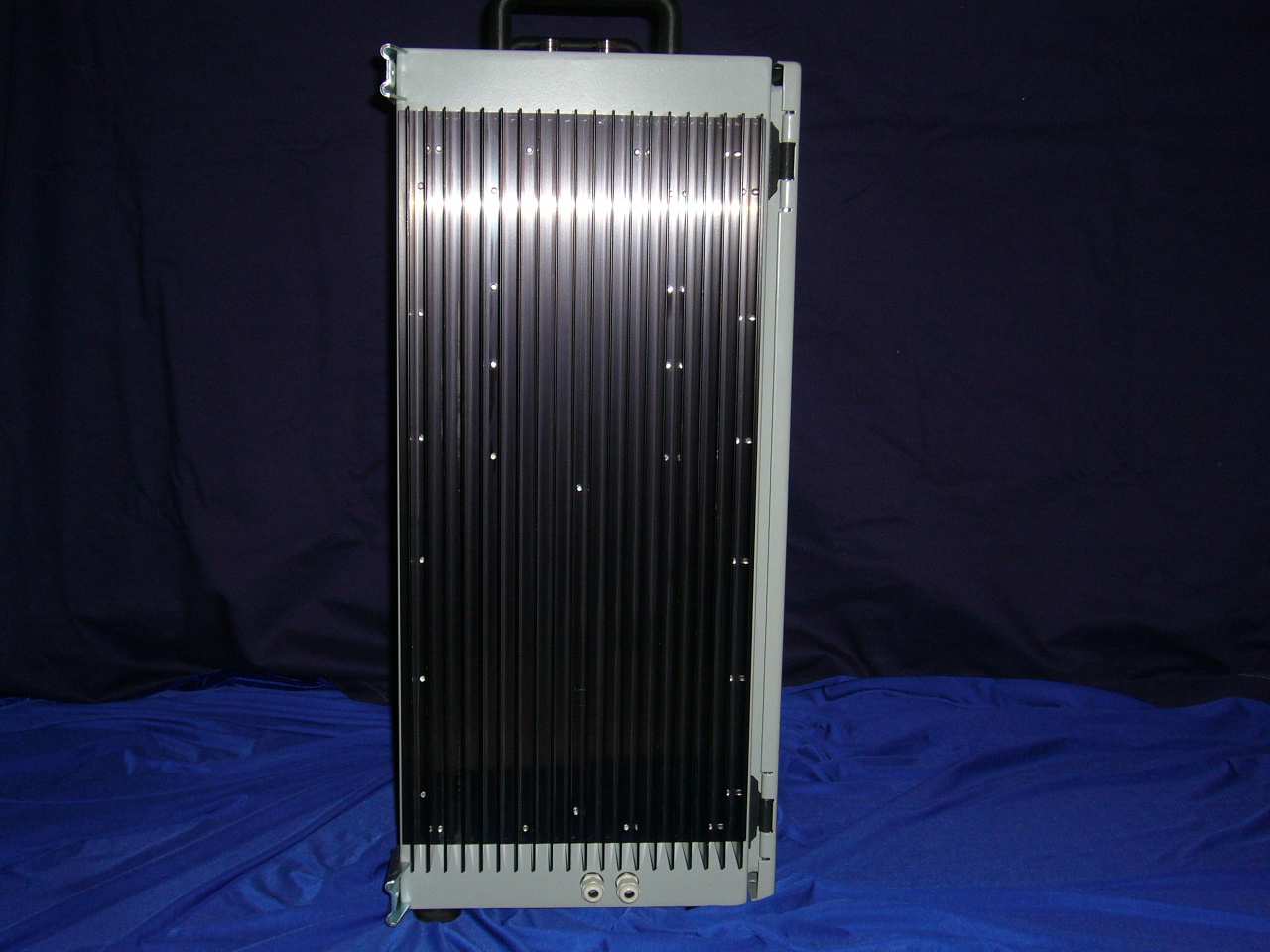

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT (CM850) 2pcs per each EUT) PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM850) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (CM851) 2pcs per each EUT) PHOTOGRAPH OF THE PRODUCT (CM851) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM851) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (CM851) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM851) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (CM851) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM851) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (CM851) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (CM851) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (Controller) PHOTOGRAPH OF THE PRODUCT (Controller) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (Controller) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (Power Supply) PHOTOGRAPH OF THE PRODUCT (Power Supply) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (Power Supply) INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT (Surge Filter) INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT (Surge Filter) INNER CIRCUIT BOTTOM VIEW

CELLTRONIK MICROWAVE HK LIMITED Unit 109, 1/F, Well Fung Industrial Centre, 68 Ta Chuen Ping Street, Kwai Chung Tel: (852) 3590-2626 Fax: (852) 3590-3222 Date : Subject: Tune-Up Info: The output of the Amplifier is checked by a spectrum analyser -- Agilent EXA -- N9010A, prior shipping to the site, the input reference signal is generated by – Agilent MXG – N5182A."

FCC ID: QKICA262DML RF Exposure Compliance Requirement 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR PCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times |E| 2 , |H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 f/300 6 1500-100000 5 6 (b) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times |E| 2 , |H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 30 3.0-30 842/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 f/500 30 1500-100000 1.0 30 Note: f/frequency in MHz; *Plane-wave equivalent power density 2. MPE Calculation Method S(mw/cm 2 ) = P*G/4Pi*R 2 S = Power Density (mW/cm 2 ) P = Peak RF conducted output Power (mW) G = EUT Antenna numeric gain (numeric) R = Separation distance between radiator and human body (cm) R = ((P*G)/4Pi*S) 1/2 From the maximum EUT RF output power, as well as the gain of the used antenna, according to the RF power density limit above, the minimum distance between the antenna and human body will be calculated. 3. Calculated Result For Band 1 Downlink: Frequency (MHz) F Maximum Antenna Gain (dBi) Maximum Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Limit of Power Density (s) (mW/cm 2 ) Minimum Distance to human body (cm) 873.5 21 125 43.5 22387 f/300 277 873.5 21 125 43.5 22387 f/500 358 For Band 1 Uplink: Frequency (MHz) F Maximum Antenna Gain (dBi) Maximum Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Limit of Power Density (s) (mW/cm 2 ) Minimum Distance to human body (cm) 828.5 21 125 33.1 2041 f/300 86 828.5 21 125 33.1 2041 f/500 111 For Band 2 Downlink: Frequency (MHz) F Maximum Antenna Gain (dBi) Maximum Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Limit of Power Density (s) (mW/cm 2 ) Minimum Distance to human body (cm) 880.0 21 125 43.3 21380 f/300 277 880.0 21 125 43.3 21380 f/500 357 For Band 2 Uplink: Frequency (MHz) F Maximum Antenna Gain (dBi) Maximum Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Limit of Power Density (s) (mW/cm 2 ) Minimum Distance to human body (cm) 835.0 21 125 33.3 2138 f/300 88 835.0 21 125 33.3 2138 f/500 113 Worst case consideration, 2 output ports operate at the max power at the same time Downlink Frequency (MHz) F Maximum Antenna Gain (dBi) Maximum Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Limit of Power Density (s) (mW/cm 2 ) Minimum Distance to human body (cm) 873.5 and 880.0 21 125 46.4 22387 + 21380 f/300 387 873.5 and 880.0 21 125 46.4 22387 + 21380 f/500 499 Uplink Frequency (MHz) F Maximum Antenna Gain (dBi) Maximum Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Limit of Power Density (s) (mW/cm 2 ) Minimum Distance to human body (cm) 828.5 and 835.0 21 125 36.2 2041 + 2138 f/300 123 828.5 and 835.0 21 125 36.2 2041 + 2138 f/500 159 Conclusion: The recommended distance between the EUT and human body is more than 5 meters

STC Test Report Date : 2012-10-22 Page 1 of 64 No. : MH187332 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (CEM001): Celltronik Microwave HK Limited Room 109, 1/F, Well Fung Industrial Centre, 68 Ta Chuen Ping Street, Kwai Chung, N.T., HK. Manufacturer: Celltronik Microwave HK Limited Description of Sample(s): Product Name: CDMA Repeater Brand Name: Celltronik Model Number: CA262DML FCC ID: QKICA262DML Date Sample(s) Received: 2012-09-11 Date Tested: 2012-09-18 – 2012-10-17 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 22H and TIA-603-D for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 22H. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional models details, see page 3. Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2012-10-22 Page 2 of 64 No. : MH187332 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 64 Content Page 2 of 64 1.0 General Details 1.1 Test Laboratory Page 3 of 64 1.2 Equipment Under Test [EUT] Page 3 of 64 Description of EUT operation 1.3 Date of Order Page 3 of 64 1.4 Submitted Sample Page 3 of 64 1.5 Test Duration Page 3 of 64 1.6 Country of Origin Page 3 of 64 1.7 RF Module Details Page 4 of 64 1.8 Antenna Details Page 4 of 64 2.0 Technical Details 2.1 Investigations Requested Page 5 of 64 2.2 Test Standards and Results Summary Page 5 of 64 3.0 Test Results 3.1 Emission Page 6 – 60 of 64 Appendix A List of Measurement Equipment Page 61 of 64 Appendix B Photographs Page 62 - 64 of 64 STC Test Report Date : 2012-10-22 Page 3 of 64 No. : MH187332 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Equipment Under Test [EUT] Description of Sample(s) Product Name: CDMA Repeater Manufacturer: Celltronik Microwave HK Limited Brand Name: Celltronik Model Number: CA262DML Input Voltage: 120Va.c 1.3 Description of EUT Operation Product Description: The CA262DML repeater is designed for CDMA850 networks. The pair of the operation bands of the EUT is 870 – 882.5MHz for Downlink and 825 – 837.5MHz for Uplink, which are separated into 2 bands. There are 4 pairs (one input and one output as a pair) of connectors exist in the EUT, each pair of connectors is only available for one frequency band only (Uplink and Downlink are of two frequency bands). Remote configuration is possible through CC813 controller with Amplifier to Amplifier link (ATA) or via PC by Com port Type of Modulation: CDMA Emission Designator: 1M25F9W (CDMA) Frequency Band: Cellular Band Band I: CDMA Port Downlink: 870MHz to 877.5MHz Uplink: 825MHz to 832.5MHz Band II: U850 Port Downlink: 877.5MHz to 882.5MHz Uplink: 832.5MHz to 837.5MHz Remark: for band 1 and band 2, they couldn’t be overlapped. Nominal Power Output: Downlink: 43dBm Uplink: 33dBm STC Test Report Date : 2012-10-22 Page 4 of 64 No. : MH187332 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.4 Date of Order 2012-09-11 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2012-09-17 to 2012-10-17 1.7 Country of Origin Hong Kong STC Test Report Date : 2012-10-22 Page 5 of 64 No. : MH187332 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 22H: 2010 Regulations and TIA-603-D for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method …

Text truncated - open the document above for the full version.

SET UP PHOTO Measurement of Radiated Emission Test Set Up (Below 1GHz) Measurement of Radiated Emission Test Set Up (Above 1GHz) SET UP PHOTO Measurement of Conducted Emission Test Set Up Measurement in Extreme Condition Test Set Up
