QKLDSM2DASH CAM

Escort Incorporated

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 27, 2021
Application Purpose: Original Equipment
Date of Application: Jul 27, 2021
Equipment Note: DASH CAM
Frequency Range: 2402.00000000 - 2480.00000000
Company: Escort Incorporated
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

C M Y CM MY CY CMY K ESCORT_DASH_PROD_INFO_INSERT_M2_4X5_PRINT_021921.pdf 1 2/19/21 5:16 PM C M Y CM MY CY CMY K ESCORT_DASH_PROD_INFO_INSERT_M2_4X5_PRINT_021921.pdf 2 2/19/21 5:16 PM

Cover Letter(s)

Differences Declaration To whom concern, We Escort Incorporated Here by declares: The product model(s) M2 (0010068-1) is the same PCB layout, electronic schematic and Antenna with M2, which tested in Shenzhen Huatongwei International Inspection Co., Ltd., the only difference is different model names for commercial purpose. Sincerely yours, Name (in print): Chris deWaal Company name: Escort Incorporated Company address: 5440 West Chester Road West Chester Ohio United States 45069 Te l : 1-773-804-6285 E- Mail: [email protected] June 23, 2021

Cover Letter(s)

6500 W Cortland St. Chicago, IL 60707 Phone: (773) 889 8870 Fax: (773) 889 8901 cedarelectronics.com 2021-07-23 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Escort Incorporated / 5440 West Chester Road West Chester Ohio United States 45069. Dated this July 23, 2021 Agency agreement expiration date: July 23, 2022 By: Chris deWaal Signature Printed Title: Senior Project Engineer On behalf of : Escort Incorporated Telephone: 1-773-804-6285

Cover Letter(s)

6500 W Cortland St. Chicago, IL 60707 Phone: (773) 889 8870 Fax: (773) 889 8901 cedarelectronics.com 2021-07-23 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QKLDSM2 Product Name: DASH CAM Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this July 23, 2021 By: Chris deWaal Signature Printed Title: Senior Project Engineer On behalf of : Escort Incorporated Telephone: 1-773-804-6285

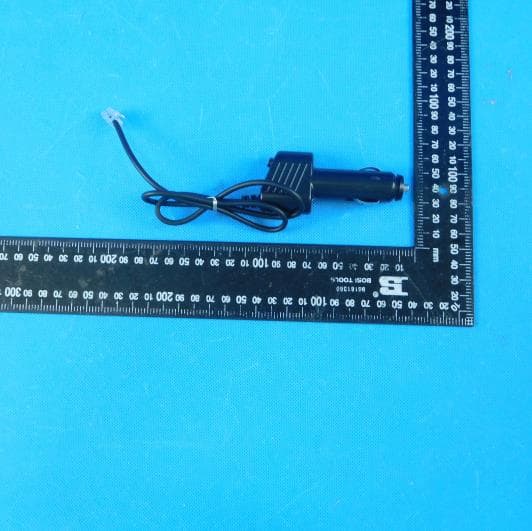

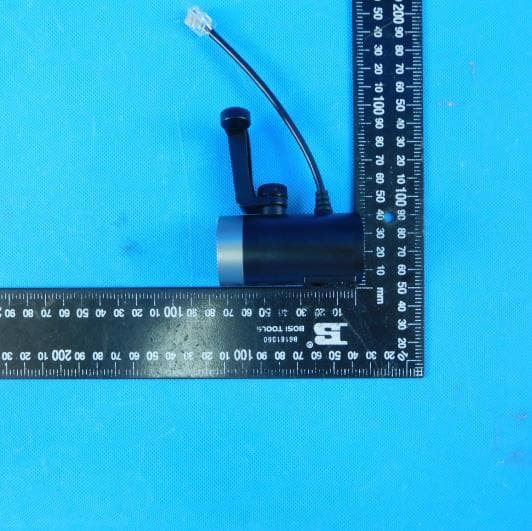

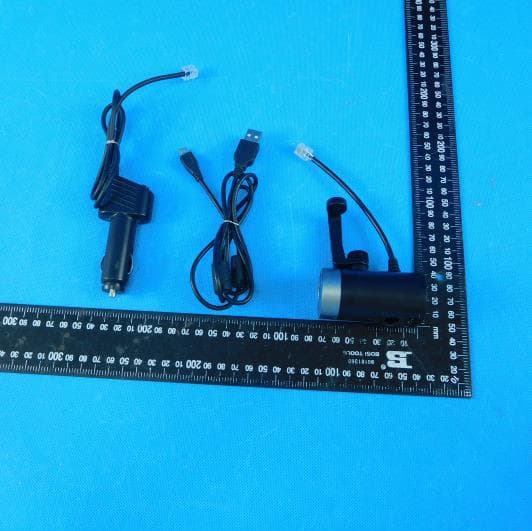

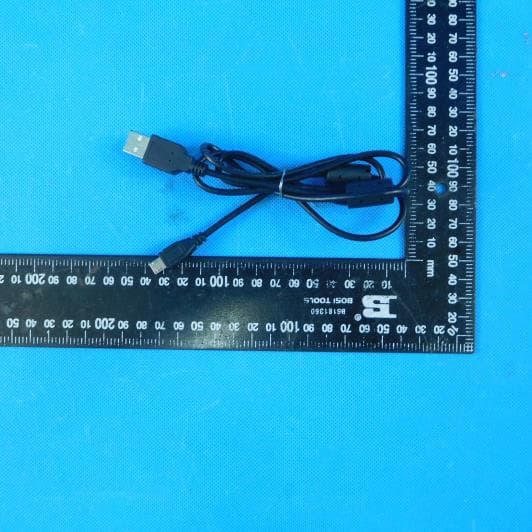

External Photos

ID Label/Location Info

Label location

Internal Photos

RF Exposure Info

FCC ID: QKLDSM2 RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable FCC ID: QKLDSM2 Frequency range (MHz) Type Conducted Average Power (dBm) Maximum Tune-up (dBm) Power Density (mW/cm2) Limit (mW/cm2) Result 2402-2480 BT-EDR 2.96 3.00 0.0003 1.0000 Pass 2402-2480 BT-BLE 0.07 0.50 0.0002 1.0000 Pass 2412-2462 802.11b 12.44 13.00 0.0033 1.0000 Pass 5150-5350 802.11ac 14.91 15.00 0.0136 1.0000 Pass Consider the BT and wifi can transmitting simultaneously, the total transmitting MPE rate as below formula: MPE rate=Power density of BT/limit + Power density of wifi/limit <1 The worst case is BT-EDR and 5G WIFI transmitting simultaneously, the result as below: Evaluation mode Power density/limit Sum of the MPE rate limit BT-EDR 0.0003 0.0139 1 2.4G WIFI 0.0136 Note: 1) The maximum antenna gain is -0.86dBi (BT and 2.4G WiFi ) and 3.34dBi (5G WiFi ) 2) The exposure evaluation safety distance is 20cm.

Test Report

Page: 1 of 44 TEST REPORT Report No. ..................................... : CHTEW21050091 Report Verification: Project No.................................： SHT2104043102EW FCC ID ........................................... : QKLDSM2 Applicant’s name .......................... : Escort Incorporated Address .......................................... : 5440 West Chester Road West Chester Ohio United States 45069 Test item description .................... : DASH CAM Trade Mark ..................................... : Escort Model/Type reference ..................... : M2 Listed Model(s) ............................... : M2 (0010068-1) Standard ........................................ : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Apr.22, 2021 Date of testing.............................: Apr.22, 2021- May 18, 2021 Date of issue...............................: May 19, 2021 Result ................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address .......................................... : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21050091 Page: 2 of 44 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST ST AN D AR D S AND R E P O R T V E R S IO N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. Power Spectral Density 16 5.5. 6dB bandwidth 17 5.6. 99% Occupied Bandwidth 18 5.7. Duty Cycle 19 5.8. Conducted Band edge and Spurious Emission 20 5.9. Radiated Band edge Emission 22 5.10. Radiated Spurious Emission 26 6. TEST SETUP PHOTOS 33 7. EXTERANAL AND INTERNAL PHOTOS 35 8. APPENDIX REPORT 44 Report No.: CHTEW21050091 Page: 3 of 44 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST S TAND ARDS AN D REP OR T VE RSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2021-05-19 Original Report No.: CHTEW21050091 Page: 4 of 44 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247(b)(3) PASS 5.4 Power Spectral Density 15.247(e) PASS 5.5 6dB Bandwidth 15.247(a)(2) PASS 5.6 99% Occupied Bandwidth - PASS *1 5.7 Duty cycle - PASS *1 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.9 Radiated Band Edge Emission 15.205/15.209 PASS 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW21050091 Page: 5 of 44 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client Information Applicant: Escort Incorporated Address: 5440 West Chester Road West Chester Ohio United States 45069 Manufacturer: Escort Incorporated Address: 5440 West Chester Road West Chester Ohio United States 45069 3.2. Product Description Name of EUT: DASH CAM Trade Mark: Escort Model No.: M2 Listed Model(s): M2 (0010068-1) Power supply: DC 12V Hardware version: 90100D1620001 Software version: Escort M2 V1.08 3.3. Radio Specification Description Support type *2 : 802.11b, 802.11g, 802.11n(HT20) Modulation: DSSS for 802.11b OFDM for 802.11g/802.11n(HT20) Operation frequency: 2412MHz~2462MHz Channel number: 11 Channel separation: 5MHz Antenna type: FPC Antenna gain: -0.86dBi Note: *2: only show the RF function associated with this report. Report No.: CHTEW21050091 Page: 6 of 44 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/…

Text truncated - open the document above for the full version.

Test Report

Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 28 APPENDIX REPORT Project No. SHT2104043102EW Radio Specification WIFI 2.4G Test sample No. YPHT21040431002 Model No. M2 Start test date 2021-04-28 Finish date 2021-04-28 Temperature 24.9°C Humidity 38% Test Engineer Hailey Chen Auditor Appendix clause Test item Result A Conducted Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty Cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 28 Appendix A：Conducted Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result 802.11b 01 14.44 12.01 ≤ 30.00 Pass 06 14.82 12.44 11 14.28 11.85 802.11g 01 14.86 12.24 ≤ 30.00 Pass 06 15.17 12.37 11 14.79 11.94 802.11n (HT20) 01 14.22 11.84 ≤ 30.00 Pass 06 14.60 12.33 11 14.43 12.03 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 28 Appendix B：Power Spectral Density Type Channel Power Spectral Density (dBm/30KHz) Limit (dBm/3KHz) Result 802.11b 01 0.12 ≤8.00 Pass 06 1.49 11 0.17 802.11g 01 -9.01 ≤8.00 Pass 06 -9.04 11 -8.87 802.11n(HT20) 01 -9.53 ≤8.00 Pass 06 -9.29 11 -8.72 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 28 Type: 802.11 b CH01 Date: 28.APR.2021 11:31:50 CH06 Date: 28.APR.2021 11:20:30 CH11 Date: 28.APR.2021 11:26:42 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 28 Type: 802.11 g CH01 Date: 28.APR.2021 11:39:35 CH06 Date: 28.APR.2021 11:42:39 CH11 Date: 28.APR.2021 13:17:51 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 28 Type: 802.11n(HT20) CH01 Date: 28.APR.2021 13:27:13 CH06 Date: 28.APR.2021 13:23:22 CH11 Date: 28.APR.2021 13:32:28 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 28 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth (MHz) Limit (MHz) Result 802.11b 01 7.14 ≥0.5 Pass 06 7.11 11 7.14 802.11g 01 15.24 ≥0.5 Pass 06 15.24 11 15.24 802.11n(HT20) 01 15.24 ≥0.5 Pass 06 15.24 11 15.24 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 28 Type: 802.11 b CH01 Date: 28.APR.2021 11:31:11 CH06 Date: 28.APR.2021 11:19:49 CH11 Date: 28.APR.2021 11:26:00 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 28 Type: 802.11 g CH01 Date: 28.APR.2021 11:38:45 CH06 Date: 28.APR.2021 11:41:51 CH11 Date: 28.APR.2021 13:17:06 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 28 Type: 802.11n(HT20) CH01 Date: 28.APR.2021 13:26:16 CH06 Date: 28.APR.2021 13:22:03 CH11 Date: 28.APR.2021 13:31:28 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 28 Appendix D：99% Occupied Bandwidth Type Channel 99% Bandwidth (MHz) Limit (MHz) Result 802.11b 01 10.82 - Pass 06 11.03 11 11.24 802.11g 01 16.78 - Pass 06 16.75 11 16.57 802.11n(HT20) 01 17.80 - Pass 06 17.80 11 17.62 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 28 Type: 802.11 b CH01 Date: 28.APR.2021 11:31:19 CH06 Date: 28.APR.2021 11:19:57 CH11 Date: 28.APR.2021 11:26:09 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 28 Type: 802.11 g CH01 Date: 28.APR.2021 11:38:53 CH06 Date: 28.APR.2021 11:41:59 CH11 Date: 28.APR.2021 13:17:14 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 28 Type: 802.11n(HT20) CH01 Date: 28.APR.2021 13:26:24 CH06 Date: 28.APR.2021 13:22:11 CH11 Date: 28.APR.2021 13:31:36 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 28 Appendix E：Duty Cycle Modulation Type Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 11b 2437 8.40 8.50 98.8% 0.1 11g 2437 1.39 1.49 93.3% 0.7 11n20 2437 1.30 1.41 92.2% 0.8 11b Date: 28.APR.2021 11:19:39 11g Date: 28.APR.2021 11:41:42 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 28 11n20 Date: 28.APR.2021 13:21:53 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 28 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Bandedge Type: 802.11 b CH01 Date: 28.APR.2021 11:32:00 CH11 Date: 28.APR.2021 11:26:52 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 18 of 28 Test Item: Bandedge Type: 802.11 g CH01 Date: 28.APR.2021 11:39:44 CH11 Date: 28.APR.2021 13:18:01 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 19 of 28 Test Item: Bandedge Type: 802.11 n(HT20) CH01 Date: 28.APR.2021 13:27:23 CH11 Date: 28.APR.2021 13:32:37 Project No.: SHT2104043102EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei In…

Text truncated - open the document above for the full version.

Test Report

Page: 1 of 31 TEST REPORT Report No. ..................................... : CHTEW21050092 Report Verification: Project No.................................： SHT2104043102EW FCC ID ........................................... : QKLDSM2 Applicant’s name .......................... : Escort Incorporated Address .......................................... : 5440 West Chester Road West Chester Ohio United States 45069 Test item description .................... : DASH CAM Trade Mark ..................................... : Escort Model/Type reference ..................... : M2 Listed Model(s) ............................... : M2 (0010068-1) Standard ........................................ : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Apr.22, 2021 Date of testing.............................: Apr.22, 2021- May 18, 2021 Date of issue...............................: May 19, 2021 Result ................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address .......................................... : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21050092 Page: 2 of 31 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST ST AN D AR D S AND R E P O R T V E R S IO N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Test mode 7 4.3. Support unit used in test configuration and system 7 4.4. Testing environmental condition 8 4.5. Measurement uncertainty 8 4.6. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. Power Spectral Density 16 5.5. 6dB bandwidth 17 5.6. 99% Occupied Bandwidth 18 5.7. Duty Cycle 19 5.8. Conducted Band edge and Spurious Emission 20 5.9. Radiated Band edge Emission 22 5.10. Radiated Spurious Emission 24 6. TEST SETUP PHOTOS 29 7. EXTERANAL AND INTERNAL PHOTOS 31 8. APPENDIX REPORT 31 Report No.: CHTEW21050092 Page: 3 of 31 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST S TAND ARDS AN D REP OR T VE RSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2021-05-19 Original Report No.: CHTEW21050092 Page: 4 of 31 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247(b)(3) PASS 5.4 Power Spectral Density 15.247(e) PASS 5.5 6dB Bandwidth 15.247(a)(2) PASS 5.6 99% Occupied Bandwidth - PASS *1 5.7 Duty cycle - PASS *1 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.9 Radiated Band Edge Emission 15.205/15.209 PASS 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW21050092 Page: 5 of 31 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client Information Applicant: Escort Incorporated Address: 5440 West Chester Road West Chester Ohio United States 45069 Manufacturer: Escort Incorporated Address: 5440 West Chester Road West Chester Ohio United States 45069 3.2. Product Description Name of EUT: DASH CAM Trade Mark: Escort Model No.: M2 Listed Model(s): M2 (0010068-1) Power supply: DC 12V Hardware version: 90100D1620001 Software version: Escort M2 V1.08 3.3. Radio Specification Description Bluetooth version: V5.0 Support function *2 : BLE Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: FPC Antenna gain: -0.86dBi Note: *2: only show the RF function associated with this report. Report No.: CHTEW21050092 Page: 6 of 31 Issued: 2021-05-19 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, S…

Text truncated - open the document above for the full version.

Test Report

Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 14 APPENDIX REPORT Project No. SHT2104043102EW Radio Specification Bluetooth BLE Test sample No. YPHT21040431002 Model No. M2 Start test date 2021-04-29 Finish date 2021-04-29 Temperature 24.1°C Humidity 36% Test Engineer Hailey Chen Auditor Appendix clause Test item Result A Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 14 Appendix A：Peak Output Power Type Channel Output power (dBm) Average Output power (dBm) Limit (dBm) Result BT-BLE 00 -0.40 -0.41 ≤ 30.00 Pass 19 0.09 0.07 39 -0.31 -0.30 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 14 CH00 Date: 29.APR.2021 13:15:00 CH19 Date: 29.APR.2021 13:21:09 CH39 Date: 29.APR.2021 13:22:47 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 14 Appendix B：Power Spectral Density Type Channel Power Spectral Density(dBm/3KHz) Limit (dBm/3KHz) Result BT-BLE 00 -14.66 ≤8.00 Pass 19 -14.10 39 -14.53 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 14 CH00 Date: 29.APR.2021 13:15:15 CH19 Date: 29.APR.2021 13:21:24 CH39 Date: 29.APR.2021 13:23:02 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 14 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth(kHz) Limit (kHz) Result BT-BLE 00 754.00 ≥500 Pass 19 770.00 39 774.00 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 14 CH00 Date: 29.APR.2021 13:14:43 CH19 Date: 29.APR.2021 13:20:52 CH39 Date: 29.APR.2021 13:22:30 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 14 Appendix D：99% Occupied Bandwidth Type Channel 99% Occupied Bandwidth(MHz) Limit (kHz) Result BT-BLE 00 1.06 - Pass 19 1.06 39 1.06 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 14 CH00 Date: 29.APR.2021 13:14:51 CH19 Date: 29.APR.2021 13:21:00 CH39 Date: 29.APR.2021 13:22:38 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 14 Appendix E：Duty cycle Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 2440 0.39 0.62 62.9% 2.6 Date: 29.APR.2021 13:20:37 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 14 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Band edge CH00 Date: 29.APR.2021 13:25:17 CH39 Date: 29.APR.2021 13:23:12 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 14 Test Item: SE CH00 Reference level Date: 29.APR.2021 13:15:32 CH00 30MHz~1000MHz Date: 29.APR.2021 13:15:48 CH00 1GHz~26GHz Date: 29.APR.2021 13:16:04 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 14 CH19 Reference level Date: 29.APR.2021 13:21:30 CH19 30MHz~1000MHz Date: 29.APR.2021 13:21:46 CH19 1GHz~26GHz Date: 29.APR.2021 13:22:02 Project No.: SHT2104043102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 14 CH39 Reference level Date: 29.APR.2021 13:23:18 CH39 30MHz~1000MHz Date: 29.APR.2021 13:23:34 CH39 1GHz~26GHz Date: 29.APR.2021 13:23:50 --------End of Report--------

Test Setup Photos

Radiated Emission AC Conducted Emission

Contact Information

Applicant

John R Kuhn(Vice President of Engineering)

[email protected]513-870-8500

Test Firm

Shenzhen Huatongwei International Inspection Co.,Tony Jiang

[email protected]+86-755-26748078

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.40 GHz - 2.48 GHz	1.00 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Other Applications from Escort Incorporated

QKLM13

Radar Detector with Bluetooth

Mar 06, 2023

Equipment Class

DTS - Digital Transmission System

QKLMAX3V2

Radar Detector with BLE

Dec 29, 2022

Equipment Class

DTS - Digital Transmission System

QKLMAX3

ESCORT MAX 3

Jul 09, 2020

Equipment Class

CRD - Part 15 Radar Detector

QKLM12

ESCORT Redline 360c

Jun 08, 2020

Equipment Class

CRD - Part 15 Radar Detector

QKLM6

Radar Detector

Sep 30, 2015

Equipment Class

CRD - Part 15 Radar Detector

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗
