2B586-226E PERSONAL COMPUTER FC2710 USER’S MANUAL (2B586-226E) 2B586-226E Contents 1. FCC NOTICE ............................................... P. 1 2. Introduction ............................................... P. 2 3. For Your Safety ............................................... P. 3, 4 4. Name of Each Part ............................................... P. 5 4-1 Front Panel ............................................... P. 5 4-2 Rear Panel ............................................... P. 6 5. Cable Hook-ups ............................................... P. 7 2B586-226E 1. FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. -1- 2B586-226E 2. Introduction This PC is designed for a data processing unit of automated biochemical analyzer. Use for other purpose, alteration of hardware and BIOS setting and installation of other software are strictly prohibited. -2- 2B586-226E 3. For Your Safety Please note the following items for your safety. Danger The following items show the possibility of human death or serious injury. Do not open the power supply cover inside the PC. It is dangerous because some parts have high voltages. Do not alter the PC. It may result in a fire or an electric shock. Do not exceed the indicated ratings of input voltage. Use only the accessory power cord supplied with the PC. Do not use the accessory power cord for other equipment. It may cause a fire or an electric shock. Keep liquids away from the power switch or other control parts. Moisture may damage these parts and result in electric danger. Do not pull out or insert the power plug by wet hands. It may cause an electric shock. Do not damage, break or fabricate the power plug. Putting a heavy weight on it, pulling it or bending it forcedly may break it and result in a fire or an electric shock. Should heat, smoke, smell generation or other abnormalities be observed, contact a service engineer after turning off the PC immediately and pulling out the power plug. It may result in a fire or an electric shock. Should something (a piece of metal, water or liquids) go inside the PC, contact a service engineer after turning off the PC immediately and pulling out the power plug. It may result in a fire or an electric shock. Battery A lithium battery is used on the motherboard and a nickel-cadmium battery is used on the expansion board. There is danger of explosion if these batteries are incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. Following items are strictly prohibited. Soaking the battery in water Heating or incineration over 100 degrees centigrade Decomposition or charge -3- 2B586-226E CautionThe following items show the possibility of human injury or material damage. Do not pull the power cord when you pull out the power plug. It may damage the cord and result in a fire or an electric shock. (Be sure to pull out the plug after holding it in a hand.) Do not install the PC in a humid or dusty place. It may result in a fire or an electric shock. Do not block the vent holes. If they are blocked, the temperature inside will rise and a fire may occur. Avoid an unexpected injury when you lift, relocate or move the PC. If it is too heavy for you, ask someone for help. -4- 2B586-226E Vent Holes Reset Button Hard Disk Drive Activity LED Power Indicator Floppy Disk Eject Button 3.5” Floppy Disk Drive Power Switch Floppy Disk Drive Activity LED 4. Name of Each Part 4-1 Front Panel Power Switch Pressing this switch turns the PC on and off alternately. The PC is set so as to turn on when it is connected to the AC power without pressing this switch. Floppy Disk Drive Activity LED Indicates when the floppy disk drive is being accessed. 3.5” Floppy Disk Drive A 3.5” floppy disk can be inserted. Floppy Disk Eject Button Enables you to take a floppy disk out of the floppy disk drive. Power Indicator Indicates when the power is on. Hard Disk Drive Activity LED Indicates when the hard disk drive is being accessed. Reset Button The PC is reset when this button is pressed. Vent Holes To take in cool air from the outside. -5- 2B586-226E 4-2 Rear Panel Power Input Connector Is connected to the AC power cord. Cooling Fan Generates airflow to cool the inside. Speaker Volume Control Enables you to adjust the sound level from the speaker on the inside front panel. GPIB Connector Is connected to the GPIB signal cable. Video Connector Is connected to the video signal cable from the monitor. Serial Port Connector1 Enables you to connect the communication signal cable from a host computer. (Optional) Parallel Port Connector Enables you to connect a Centronics-compatible parallel printer. Serial Port Connector2 Is connected to the signal cable from the touch screen on the monitor. Keyboard Connector Is connected to the keyboard. Mouse Connector Is not used. Voltage Selector Switch Sliding switch that selects the in…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 25, 2002 RE: FCC ID: QKPFC2710 Attention: Yukie Koyama I have a few comments on this Application. 1 Please note that the FCC does not allow mixing CISPR 22 limits and FCC limits. If an EUT is tested to CISPR then the radiated must also be tested to CISPR Limits. Your data shows that conducted was done to CISPR 22 and the radiated was done to FCC limits. Please correct the report to show that all limits are from the same standard either CISPR 22 or the limits listed in CFR47 Part 15. 2 Please note that FCC testing must be done in accordance with ANSI C63.4 following the minimum system configuration and diagrams. Please also note that your conducted and radiated emissions testing shows the monitor next to the computer, while the minimum system setup and diagrams show the monitor is to be on top of the Computer. Please provide setup photos that show compliance to ANSI C63.4. 3 Please note that this is an ITE and must follow section 11 of ANSI C62.4. This section states, “The monitor should be placed on top of the host, centered and flush with the front of the host, unless the host is not designed for such usage.” The EUT appears fully capable of supporting the Monitor. Please either retest with the Monitor on top of the EUT or please explain why you feel the EUT is not sufficiently strong enough or capable of having the monitor placed on top of it during testing. 4 Please separate the Confidentiality letter and the Power Of Attorney letter. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Subject: Re: request for info on QKPFC2710 Date: Tue, 27 Aug 2002 08:40:55 +0900 From: [email protected] To: [email protected] Hello Dennis, You sit up late working! Thank you very much for teaching. As we corrected the data in the applicable pages <Page4,12,13,14,15,16 and 17> of the testreport and uploaded through ATCB's website, could you check them? We hope we could clear every matter and get the certificate within today. Thank you. Very best regards, Yukie Koyama ::::::::::::::::::::::::::::: EMC Head Office Division A-Pex International Co.,Ltd. 4383-326 Asama-cho Ise-shi Mie-ken 516-0021 JAPAN TEL +81-596-24-8116 FAX +81-596-24-8124 E-mail:[email protected] ::::::::::::::::::::::::::::: --Original Message 2002/08/26 16:57:34-- Hi Yukie While the date of implementation on the changes to CFR 47 is typically60 days after publishing in Federal REgister, please note that the FCC has postponed this ammendment ot CFR 47 until September 9. This means that the lowering of the frequencies to 150kHz and the inclusion of CISPR limits as the CFR limtis will not take place till at least that time. Until then, the existing rules must be followed. This means that if CISPR 22 is used for conducted it must be used for radiated as well. Sorry. The good thing is the data is probably compliant either way, you just have to correct the data. In FR Doc. 0217264 the Commission is correcting the $B!)(JATES: Effective August 9, 2002 of the Commission$B!)(J rules to reflect the correct DATES: Effective September 9, 2002" Thanks Dennis [email protected] wrote: > Hello Dennis, > > As for the above application, I will answer your requests as follow: > > 1. We fully understood what you say. Thank you for your indication. > However, FCC Reports and Order, FCC 02-157, released on May 30 2002 permits > the employment of CISPR22 limits only with regard to the line conducted > emissions limit. Therefore, we believe our testreport is in accordance with > FCC Rules and Regulation. > > 2&3. We also have a clear understanding of your comments. Thank you. > In the first stage of measurements for this PC, we started the setup in > accordance with Figure 11 of ANSI C63. But we found now's setup in the test > setup photo has higher emission because of their arrangement of Cable > Hook-ups. Therefore, we decided the EUT layout which has highest emission > in accordance with FCC Rules section 15.31<i>. > > 4. I upload the divisive 4 files through ATCB's website. Could you check > them? > > We really hope to obtain this certificate soon. Your cooperation on this > project would be highly appreciated. Thank you very much. > > Best regards, > > Yukie Koyama > ::::::::::::::::::::::::::::: > EMC Head Office Division > A-Pex International Co.,Ltd. > 4383-326 Asama-cho Ise-shi > Mie-ken 516-0021 JAPAN > TEL +81-596-24-8116 > FAX +81-596-24-8124 > E-mail:[email protected] > ::::::::::::::::::::::::::::: > > --Original Message 2002/08/26 14:06:35-- > Attached is a request for in formation on the above application. > > Thanks > Dennis Ward > [email protected] > - 8-25-02 QKPFC2710 request for info.PDF

Subject: Re: request for info on QKPFC2710 Date: Tue, 27 Aug 2002 13:09:51 +0900 From: [email protected] To: [email protected] Hi Dennis, Please let me confirm. As for Item 2/3, I answered on yesterday's e-mail as follow: 2&3. We also have a clear understanding of your comments. Thank you. In the first stage of measurements for this PC, we started the setup in accordance with Figure 11 of ANSI C63. But we found now's setup in the test setup photo has higher emission because of their arrangement of Cable Hook-ups. Therefore, we decided the EUT layout which has highest emission in accordance with FCC Rules section 15.31<i>. Is above explanation not enough? Or should we submit the revised testreport which includes above explanation formally? Thank you for your cooperation. Best regards, Yukie Koyama ::::::::::::::::::::::::::::: EMC Head Office Division A-Pex International Co.,Ltd. 4383-326 Asama-cho Ise-shi Mie-ken 516-0021 JAPAN TEL +81-596-24-8116 FAX +81-596-24-8124 E-mail:[email protected] ::::::::::::::::::::::::::::: --Original Message 2002/08/27 13:13:26-- Hi Yukie thanks for the revised report. There is however, still an items that you have not addressed. Item 2/3 ask for either retesting with the proper ANSI recommended setup where the monitor is on top of the EUT, or an explanation as to why the EUT was of such design that it could not support the monitor. Once this is answered, I can issue the grant. thanks Dennis [email protected] wrote: > Hello Dennis, > > You sit up late working! > > Thank you very much for teaching. > As we corrected the data in the applicable pages <Page4,12,13,14,15,16 and > 17> of the testreport and uploaded through ATCB's website, could you check > them? > > We hope we could clear every matter and get the certificate within today. > Thank you. > > Very best regards, > > Yukie Koyama > ::::::::::::::::::::::::::::: > EMC Head Office Division > A-Pex International Co.,Ltd. > 4383-326 Asama-cho Ise-shi > Mie-ken 516-0021 JAPAN > TEL +81-596-24-8116 > FAX +81-596-24-8124 > E-mail:[email protected] > ::::::::::::::::::::::::::::: > > --Original Message 2002/08/26 16:57:34-- > Hi Yukie > While the date of implementation on the changes to CFR 47 is typically60 > days > after publishing in Federal REgister, please note that the FCC has > postponed > this ammendment ot CFR 47 until September 9. This means that the lowering > of > the frequencies to 150kHz and the inclusion of CISPR limits as the CFR > limtis > will not take place till at least that time. Until then, the existing > rules > must be followed. This means that if CISPR 22 is used for conducted it > must be > used for radiated as well. Sorry. The good thing is the data is probably > compliant either way, you just have to correct the data. > > In FR Doc. 0217264 the Commission is correcting the ?$B!)?(JATES: Effective > August > 9, 2002 of the Commission?$B!)?(J rules to reflect the correct DATES: Effective > September 9, 2002" > > Thanks > Dennis > > [email protected] wrote: > > > Hello Dennis, > > > > As for the above application, I will answer your requests as follow: > > > > 1. We fully understood what you say. Thank you for your indication. > > However, FCC Reports and Order, FCC 02-157, released on May 30 2002 > permits > > the employment of CISPR22 limits only with regard to the line conducted > > emissions limit. Therefore, we believe our testreport is in accordance > with > > FCC Rules and Regulation. > > > > 2&3. We also have a clear understanding of your comments. Thank you. > > In the first stage of measurements for this PC, we started the setup in > > accordance with Figure 11 of ANSI C63. But we found now's setup in the > test > > setup photo has higher emission because of their arrangement of Cable > > Hook-ups. Therefore, we decided the EUT layout which has highest emission > > in accordance with FCC Rules section 15.31<i>. > > > > 4. I upload the divisive 4 files through ATCB's website. Could you check > > them? > > > > We really hope to obtain this certificate soon. Your cooperation on this > > project would be highly appreciated. Thank you very much. > > > > Best regards, > > > > Yukie Koyama > > ::::::::::::::::::::::::::::: > > EMC Head Office Division > > A-Pex International Co.,Ltd. > > 4383-326 Asama-cho Ise-shi > > Mie-ken 516-0021 JAPAN > > TEL +81-596-24-8116 > > FAX +81-596-24-8124 > > E-mail:[email protected] > > ::::::::::::::::::::::::::::: > > > > --Original Message 2002/08/26 14:06:35-- > > Attached is a request for in formation on the above application. > > > > Thanks > > Dennis Ward > > [email protected] > > - 8-25-02 QKPFC2710 request for info.PDF

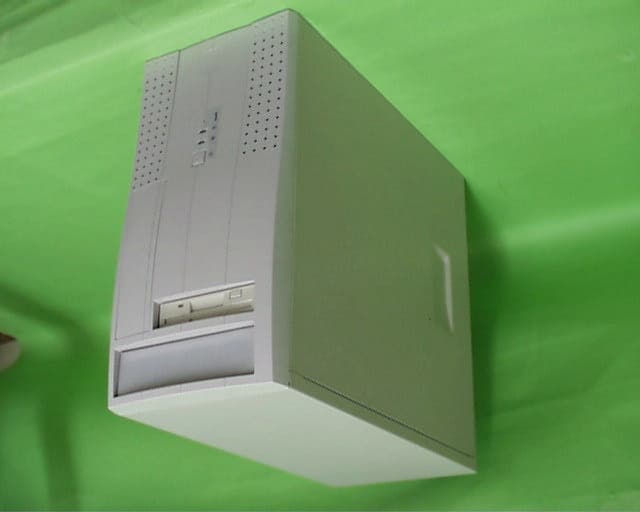

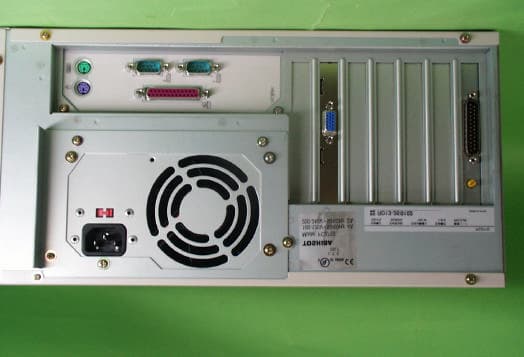

TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) External photos Front view TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Back view TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Side view

Inside the PC Mother Board HDD and FDD Power Supply Unit GPIB Board (Same board as used in the current PC) Video Board FCC Label Location

TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Internal photos CPU<Top view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) CPU<Back view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) FDD<Top view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) FDD<Front view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) FDD<Back view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) FDD<Bottom view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) HDD<Front view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) HDD<Back view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) HDD<Top view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) HDD<Bottom view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Printer board<Front view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Printer board<Top view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Printer board<Bottom view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Video Board<Front view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Video Board<Top view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Video Board<Bottom view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Power unit<Top view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Power unit<Front view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Power unit<Back view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Inside view from bottom TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC IDQKPFC2710) Inside view from Top

TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC ID: QKPFC2710) GPIB board<Front view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC ID: QKPFC2710) GPIB board<Top view> TOSHIBA CORPORATION MEDICAL SYSTEMS COMPANY Personal Computer (FCC ID: QKPFC2710) GPIB board<Bottom view>

Test report No. : 23AE0010-YW-1 FCC ID: : QKPFC2710 Page : 2 of 20 Issued date : August 19, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(23.04.02) CONTENTS PAGE SECTION 1 : Client information 3 SECTION 2 : Equipment under test (E.U.T.) 3 SECTION 3 : Test specification, procedures and results 4 SECTION 4 : Operation of E.U.T. during testing 5 SECTION 5 : Conducted emission 7 SECTION 6 : Radiated emission 8 Contents of Appendixes 9 APPENDIX 1: Photographs of test setup 10 APPENDIX 2: Data of EMI test 12 APPENDIX 3: Test Instruments 20 Test report No. : 23AE0010-YW-1 FCC ID: : QKPFC2710 Page : 3 of 20 Issued date : August 19, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(23.04.02) SECTION 1: Client information Company Name : Toshiba Corporation Medical Systems Company Brand Name : TOSHIBA Address : 1385 Shimoishigami, Otawara-shi, Tochigi-ken 324-8550 JAPAN Telephone Number : +81 287 26 6242 Facsimile Number : +81 287 26 6054 Contact Person : Hitoshi Shibutani SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Personal Computer Brand name : TOSHIBA Model No. : FC2710 Serial No. : R013-260102 Rating : AC 100-120V/ AC 200-240V, 50Hz/ 60Hz Country of Manufacture : Japan Receipt Date of Sample : August 8, 2002 Condition of E.U.T. : Production model 2.2 Product description Model: FC2710, referred to as the EUT in this report, is the Personal Computer designed for a data processing unit of automated biochemical analyzer. Dimension: 363(W) x 406(D) x 181(H) mm Weight: 11 kg The clock frequency used in the EUT as follows: Unit Device OSC Freq. Input Freq. Operation Freq. CPU - 66.6MHz 566MHz PLL - 33.3MHz 33.3MHz PLL System Controller - 66.6MHz 66.6MHz 14.31818MHz - 14.31818MHz - - 33.3MHz PLL - - 48MHz PLL OSC - - 66.6MHz PLL 32.768kHz - 32.768kHz - 48MHz 48MHz - 33.3MHz 33.3MHz - 14.31818MHz 14.31818MHz I/O Controller - 33.3MHz 8.325MHz PLL EC 8.00MHz - 8.00MHz Main Board Super I/O - 14.31818MHz 14.31818MHz Video Board Video Controller 14.31818MHz - 40MHz PLL Test report No. : 23AE0010-YW-1 FCC ID: : QKPFC2710 Page : 4 of 20 Issued date : August 19, 2002 Revised date : August 26, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(23.04.02) SECTION 3: Test specification, procedures and results 3.1 Test Specification Test Specification : FCC Part 15 Subpart B Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures & results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4:2000 Class B N/A 6.6 dB (7.8032MHz: N) Complied Radiated emission ANSI C63.4:2000 Class B N/A 1.6 dB (465.57MHz: Horizontal) Complied 3.3 Additions or deviations to standards No addition, deviation or exclusion has been made from standards. 3.4 Confirmation A-Pex International Co., Ltd. hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part 15 Subpart B Class B. 3.5 Uncertainty Conducted emission test The measurement uncertainty (with a 95% confidence level) for this test was ±2.0dB. The data listed in this test report has enough margin, more than site margin. Radiated Emission Test (3m) The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.4dB. The data listed in this test report has enough margin, more than site margin. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±4.8dB. The data listed in this test report may exceed the test limit because it does not have enough margin. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±5.8dB. The data listed in this test report has enough margin, more than site margin. 3.6 Test Location A-Pex International Co.,Ltd. Yokowa No.2 test site and Shielded room (No.2 site) 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan Telephone number : +81-596-39-1485 Facsimile number : +81-596-39-0232 This site has been fully described in a report submitted to FCC office, and listed on October 26, 2000(Registration number: 90411). *NVLAP Lab. code : 200109-0 3.7 Test setup, Data of EMI & Test instruments Refer to Appendix 1 to 3. Test report No. : 23AE0010-YW-1 FCC ID: : QKPFC2710 Page : 5 of 20 Issued date : August 19, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(23.04.02) SECTION 4: Operation of E.U.T. during testing 4.1 Operating Modes The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. Test sequence is used: Running mode, Floopy Running, Hard Disk Running, Standby 1. FDD and HDD read/ write operations 2. 15 inch LCD with touch secreen operations Justification: The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2 Configuration and peripherals :Ferrite Core A: EUT AC 120V/60Hz B AC 100V/60Hz 5 C D 8 2 3 1 4 E 7 6 9 AC 100V/60Hz *Cabling was taken into consideration and test data was taken under worse case conditions. Test report No. : 23AE0010-YW-1 FCC ID: : QKPFC2710 Page : 6 of 20 Issued date : August 19, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(23.04.02) Description of EUT and Support equipment No. Item Model number Serial number Manufacturer FCC ID A Personal Computer FC2710 R013-260102 TOSHIBA QKPFC2710 B Keyboard FKB8720 SERIES Q9000002 Microsoft C9SKB8720 C LCD Touch Monitor 41-81367-112 48590219TA00095 3M…

Text truncated - open the document above for the full version.

Test report No. : 23AE0010-YW-1 FCC ID: : QKPFC2710 Page : 10 of 20 Issued date : August 19, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(23.04.02) Conducted emission Photograph 1 Photograph 2 Test report No. : 23AE0010-YW-1 FCC ID: : QKPFC2710 Page : 11 of 20 Issued date : August 19, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(23.04.02) Radiated emission Photograph 1 Photograph 2
