QKUHXTC-3001X'mas RF Remote Controller

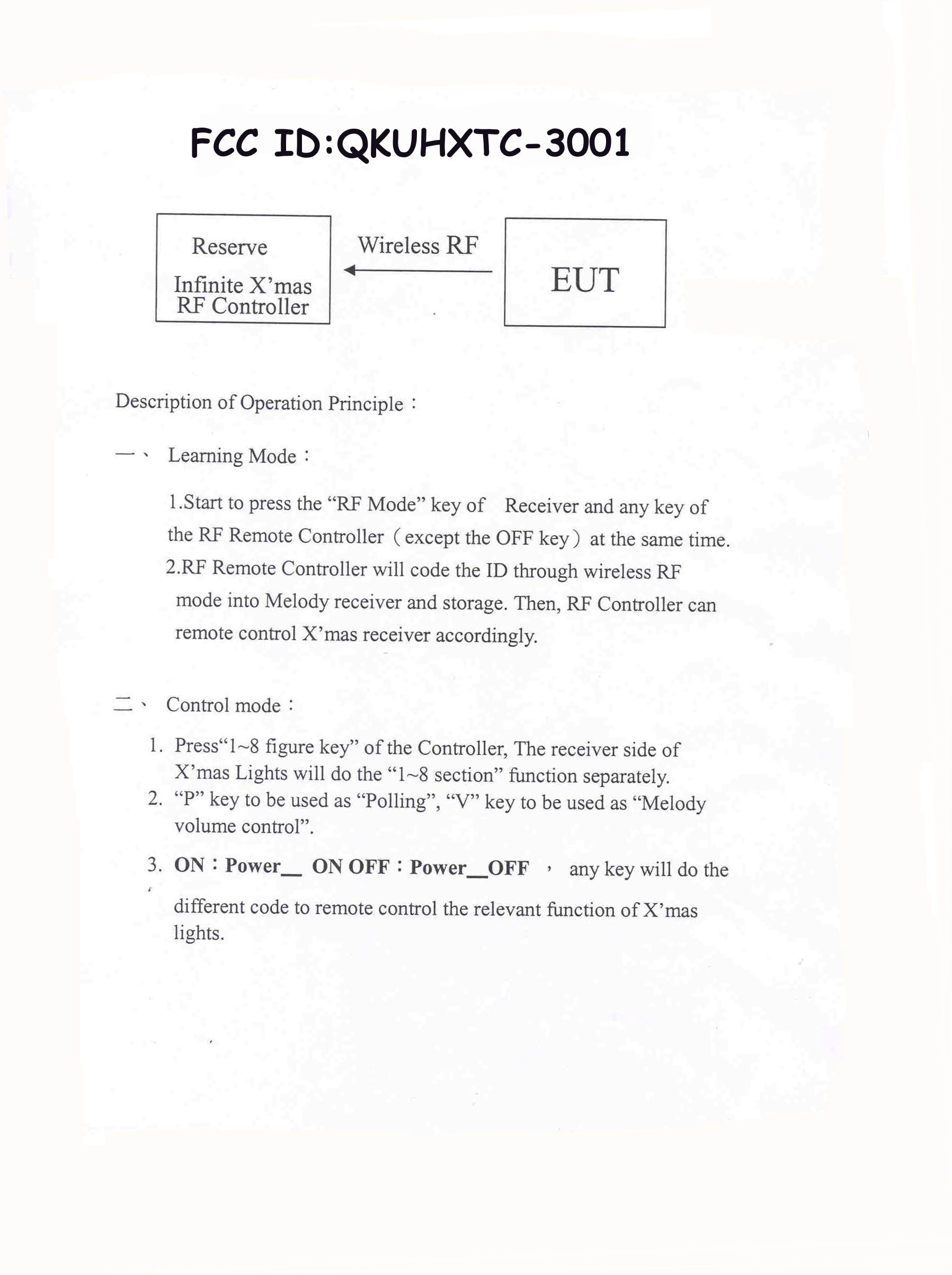

- 1 - HWIN HUGEWIN ELECTRONIC CO., LTD X’mas RF Remote Controller Function & Specification & USER MANUAL FCC ID: QKUHXTC-3001 Co. Address: No.293 Hwa-Shin St. Chu-Pei City, Hsin-Chu 302 Taiwan Factory Address: No.9 Fu-Guei St. Ju-Dung, Hsin-Chu 310 Taiwan Tel: +886-3-5827899 FAX: +886-3-5836582 Web: www.hugewin.com.tw - 2 - HWIN HUGEWIN ELECTRONIC CO., LTD. User manual for X’mas RF Remote Controller I. HXTC-3001 - 12 Keys X’mas RF Remote Controller A 1. There are 12 keys in the front side and only 8 figure keys (1-8) to be available to control melody or choose lighting flash mode. 2. Pkey to be used asPollingto choose different melody or lighting flash mode. 3. Vkey to be used as the melody’s volume control. 4. ONkey to be used as “power on”. - 3 - 5. OFFkey to be used as “power off”. 6. OFFkey to be also used as “clear” function, when the “OFF” key and the “RF MODE” key to be pressed at the same time. 1. Mode: HXTC-3001 2. Key: 12 Sets 3. RF Frequency: 315 M Hz 4. RF Power: around -15dbm -25dbm 5. Input voltage: DC 12V 6. Working Current0.8mA 7. Color: different color selection. 8. Modulation: ASK 9. ta050 Learning Mode 1. Start to press the RF MODEkey of receiver and any key of RF Remote Controller(except OFF key) at the same time. 2. The lighting will be flashing 3-4 seconds and learning mode to be finished. Leave Learning Mode 1. Start to press the RF MODEkey of receiver and theOFFkey of RF Remote Controller at the same time. 2. The lighting will be flashing 3-4 seconds and leave learning mode to be finished. Operation 1. When finish the learning mode, and then you can use it as you wish accordingly. Caution 1. Please don't put battery inside Controller, when it is not used any more. 2. Please put upper cover back after replace battery. 3. Please don't put Controller in the Moist place. - 4 - FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment

Zener 5.1V CPU KEY RF Tx Modular

C:\windows\TEMP\probonholdemail.doc TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: tei@t imcoengr.com September 13, 2002 FCC SUBJECT: HUGEWIN ELECTRONIC (TAIWAN) CO., LTD. FCC ID: QKUHXTC- 3001 REFERENCE: JOB #: 784TC2 To whom it may concern: While reviewing this job, the customer requested a new Grantee Code. The Test Laboratory updated all documents, including FCC Label, etc., to include the new Grantee Code. However, the page number of the Test Report, which is located on the bottom right hand corner of each page, was overlooked. All other documents were updated correctly. For your information, the old (incorrect) Grantee Code was: QHT. Sincerely, Frank (for) Sid Sanders

FCC ID : QKUHXTC-3001 FRONT SIDE OF EUT Number 1 FCC ID : QKUHXTC-3001 REAR SIDE OF EUT Number 2

FCC ID : QKUHXTC-3001 The following statement will be placed in the User’s Manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID : QKUHXTC-3001 FCC ID LOCATION

FCC ID : QKUHXTC-3001 Number 1 Mechanical Construction FCC ID : QKUHXTC-3001 Number 2 Mechanical Construction FCC ID : QKUHXTC-3001 Number 3 REAR side of Main Board FCC ID : QKUHXTC-3001 Number 4 Front side of Main Board

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:16-Jul-2002Sheet of File:E:\5¤ë¥÷\ ̧t½ÏÁn¥ú±± ̈î\ ̧t½Ï¿O12key»»±±¾¹\12KEY.ddbDrawn By: C4 30P C3 30P S1 SW S2 SW S3 SW S12 SW S4 SW S6 SW S5 SW S11 SW S10 SW S9 SW S8 SW S7 SW Q1 PNP3906 Z1 5.1V C1 104 +12V VCC R2 7.5K R3 680 1234 8765 RP1 10K,8P4R 1234 8765 RP2 10K,8P4R 1234 8765 RP3 10K,8P4R Y1 3.5795MHZ RA0 17 RA1 18 RA2 1 RA3 2 RB0 6 RB1 7 RB2 8 RB3 9 RB4 10 RB5 11 RB6 12 RB7 13 MCLR/VPP 4 OSC1/CLKIN 16 T0CKI 3 OSC2/CLKOUT 15 U1 PIC16C56HSI/P(18)C2 104 R4 1k VCC P1 S6 S5 ON V OFF S6 S5 ON P1 V S7 S3 S1 S7 S3 S1 P1 S8 S4 S2 S8 S4 S2 P1 RFOUT OFF ON V 1 2 3 4 JP1 RFTX 12V AT1 ANTENNA RFOUT R1 220 R5 150 RD-91105300500 ̧t½Ï¿O12KEY»»±±¾¹ FOR PCB_RD-91115300500 FCC ID: QKUHXTC-3001

FCC TEST REPORT Report No. : F262502 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : X’mas RF Remote Controller Model No. : HXTC-3001 FCC ID : QKUHXTC-3001 Filing Type : Certification Applicant : HUGEWIN ELECTRONICS CO., LTD. No. 293, Hwa-Shing Street, Chu-Pei City, Hsin-Chu Hsien, 302 Taiwan, R.O.C. ??The test result refers exclusively to the test presented test model / sample. ??Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ??Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F262502 SPORTON International Inc. FCC ID : QHTHXTC-3001 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Jul. 15, 2002 Table of Contents History of this test report.........................................................................................................ii CERTIFICATE OF COMPLIANCE..............................................................................................................1 1. General Description of Equipment under Test.....................................................................................2 1.1. Applicant.......................................................................................................................................................................................2 1.2. Manufacturer.................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test...................................................................................................................................2 1.4. Feature of Equipment under Test..................................................................................................................................................2 2. Test Configuration of Equipment under Test.......................................................................................3 2.1. Test Manner..................................................................................................................................................................................3 2.2. Description of Test System...........................................................................................................................................................3 2.3. Connection Diagram of Test System.............................................................................................................................................4 2.4. A plot shows the EUT meet the requirement of 15.231(c).............................................................................................................5 3. Test Software.......................................................................................................................................6 4. General Information of Test.................................................................................................................7 4.1. Test Facility...................................................................................................................................................................................7 4.2. Standard for Methods of Measurement.........................................................................................................................................7 4.3. Test in Compliance with................................................................................................................................................................7 4.4. Frequency Range Investigated......................................................................................................................................................7 4.5. Test Distance................................................................................................................................................................................7 5. Test of Conducted Powerline...............................................................................................................8 6. Test of Radiated Emission...................................................................................................................9 6.1. Major Measuring Instruments........................................................................................................................................................9 6.2. Test Procedures..........................................................................................................................................................................10 6.3. Typical Test Setup Layout of Radiated Emission........................................................................................................................11 6.4. Test Result of Radiated Emission...............................................................................................................................................12 7. Antenna Factor & Cable Loss.............................................................................................................18 8. EMI Suppression Component List.......................................................................................................19 9. List of Measuring Equipments Used...................................................................................................20 10. Uncertainty of Test Site.....................................................................................................................21 Appendix A. Photographs of EUT.......................................................................…

Text truncated - open the document above for the full version.

0 span plot FCC ID : QKUHXTC-3001

FCC TEST REPORT Report No. : F262502 SPORTON International Inc. FCC ID : QKUHXTC-300 1 TEL : 886-2-2696-2468 Page No. : 1 of 1 FAX : 886-2-2696-2255 Issued Date : Jul, 16, 2002 1.1. Photographs of Radiated Emission Test Configuration ??The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
