QKZPLTRC5M2 Button Remote Control

INSTRUCTION MANUAL DANGER:ELECTRICAL REMOTE CONTROL SOCKET CAN BE HAZARDOUS * Misuse Can RESULT In FIRE or DEATH by ELECTRICAL SHOCK Please READ BOTH SIDES Carefully and Follow All Directions. BEFORE USE *.Use Only With Christmas decorative lighting, and Other Seasonal-Use Lighting products. *.For Temporary Use Only (Not to Exceed 90 Days). * FOR INDOOR USE ONLY. *.Inspect Thoroughly Before Each Use. DO NOT USE IF DAMAGED. *.This Remote Control Socket is Rated 5 Amps max.. DURING USE *.keep Away From Water. * DO NOT USE WHEN WET. *.Keep children and pets Away From Remote control socket. AFTER USE .* GRASP PLUG to Remove From Outlet. .* Always Unplug When Not In Use. DO NOT REMOVE THIS TAG CAUTION -This Remote Control set is for use with Christmas decorative lighting sets only. -This Remote Control set is Rated 5 Amps max. -Made in China FCC ID: QKZPLTRC5M MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Modifications not authorized by the manufacturer may void users authority to operate this device” NOTE: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, these is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

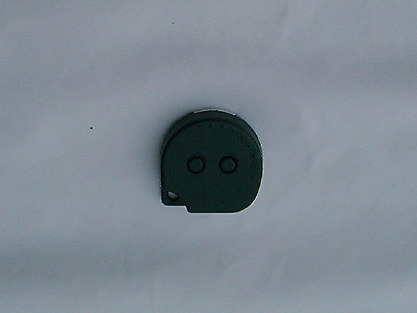

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID QKZPCTRC5M FCC ID: QKZPLTRC5M

FCC ID: QKZPLTRC5M FCC ID Label

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

MODEL: PLTRC5M Circuit Description The 315MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC (C5882). The output of Q1 has the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AG13” x 2) primary storage cell.

Date: 2002-07-23 TEST REPORT Page 1 of 23 No.: HM108168 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM108168 Equipment Under Test [EUT]:Remote Control Model Number:PLTRC5M Applicant:Forests Manufacturing Ltd. FCC ID :QKZPLTRC5M Date: 2002-07-23 TEST REPORT Page 2 of 23 No.: HM108168 CONTENT: Cover Page 1 of 23 Content Page 2-3 of 23 Conclusion Page 4 of 23 1.0General Details 1.1Test Laboratory Page 5 of 23 1.2Applicant Details Page 5 of 23 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 23 Description of EUT operation 1.4Date of Order Page 6 of 23 1.5Submitted Sample Page 6 of 23 1.6Test Duration Page 6 of 23 1.7Country of Origin Page 6 of 23 1.8 Additional Information of EUT Page 7 of 23 2.0Technical Details 2.1Investigations Requested Page 8 of 23 2.2Test Standards and Results Summary Page 8 of 23 3.0Test Results 3.1Emission Page 9-13 of 23 3.2Bandwidth Measurement Page 14-15 of 23 Date: 2002-07-23 TEST REPORT Page 3 of 23 No.: HM108168 Appendix A List of Measurement Equipment Page 16 of 23 Appendix B Duty Cycle Correction During 100 msec Page 17-18 of 23 Appendix C Periodic Operation Page 19 of 23 Appendix D Modification Method Page 20 of 23 Appendix E Photographs Page 22-23 of 23 Date: 2002-07-23 TEST REPORT Page 4 of 23 No.: HM108168 CONCLUSION The submitted product was deemed to have COMPLIED after modification with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2002-07-23 TEST REPORT Page 5 of 23 No.: HM108168 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant FORESTS MANUFACTURING LTD. 7/Fl., Rainbow Ind. Building, No. 149 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Telephone:852 2798 5769 Fax:852 2243 2280 HKSTC Code Number for ApplicantFOM005 Manufacturer MICON ELECTRONIC (H.K.) LTD. 1903, Treasure Centre, 42 Hung To Road, Kwun Tong, Hong Kong. Telephone:0760 6694706 Fax:0760 6694705 Date: 2002-07-23 TEST REPORT Page 6 of 23 No.: HM108168 1.3Equipment Under Test [EUT] Description of Sample Product:Remote Control Manufacturer:Micon Electronic (H.K.) Ltd. Brand Name:BRIGHTFORESTS Model Number:PLTRC5M Input Voltage:3Vd.c (“AG13” size battery x 2) 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is an Forests Manufacturing Ltd., Remote Control. The EUT is to transmit RF signal while each button is being, Modulation by Data Code tape is pulses modulation. 1.4Date of Order 2002-06-26 1.5Submitted Sample(s): 2 Samples per model 1.6Test Duration 2002-07-11 1.7Country of Origin China Date: 2002-07-23 TEST REPORT Page 7 of 23 No.: HM108168 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2002-07-23 TEST REPORT Page 8 of 23 No.: HM108168 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231aANSI C63.4:2000N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2002-07-23 TEST REPORT Page 9 of 23 No.: HM108168 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.231a Test Method:ANSI C63.4:2000 Test Date:2002-07-11 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarization. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2002-07-23 TEST REPORT Page 10 of 23 No.: HM108168 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.231a]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz][μV/m][μV/m] 40.66-40.701,000100 70-13050050 130-174500 to 1,500 *50 to 150 * 174-2601,500150 260-4701,500 to 5,000 *150 to 500 * Above 4705,000500 ** Linear interpolations Where F is the frequency in MHz, the formula for calculating the maximum permitted fundamental field strengths are as follows: for the band 130-174 MHz, μV/m at meters=56.81818(F)-6136.3636; for the band 260-470 MHz, μV/m at 3 meters =41.6667(F)-7083.3333. The maximum permissible unwanted emission level is 20dB below the maximum fundamental level. Results: CorrectionLimit **Antenna Factor @3mPolarity dB μ V/m μ V/m 314.9055.817.072.84365.260,375.1Horizontal Field Strength Measured dB μ V/m μ V/m Field Strength of Fundamental Emissions Peak Value Frequency Level @3m Field Strength MHzdB μ V/m CorrectionLimit @3mAntenna FactorPolarity dB μ V/m μ V/m 629.8031.425.556.9699.86,037.5Horizontal 944.…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
